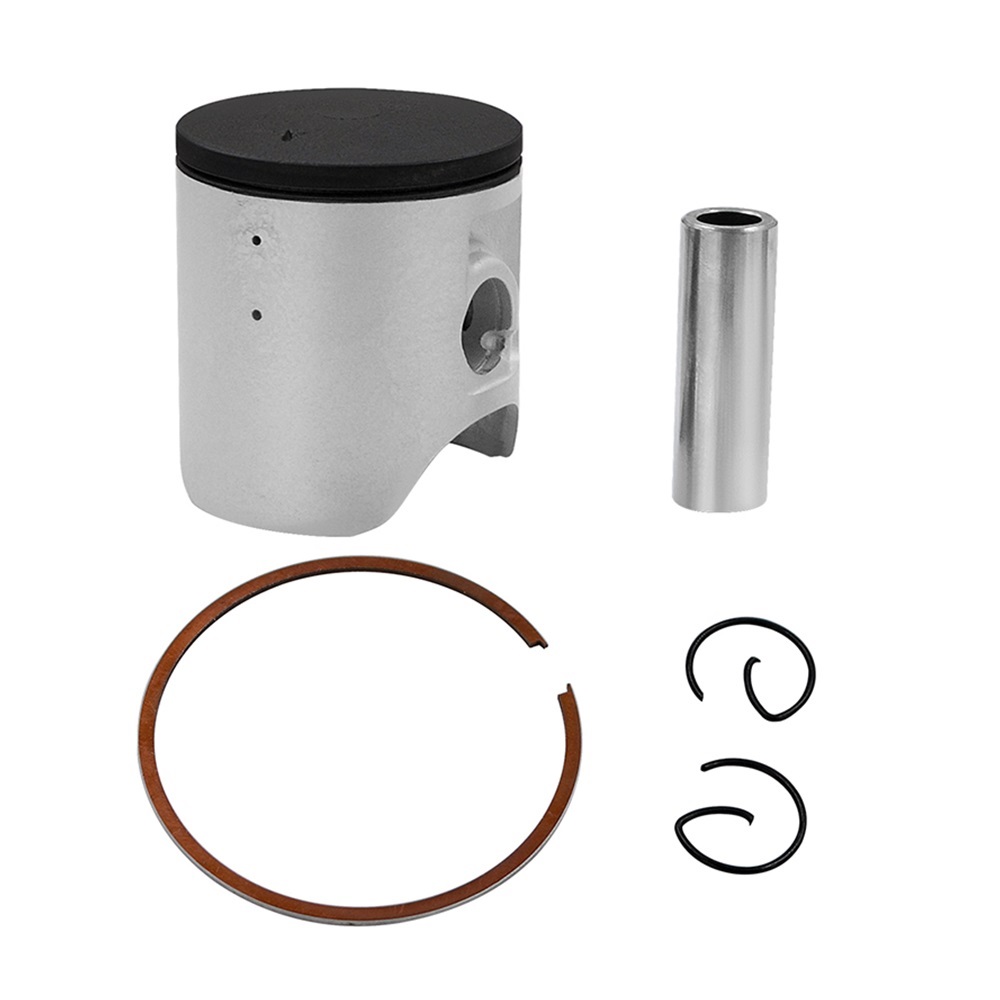

Installation Instructions for 54mm Piston Rings Kit Compatible with YZ125 Models (1997-2004)

Tools Needed:

1. Socket Wrench Set
2. Torque Wrench
3. Phillips and Flathead Screwdrivers
4. Piston Ring Installer Tool (optional but recommended)
5. Oil for Lubrication
6. Clean Rags or Shop Towels
7. Piston Pin Puller (if needed)
8. Snap Ring Pliers (for circlips)
9. Goggles and Gloves (for safety)

Installation Steps:

1. Preparation:

   • Make sure you have a clean workspace and gather all the necessary tools.
   • Ensure the motorcycle is turned off and cool before beginning any work.

2. Remove the Cylinder Head:

   • Use a socket wrench to remove the bolts securing the cylinder head. Carefully lift off the head, and set it aside.

3. Remove the Cylinder:

   • Detach the cylinder from the engine by unscrewing the bolts. Be cautious, as the cylinder may be stuck due to carbon build-up. Gently wiggle to free it.

4. Remove Old Piston Rings:

   • Using the piston pin puller, remove the piston pin and detach the piston from the connecting rod.
   • Remove the old piston rings. You can use the snap ring pliers if needed.

5. Install New Piston Rings:

   • Lubricate the new piston rings with oil for an easy install.
   • Carefully install the new rings onto the piston, ensuring they are seated properly without twisting.

6. Reattach the Piston:

   • Align the piston correctly in the cylinder and reinsert the piston pin. Secure the pin with snap rings if necessary.

7. Reinstall the Cylinder:

   • Position the cylinder back onto the engine and securely fasten it with the bolts. Make sure to follow torque specifications for proper installation.

8. Reattach the Cylinder Head:

   • Place the cylinder head back onto the cylinder and tighten the bolts uniformly. Refer to the torque specifications provided by your motorcycle's manual.

9. Final Checks:

   • Make sure all tools are removed from the engine area.
   • Check for any leaks or loose connections before starting the motorcycle.

10. Startup:

• Start the motorcycle and allow it to warm up for a few minutes. Observe for any abnormal sounds or performance issues.

Maintenance Tips:

• Regularly check and replace piston rings to enhance engine performance and longevity.
• Keep up with routine maintenance to ensure your motorcycle operates safely and efficiently.

By following these instructions and using the recommended tools, you can successfully install the 54mm piston rings kit, enhancing your motorcycle's performance and extending its life.
