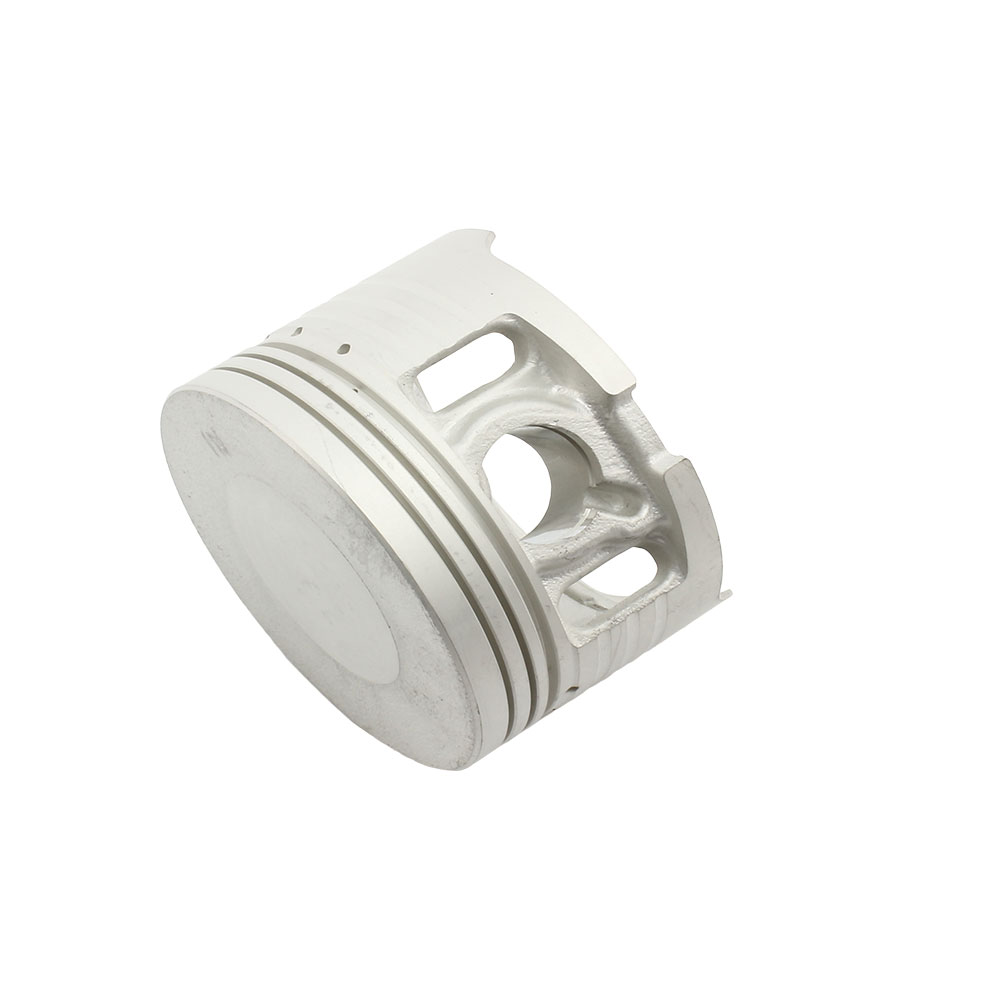

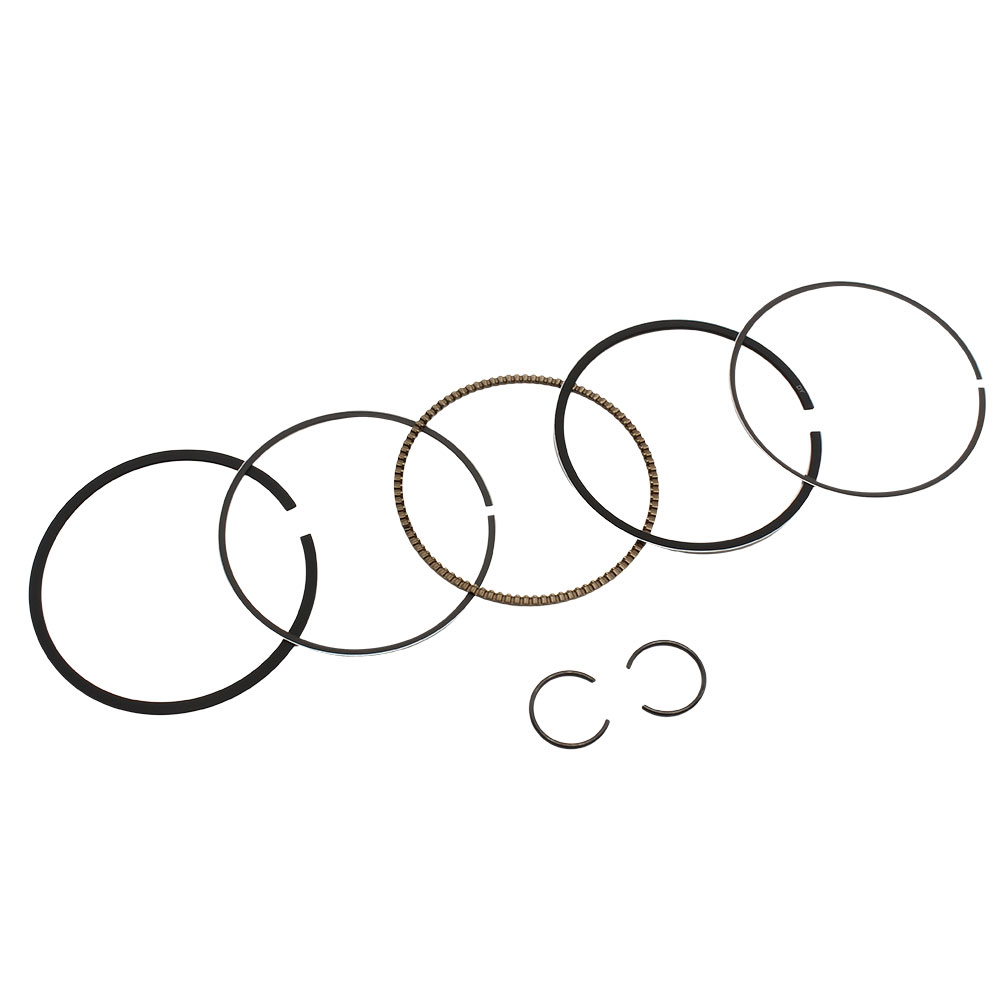

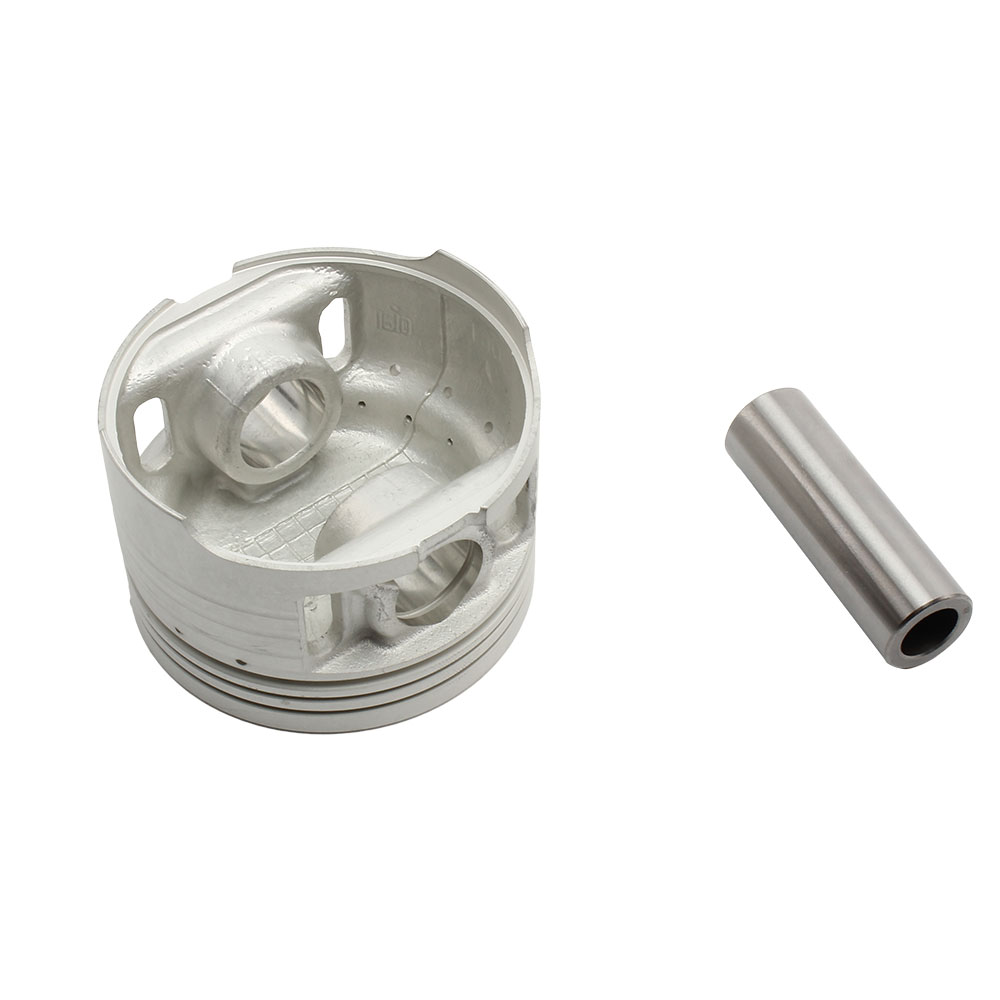

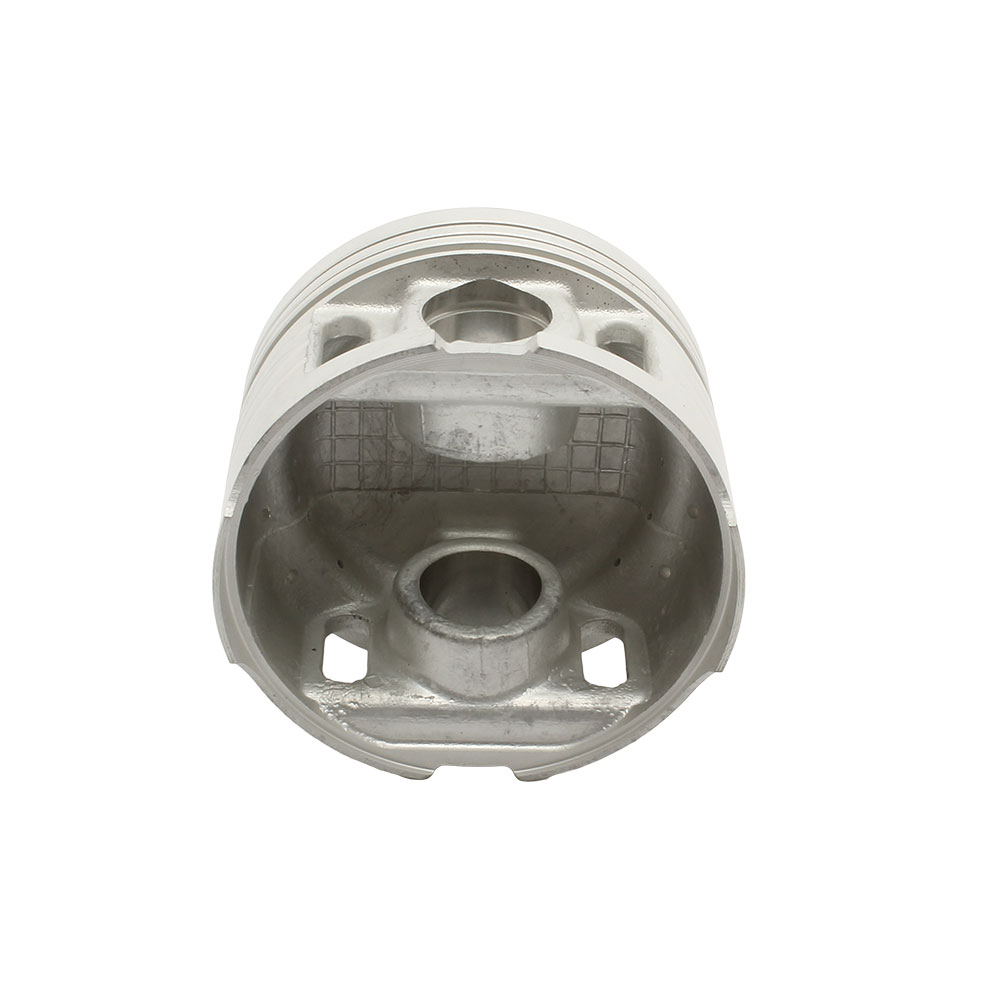

Installation Instructions for 150cc ATV Dirt Bike Engine Piston Kit 56.5mm with 14mm Pin and Rings

Tools Required:

1. Socket wrench set
2. Torque wrench
3. Screwdriver set (flathead and Phillips)
4. Piston ring compressor
5. Circlip pliers
6. Engine oil or assembly lubricant
   7.Clean cloth or rag
7. Safety goggles
   9.Gloves

Installation Steps:

1. Preparation:

   • Ensure you have a clean working environment.
   • Gather all necessary tools and parts, including the new piston kit and relevant engine components.
   • Wear safety goggles and gloves to protect yourself during the installation.

2. Remove the Engine from the ATV:

   • Follow your ATV manufacturer's guidelines to safely remove the engine from the frame.
   • Disconnect all electrical connections and fuel lines carefully.

3. Disassemble the Cylinder Head:

   • Using the appropriate socket wrench, remove the cylinder head bolts.
   • Lift the cylinder head off carefully.

4. Remove the Old Piston:

   • Locate the circlips securing the existing piston. Use the circlip pliers to remove them.
   • Detach the old piston from the connecting rod by sliding it out.

5. Prepare the New Piston:

   • Apply a thin layer of engine oil or assembly lubricant to the new piston and piston rings.
   • Use the piston ring compressor to carefully compress the piston rings if needed.

6. Install the New Piston:

   • Slide the new piston onto the connecting rod, ensuring proper alignment.
   • Secure the piston by re-installing the circlips using the circlip pliers.

7. Reassemble the Cylinder:

   • Place the cylinder back onto the engine block.
   • Tighten the cylinder head bolts to the specified torque using a torque wrench.

8. Check Everything:

   • Before reinstalling the engine, double-check that all bolts and connections are secure.
   • Ensure there are no foreign objects inside the engine.

9. Reinstall the Engine:

   • Carefully place the engine back into the ATV frame, reconnecting all electrical connections and fuel lines as per the manufacturer's instructions.

10. Final Checks:

    • Check the oil level and top up if necessary.
    • Start the engine and let it idle for a few minutes while checking for leaks or irregular noises.

Congratulations! You have successfully installed the 150cc ATV Dirt Bike Engine Piston Kit. Enjoy improved performance and efficiency!
