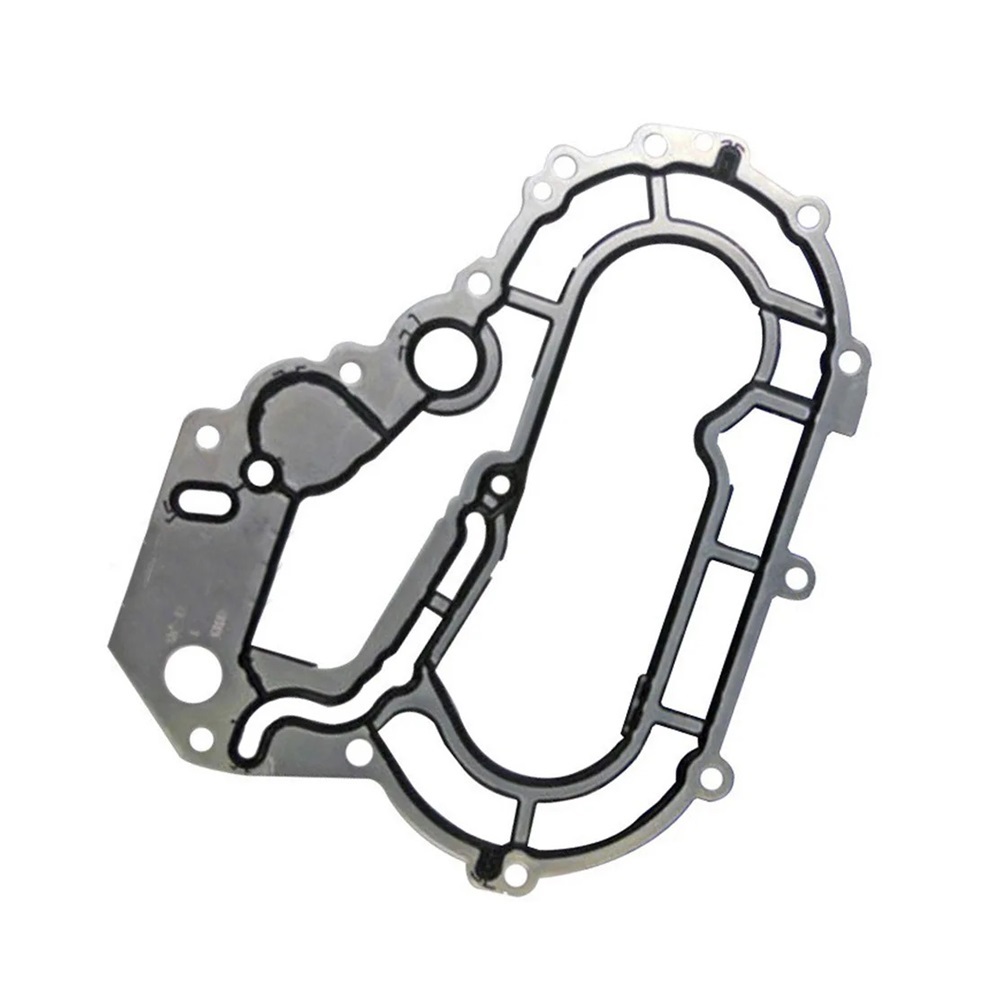

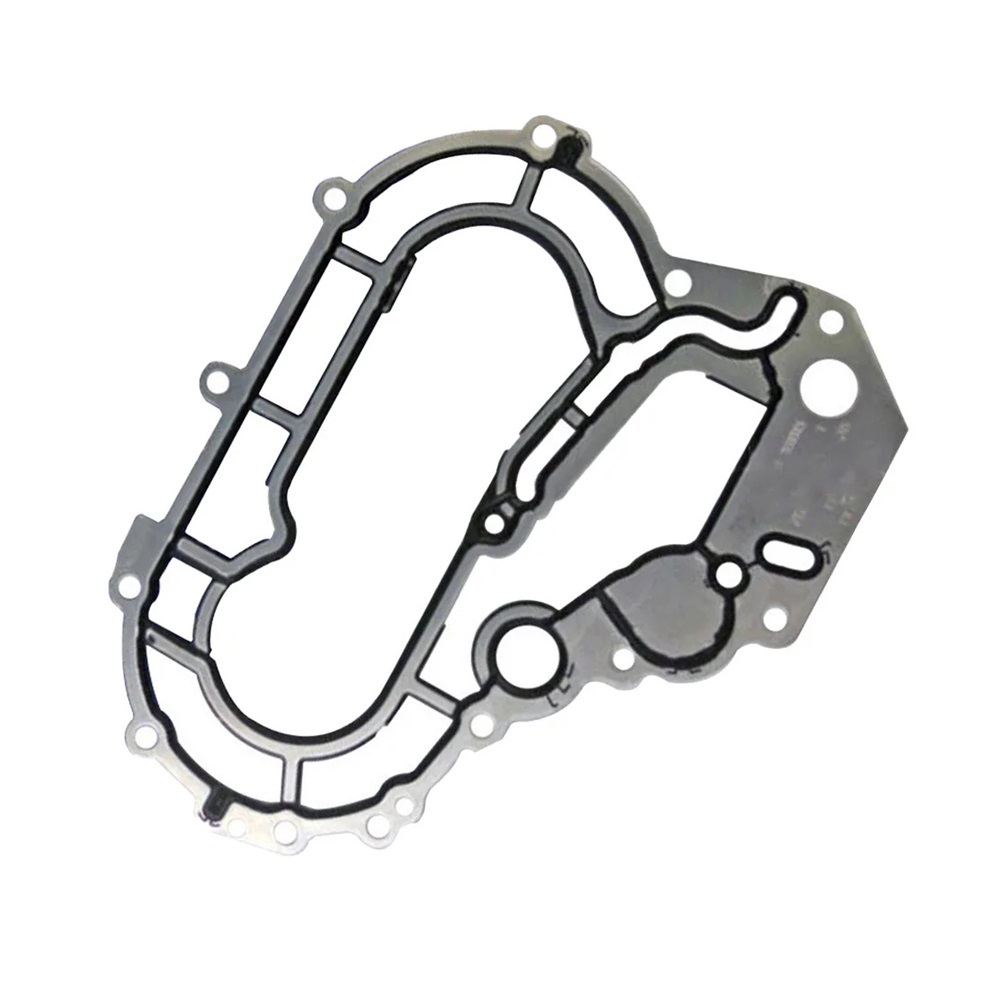

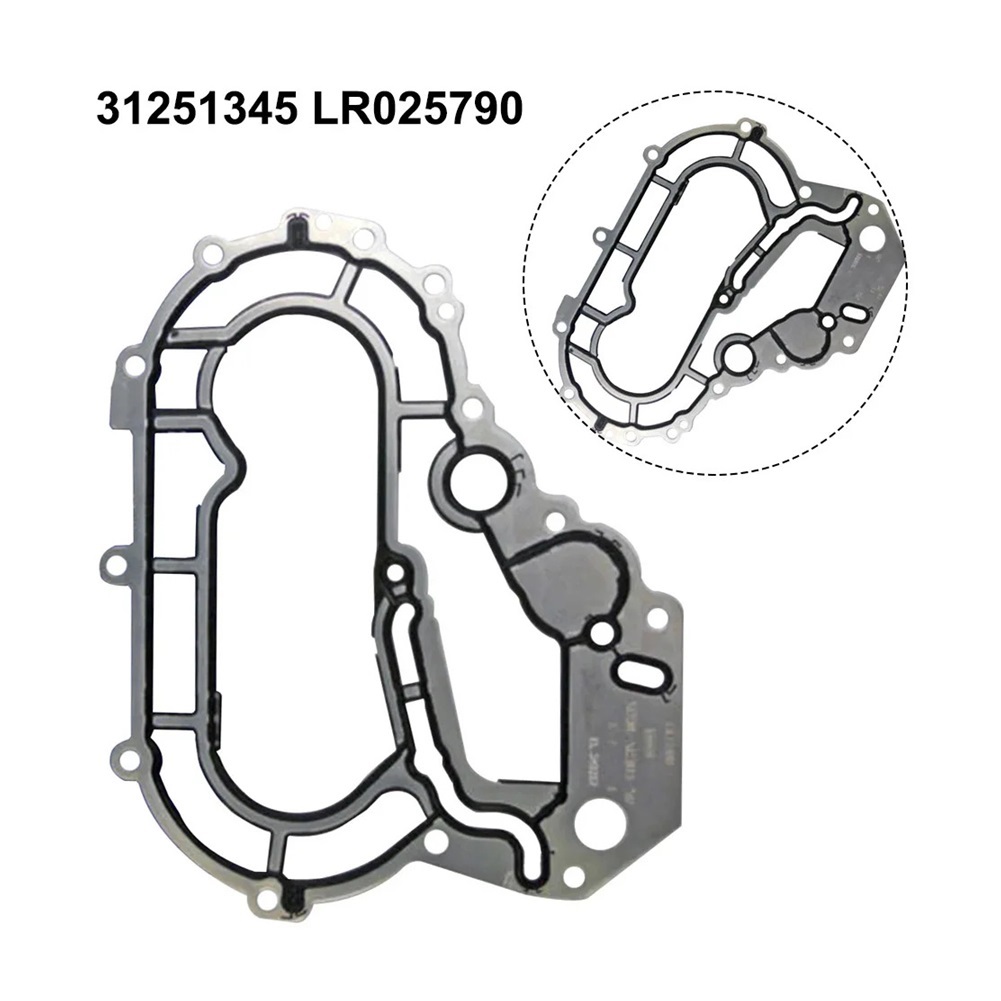

Installation Instructions for Engine Timing Cover Gasket Compatible with S60 S80 V60 V70 XC60 XC70 XC90 (2007-2016)

Tools Required:

1. Socket set (including both metric and standard sizes)
2. Torque wrench
3. Screwdrivers (flathead and Phillips)
4. Pliers
5. Gasket scraper or putty knife
   6.Clean rag or cloth
6. Engine oil (for lubricating the new gasket)
7. Safety glasses
   9.Gloves

Installation Steps:

1. Preparation:

   • Ensure the engine is cool before starting the installation.
   • Disconnect the negative terminal of the battery to avoid any electrical accidents.

2. Remove the Old Gasket:

   • Use a gasket scraper to carefully remove the old gasket material from the timing cover and the engine block. Avoid scratching the surfaces.
   • Clean the surfaces thoroughly with a rag to remove any debris or oil.

3. Install the New Gasket:

   • Lightly lubricate the new metal gasket with engine oil to ensure proper sealing.
   • Align the gasket properly on the timing cover, ensuring all holes line up.

4. Reattach the Timing Cover:

   • Carefully position the timing cover back onto the engine while keeping the gasket in place.
   • Secure the timing cover with bolts using the socket set.

5. Torque the Bolts:

   • Using a torque wrench, tighten the bolts to the manufacturer's specified torque settings to ensure a proper seal.

6. Final Checks:

   • Inspect the installation to ensure that everything is fitted securely without any gaps.
   • Reconnect the negative battery terminal.

7. Testing:

   • Start the engine and allow it to run for a few minutes.
   • Check for any oil leaks around the timing cover area to confirm a successful installation.

Conclusion:
Congratulations! You have successfully installed the Engine Timing Cover Gasket. Enjoy enhanced engine performance and durability. If you encounter any issues during the installation, refer to a professional mechanic for assistance.
