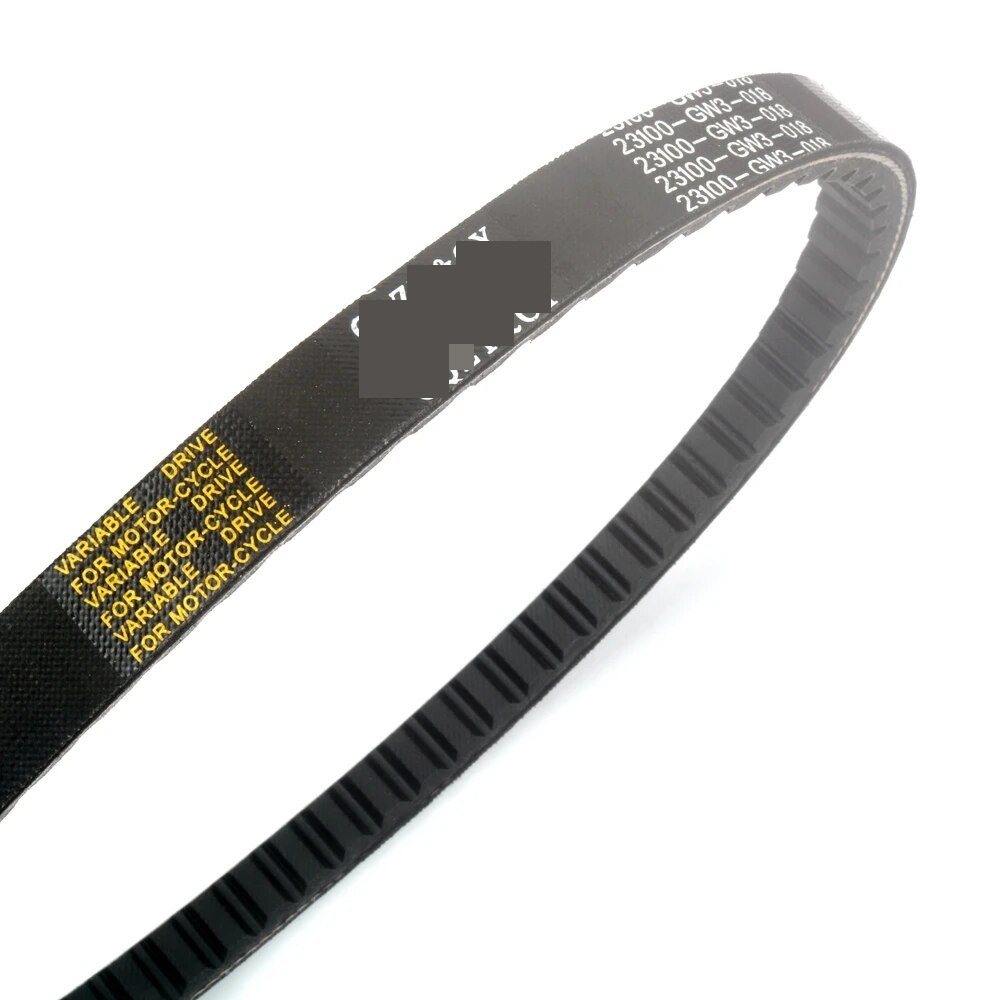

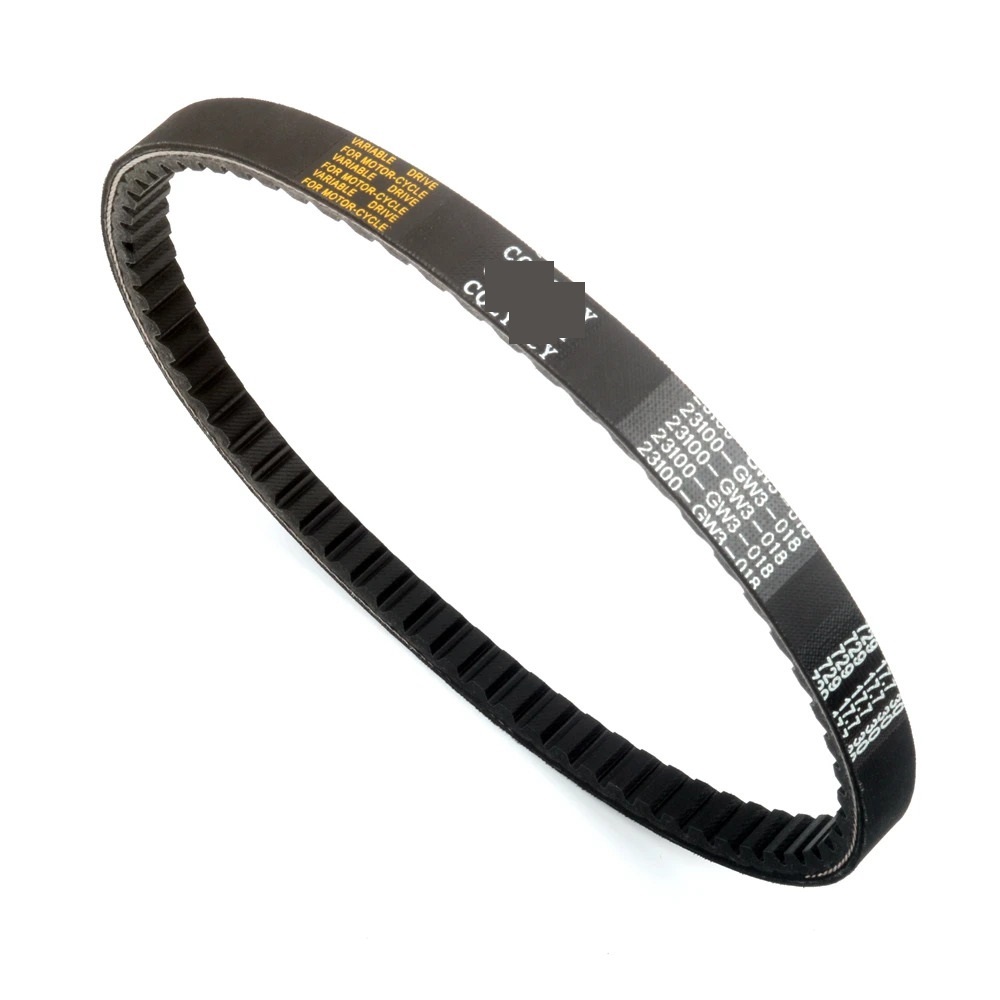

Installation Instructions for Compatible Drive Belt for 50cc 2002 Model with 12 Inch Wheels CVT ZX50 Euro 2

Tools Required:

1. Screwdriver (Flat-head and Phillips)
2. Socket Wrench Set
3. Pliers
4. Torque Wrench (optional but recommended)
   5.Clean Cloth

Installation Steps:

1. Preparation:

   • Ensure you have all the necessary tools ready.
   • Put on safety gloves and goggles to protect yourself during the installation process.

2. Remove the Cover:

   • Use the screwdriver to remove any screws or fasteners securing the drive belt cover.
   • Carefully lift the cover off and set it aside.

3. Inspect the Old Belt:

   • Before removing the old drive belt, take a moment to inspect it for wear and tear.
   • This can help identify any additional maintenance needed for the scooter.

4. Remove the Old Drive Belt:

   • Use the socket wrench to loosen the drive pulley nut.
   • Carefully remove the old drive belt from the pulley and the variator.

5. Install the New Drive Belt:

   • Place the new compatible drive belt onto the variator.
   • Ensure it is seated properly within the pulley grooves.
   • Reverse the process by placing it onto the drive pulley.

6. Reassemble the Cover:

   • Once the new drive belt is securely in place, replace the drive belt cover.
   • Use the screwdriver to fasten all screws and ensure the cover is snug.

7. Final Check:

   • Double-check that all components are properly secured.
   • Start the engine and let it idle for a few minutes to ensure everything is functioning correctly.

8. Clean Up:

   • Use the clean cloth to wipe any debris or grease from your work area.
   • Store all tools in their proper place.

Congratulations! You have successfully installed the new drive belt. Enjoy improved performance and a smoother ride on your scooter.
