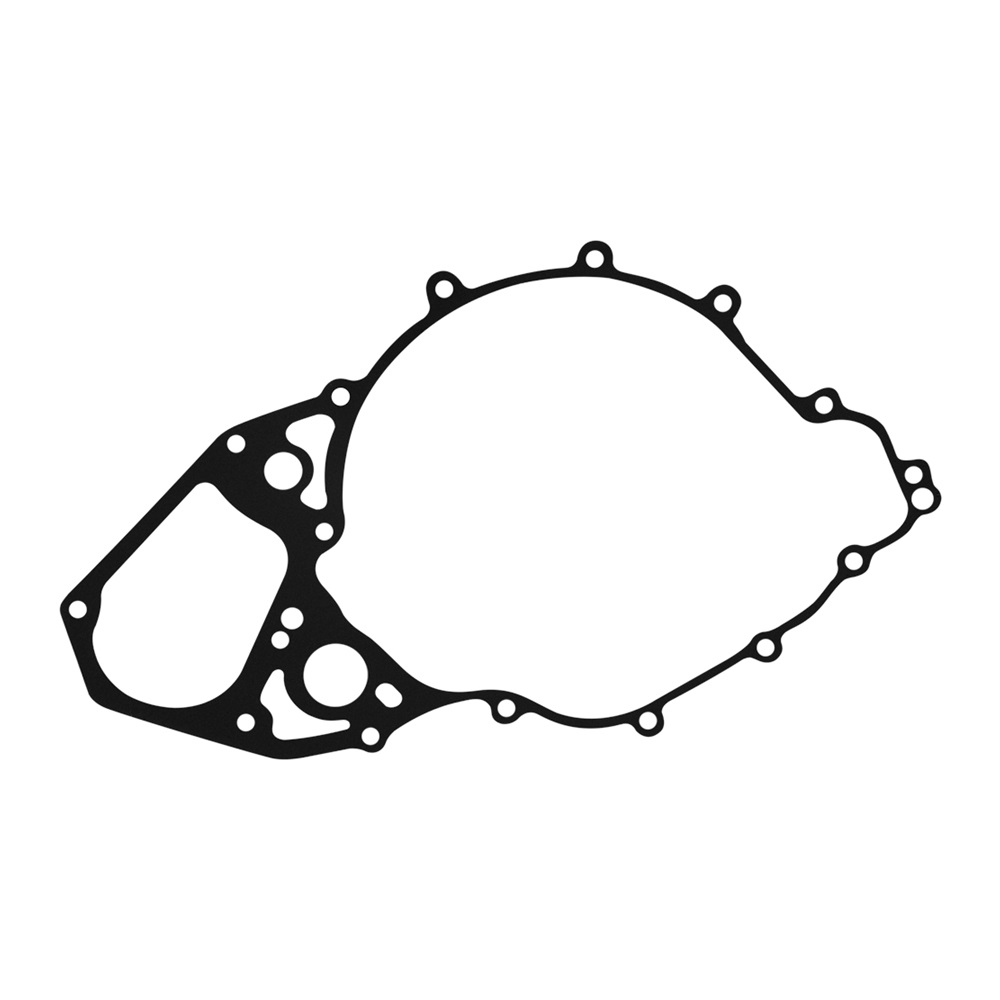

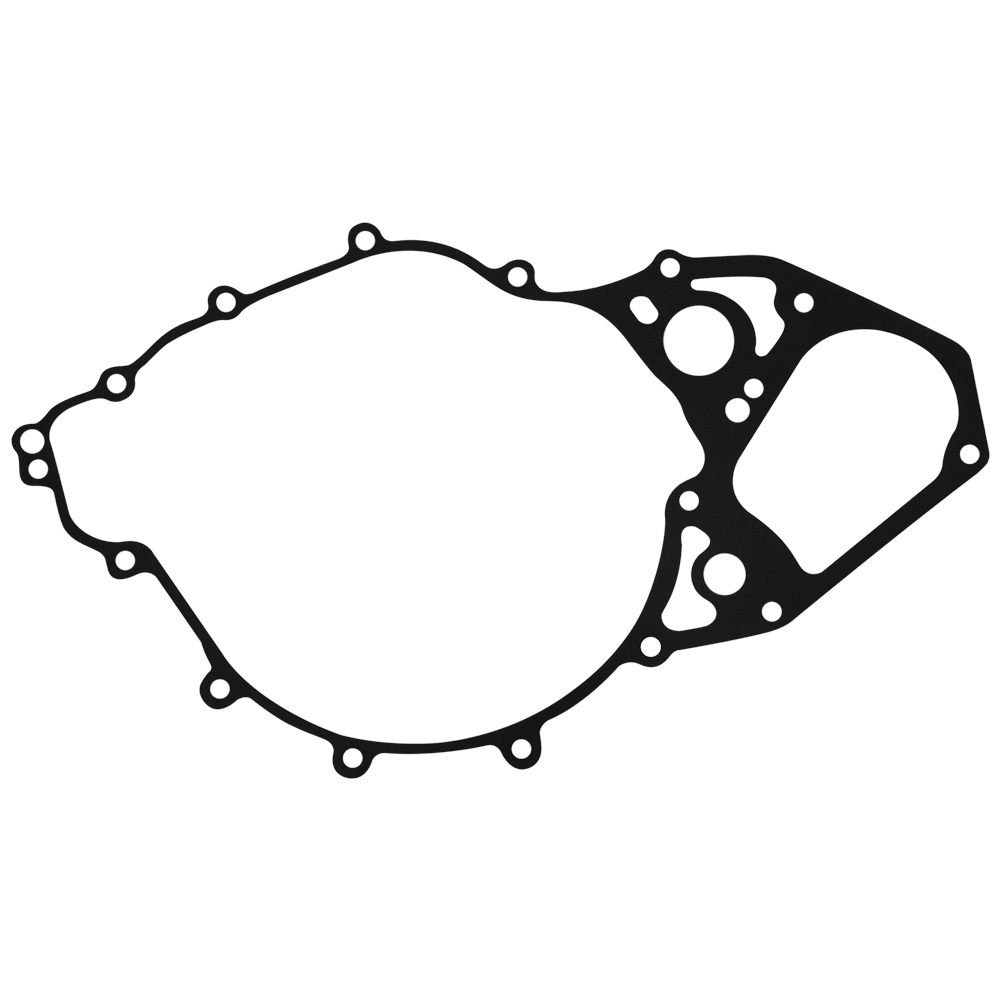

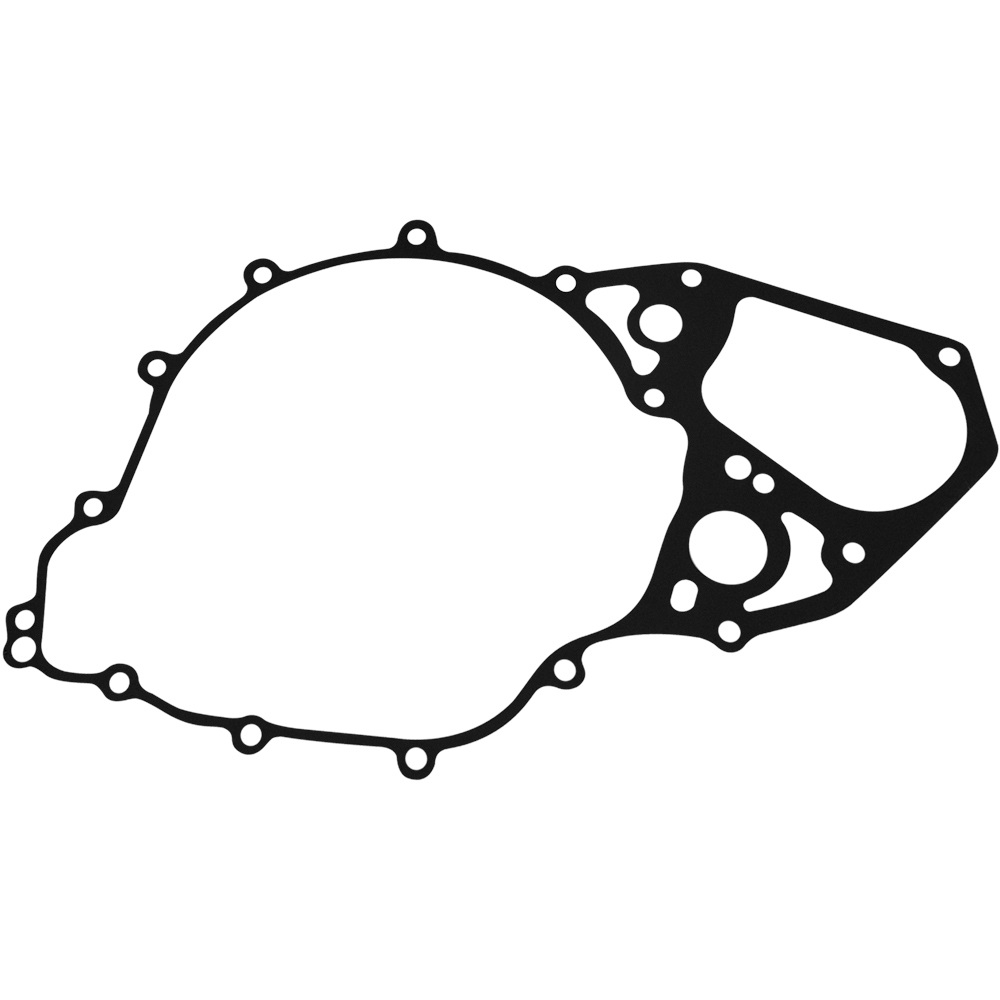

Product Installation Instructions for Motorcycle Clutch Cover Gasket

Compatibilities:
This gasket is compatible with the following motorcycle models:

• F700GS K70 (2011-2017)
  -F650GS
• F800GS K72 (2006-2018)
• K75 (2012-2017)

Tools and Materials Needed:

1. Tools:
   -Socket wrench set
   -Torque wrench

   • Screwdrivers (Phillips and flathead)
     -Pliers
   • Gasket scraper or razor blade
     -Clean rags or paper towels
   • Small container for bolts
   • Safety goggles

2. Materials:

   • New Motorcycle Clutch Cover Gasket
   • Engine oil (if needed)
     -Cleaning solution (such as degreaser)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and the engine is cool.
   • Remove any necessary panels or fairings to access the clutch cover.

2. Drain Engine Oil (if required):

   • Place a container underneath the engine to catch any draining oil.
   • Remove the oil drain plug and let the oil drain completely.

3. Remove Clutch Cover:

   • Use a socket wrench to remove the bolts securing the clutch cover.
   • Carefully pull the clutch cover away from the engine.
   • Place the bolts in a container to avoid losing them.

4. Clean the Surface:

   • Use a gasket scraper or razor blade to remove any residue of the old gasket from both the clutch cover and the engine surface.
   • Clean the surfaces with a degreaser and wipe with clean rags. Ensure they are dry before proceeding.

5. Install the New Gasket:

   • Position the new motorcycle clutch cover gasket onto the engine surface, ensuring it fits perfectly.

6. Reattach Clutch Cover:

   • Align the clutch cover with the gasket and press it onto the engine.
   • Hand-tighten the bolts initially, then use a torque wrench to tighten them to the manufacturer's specified torque settings.

7. Refill Engine Oil (if drained):

   • Replace the oil drain plug and refill the engine with the recommended amount of oil.

8. Final Checks:

   • Reattach any panels or fairings removed earlier.
   • Start the motorcycle and listen for any unusual sounds. Check for oil leaks around the clutch cover area.

By following these instructions, you can easily replace the clutch cover gasket on your motorcycle. Regular maintenance and timely replacements will help ensure optimal performance and a safer riding experience. Happy riding!
