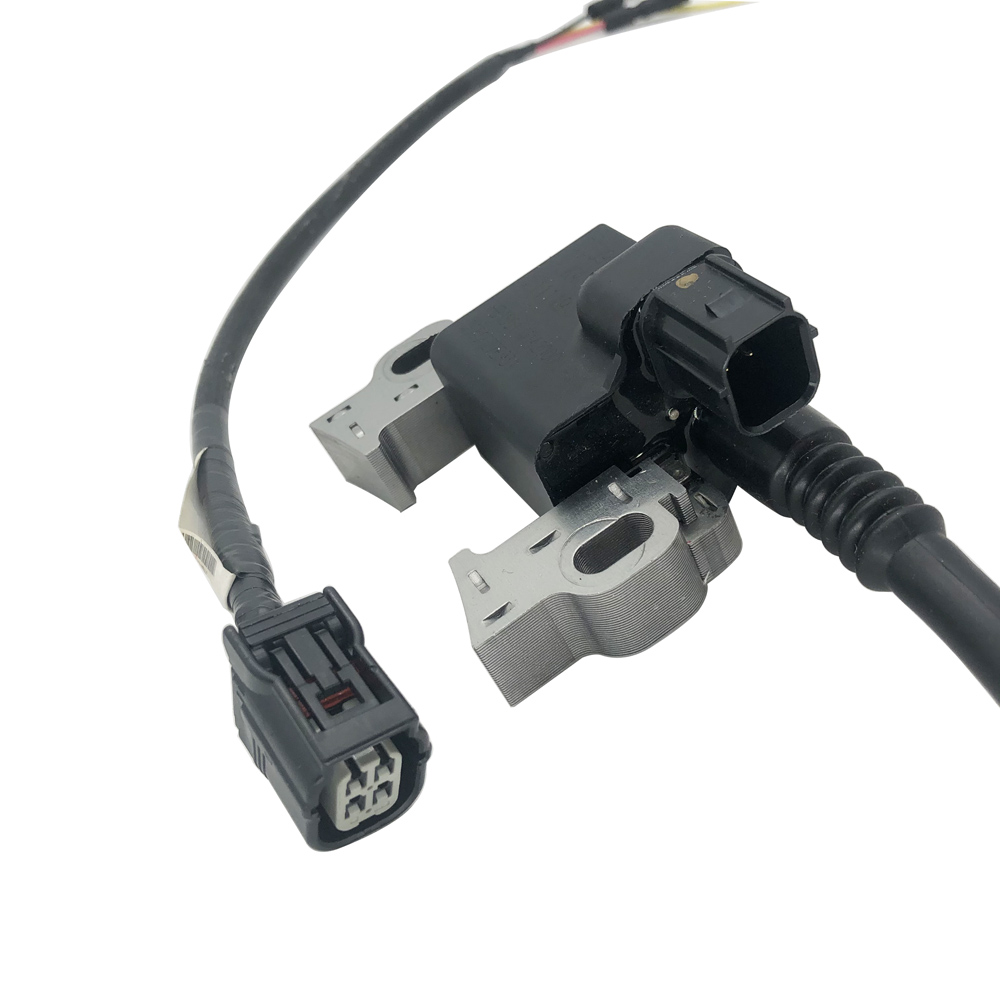

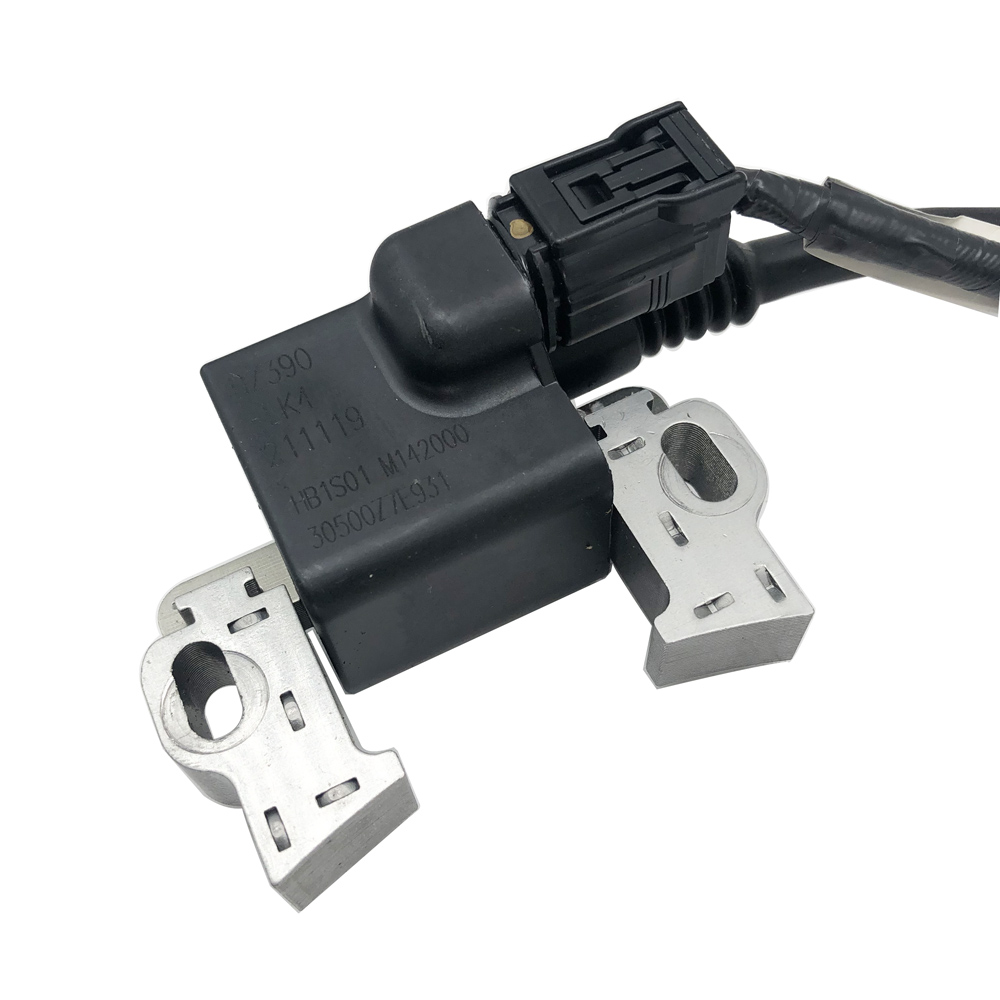

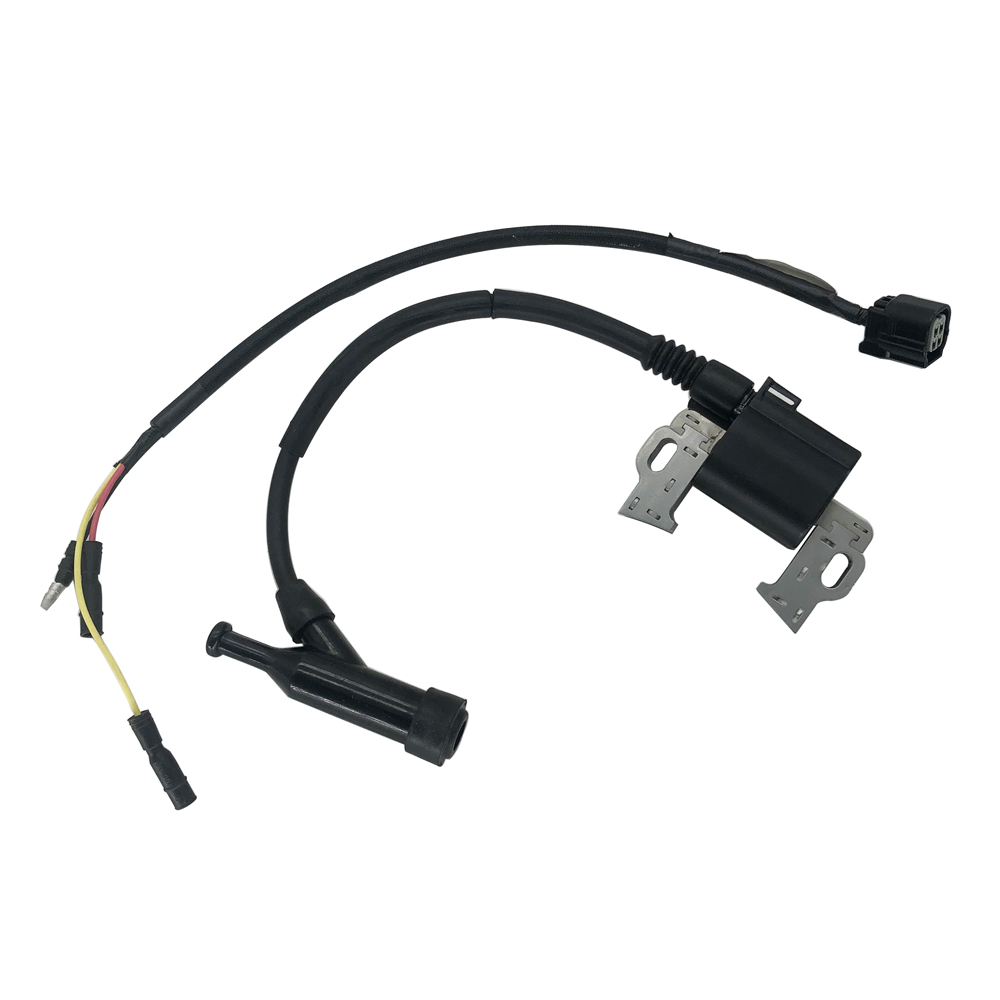

Product Installation Instructions for Ignition Coil Module (Compatible with GX240, GX270, GX340, GX390)

Required Tools:

1. Wrench Set: To remove any bolts and nuts.
2. Screwdriver Set: For loosening and tightening screws.
3. Pliers: To assist with wire connections.
4. Torque Wrench: To ensure that bolts are tightened to the manufacturer’s specifications.
5. Multimeter: To test electrical connections before and after installation.
6. Safety Goggles: To protect your eyes during the installation process.
7. Work Gloves: To protect your hands.

Installation Steps:

1. Prepare the Work Area: Make sure you have a clean and well-lit workspace to perform the installation.

2. Disconnect the Battery: To ensure safety, disconnect the battery from the engine before beginning the installation.

3. Remove the Old Ignition Coil:

   • Locate the ignition coil on your engine.
   • Use the appropriate size wrench or screwdriver to remove any screws or bolts securing the ignition coil in place.
   • Carefully disconnect the wiring harness from the old ignition coil.

4. Install the New Ignition Coil:

   • Align the new ignition coil module with the mounting location.
   • Connect the wiring harness to the new ignition coil, ensuring a secure fit.
   • Use the wrench or screwdriver to secure the new ignition coil with screws or bolts.

5. Reconnect the Battery: Once the new coil is installed, reconnect the battery to the engine.

6. Test the Installation:

   • Start the engine to verify that the new ignition coil module is working properly.
   • Use a multimeter to check for correct voltage at the ignition coil.

7. Final Checks: Ensure all tools are removed from the workspace and double-check that all bolts and connectors are secure.

Note: If you encounter any issues during installation, consult the engine's user manual or seek assistance from a professional.

With this ignition coil module installed, you can expect improved engine performance and reliability. Enjoy your enhanced driving experience!
