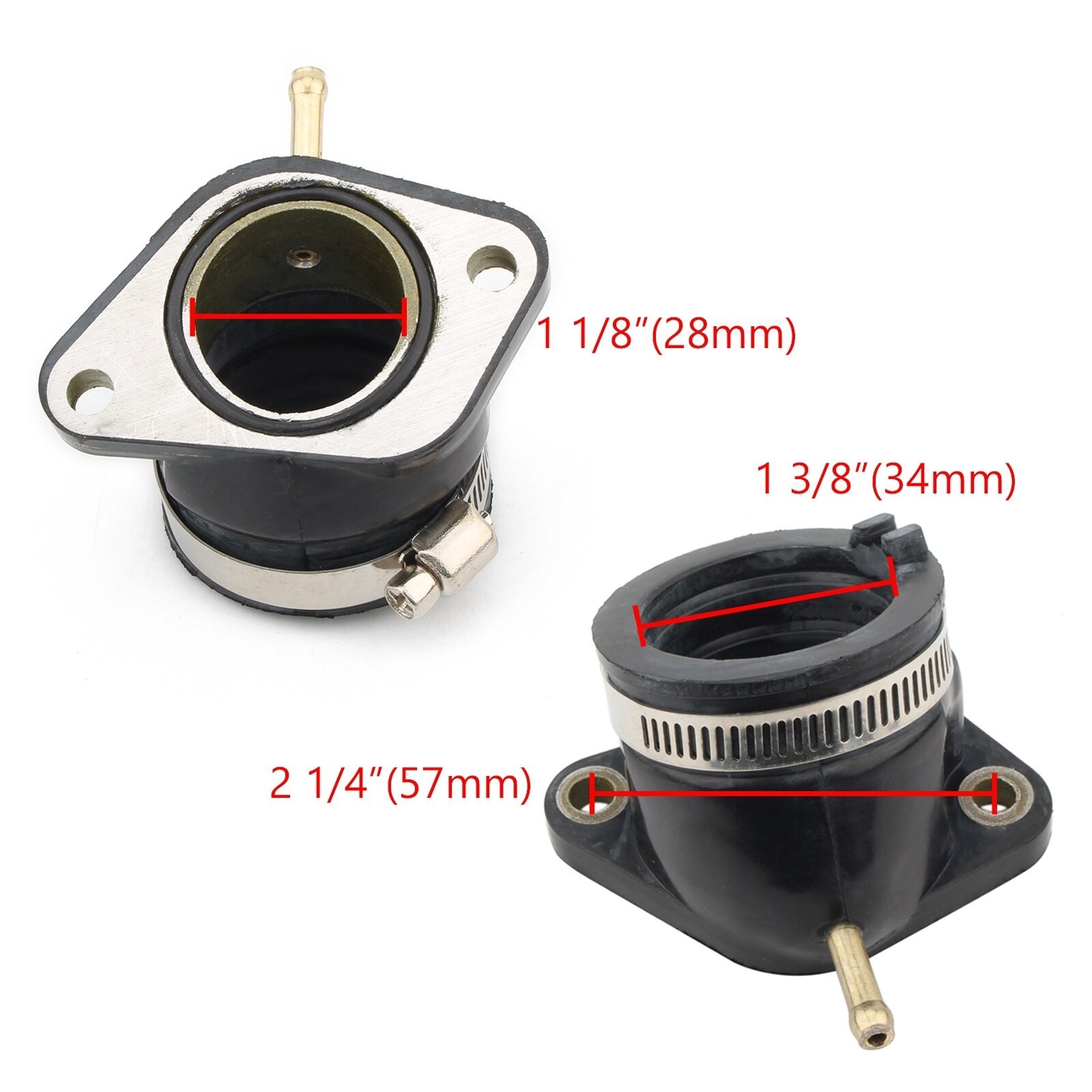

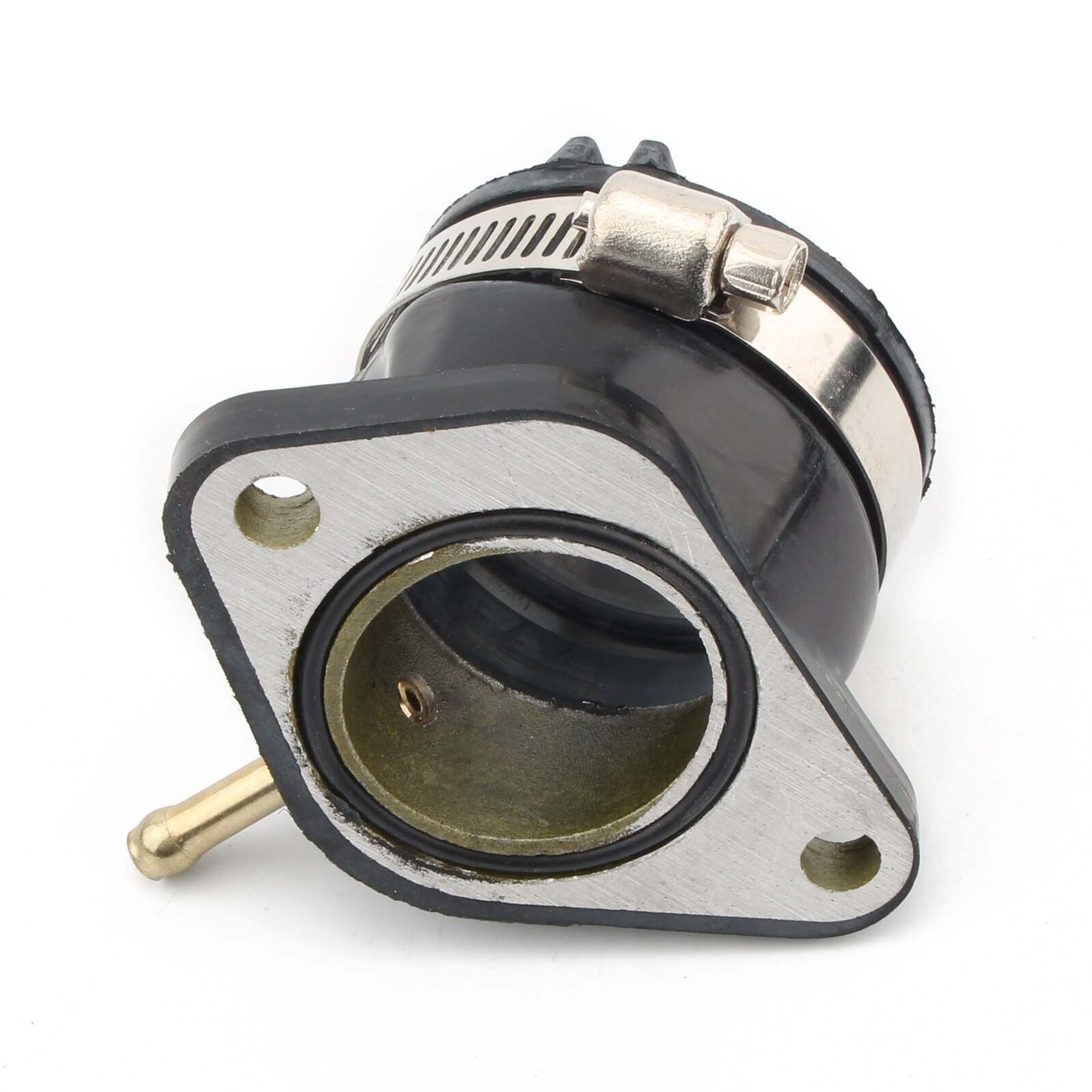

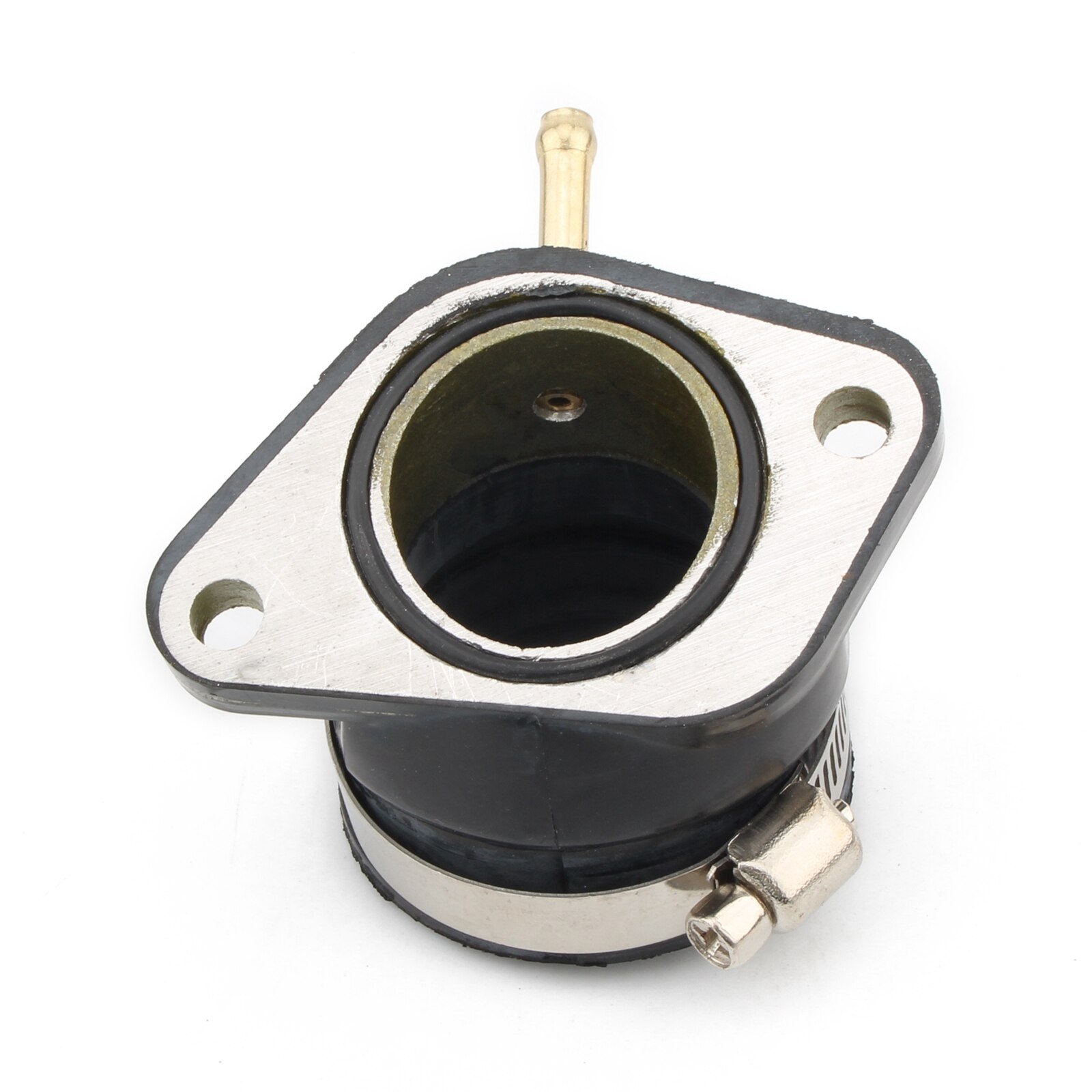

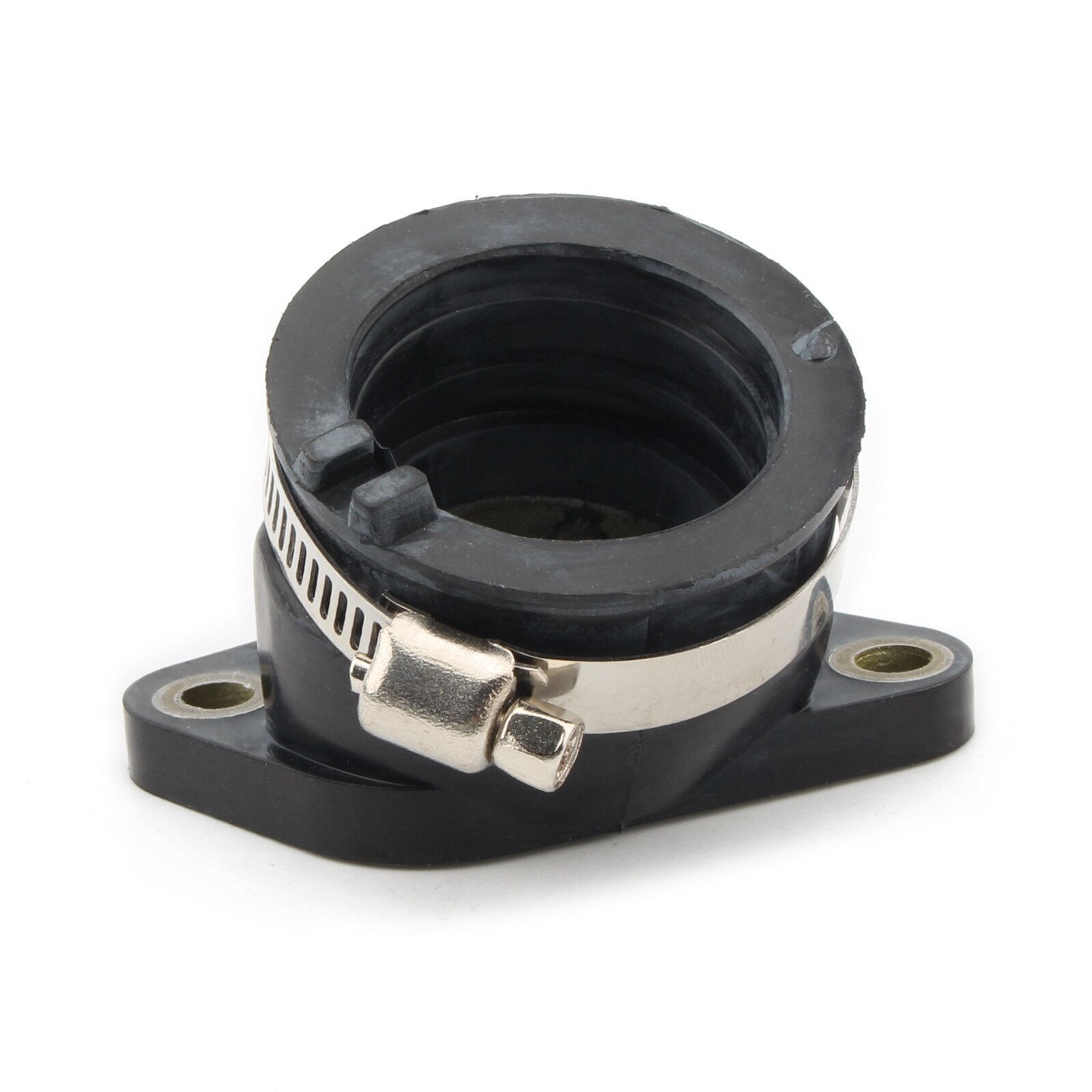

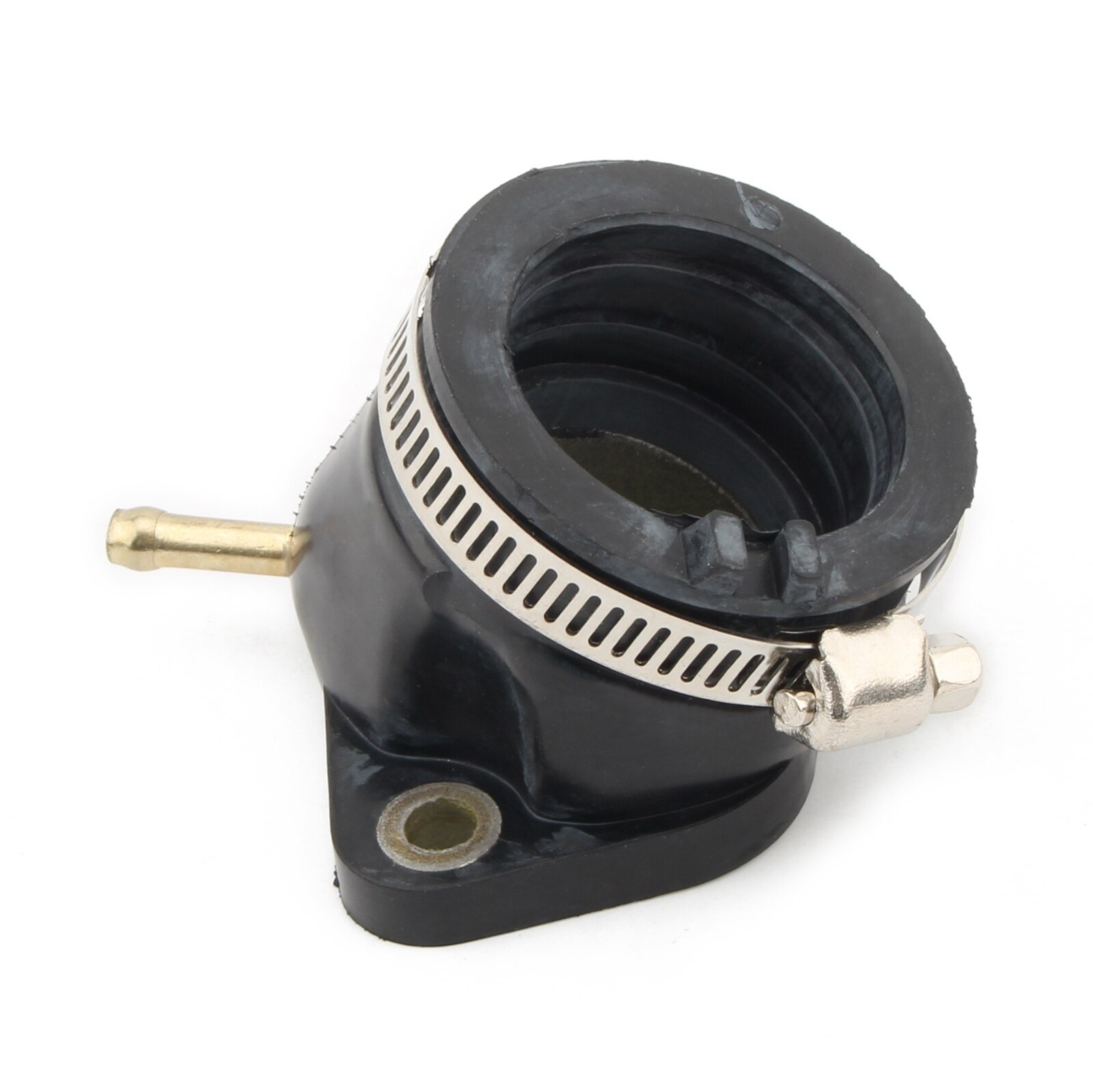

Product Installation Instructions for Intake Manifold Carburetor Connector Boot for CN250 250cc and CH250

Tools Required:

1. Socket Wrench Set – For removing and tightening bolts.
2. Screwdriver Set – Phillips and flathead screwdrivers.
3. Pliers – To hold or manipulate small parts.
4. Torque Wrench – To ensure bolts are tightened to the manufacturer's specifications (if necessary).
5. Ratchet Extension – For better reach in tight spaces.
6. Clean Rags or Cloth – For cleaning surfaces before installation.
7. Gasket Scraper – To remove old gaskets if necessary.
8. Safety Goggles – To protect your eyes during the installation process.

Installation Steps:

1. Preparation:

   • Make sure the engine is cool before starting.
   • Disconnect the battery to prevent any electrical issues during installation.

2. Remove Existing Components:

   • Use the socket wrench to remove any bolts securing the old intake manifold boot.
   • Disconnect the old boot from the carburetor and intake manifold carefully.

3. Clean Surfaces:

   • Use a clean rag to wipe down the surfaces where the new connector boot will fit.
   • Ensure no debris or old gasket material is present.

4. Install New Connector Boot:

   • Align the new intake manifold connector boot with the carburetor and intake manifold.
   • Carefully slide the boot into position, ensuring a secure fit.

5. Secure Boot:

   • Reattach and tighten the bolts using the socket wrench.
   • If applicable, use the torque wrench to tighten to the specified torque settings.

6. Reconnect Components:

   • Reconnect any other components that were removed during installation (e.g., air filter, throttle cables).

7. Final Check:

   • Ensure all connections are secure and that there are no leaks.
   • Reconnect the battery.

8. Test the Vehicle:

   • Start the engine and observe its performance.
   • Check for any signs of air leaks or improper installation.

Tips:

• If you encounter resistance during installation, double-check the alignment of the boot.
• Replace any worn gaskets or seals to ensure optimal performance.

Make sure to follow all safety guidelines and consult your vehicle’s manual if you have any specific questions regarding the installation. Enjoy improved performance with the new intake manifold carburetor connector boot!
