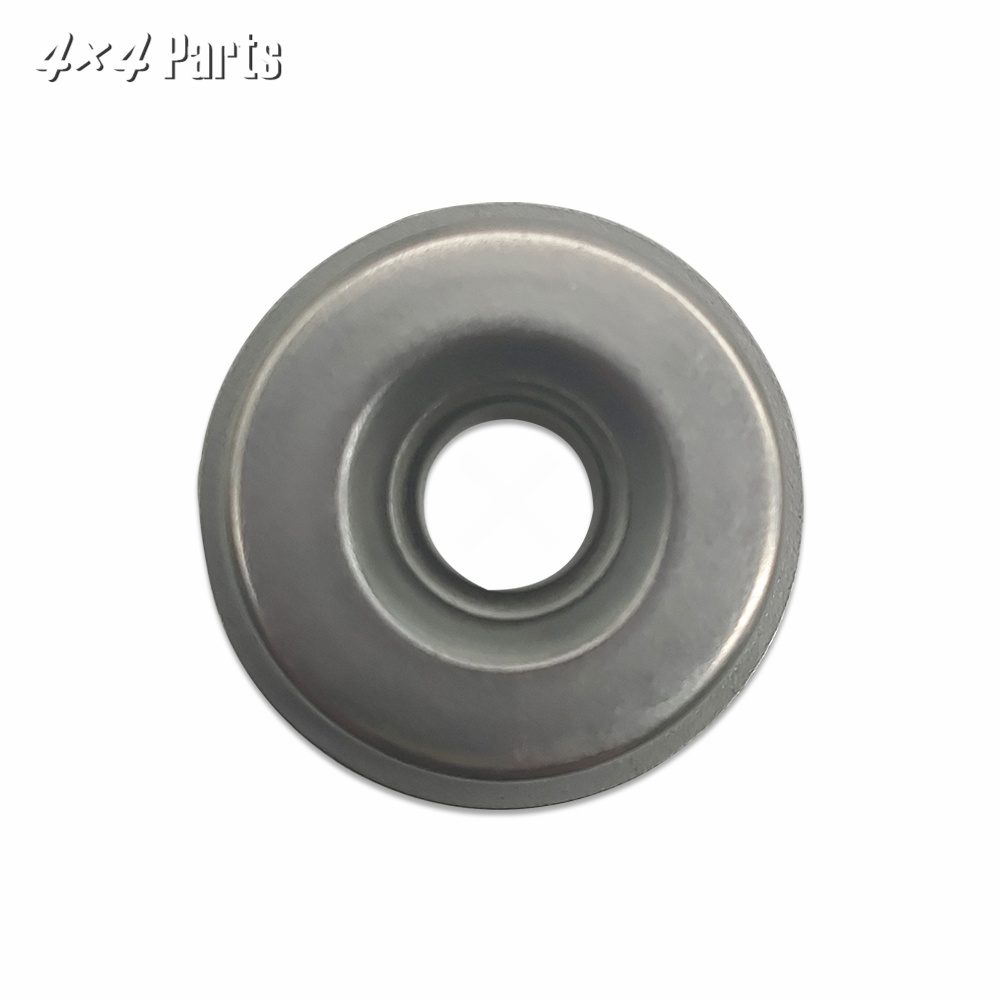

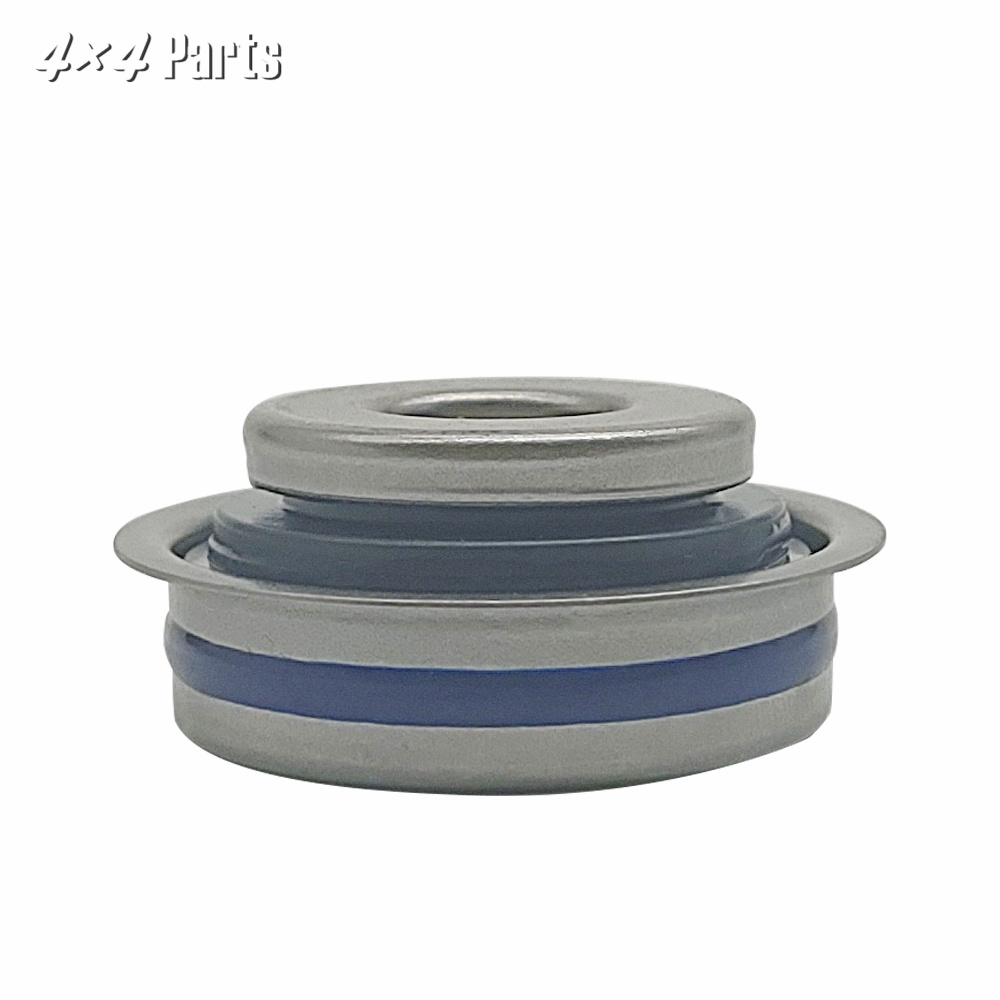

Product Installation Instructions for Water Pump Seal Compatible with C DR Mk OR 650, 800, and 1000 Models (2001-2019)

Tools Required:

1. Socket Set: For removing and tightening bolts.
2. Torque Wrench: To ensure bolts are tightened to the manufacturer's specifications.
3. Screwdrivers: Both flat-head and Phillips screwdrivers for various fasteners.
4. Pliers: For gripping and pulling as needed.
5. Seal Puller Tool (optional): To assist in removing the old seal.
6. Clean Rags: For wiping surfaces and keeping components clean during installation.
7. Engine Oil or Sealant: Some installations may require light lubrication or sealant around the new seal.
8. Safety Gloves: To protect your hands during the installation process.
9. Safety Glasses: To shield your eyes from debris.

Installation Steps:

1. Preparation:

   • Ensure the work area is clean and organized.
   • Disconnect the battery to prevent any electrical hazards.

2. Remove Existing Water Pump:

   • Use the socket set to remove the bolts securing the water pump.
   • Carefully detach the water pump from its housing.

3. Remove Old Seal:

   • If necessary, utilize the seal puller tool to gently remove the old seal from the water pump.
   • Take care not to damage the housing.

4. Clean the Area:

   • Use clean rags to wipe down the sealing surface and remove any debris or old sealant remnants.

5. Install New Water Pump Seal:

   • Position the new seal in the correct orientation as specified by the manufacturer.
   • If applicable, apply a thin layer of engine oil or sealant to the seal for better fitting.

6. Reinstall Water Pump:

   • Align the water pump with the housing and gently press it into place.
   • Use the socket set to reattach the bolts, secure the water pump evenly.

7. Final Checks:

   • Ensure all bolts are tightened to the correct torque specification using the torque wrench.
   • Reconnect the battery and check for any leaks by running the engine.

8. Testing:

   • Monitor the water pump for any signs of leakage after installation.
   • Ensure the system operates smoothly and efficiently.

Conclusion:
Congratulations on successfully installing your new water pump seal! Regular maintenance and timely replacements will help extend the life of your water pump and overall system performance.
