Product Installation Instructions for 17mm Carburetor Intake Manifold Spacer Gasket Set for 4 Stroke 50cc Scooters and Motorcycles

Introduction:
Thank you for choosing our 17mm Carburetor Intake Manifold Spacer Gasket Set. This product is specifically designed for 4-stroke 50cc motorcycles and scooters to enhance engine performance. Please follow these instructions for a simple and effective installation.

Tools Required:

1. Socket Wrench Set: To remove and install screws or bolts.
2. Screwdriver Set: To assist with any necessary adjustments.
3. Torque Wrench: To ensure screws or bolts are tightened to the manufacturer’s specifications.
4. Pliers: For gripping and twisting parts as needed.
5. Rags: To clean any surfaces during installation.
6. Throttle Body Cleaner: To clean the throttle body and intake manifold before installation.
7. Locating Tool (Optional): To help align the spacer correctly.

Installation Steps:

1. Preparation:

   • Ensure the engine is cool and the scooter/motorcycle is parked on a stable and flat surface.
   • Disconnect the battery for safety purposes.

2. Remove the Existing Manifold:

   • Use the socket wrench to remove the screws/bolts securing the existing intake manifold.
   • Carefully detach the manifold from the engine, avoiding any damage to surrounding components.

3. Clean the Surfaces:

   • Use the throttle body cleaner and a rag to clean the engine surface where the intake manifold spacer will be installed. Ensure there are no dirt or old gasket remnants.

4. Install the Spacer Gasket:

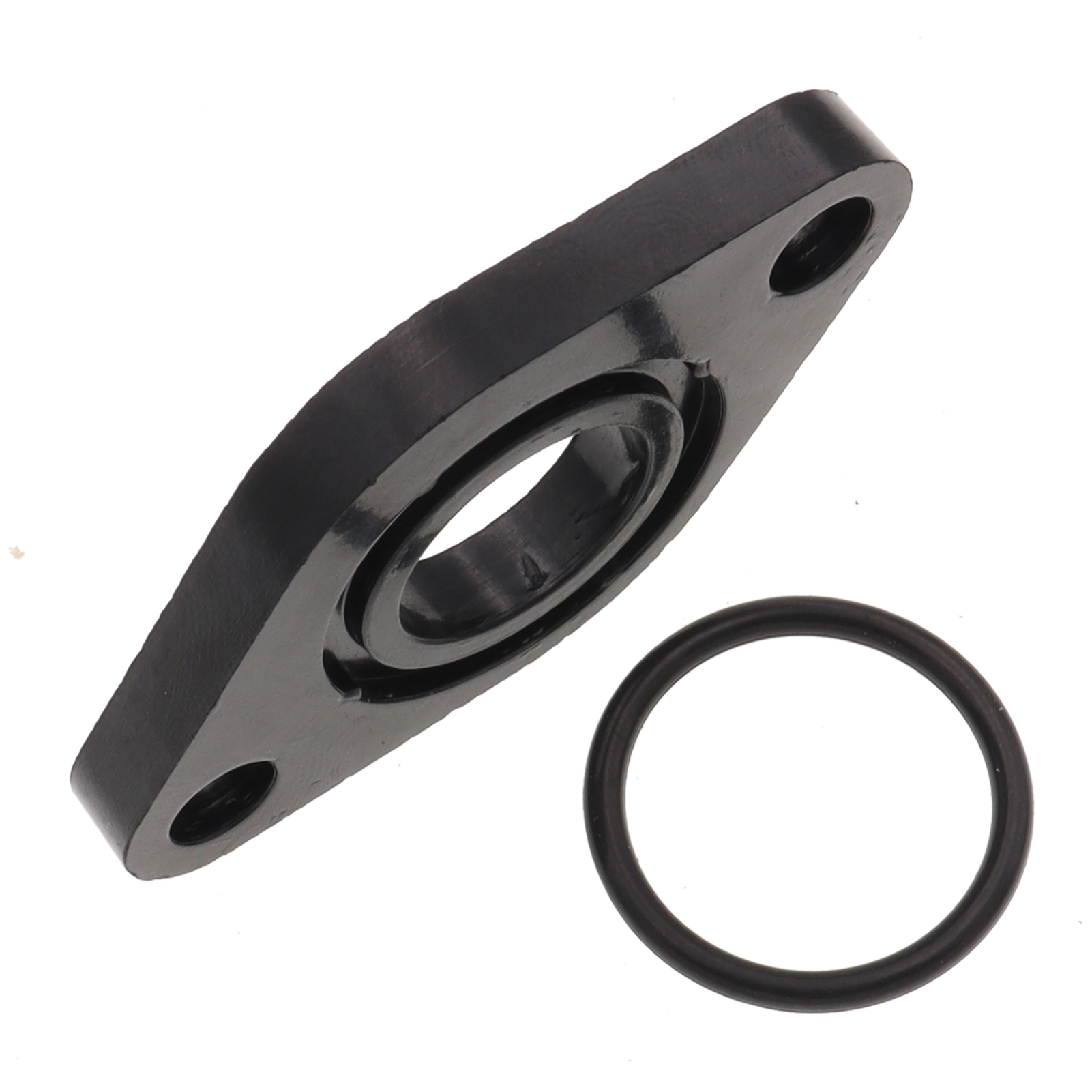

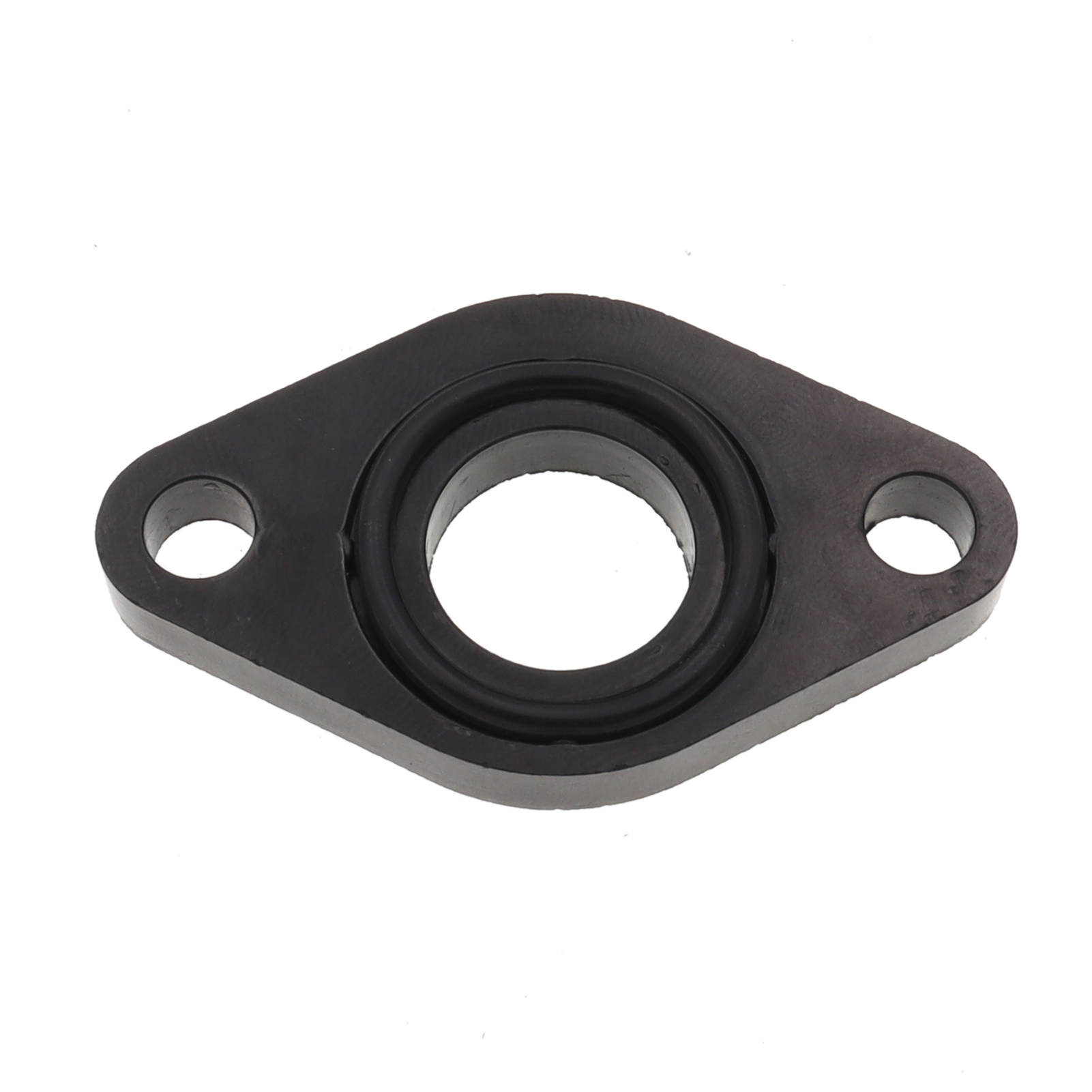

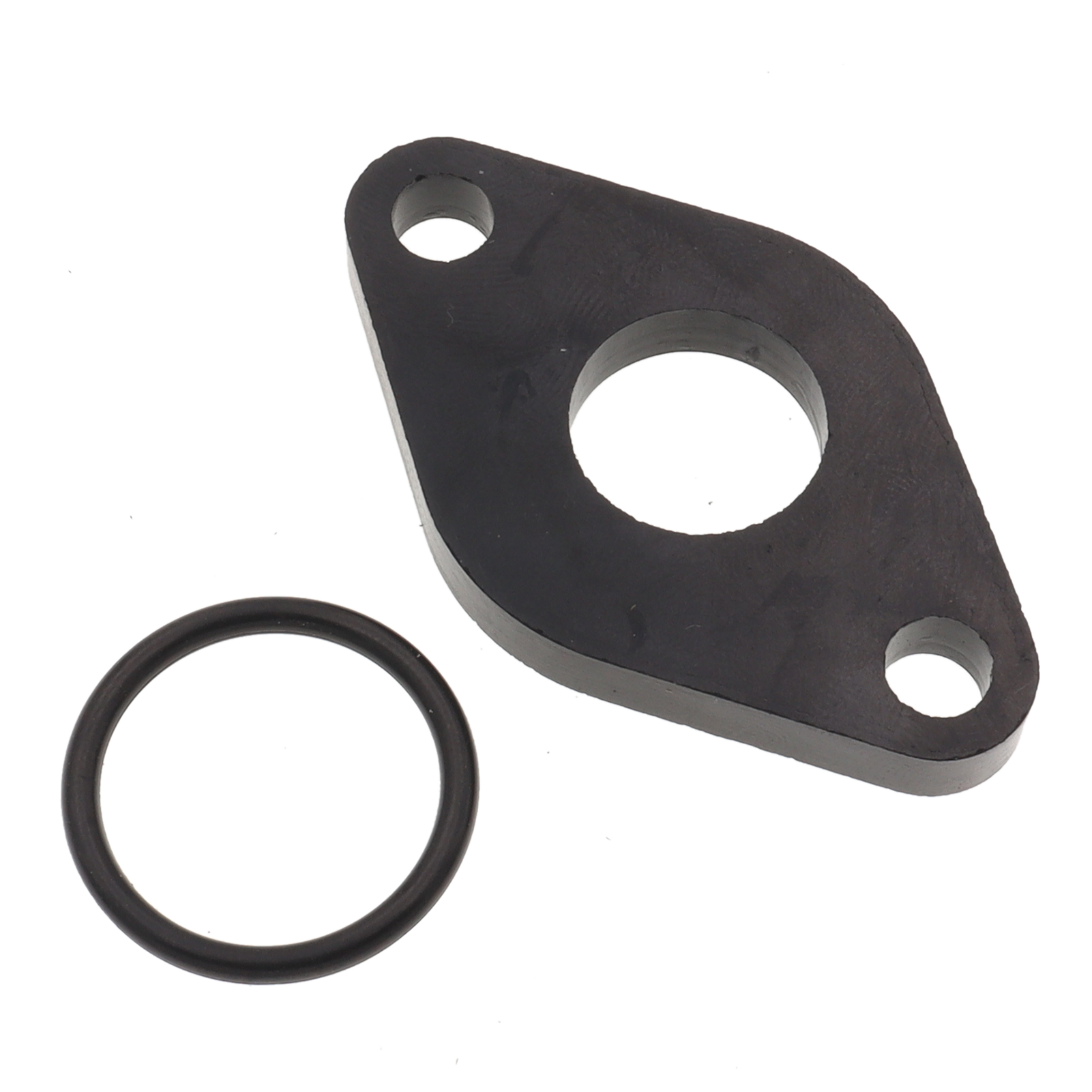

   • Place the 17mm intake manifold spacer gasket in position, ensuring it aligns correctly with the holes on the manifold and engine.
   • If required, apply a thin layer of gasket sealant (not included) to ensure a secure fit.

5. Reattach the Intake Manifold:
   -Align the intake manifold over the spacer gasket, making sure all holes match up.

   • Using the socket wrench, tighten the screws/bolts in a crisscross pattern to ensure even compression.

6. Reconnect Any Removed Components:

   • Reattach any components that were removed to access the intake manifold.

7. Reconnect the Battery:

   • Once everything is properly secured, reconnect the battery.

8. Final Checks:

   • Start the engine and let it idle for a few minutes. Check for any leaks around the manifold area.
   • Ensure the vehicle operates smoothly and listen for any abnormal noises.

Conclusion:
Enjoy the enhanced performance of your 4-stroke 50cc scooter or motorcycle with the new 17mm Carburetor Intake Manifold Spacer Gasket Set. Thank you for choosing our product! For any further questions, please feel free to contact our customer service.
