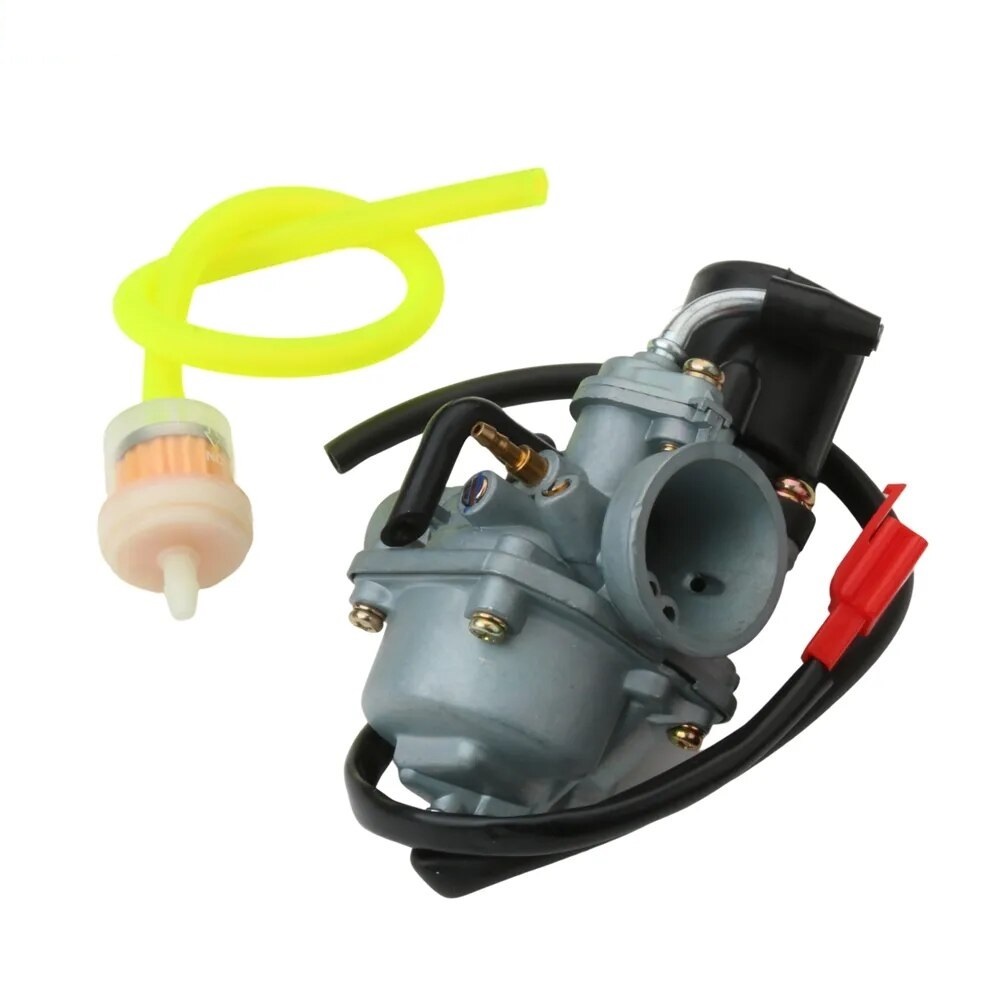

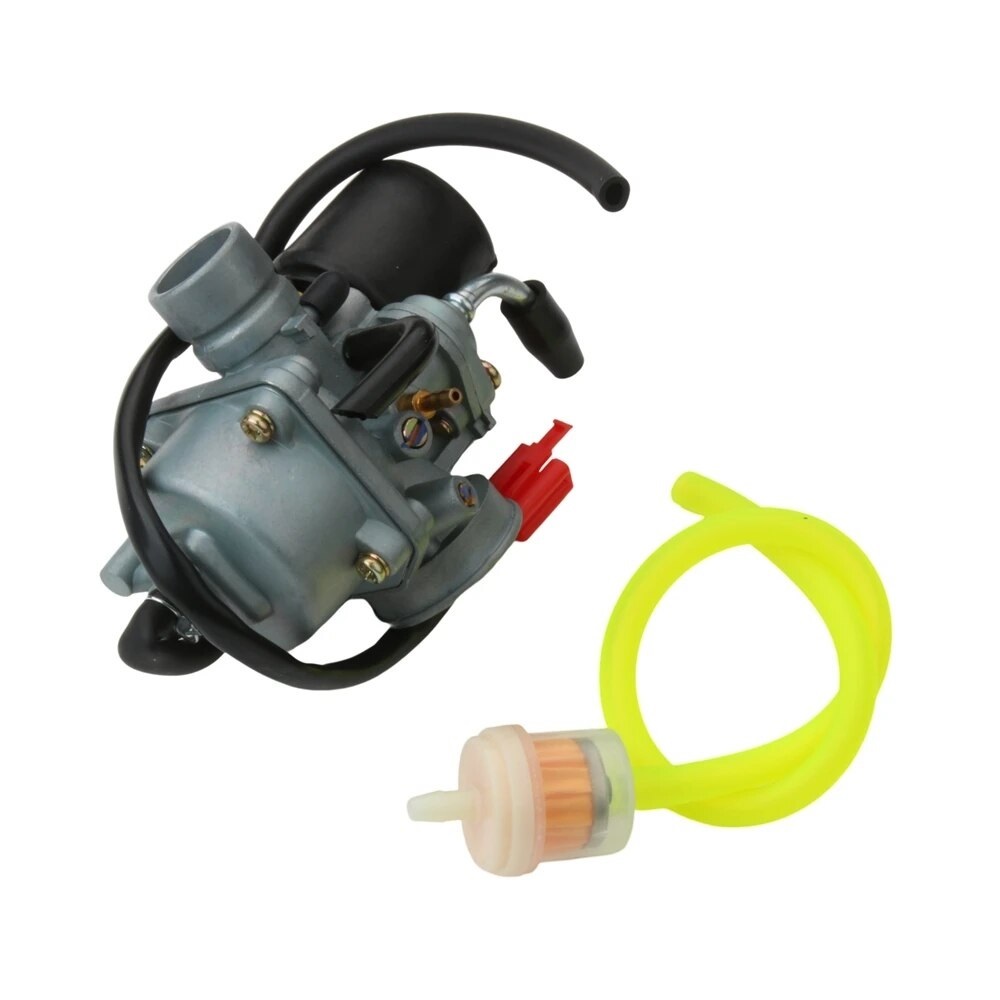

Installation Instructions for 19mm Scooter Carburetor for 50cc AC Two Stroke Moped

Tools Required:

1. Flathead Screwdriver - For loosening and tightening clamps and screws.
2. Phillips Screwdriver - For removing and securing screws on the carburetor and related components.
3. Wrench Set - To remove bolts and nuts if applicable.
4. Pliers - For gripping and pulling clamps or hoses.
5. Rags or Clean Cloth - To wipe any spills or excess fuel during the installation.
6. Fuel Line Hose (if needed) - To ensure a secure connection if the existing fuel line is worn or damaged.
7. Safety Goggles - To protect your eyes during installation.
8. Gloves - To keep your hands clean and protect from fuel.

Installation Steps:

1. Preparation:

   • Make sure the moped is parked on a level surface and the engine is cool.
   • Disconnect the battery to avoid any electrical issues.

2. Remove the Old Carburetor:

   • Use a Phillips screwdriver to remove any screws securing the carburetor.
   • Disconnect the fuel line by loosening the clamp using a flathead screwdriver or pliers.
   • Carefully detach the throttle cable and any other connections.

3. Install the New Carburetor:

   • Align the new 19mm carburetor with the intake manifold.
   • Secure it in place using the screws you removed from the old carburetor.
   • Reattach the throttle cable, ensuring it moves smoothly.

4. Connect the Fuel Line:

   • If the existing fuel line is in good condition, reattach it. Otherwise, replace it with a new fuel line hose securely clamped in place.

5. Final Checks:

   • Ensure all connections are tight and there are no leaks.
   • Reconnect the battery.

6. Start the Engine:

   • Turn on the fuel supply and start the engine.
   • Check for smooth operation and any unusual sounds.

7. Test Ride:

   • Take a short test ride to ensure proper performance and adjust as necessary.

Note: Always refer to the specific vehicle's manual for any additional instructions or specifications.

Enjoy improved performance with your new carburetor!
