Product Installation Instructions for Front Fork Damper Oil Seal 45x57x11 Compatible with Suzuki GSXR 600 Models 1997-2003

Tools Required:

1. Socket Wrench Set
2. Torque Wrench
3. Screwdriver Set (Flathead and Phillips)
4. Allen Wrench Set
5. Pliers
6. Oil Seal Installation Tool or a Soft Hammer
   7.Clean Cloth or Rags
7. Fork Oil (specific type for your motorcycle)
8. Measuring Cup or Funnel (for pouring oil)
9. Safety Goggles and Gloves

Installation Steps:

1. Preparation:

   • Park the motorcycle on a stable and flat surface.
   • Ensure the engine is turned off and the motorcycle is cool.
   • Wear safety goggles and gloves for protection.

2. Remove Front Wheel:

   • Use a socket wrench to loosen and remove the front wheel axle.
   • Carefully take off the wheel and set it aside.

3. Detach Fork Legs:

   • Locate the bolts securing the fork legs to the motorcycle frame.
   • Use the appropriate socket or Allen wrench to remove these bolts.
   • Gently slide the fork legs out of the triple clamp.

4. Remove Existing Oil Seal:

   • Use a flathead screwdriver or oil seal installation tool to carefully pry out the old oil seal from the fork leg.
   • Ensure not to damage the fork leg surface.

5. Clean Fork Legs:

   • Wipe down the inside of the fork legs using a clean cloth or rag.
   • Inspect for any damage or debris that may affect the performance.

6. Install New Oil Seal:

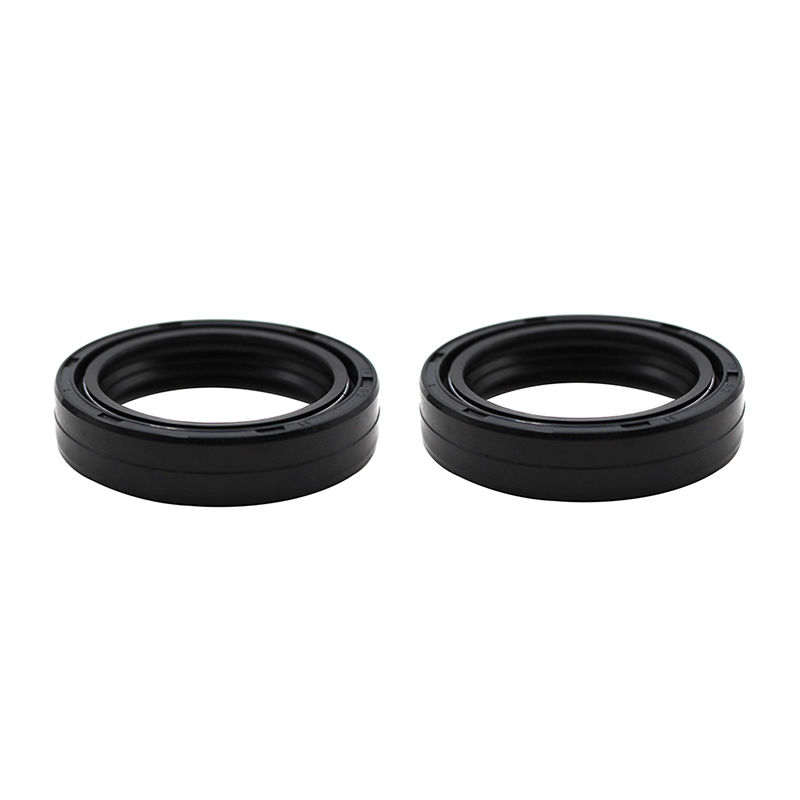

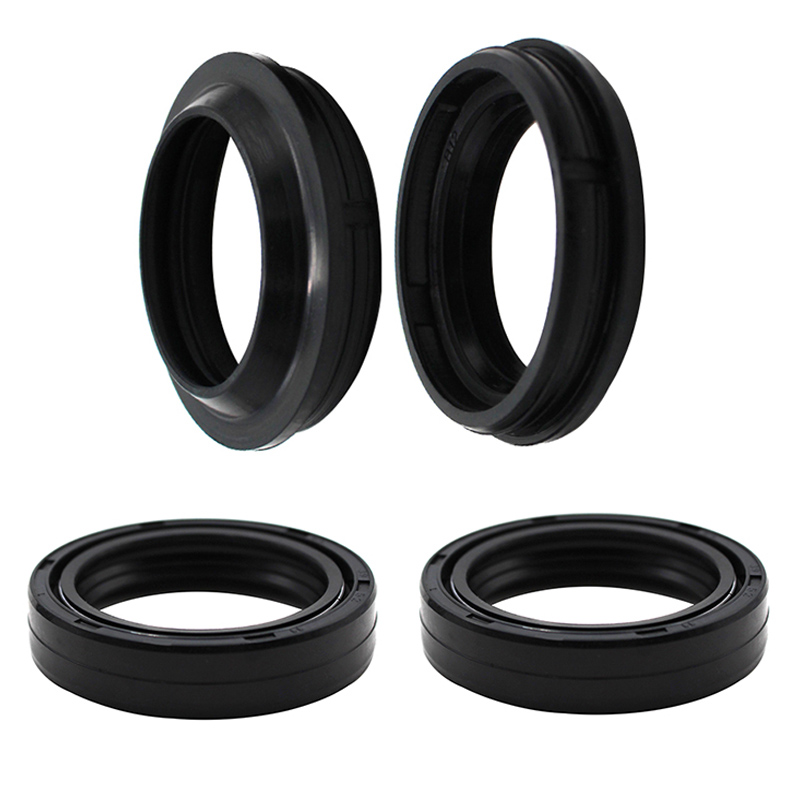

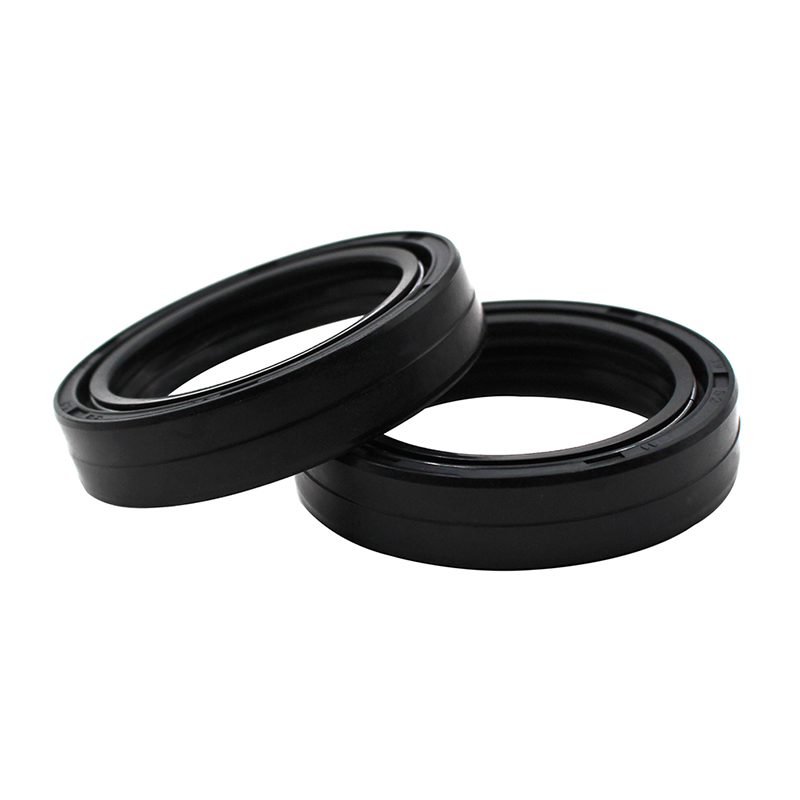

   • Take the new Front Fork Damper Oil Seal and align it with the fork leg opening.
   • Gently tap it into place using the oil seal installation tool or soft hammer, ensuring it is evenly seated.

7. Reassemble Fork Legs:

   • Slide the fork legs back into the triple clamp.
   • Secure them with the previously removed bolts, tightening them to the manufacturer's specified torque using a torque wrench.

8. Reinstall Front Wheel:

   • Place the front wheel back in position and secure the axle.
   • Tighten the axle nuts with the socket wrench.

9. Add Fork Oil:

   • Check the owner's manual for the recommended type and amount of fork oil.
   • Use a measuring cup or funnel to pour the oil into the fork legs until you reach the specified level.

10. Final Checks:

    • Double-check all bolts and nuts for tightness.
    • Ensure everything is in place and clean up any spilled oil.

11. Test Ride:

    • Start your motorcycle and take it for a short test ride to ensure smooth operation and effectiveness of the new oil seal. Pay attention to any unusual noises or leaks.

By following these instructions, you can efficiently replace the Front Fork Damper Oil Seal, enhancing your motorcycle’s performance and safety. Always refer to your motorcycle’s service manual for specific guidance and recommendations.
