Product Installation Guide for Digital Electronic Ignition Unit Compatible with DIN-LI 700cc Motorcycles

Tools Required:

1. Socket Wrench Set - For removing and tightening screws and bolts on the ignition unit.
2. Screwdriver Set - Flathead and Phillips screwdrivers to access different types of screws.
3. Wire Cutters/Strippers - For adjusting and connecting electrical wires if necessary.
4. Electrical Tape - To secure and insulate any exposed wiring connections.
5. Torque Wrench - To ensure bolts are tightened to the manufacturer’s specifications.
6. Multimeter - To check electrical connections and ensure proper functioning after installation.
7. Safety Gloves - To protect hands during handling and installation.
8. Safety Glasses - To protect eyes from debris and unexpected sparks.

Installation Steps:

1. Preparation:

   • Disconnect the motorcycle’s battery to prevent electrical shock.
   • Ensure you have all the required tools gathered.

2. Access the Ignition Unit:

   • Remove any panels or covers that obstruct access to the original ignition unit.

3. Remove the Old Ignition Unit:

   • Carefully disconnect the wiring from the old ignition unit.
   • Use the socket wrench to remove screws and bolts holding the unit in place.
   • Take out the old unit and set it aside.

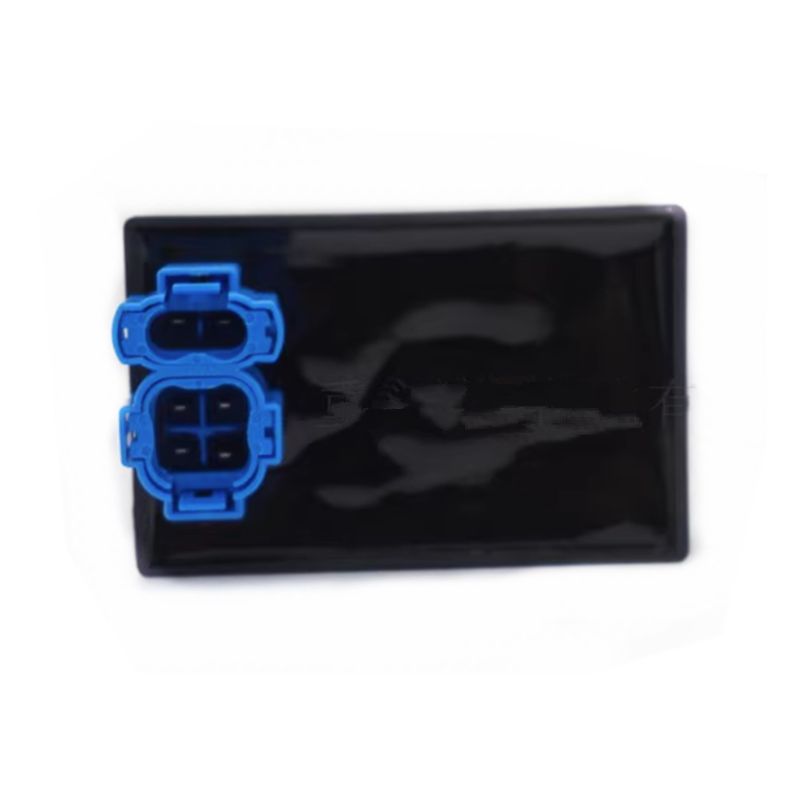

4. Install the New Digital Electronic Ignition Unit:

   • Position the new ignition unit where the old one was mounted.
   • Secure it in place using the previously removed screws and bolts.

5. Reconnect Wiring:

   • Connect the wiring of the new ignition unit following the manufacturer’s instructions.
   • Use wire cutters/strippers to adjust wires if needed, and secure connections with electrical tape.

6. Final Checks:

   • Ensure everything is tightened and connected properly using the torque wrench.
   • Double-check the connections with a multimeter.

7. Reassemble:

   • Reattach any panels or covers that were removed earlier.
   • Reconnect the motorcycle’s battery.

8. Testing:

   • Start the motorcycle to verify that the new ignition unit is functioning properly.
   • Monitor engine performance and fuel efficiency to assess improvements.

Conclusion:
By following this installation guide and using the appropriate tools, you can successfully replace your DIN-LI 700cc motorcycle’s ignition unit, enhancing performance and reliability. Always refer to the manufacturer’s manual for specific details related to your motorcycle model. Happy riding!
