Product Installation Instructions for Engine Cover Compatible with 600 and 750 Katana and GSX Series Models

Overview:

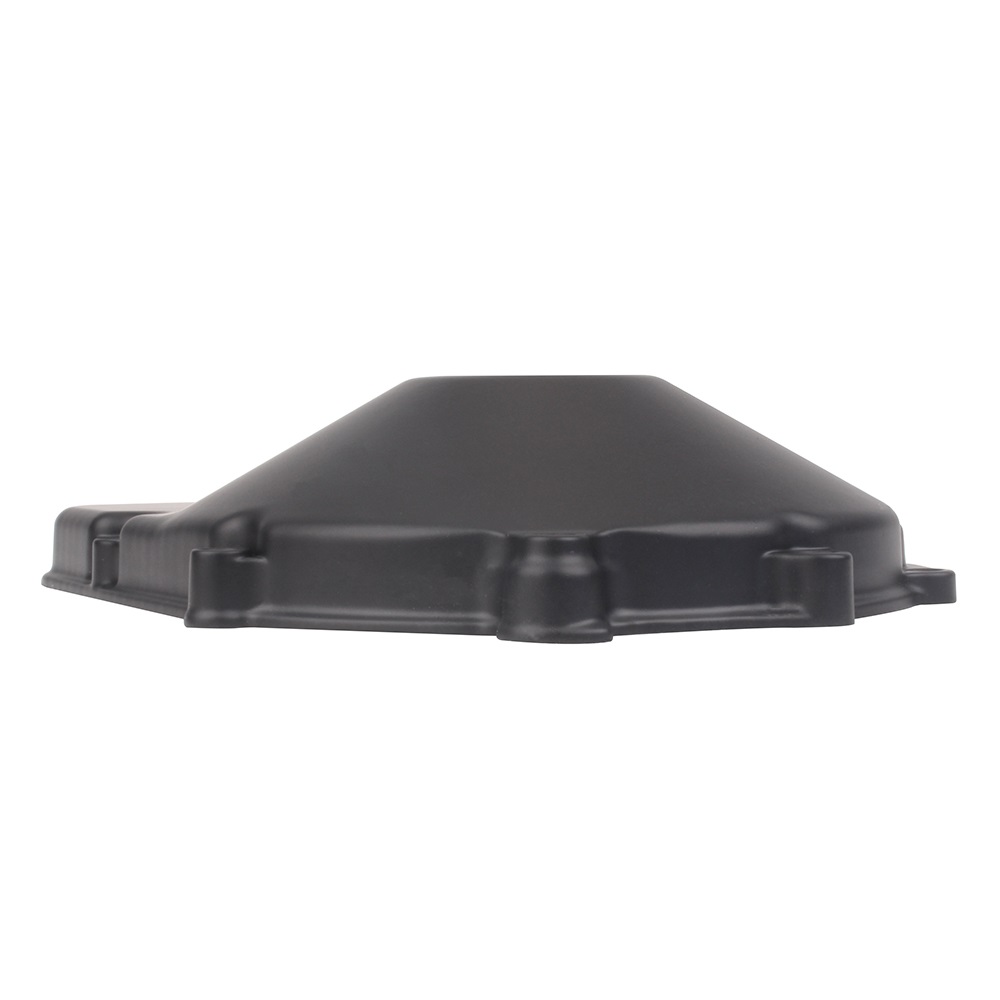

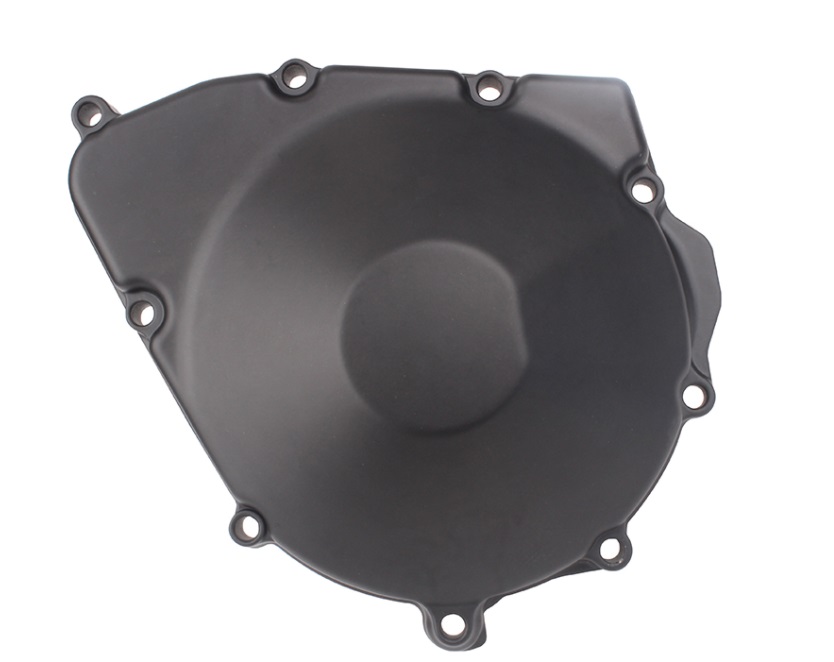

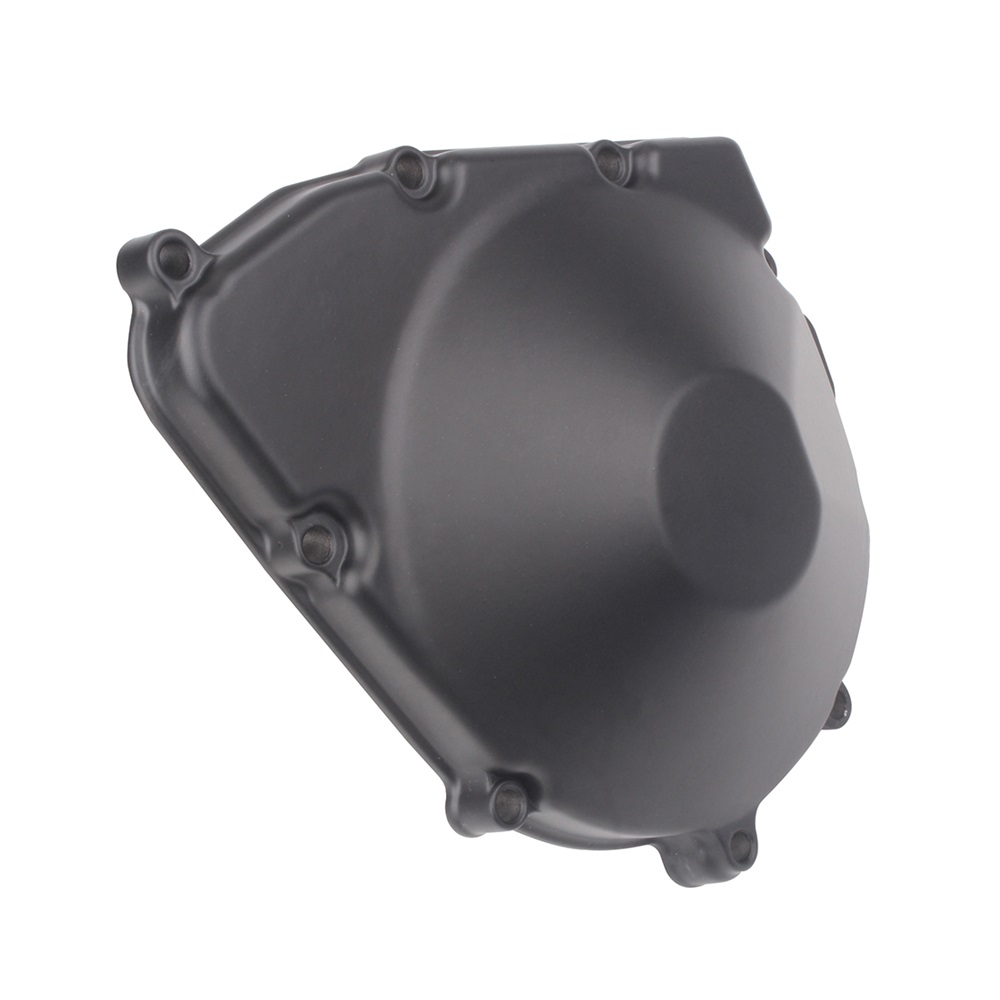

This Engine Cover is designed specifically for the 600 and 750 Katana and GSX series models, ensuring a perfect fit with the motor stator and crankcase side cover. The durable design provides excellent protection and enhances engine performance.

Tools Required:

1. Socket Wrench Set
2. Torque Wrench
3. Screwdriver Set (Philips and Flathead)
4. Pliers
5. Clean Cloth or Shop Rag
6. Loctite or Threadlocker (optional)
7. Safety Goggles
   8.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and properly secured.
   • Disconnect the battery to avoid any electrical issues during installation.
   • Wear safety goggles and gloves for protection.

2. Remove Existing Covers:

   • Using the socket wrench set, remove the bolts securing the existing engine covers.
   • Carefully detach the old covers and put them aside. Clean the mounting surface with a cloth to remove any debris.

3. Fit New Engine Cover:

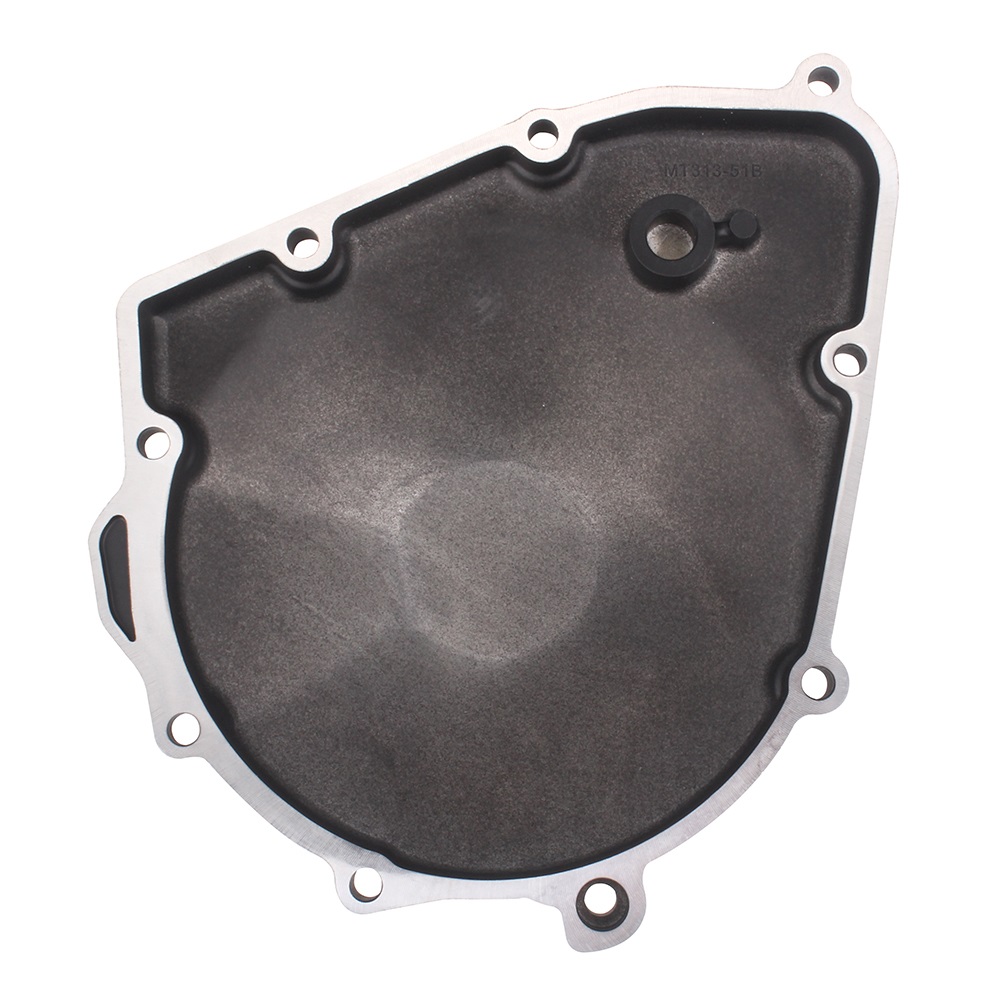

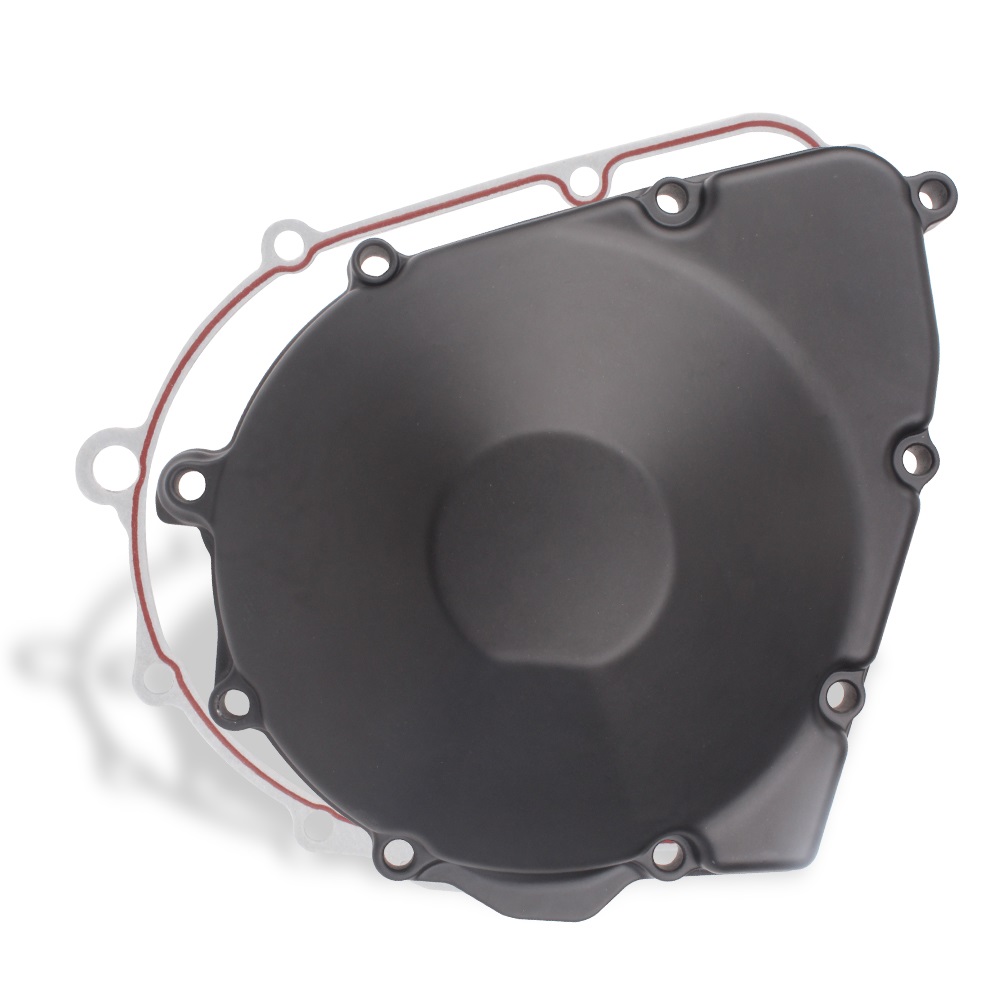

   • Align the new Engine Cover with the motor stator and crankcase side cover.
   • Ensure all holes and fittings are matched correctly to avoid misalignment.

4. Secure the Cover:

   • Insert the bolts into the designated holes and hand-tighten them using the socket wrench.
   • Once all bolts are in place, use a torque wrench to tighten them to the manufacturer's specified torque settings.

5. Final Check:

   • Inspect the installation for any potential gaps or misalignment.
   • Ensure all bolts are securely fastened and that nothing has been left loose.

6. Reconnect Battery:

   • Reconnect the motorcycle battery safely.

7. Testing:

   • Start the motorcycle and check for any abnormal noises or leaks.
   • Take the motorcycle for a short ride to ensure that the installation has enhanced engine performance and cooling efficiency.

Conclusion:
With the Engine Cover installed, your 600 and 750 Katana or GSX model is now better protected and optimized for performance. Regularly check the cover and surrounding components during maintenance to ensure continued safety and efficiency.
