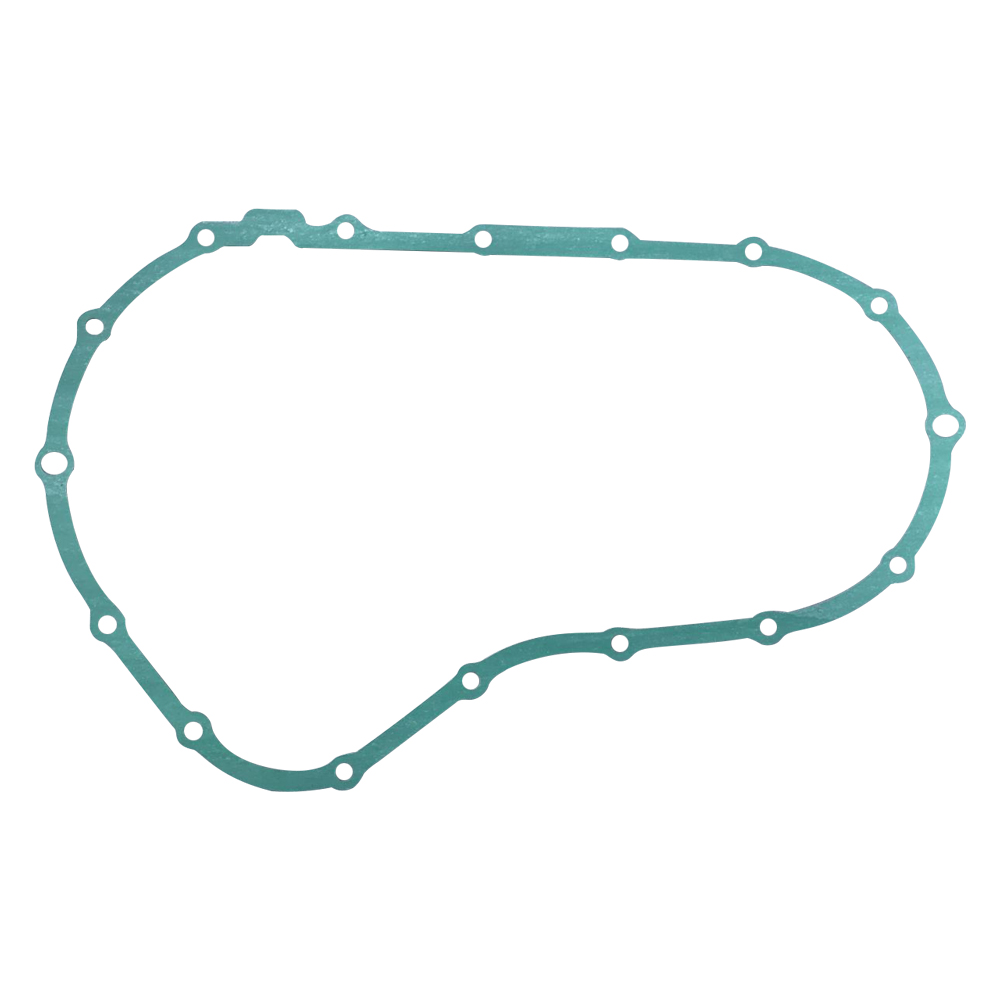

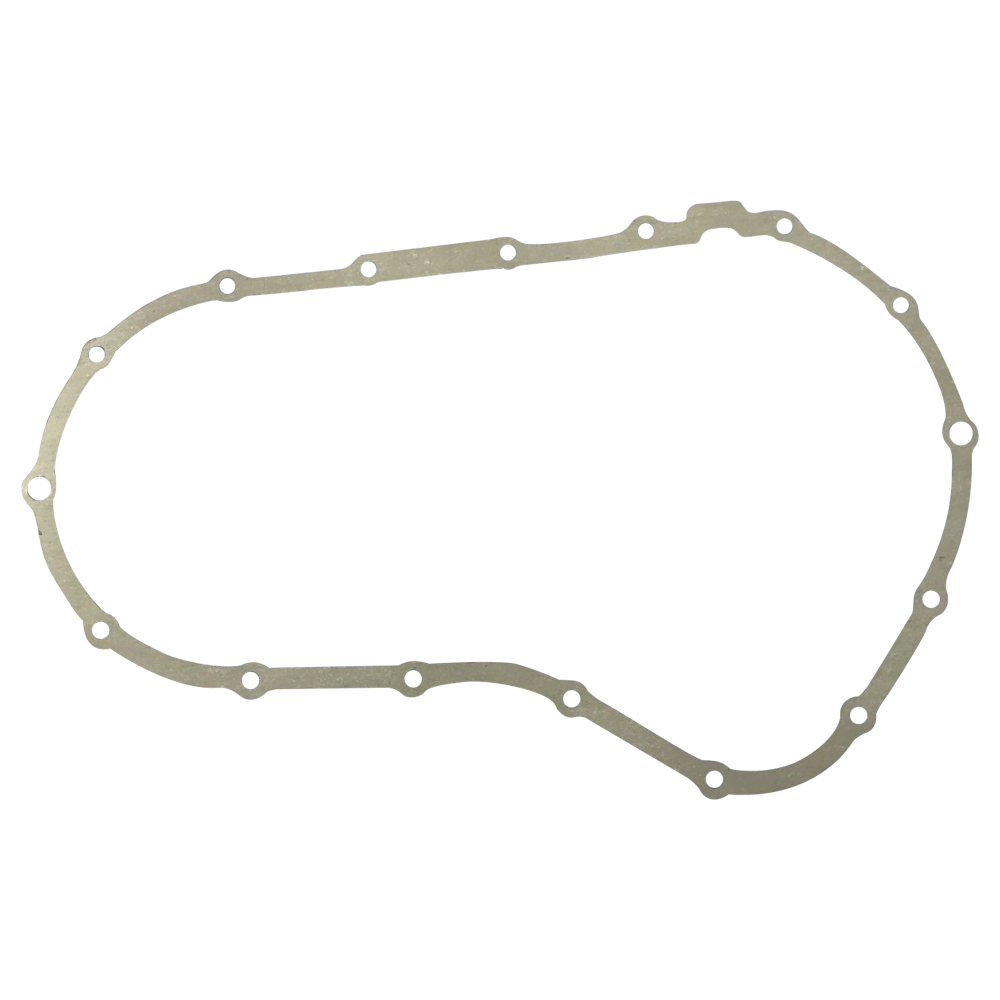

Product Installation Instructions for Motorcycle Engine Crankcase Clutch Primary Cover Gasket

Compatibility:
This gasket is designed for D Iron Sportster 883 and 1200 models from 2004 to 2020.

Materials:
Made of oil-resistant and heat-resistant rubber to ensure sealing under extreme working conditions.

Easy Installation:
The design conforms to OEM specifications, allowing for direct installation without additional modifications.

Tools Required for Installation:

1. Socket Set:

   • A metric socket set (including 1/4", 3/8", or 1/2" drive)

2. Torque Wrench:

   • For applying the correct torque to bolts

3. Screwdriver Set:

   • Both flathead and Phillips screwdrivers

4. Pliers:

   • For gripping and pulling as needed

5. Clean Rags:

   • To clean the surfaces before installation

6. Gasket Scraper or Razor Blade:

   • For removing the old gasket material

7. Engine Oil:

   • For lubrication of bolts during installation

8. Safety Goggles and Gloves:

   • To protect your eyes and hands during the installation process

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface. Disconnect the battery to avoid any electrical issues.

2. Remove the Old Gasket:

   • Use the gasket scraper to remove the old gasket material from the crankcase and clutch cover. Clean the surfaces thoroughly with clean rags.

3. Inspect Components:

   • Check the clutch cover and crankcase for any cracks or damage that may need repair before installing the new gasket.

4. Apply the New Gasket:

   • Align the new gasket with the crankcase and ensure it fits properly in place.

5. Reattach the Clutch Cover:

   • Place the clutch cover back onto the crankcase, ensuring the gasket remains aligned.

6. Tighten Bolts:

   • Use the torque wrench to tighten bolts to the manufacturer's specified torque settings in a crisscross pattern for even pressure.

7. Final Checks:

   • Check for any leaks and ensure all components are secured properly. Reconnect the battery.

8. Test Run:

   • Start the motorcycle and let it run for a few minutes. Check for leaks around the crankcase and clutch cover.

Conclusion:
This high-quality gasket provides an excellent sealing solution at an affordable price, enhancing your motorcycle's performance while preventing oil leaks and dirt infiltration. Happy riding!
