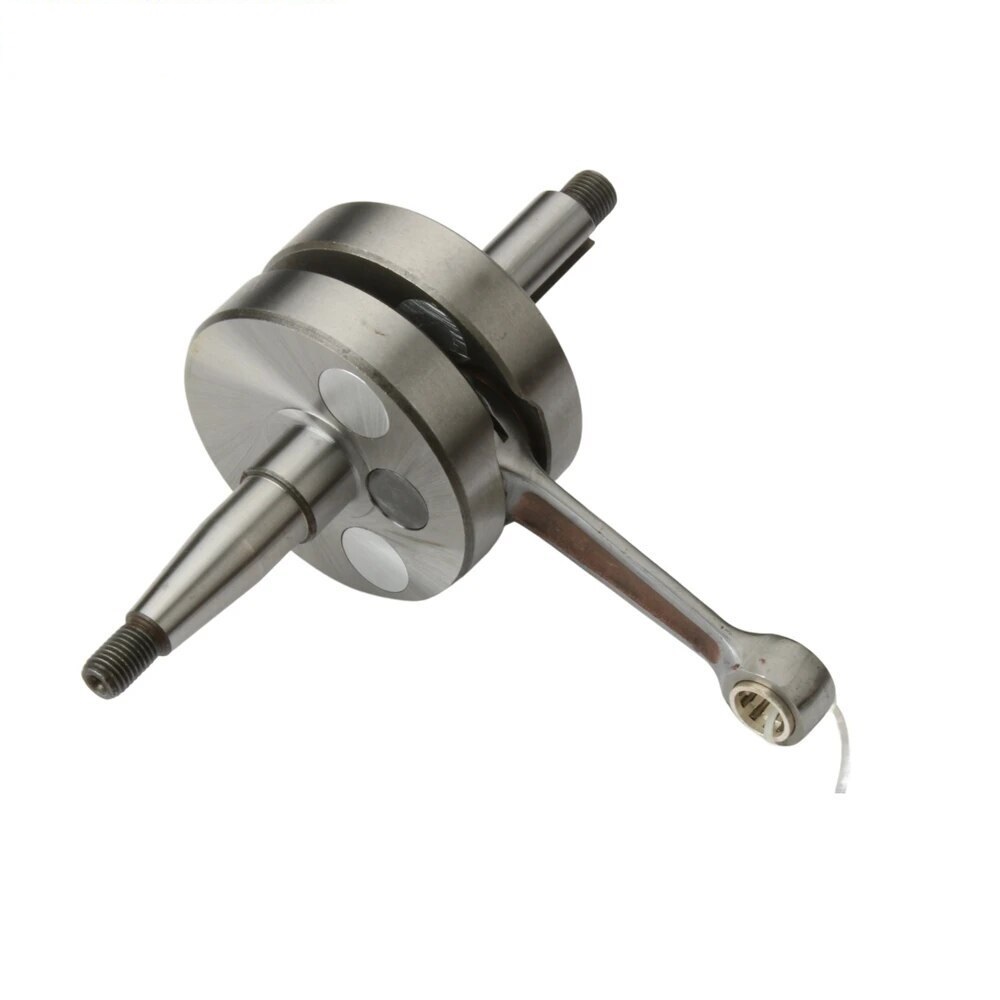

Installation Instructions for Universal 50cc 2-Stroke Motorcycle Crankshaft

Tools Required:

1. Basic Hand Tools:

   • Socket set (including a torque wrench)
   • Wrenches (metric sizes)
   • Screwdrivers (flathead and Phillips)

2. Specialized Tools:

   • Crankshaft puller
     -Circlip pliers
   • Flywheel puller (if needed)

3. Additional Supplies:

   • New gaskets and seals
   • Engine oil (2-stroke specific)
     -Cleaning rag or paper towels
   • Loctite thread locker (optional)

Installation Steps:

1. Preparation:

   • Ensure you have all the necessary tools and parts ready before starting the installation.
   • Clear a clean work area to prevent any debris from contaminating the engine components.

2. Remove the Old Crankshaft:

   • Start by draining the engine oil to avoid spillage.
   • Remove any necessary components, including the cylinder head, cylinder, and any accessories attached to the crankcase.
   • Use the crankshaft puller to carefully remove the old crankshaft from the crankcase.

3. Clean the Crankcase:

   • Thoroughly clean the crankcase and remove any old gaskets and debris. Ensure the surface is smooth and ready for the new crankshaft.

4. Install the New Crankshaft:

   • Place the new crankshaft in position within the crankcase, aligning it properly.
   • Make sure to insert any necessary seals or gaskets as per the manufacturer's instructions.
   • Gently tap the crankshaft in place if it requires slight adjustment, ensuring not to damage the bearings.

5. Reassemble the Engine:

   • Reattach the cylinder and tighten the bolts to the specified torque settings.
   • Reinstall any other components you removed during the disassembly process, making sure they are secure.
   • Check for any loose wires or hoses that need to be reconnected.

6. Verification:

   • Once everything is reassembled, manually rotate the crankshaft to ensure it moves freely.
   • Double-check all connections and fittings for tightness.

7. Final Steps:

   • Fill the engine with fresh 2-stroke oil.
   • Perform a test start to ensure the engine runs smoothly without any unusual noises.

Caution:

• Always refer to the specific engine manual for details on torque settings and component specifications to ensure proper installation and avoid damage.

By following these instructions, you should be able to successfully install the Universal 50cc 2-Stroke Motorcycle Crankshaft and enjoy improved performance in your motorcycle.
