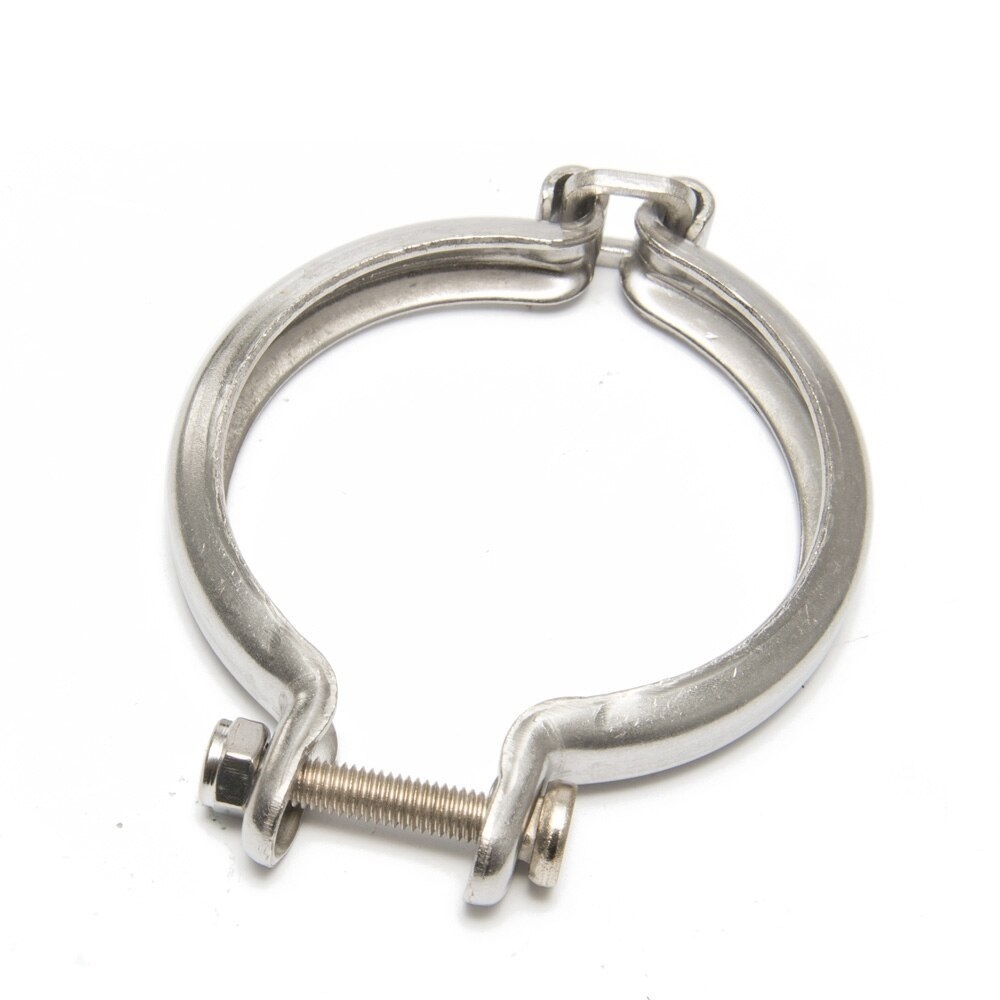

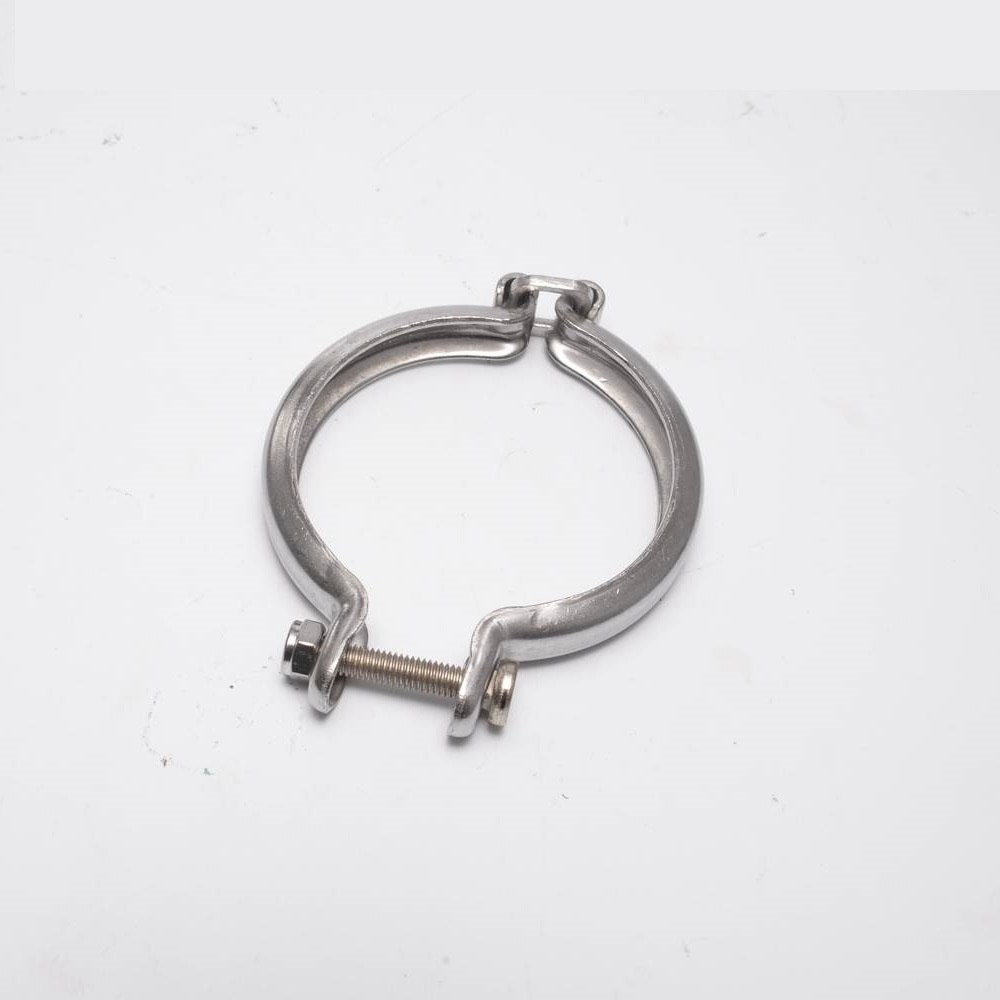

Product Installation Instructions for Turbocharger V-band Clamp Kit 73mm

Product Features:

• Durable Material: This V-band clamp is made from high-strength materials that can withstand extreme working conditions, ensuring long-term use without deformation.
• Compatible with Various Models: Suitable for turbocharger models CT2, CT9, TD04, and TD04HL, providing a wide range of applications.
• Easy Installation: Featuring a simple design with necessary fastening accessories, users can complete the installation effortlessly without the need for specialized tools.
• Optimized Performance: The effective sealing design enhances the efficiency of the turbocharger, improving overall vehicle performance.
• Cost-Effective Choice: Compared to OEM parts, this clamp offers a more economical option, helping to significantly reduce maintenance costs.

Tools Required:

1. Socket Wrench Set: To unscrew and tighten bolts.
2. Torque Wrench: To apply the appropriate torque to bolts to prevent over-tightening.
3. Pliers: For gripping and holding components in place during installation.
4. Flathead and Phillips Screwdrivers: For adjusting any screws or fittings as needed.
5. Clean Cloth: To clean the surfaces before installation and ensure a proper seal.
6. Safety Glasses: To protect your eyes during the installation process.
7. Gloves: To provide grip and protect your hands.

Installation Steps:

1. Preparation: Make sure the vehicle is parked on a flat surface and the engine is turned off and cool. Disconnect the battery.
2. Remove Old Clamp: If applicable, carefully remove the existing clamp or any components obstructing access to the turbocharger.
3. Clean Surfaces: Use a clean cloth to wipe down the mating surfaces of the turbocharger and the associated piping to ensure a good seal.
4. Position the V-band Clamp: Fit the V-band clamp around the turbocharger and the corresponding exhaust pipe or component.

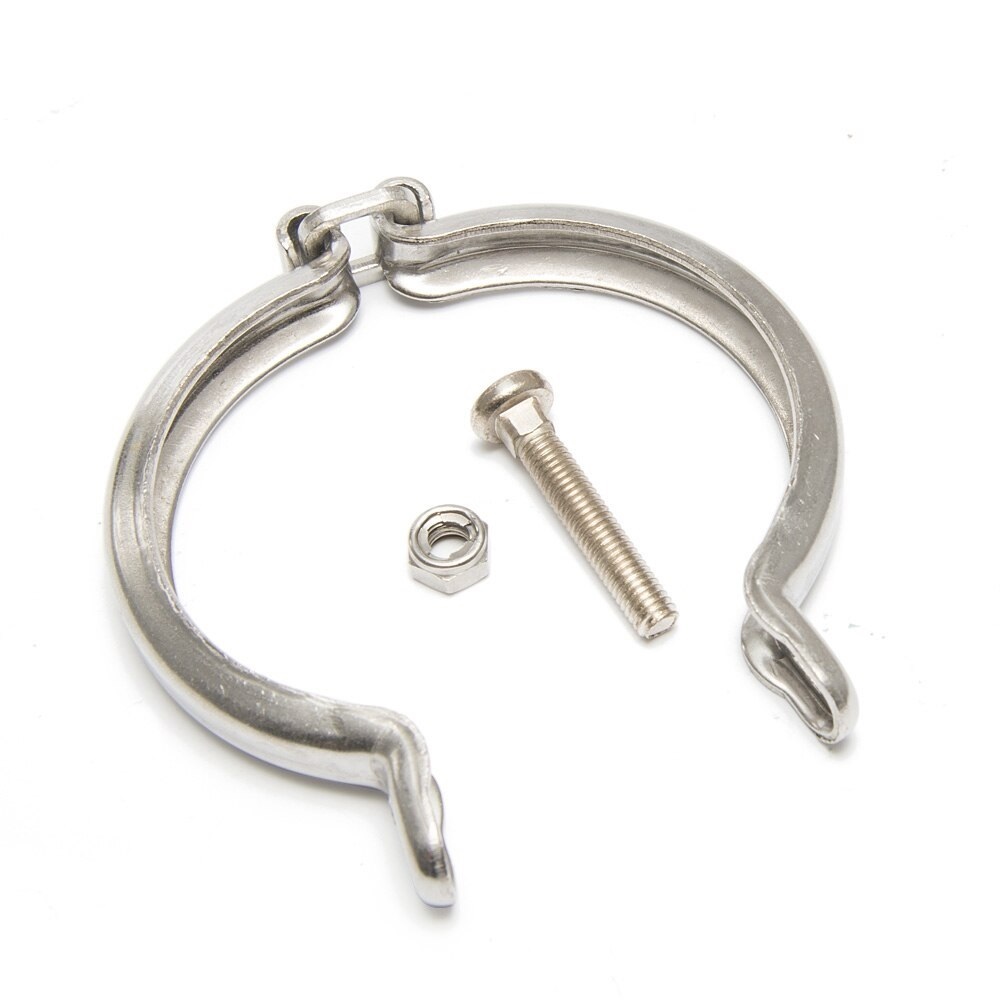

5. Attach Fastening Accessories: Insert and hand-tighten any bolts or fasteners included in the kit.
6. Tighten Bolts: Using your socket wrench, tighten the bolts gradually in a crisscross pattern to ensure even distribution of pressure.
7. Check Torque Specifications: Use a torque wrench to tighten the bolts according to the manufacturer's specified torque settings.
8. Final Check: Ensure that everything is secured and properly aligned. Reconnect the battery and perform a test run to ensure proper function.

Note: Always refer to specific vehicle manuals for any additional requirements or specifications related to your model.

Congratulations! You have successfully installed the Turbocharger V-band Clamp Kit 73mm. Enjoy improved performance and reliability from your turbocharger system!
