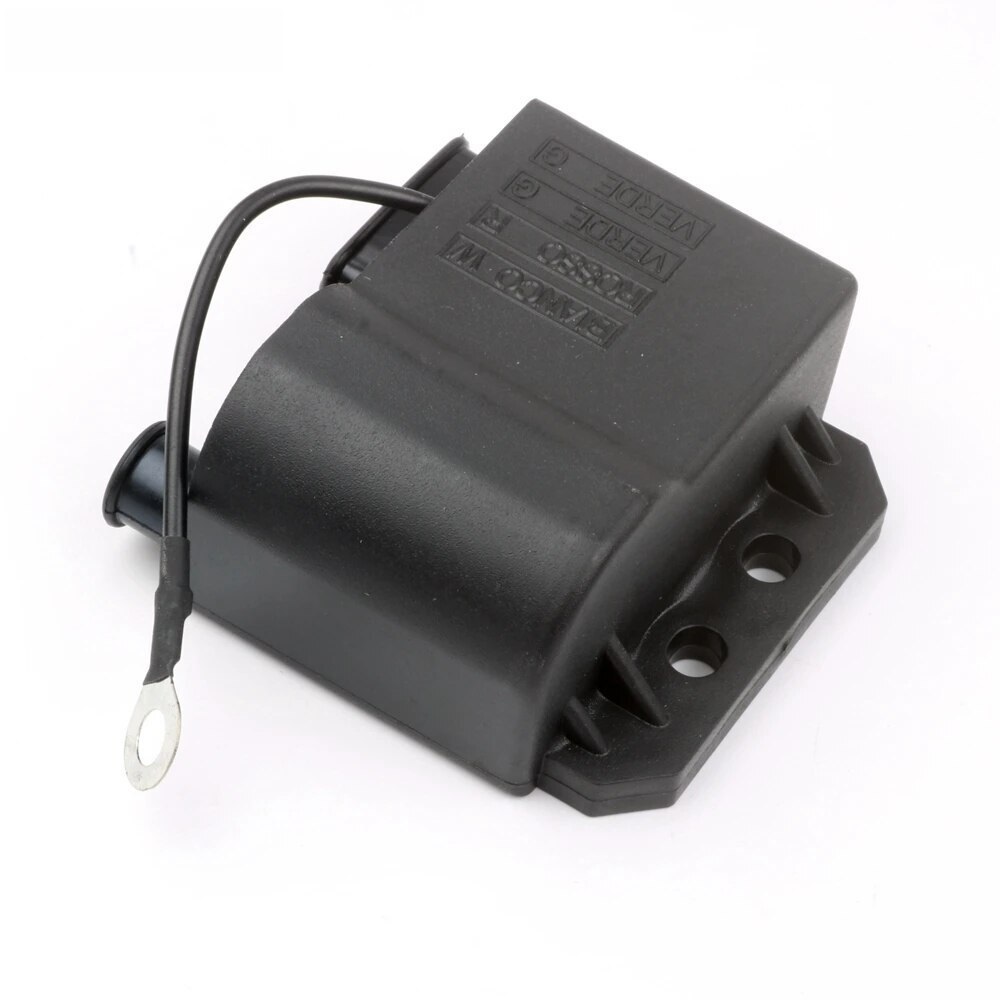

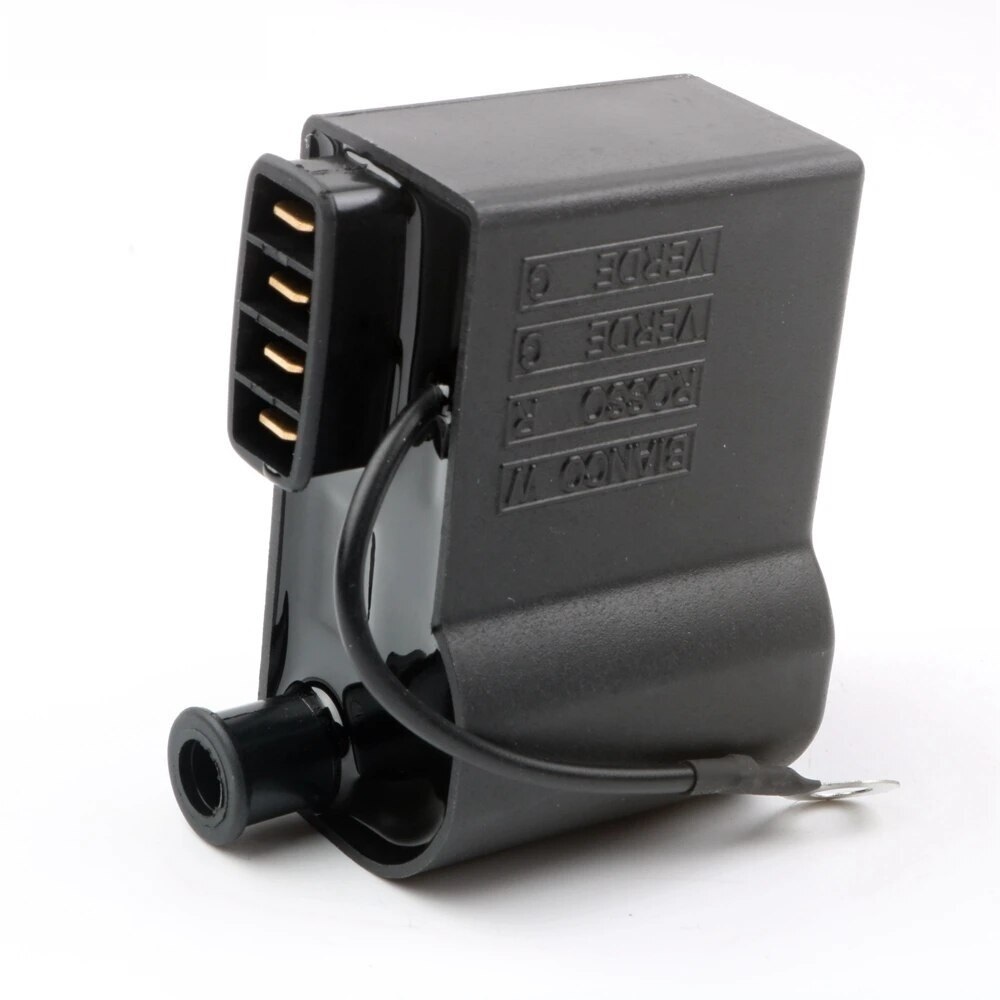

Product Installation Instructions for the 50cc 2-Stroke Ignition Coil

Compatibility:
This ignition coil is compatible with various 50cc 2-stroke motorcycles, including XP6, XPS, XR6, and AM6 models.

Key Components:

• Provides stable ignition performance
• Improves engine starting efficiency
• Enhances power output

Installation Overview:
This ignition coil is designed for easy installation. Users can replace it using basic tools, saving on repair costs.

Durable Materials:
Manufactured from high-quality materials, ensuring long-lasting use and reducing the frequency of replacements.

Reliable Performance:
Undergoes rigorous testing to ensure stable performance in various riding conditions, enhancing your riding pleasure.

Tools Required for Installation:

1. Socket Wrench Set

   • For removing and tightening bolts.

2. Screwdrivers (Philips and Flat Head)

   • To remove screws securing the ignition coil.

3. Pliers

   • For gripping and manipulating wires.

4. Wire Cutters/Strippers

   • If necessary, to prepare any wire connections during installation.

5. Torque Wrench

   • Ensures proper tightening of bolts according to manufacturer specifications.

6. Multimeter

   • To check electrical connections and ensure proper functioning of the ignition coil.

Installation Steps:

1. Safety First:
   Ensure the motorcycle is on a stable surface and turned off. Remove the key from the ignition.

2. Remove the Old Ignition Coil:

   • Disconnect the negative battery terminal.
   • Locate the ignition coil and remove any screws or bolts securing it.
   • Carefully detach the electrical connectors from the old ignition coil.

3. Install the New Ignition Coil:

   • Connect the electrical connectors to the new ignition coil.
   • Position the ignition coil in place and secure it with screws or bolts.
   • Reconnect the negative battery terminal.

4. Final Checks:

   • Start the motorcycle to ensure proper ignition performance.
   • Check for any loose connections or abnormal sounds.

Enjoy Enhanced Riding:
Now that the installation is complete, enjoy improved engine performance and reliability with your new ignition coil. Ride safely!
