Product Installation Instructions for the 52mm 14mm Scooter Piston Kit for 100cc 2-Stroke Engine Applications

Contents:

• Introduction
  -Tools Required
  -Installation Steps
  -Safety Precautions
  -Conclusion

Introduction:

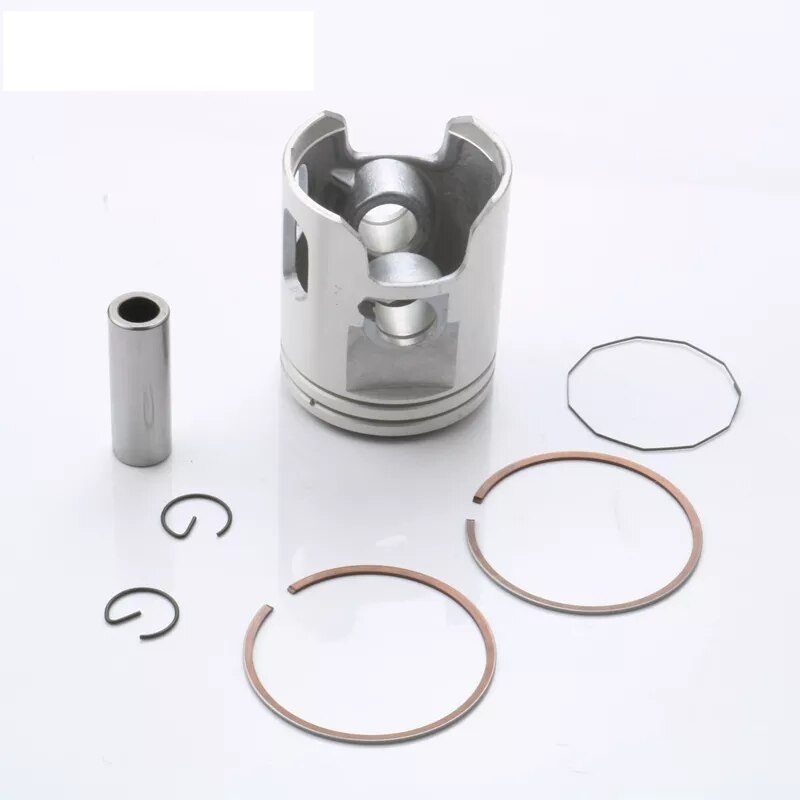

The 52mm 14mm Piston Kit is designed specifically for 100cc 2-stroke engines, ensuring a perfect fit and reliable performance. This comprehensive guide will help you install the piston kit with ease.

Tools Required:

Before starting the installation, please gather the following tools:

1. Socket Wrench Set: For removing bolts and nuts connecting the engine components.
2. Torque Wrench: To ensure all bolts are tightened to the manufacturer's specifications.
3. Piston Ring Installer Tool: For easy installation of piston rings onto the piston.
4. Screwdriver Set: For removing and securing screws on various engine parts.
5. Piston Pin Puller (or equivalent tool): For safely removing the old piston pin.
6. Oil or Lubricant: For lubricating the piston and rings during installation.
7. Cleaning Rags: To clean all components and prevent contamination.
8. Safety Glasses and Gloves: For personal protection during the installation process.

Installation Steps:

1. Preparation:

   • Disconnect the battery and remove the spark plug for safety.
   • Drain the fuel from the fuel tank to avoid spills.

2. Remove the Existing Piston:

   • Remove the cylinder head and cylinder from the engine.
   • Use the socket wrench to loosen and remove the bolts securing the cylinder.
   • Carefully pull the cylinder off and set it aside.
   • Use the piston pin puller to remove the old piston and piston pin.

3. Install the New Piston:

   • Lubricate the new piston and piston rings with oil to ensure smooth operation.
   • Install the piston rings onto the new piston using the piston ring installer tool.
   • Insert the piston into the cylinder, ensuring it is oriented correctly.

4. Insert the Piston Pin:
   -Align the piston pin with the piston and connecting rod.

   • Secure the piston pin in place with the circlips provided in the kit.

5. Reattach the Cylinder:

   • Carefully place the cylinder over the new piston.
   • Tighten the cylinder bolts with the socket wrench according to the manufacturer’s torque specifications.

6. Reassemble the Engine:

   • Reattach the cylinder head and any other components you removed earlier.
   • Ensure that everything is securely fastened and in place.
   • Reinstall the spark plug and reconnect the battery.

7. Final Checks:

   • Check for any loose components or potential leaks before starting the engine.
   • Refill the fuel tank with the recommended fuel mixture for 2-stroke engines.

Safety Precautions:

• Always wear safety glasses and gloves to protect yourself from debris and chemicals.
• Work in a well-ventilated area to avoid inhaling fumes.
• Follow all local regulations regarding fuel handling and disposal.

Conclusion:

With the 52mm 14mm Piston Kit, you can enhance the performance of your 100cc 2-stroke engine. By following these installation instructions carefully and using the necessary tools, you can effectively upgrade your scooter or motorcycle for improved power and responsiveness. Enjoy your ride!
