Product Installation Instructions for Carburetor Repair Kit for Super Tenere XTZ 750

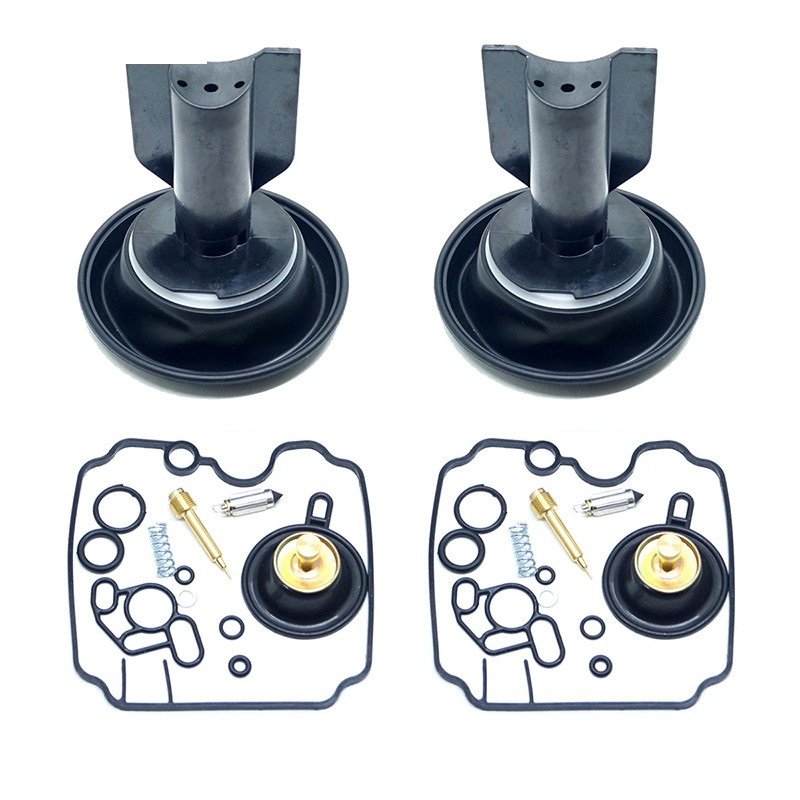

Included Components:

• Vacuum Diaphragm
• Piston

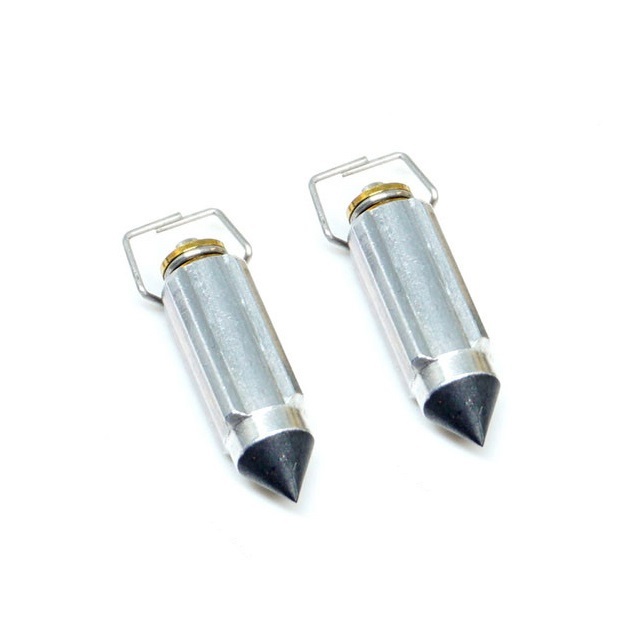

• Float Needle Valve
• Screws

Tools Required:

1. Screwdriver set (flathead and Phillips)
2. Wrench set (for specific bolt sizes)
3. Pliers
   4.Carburetor cleaner
   5.Clean rag or paper towels
4. Safety goggles
   7.Gloves

Installation Steps:

1. Preparation:

   • Make sure the motorcycle is on a stable surface.
   • Disconnect the battery for safety.
   • Ensure all tools are at hand.

2. Remove the Carburetor:

   • Detach the air filter assembly.
   • Carefully disconnect the fuel line and any electrical connections from the carburetor.
   • Unfasten the screws holding the carburetor in place and gently remove it.

3. Disassemble the Carburetor:

   • Place the carburetor on a clean work surface.
   • Carefully remove the float bowl using the appropriate screwdriver.
   • Note the configuration of all components for reassembly.

4. Install the New Components:

   • Replace the old vacuum diaphragm with the new one included in the kit.
   • Install the new piston and float needle valve, ensuring they are correctly aligned.
   • Secure all components and replace the float bowl, tightening the screws snugly but not overtightening.

5. Reattach the Carburetor:

   • Carefully position the carburetor back onto the motorcycle.
   • Reattach the screws and ensure all connections (fuel line and electrical) are secure.

6. Final Checks:

   • Reconnect the battery.
   • Turn on the fuel supply and check for any leaks.
   • Start the engine and allow it to idle, checking for smooth operation.

7. Clean Up:

   • Wipe down any spilled fuel or debris from the workspace.
   • Properly dispose of any old parts and used cleaning materials.

Safety Tips:

• Always wear safety goggles and gloves during the installation.
• Work in a well-ventilated area when using cleaners or fuel.

Following these installation instructions will help ensure proper setup and maintenance of your Super Tenere XTZ 750’s carburetor, leading to improved engine performance and reliability.
