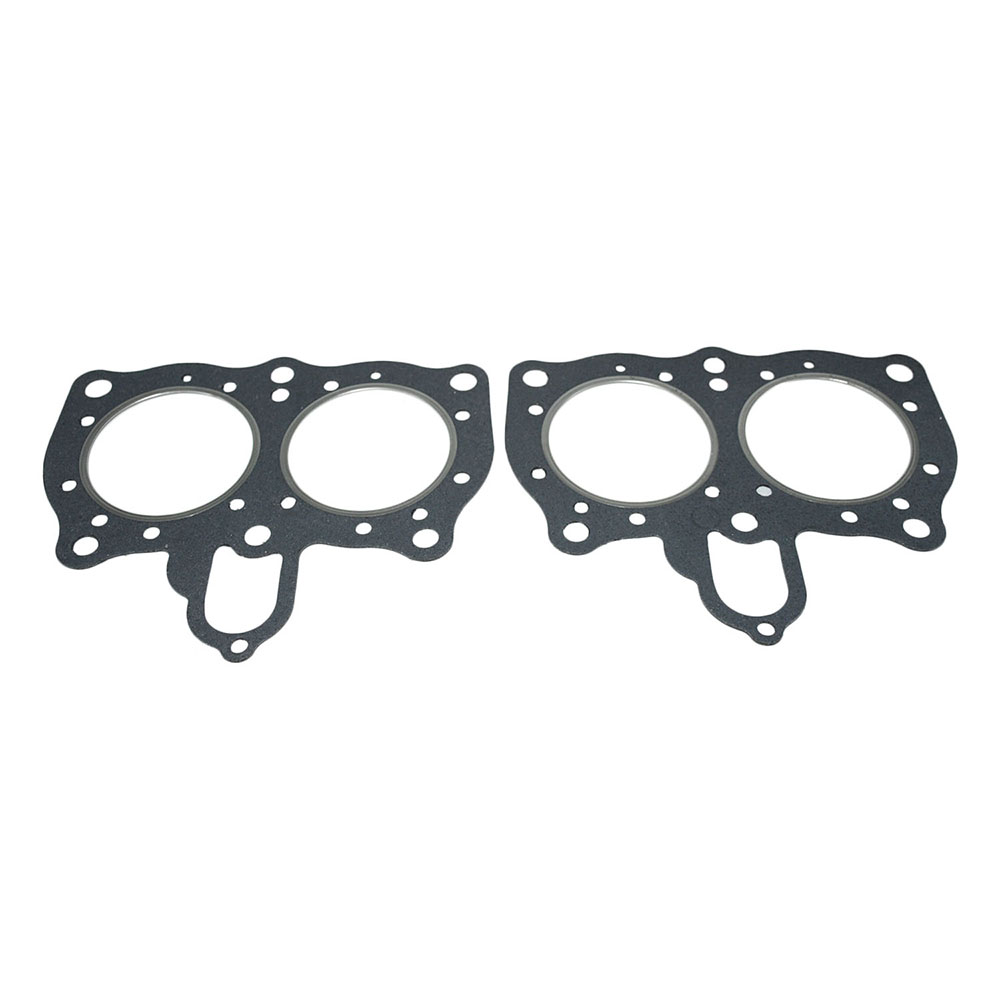

Cylinder Gasket Set Installation Instructions

Tools Required

Before starting the installation of the Cylinder Gasket Set, please ensure you have the following tools ready:

1. Wrenches: A set of metric wrenches (6mm to 17mm) for removing bolts.
2. Socket Set: A metric socket set for easy access to bolts in tight spaces.
3. Torque Wrench: To ensure all bolts are tightened to the manufacturer's specifications.
4. Screwdrivers: Both flathead and Phillips screwdrivers for removing any cover panels and connector screws.
5. Pliers: For gripping and pulling various components if necessary.
6. Gasket Scraper: To remove old gasket material from surfaces before installing the new gasket.
7. Cleaning Supplies: Engine degreaser or solvent to clean the surfaces thoroughly and a lint-free cloth for wiping.
8. Safety Goggles: To protect your eyes during installation.
9. Gloves: To protect your hands from grease and debris.

Installation Steps

1. Preparation:

   • Ensure your motorcycle is on a stable work surface.
   • Disconnect the battery to avoid any electrical issues.

2. Remove Old Parts:

   • Carefully remove any components that obstruct access to the cylinder area.
   • Use the socket set and wrenches to remove the cylinder head bolts. Keep these bolts organized for reinstallation.

3. Clean the Surfaces:

   • Use a gasket scraper to remove any remnants of the old gasket material.
   • Thoroughly clean the mounting surfaces with engine degreaser and a lint-free cloth to ensure a proper seal.

4. Install New Gasket:

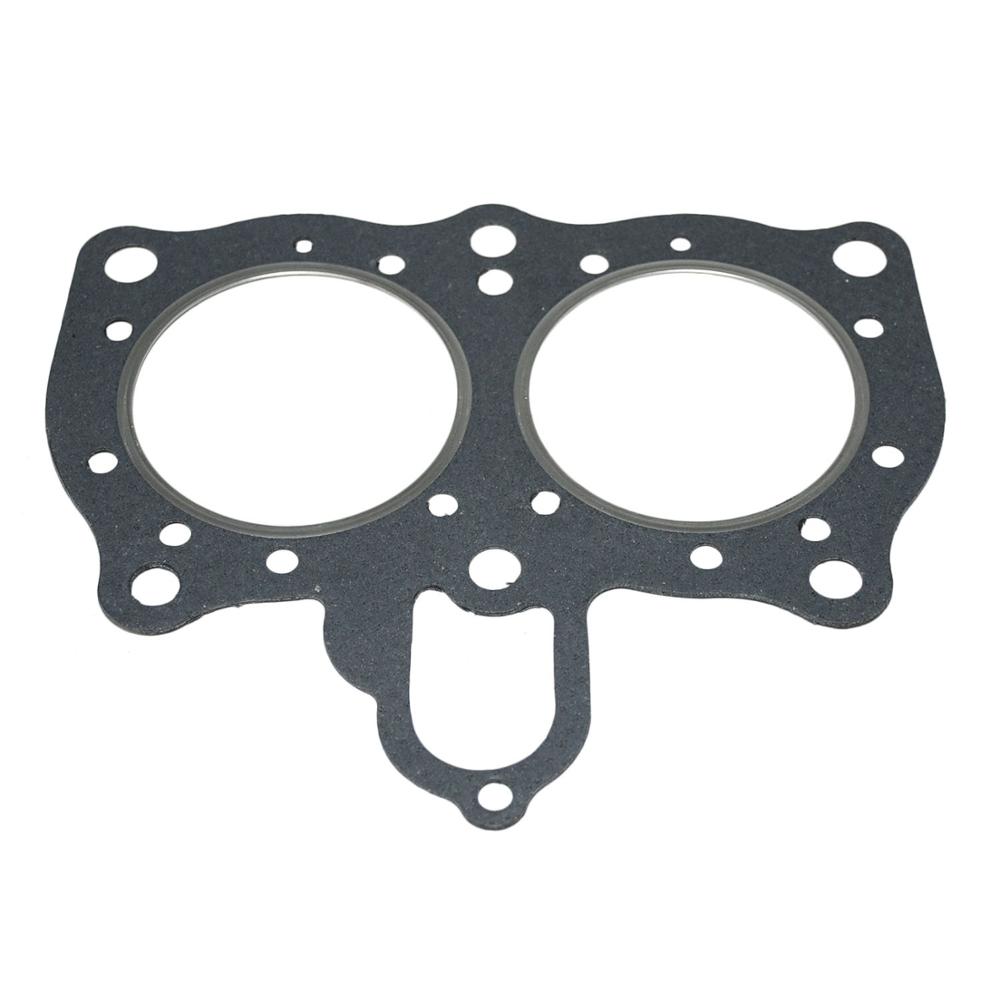

   • Place the new gasket onto the cylinder surface. Ensure that it aligns properly with the holes and openings.

5. Reassemble Components:

   • Carefully position the cylinder head back onto the gasket and align it with the bolt holes.
   • Hand-tighten the cylinder head bolts to hold everything in place.

6. Torque Bolts:

   • Using a torque wrench, tighten the cylinder head bolts to the manufacturer's specified torque values.
   • Follow the recommended bolt tightening sequence to ensure even pressure across the gasket.

7. Final Checks:

   • Reinstall any other parts that were removed in the preparation step.
   • Double-check that all bolts and connectors are secure.

8. Reconnect Battery:

   • Reconnect the motorcycle battery and start the engine to check for leaks and ensure everything is functioning properly.

##Conclusion
By following these installation instructions and using the recommended tools, you can effectively replace the cylinder gasket set on your 1100cc or 1200cc D GL motorcycle. Enjoy improved engine performance and a seamless riding experience!
