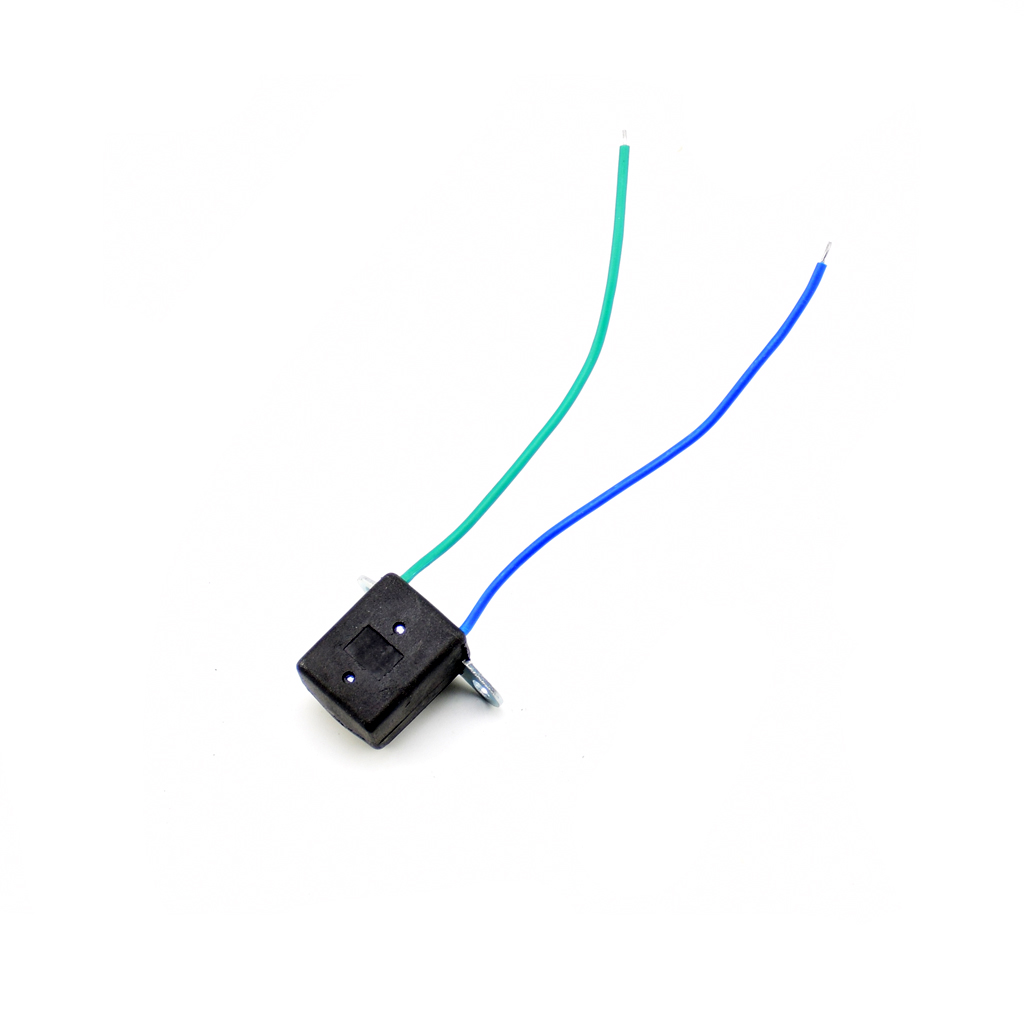

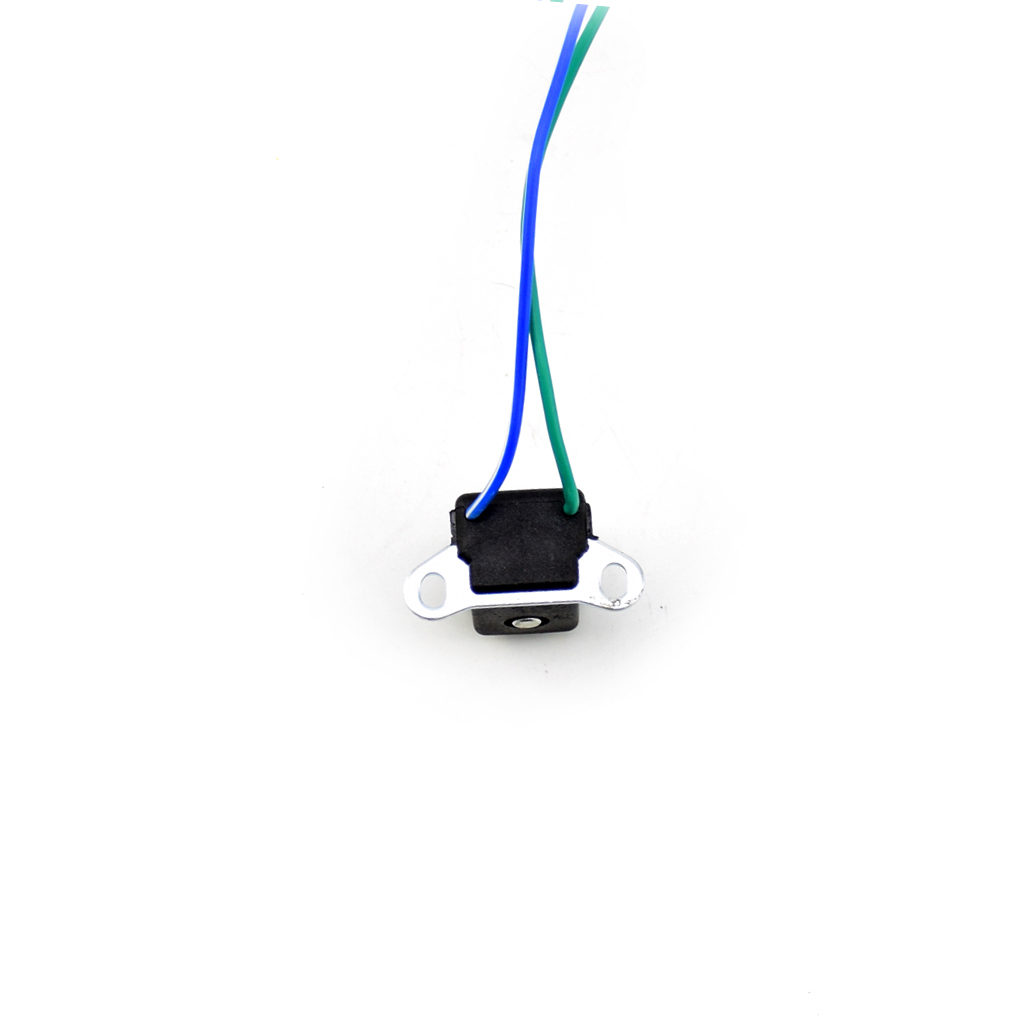

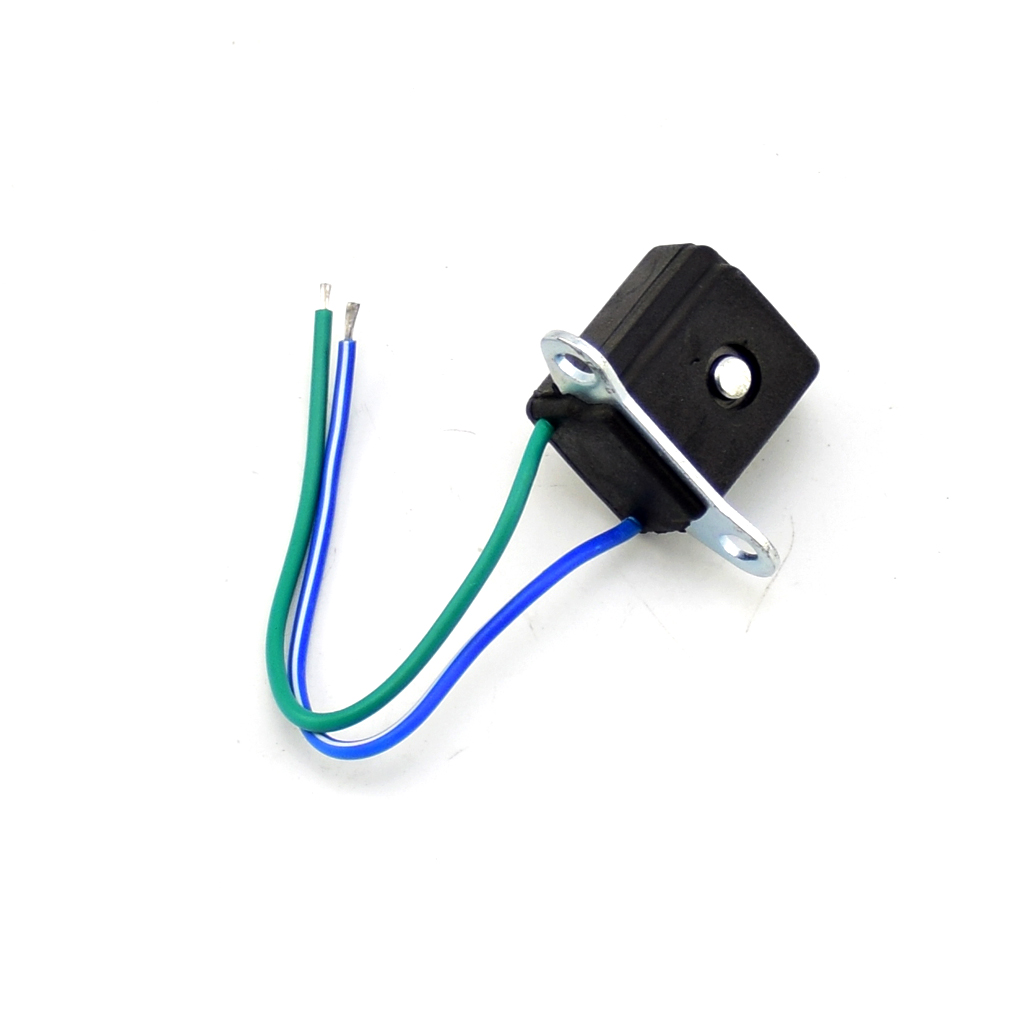

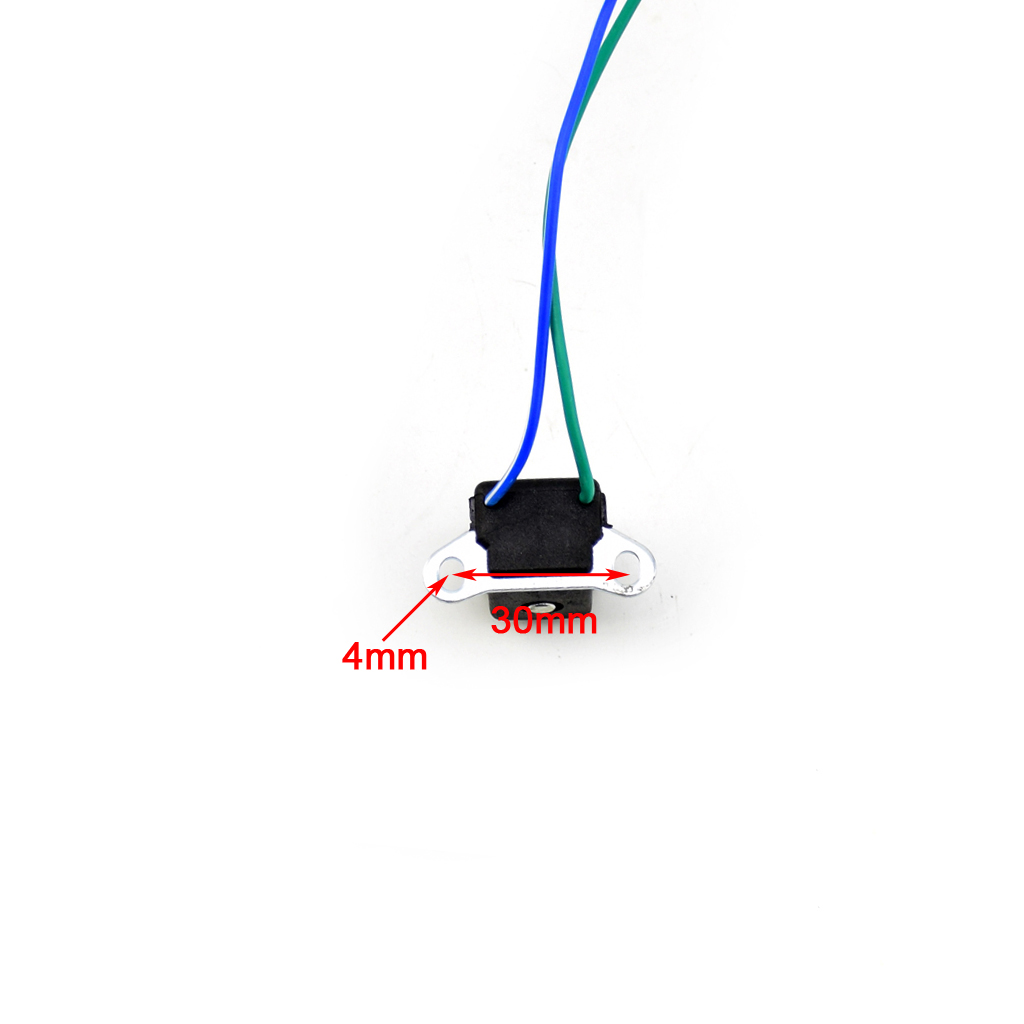

Installation Instructions for 2 Piece 110CC Magneto Motor Stator Trigger Pulser Coil

Introduction:
This guide will help you install the 110CC Magneto Motor Stator Trigger Pulser Coil. It's designed for various motorcycles, scooters, mopeds, ATVs, and quads, ensuring compatibility and reliability for your engine.

Tools Needed:

1. Socket Wrench Set:

   • Common sizes for motorcycle and ATV nuts and bolts.

2. Screwdrivers:

   • Phillips and flathead screwdrivers for various screws.

3. Pliers:

   • Needle-nose pliers for handling small wires and connectors.

4. Wire Cutters/Strippers:

   • To cut and strip the coil wires if necessary.

5. Torque Wrench:

   • To ensure bolts are tightened to manufacturer specifications.

6. Heat Shrink Tubing or Electrical Tape:

   • For securing and insulating any electrical connections.

7. Safety Gear:

   • Gloves and safety goggles for protection during the installation.

Installation Steps:

1. Preparation:

   • Ensure the vehicle is turned off and the battery is disconnected to prevent electrical accidents.

2. Access the Original Coil:

   • Remove any panels or covers that obstruct access to the existing stator coil. This may require using your socket wrench and screwdrivers.

3. Disconnect the Old Coil:

   • Carefully disconnect the wiring harness from the old stator coil. Take note of how the wires are arranged for easier installation of the new coil.

4. Remove the Old Coil:

   • Unscrew or unbolt the old coil from its mounting location using the socket wrench. Keep the screws for reinstallation.

5. Install the New Coil:

   • Position the 110CC Magneto Motor Stator Trigger Pulser Coil in place and secure it with the screws you previously removed.

6. Reconnect the Wiring:

   • Attach the wiring harness to the new coil, ensuring that all connections are secure and correctly positioned as per the original arrangement.

7. Insulate Connections:

   • Use heat shrink tubing or electrical tape to cover and protect the wiring connections.

8. Final Assembly:

   • Reattach any panels or covers you removed earlier. Ensure everything is securely fastened.

9. Reconnect the Battery:

   • Once all components are in place, reconnect the vehicle’s battery.

10. Test the Installation:

    • Start the engine to ensure the new coil operates correctly, providing stable power and effective engine start performance.

Conclusion:
Following these instructions will help ensure a smooth installation of the 110CC Magneto Motor Stator Trigger Pulser Coil. Enjoy the reliable performance and compatibility with your vehicle!
