Motorcycle Chain Guide Slider Roller Installation Instructions

Tools Needed:

1. Socket Wrench Set - To remove and install bolts and nuts.
2. Torque Wrench - To ensure proper tightening of bolts to manufacturer specifications.
3. Phillips and Flathead Screwdrivers - For any screws that may need removal.
4. Allen Wrench Set - To accommodate any hex screws on the bike.
5. Pliers - For gripping and twisting if needed.
6. Chain Breaker Tool - (if necessary) For removing and installing the chain.
7. Rags - To clean any excess grease or dirt.
8. Safety Glasses - To protect your eyes during installation.
9. Gloves - To keep your hands clean and protected.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable stand.
   • Gather all tools required for installation.
   • Wear safety glasses and gloves for protection.

2. Remove Old Slider Roller:

   • Using the socket wrench, carefully remove the bolts securing the old slider roller.
   • Keep track of the bolts for reinstallation if needed.

3. Clean the Area:

   • Clean the mounting surface to remove any dirt, grease, or debris.
   • Inspect surrounding components for any wear damage.

4. Install New Slider Roller:

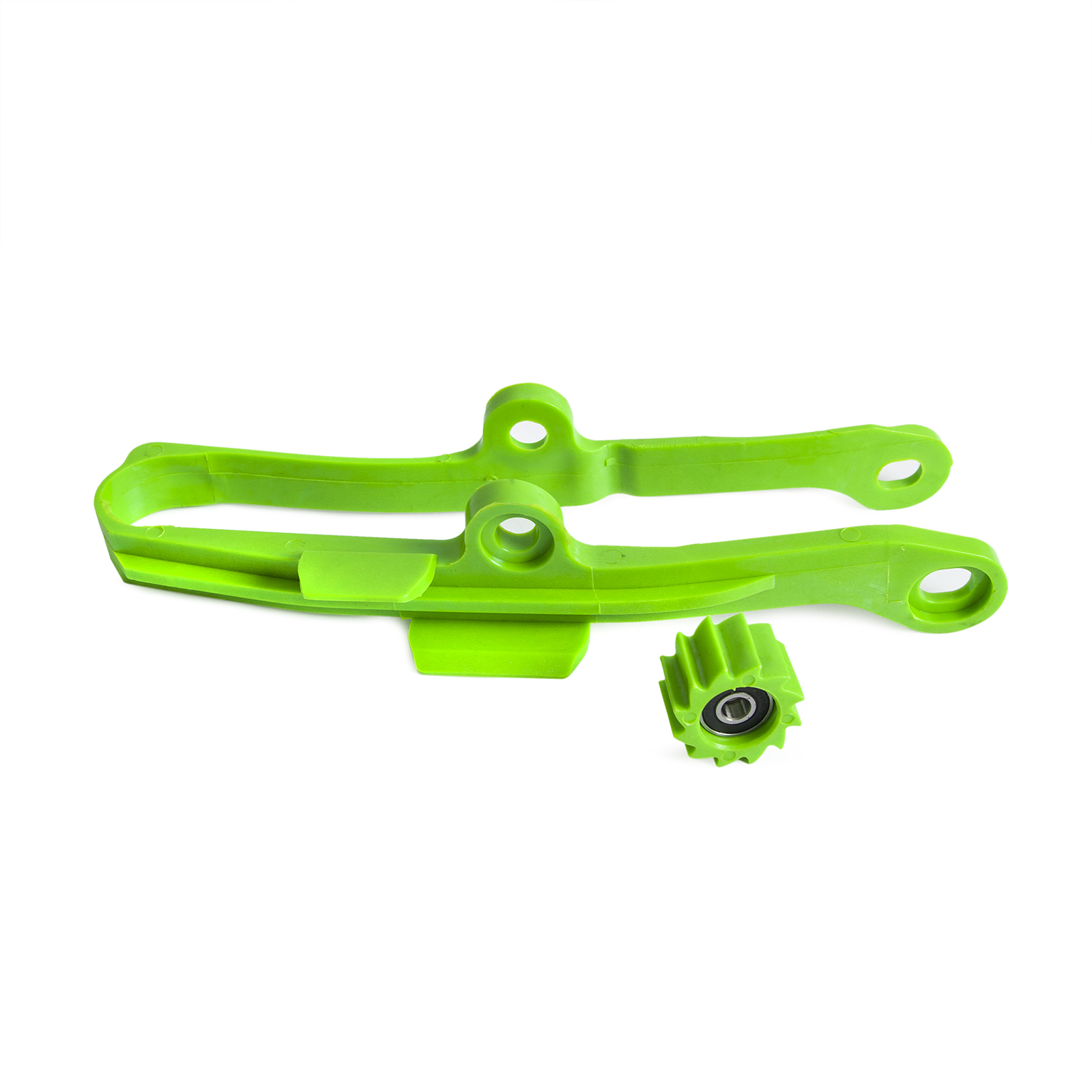

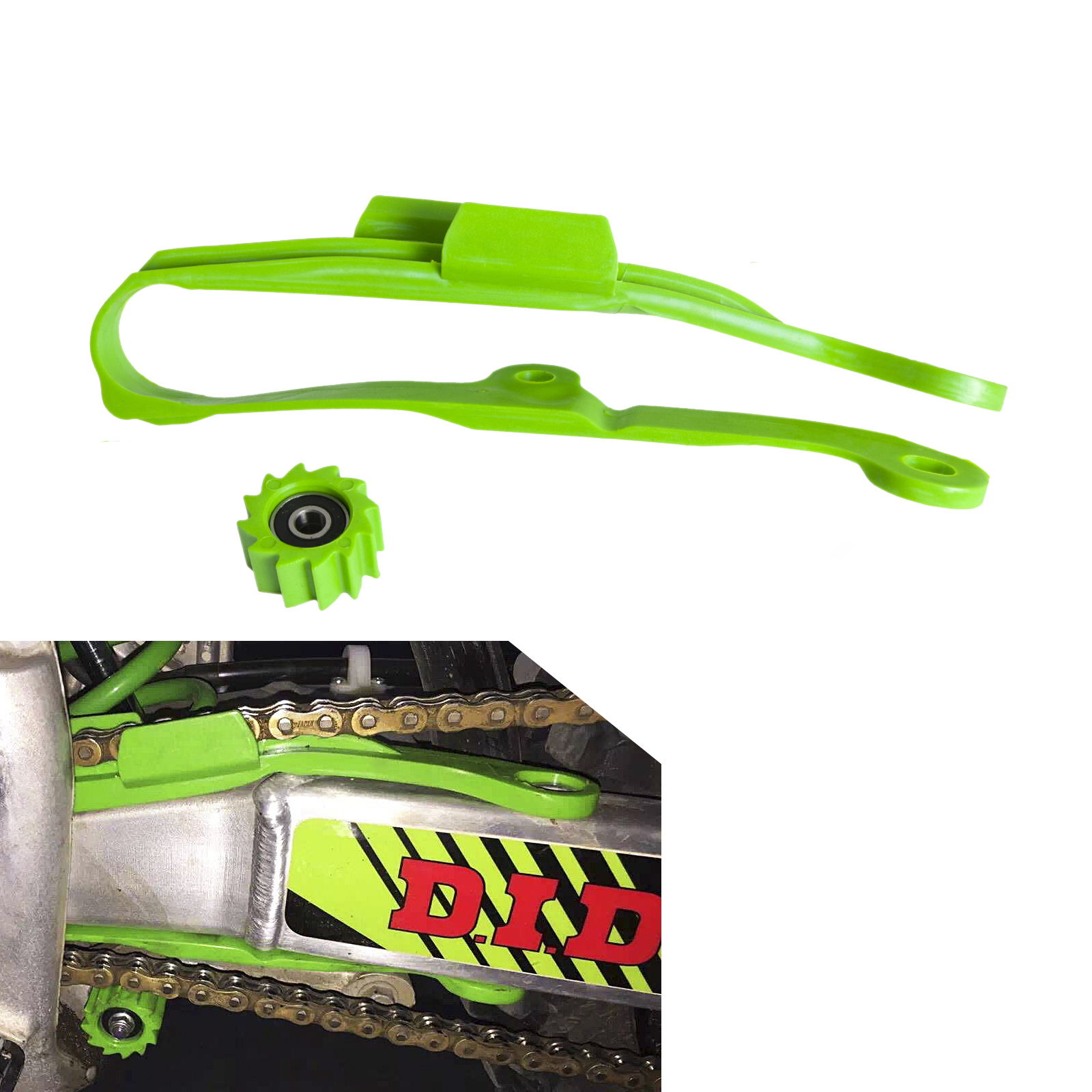

   • Position the new chain guide slider roller in place.
     -Align it with the mounting holes correctly.

5. Secure the Roller:

   • Using the socket wrench, secure the newly installed roller with the bolts.
   • Use the torque wrench to tighten the bolts according to the manufacturer’s specifications.

6. Reinstall the Chain (if removed):

   • Use the chain breaker tool if you removed the chain for better access.
   • Ensure the chain is properly aligned with the new slider roller.

7. Final Checks:

   • Double-check all bolts and fittings for tightness.
   • Ensure the chain runs smoothly over the new slider roller.

8. Maintenance Reminder:

   • Regularly check and maintain the slider roller to prolong the life of your chain and gear system.

Conclusion:

Following these instructions will ensure a successful installation of your Motorcycle Chain Guide Slider Roller, enhancing your bike's performance while providing durable and reliable service.
