Installation Instructions for Adjustable Air Fuel Mixing Screw for VM22 Carburetor

Product Details:

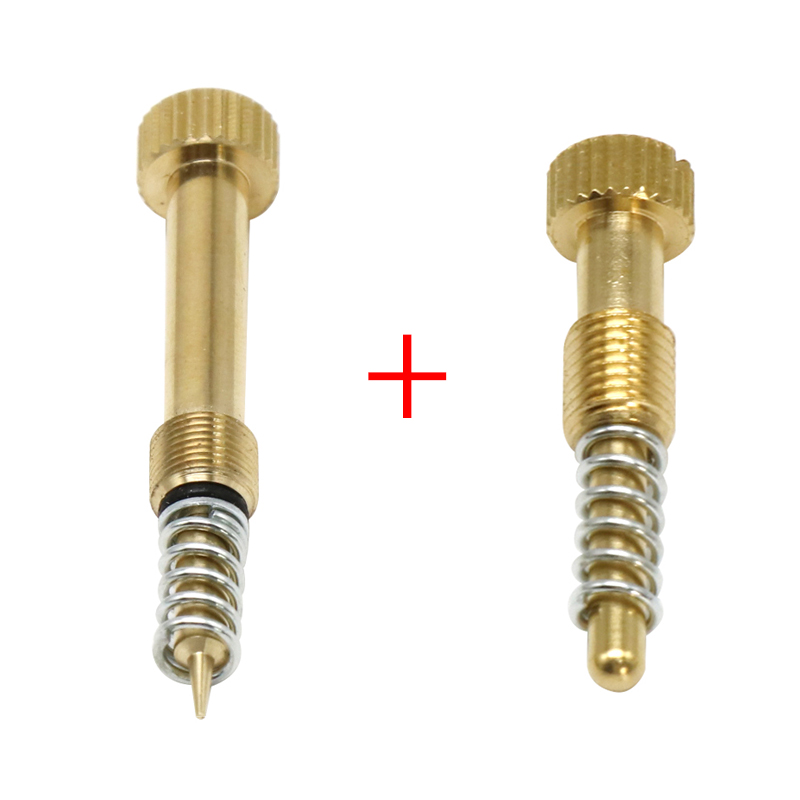

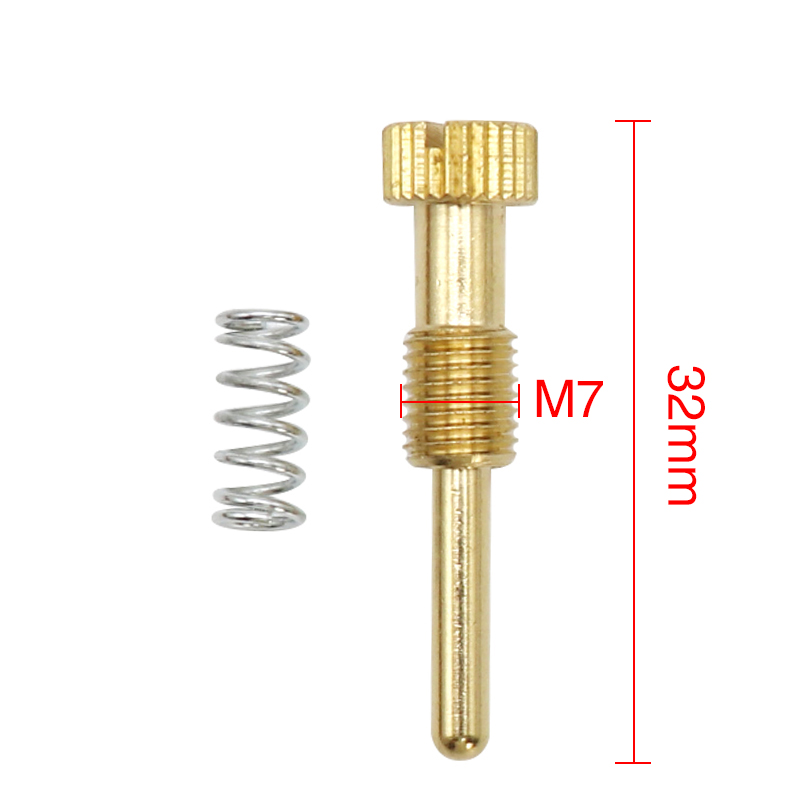

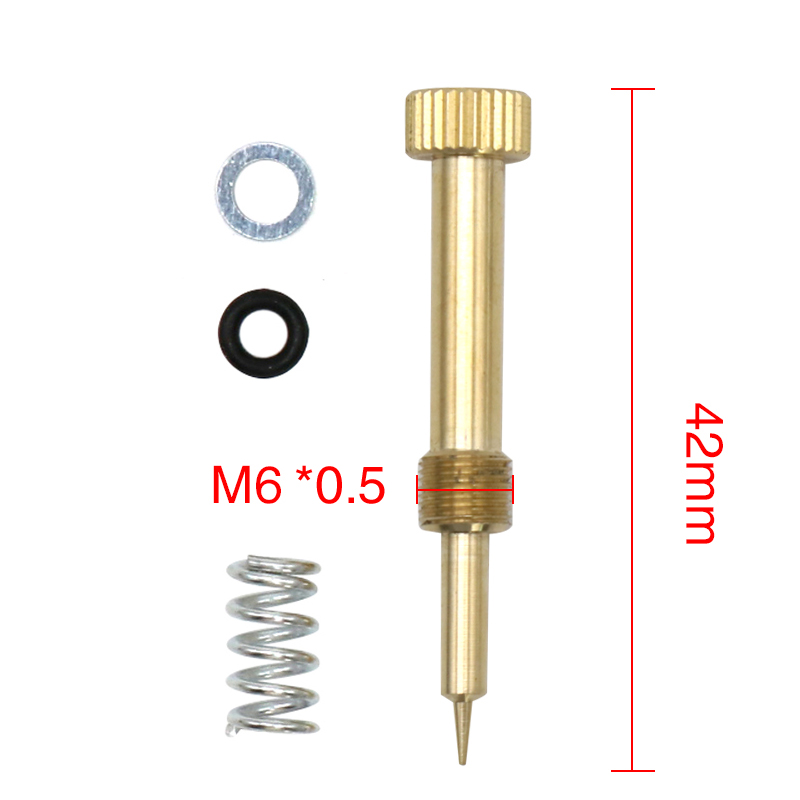

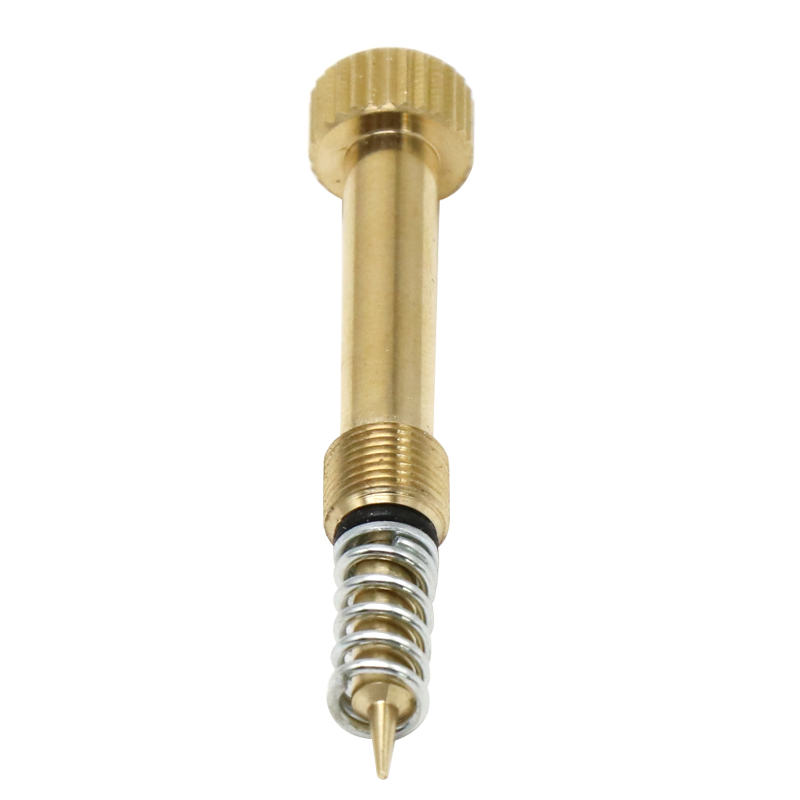

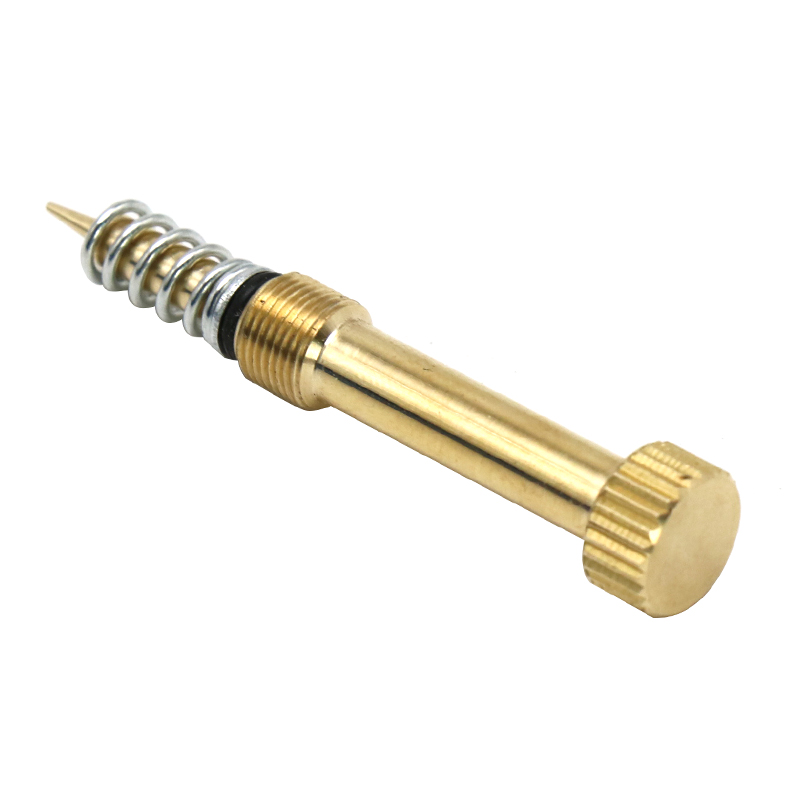

• This product is an adjustable air fuel mixing screw designed for the VM22 carburetor, suitable for 125cc ATVs.
• It enhances engine performance and efficiency.
• Made from high-precision, durable tungsten carbide material, it is wear-resistant and easy to install and adjust.
• Prevents throttle sticking and stabilizes engine performance.

Note: This product does not include the VM22 carburetor itself; it is an accessory.

Tools Required:

1. Screwdriver Set

   • Flathead and Phillips screwdriver (depending on your carburetor screws)

2. Wrenches

   • Adjustable wrench or socket set for removing the carburetor

3. Pliers

   • Needle-nose pliers are useful for better grip on small parts

4. Allen Wrench/Hex Key Set

   • If applicable for the carburetor assembly

5. Torque Wrench

   • To ensure proper tightening of screws (optional, but recommended)

6. Cleaning Supplies

   • Carburetor cleaner or brush to clean any debris

7. Safety Gear

   • Gloves and safety glasses for personal protection

Installation Steps:

1. Preparation:

   • Ensure that the ATV is turned off and cooled down before beginning the installation process.
   • Disconnect the battery to avoid any electrical issues.

2. Carburetor Removal:

   • Using the appropriate wrenches, carefully remove the carburetor from the ATV engine.
   • Keep track of all screws and components for reassembly.

3. Cleaning:

   • Clean the carburetor parts with the carburetor cleaner to remove any dirt or buildup.

4. Install the Mixing Screw:

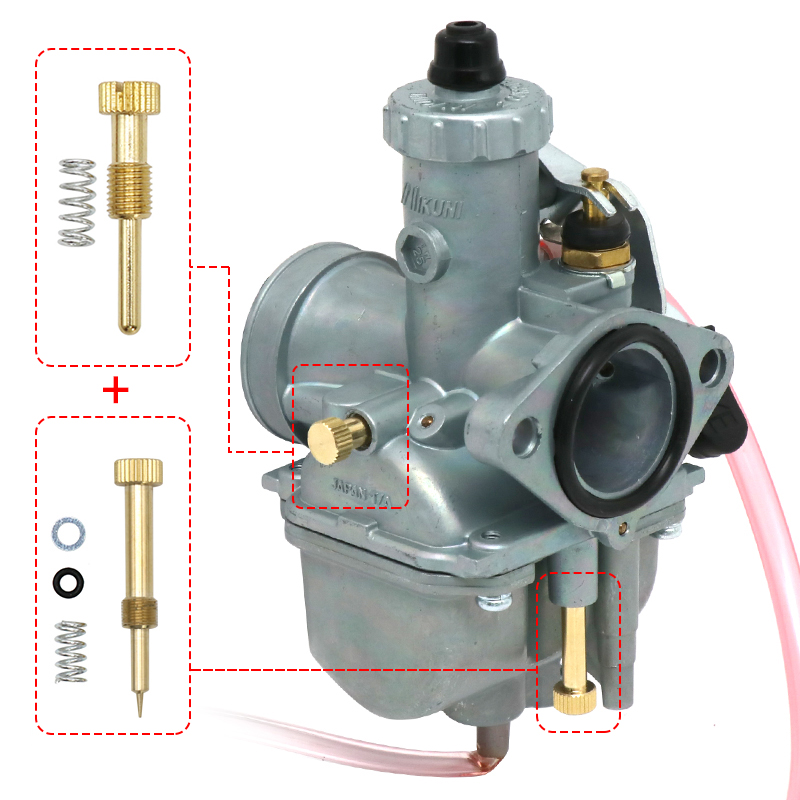

   • Take the adjustable air fuel mixing screw and insert it into the designated hole on the VM22 carburetor.
   • Adjust to the desired position (consult the VM22 carburetor manual for the recommended setting).

5. Reassembly:

   • Reattach the carburetor to the ATV engine using the screws and fasteners you removed earlier.
   • Ensure all connections are secure.

6. Testing:

   • Reconnect the battery and start the engine.
   • Allow the engine to warm up and monitor performance.
   • Adjust the mixing screw if necessary to achieve optimal performance.

7. Final Checks:

   • Check for any leaks and ensure that the throttle operates smoothly without sticking.
   • Make any final adjustments to the mixing screw based on engine response.

Conclusion:

Following these instructions will help ensure a successful installation of the adjustable air fuel mixing screw for your VM22 carburetor. Enjoy improved engine performance and efficiency! If you encounter any issues, consult a professional mechanic for assistance.
