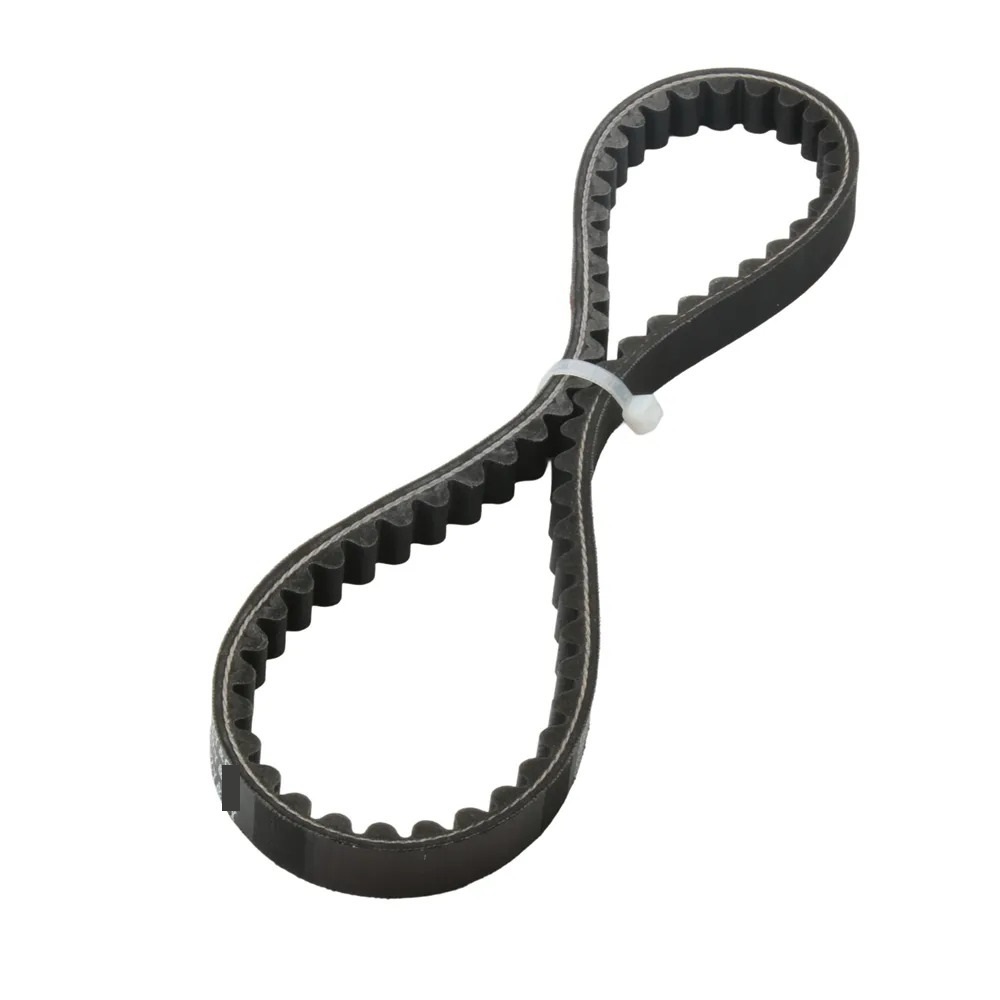

Installation Instructions for Universal Drive Belt for 50cc Engine (Model: 659 16.5 30 27601 09E00 000 2760103A02000)

Tools Required:

1. Socket Wrench Set:

   • To remove and tighten bolts securing the engine cover and components.

2. Screwdriver Set:

   • A variety of flathead and Phillips screwdrivers for removing screws.

3. Pliers:

   • For gripping or pulling components as needed during installation.

4. Torque Wrench:

   • To ensure bolts are tightened to the specified torque.

5. Small Towels or Rags:

   • For cleaning and wiping down components during the installation process.

Installation Steps:

1. Preparation:

   • Ensure the engine is turned off and cool before beginning the installation.
   • Disconnect the power source to prevent any accidental start-ups.

2. Remove the Old Drive Belt:

   • Use a socket wrench to loosen and remove any covers or guards that protect the drive belt.
   • Carefully detach the old drive belt from the pulleys, noting the routing for reinstallation.

3. Inspect Components:

   • Check the pulleys and surrounding components for wear or damage. Clean any debris or dust present.

4. Install the New Drive Belt:

   • Take the new universal drive belt and route it through the pulleys as per the original configuration.
   • Ensure that the belt sits properly in the grooves of the pulleys.

5. Reassemble Components:

   • Replace any covers or guards removed during the process using the socket wrench and screwdriver.
   • Tighten all bolts and screws securely, referring to the torque specifications if available.

6. Final Check:

   • Double-check the installation to ensure the drive belt is aligned and properly seated.
   • Reconnect the power source and perform a test run to ensure everything is functioning smoothly.

Note:

• Should you encounter any issues during installation, refer back to the original equipment manual or consult a professional for assistance.

By following these instructions, you will enhance the performance and reliability of your 50cc engine, benefiting from the durable and efficient design of the new drive belt.
