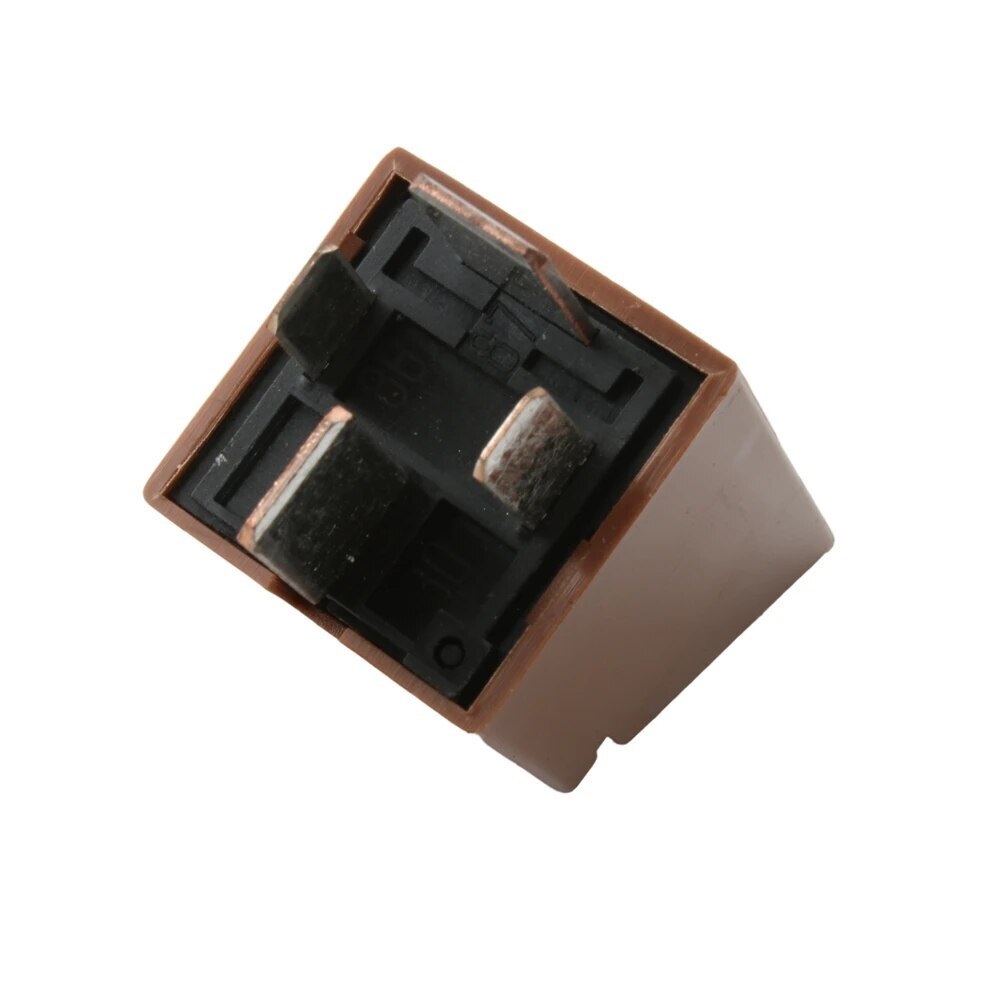

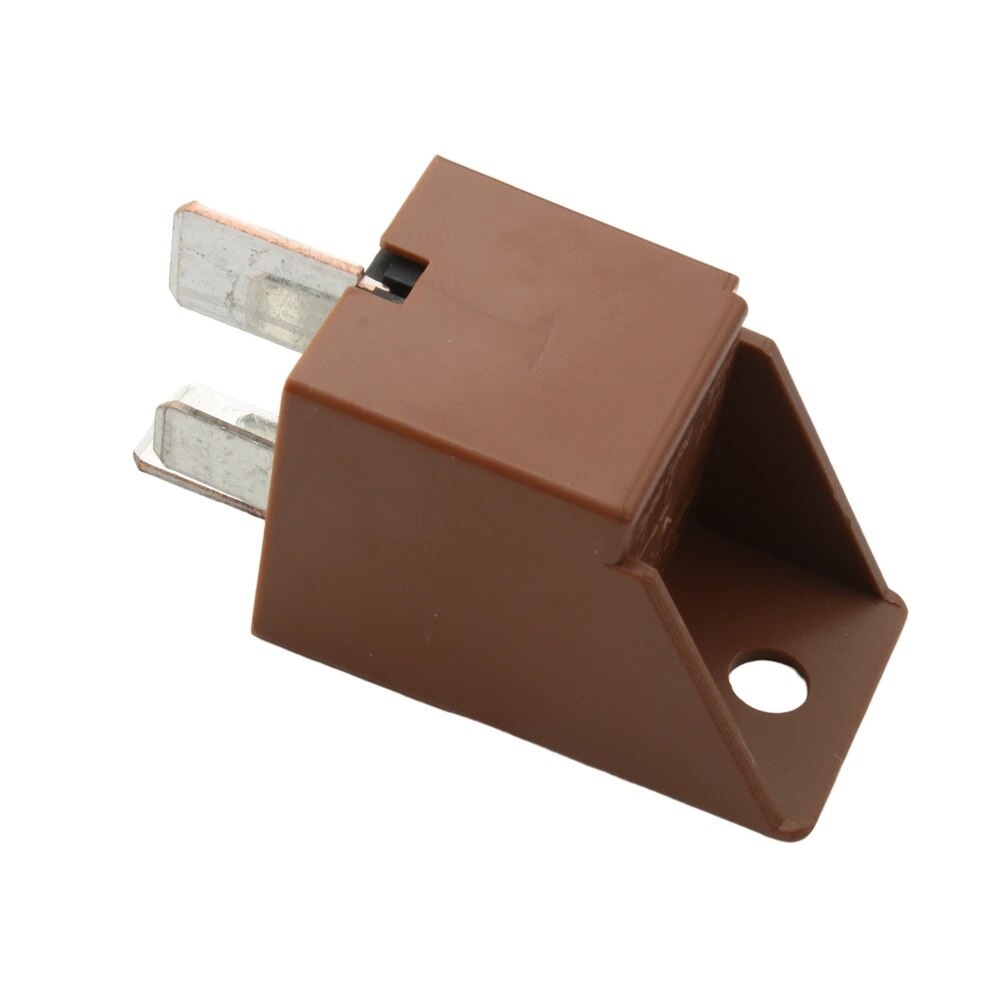

Product Installation Instructions for 12V 80A Universal Starter Relay

Compatibility:
This relay is designed for 150cc to 300cc engines, suitable for a wide range of vehicles including motorcycles and scooters.

Durable Materials:
Constructed from wear-resistant materials to ensure stable performance in extreme environments, providing a long service life.

Ease of Installation:
Designed for straightforward installation without the need for professional tools, saving you time and effort.

Stable Performance:
Provides stable current output to ensure the engine starts smoothly, enhancing control reliability.

Versatility:
Widely applicable to various electric transportation tools, improving user convenience.

Tools Required for Installation:

1. Socket/Wrench Set

   • Sizes may vary depending on the vehicle. Common sizes are 10mm, 12mm, or 13mm.

2. Screwdriver Set

   • Both flathead and Phillips screwdrivers may be needed.

3. Wire Cutters/Strippers

   • For any necessary wire adjustments.

4. Electrical Tape

   • To secure any exposed wires after connection.

5. Multimeter

   • To check voltage and ensure proper connections.

6. Safety Gloves

   • To protect your hands during installation.

7. Safety Goggles

   • To protect your eyes from any debris.

Installation Steps:

1. Disconnect the Battery:
   Ensure the vehicle's battery is disconnected to prevent electrical shock.

2. Remove the Old Relay:
   Locate the existing starter relay and carefully disconnect the wires. Remove the relay from its mounting position.

3. Install the New Relay:
   Position the new relay in place and secure it using the appropriate hardware.

4. Connect the Wires:
   Reconnect the wires to the new relay, ensuring they are connected in the correct order.

5. Double-Check Connections:
   Use a multimeter to confirm that all connections are secure and that voltage is present.

6. Reconnect the Battery:
   Once all connections are verified, reconnect the vehicle’s battery.

7. Test the Installation:
   Start the engine to ensure the relay operates correctly.

By following these instructions, you can successfully install your 12V 80A Universal Starter Relay and enjoy a reliable start to your vehicle. Always prioritize safety during the installation process.
