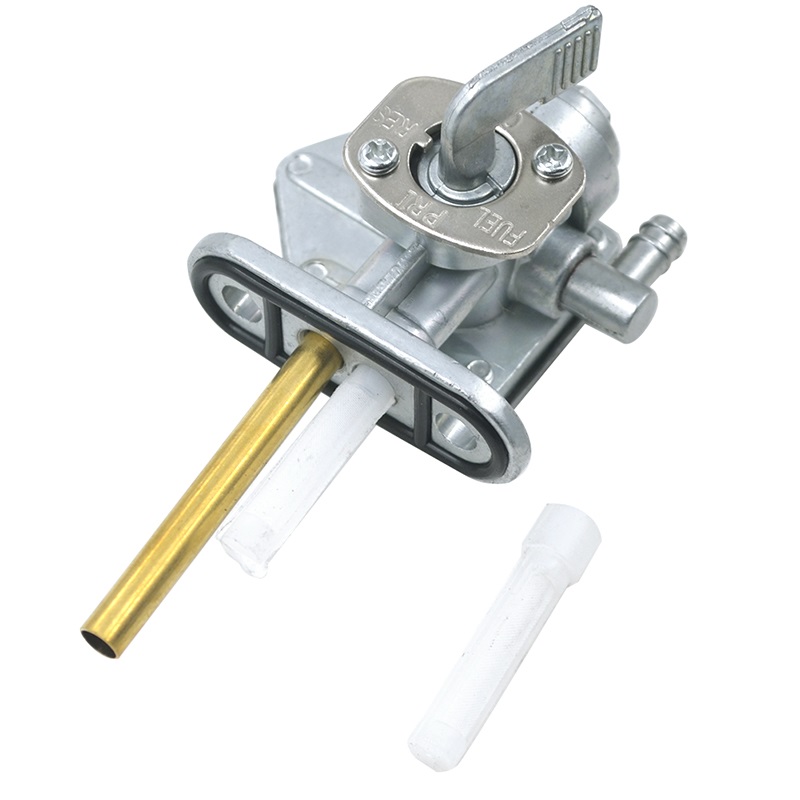

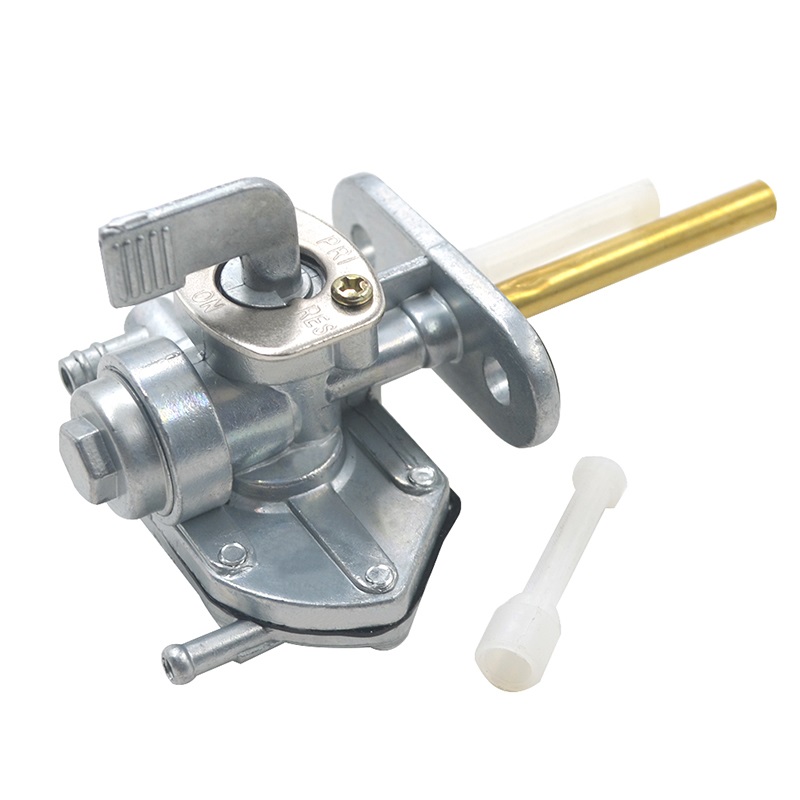

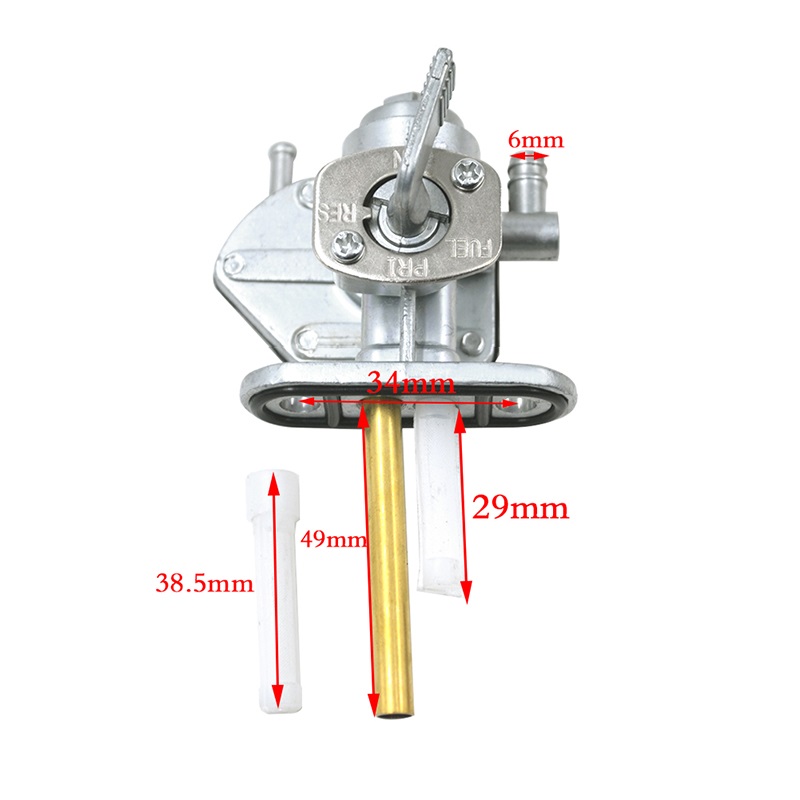

Installation Instructions for Fuel Valve Switch

Compatibility

This fuel valve switch is compatible with various models, including:
-KFX50
-KFX80
-EN450

• 454 LTD
  -EN500
  -KZ550
  -KLR650
  -EX500
  -Vulcan 750/800
• VN750/VN800
  -ZR1100

Tools Required

Before you start the installation, please ensure you have the following tools ready:

• Phillips screwdriver
• Flathead screwdriver
  -Pliers
  -Wrench set
  -Clean rags or towels
• Safety goggles

Installation Steps

1. Safety First
   Ensure the motorcycle is turned off and on a stable surface. Put on safety goggles.

2. Locate the Fuel Valve
   Identify the location of the fuel valve switch on your motorcycle. It is typically located near the fuel tank.

3. Remove the Old Fuel Valve Switch

   • Use a wrench to disconnect any hoses connected to the old fuel valve switch.
   • Loosen screws or bolts with a Phillips or flathead screwdriver as needed.
   • Carefully remove the old fuel valve switch from its position.

4. Prepare the New Fuel Valve Switch

   • Align the new fuel valve switch in the same position as the old one.
   • Ensure that any O-rings or seals are in place to prevent leaks.

5. Install the New Fuel Valve Switch

   • Secure the new switch using screws or bolts, tightening them appropriately.
   • Reconnect any hoses to the new fuel valve switch, ensuring a tight fit.

6. Check for Leaks

   • Turn on the fuel supply and check for any leaks around the new installation.
   • If no leaks are detected, you are ready to proceed.

7. Final Check and Cleanup

   • Make sure all tools are removed from the area, and clean up any spills or mess with rags or towels.

8. Test Ride

   • Start the motorcycle and take a short test ride to ensure proper functionality of the new fuel valve switch.

Performance and Durability

This fuel valve switch is designed for reliable performance, helping to regulate fuel flow and enhance your motorcycle's engine operation. Made from durable, corrosion-resistant materials, it is suitable for various climate conditions, providing longevity and value for budget-conscious riders.

If you have any questions or concerns during the installation process, please consult a professional or refer to the motorcycle’s service manual for additional guidance.
