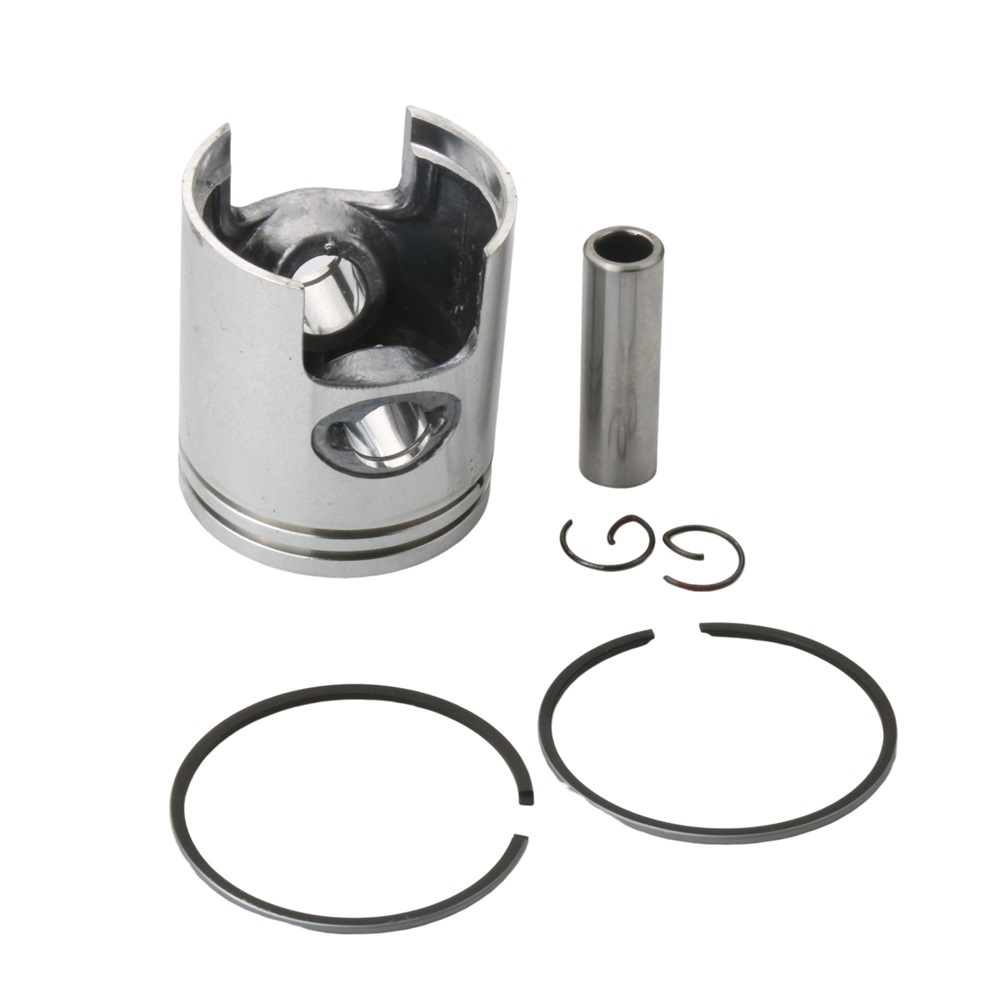

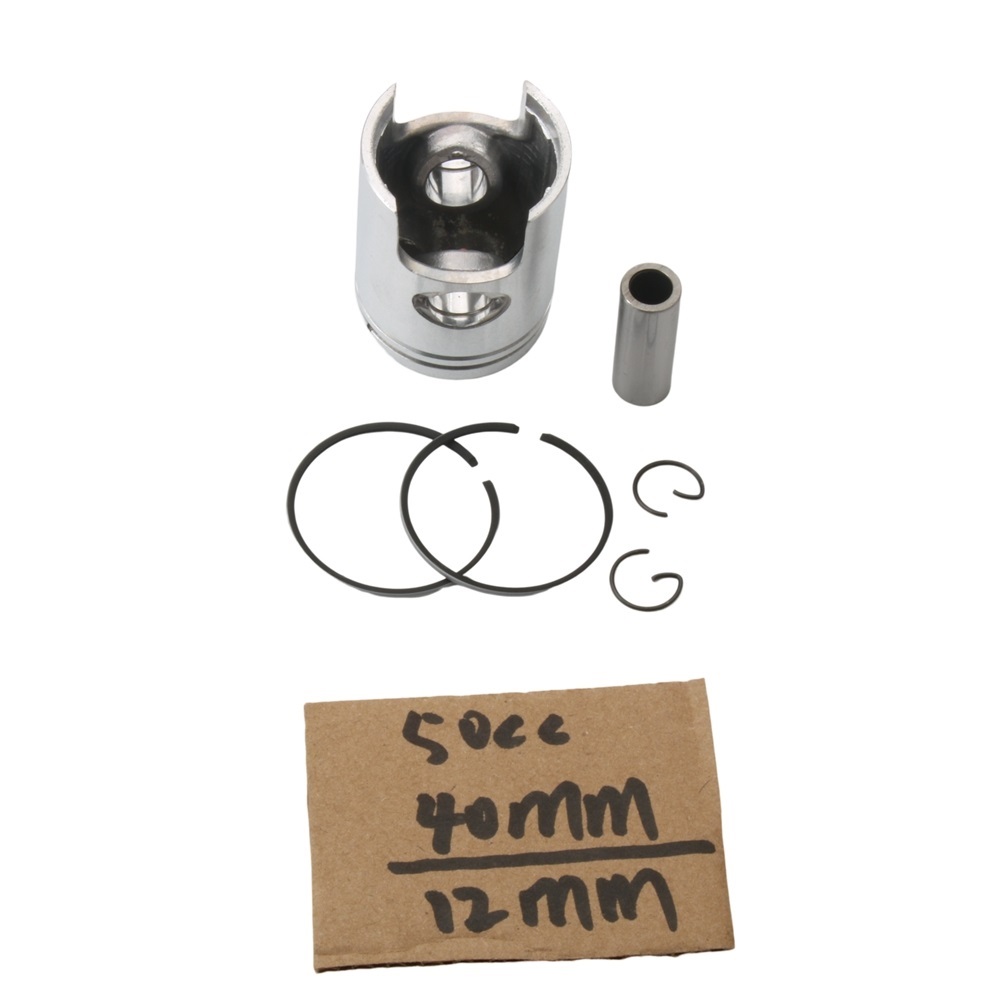

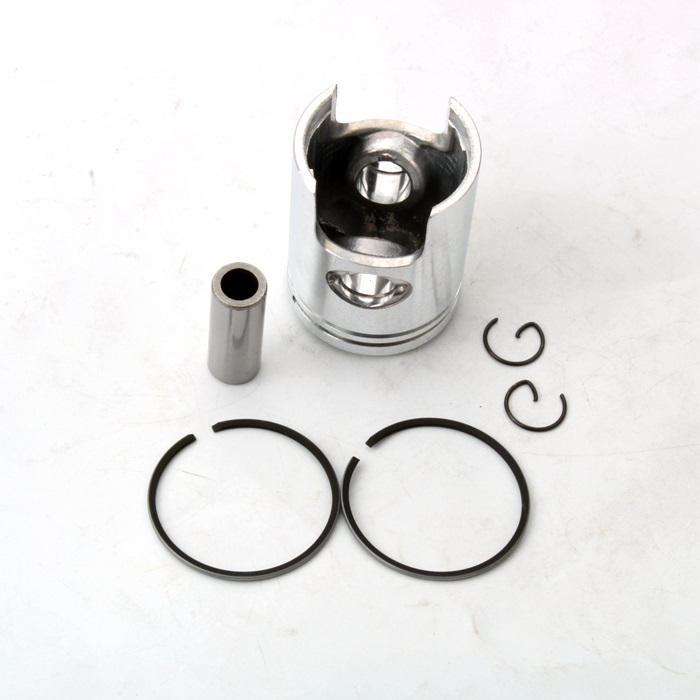

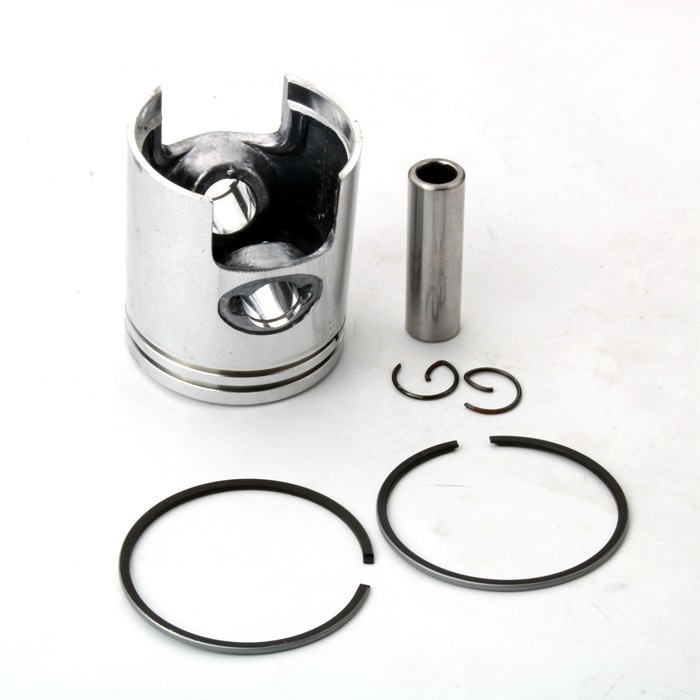

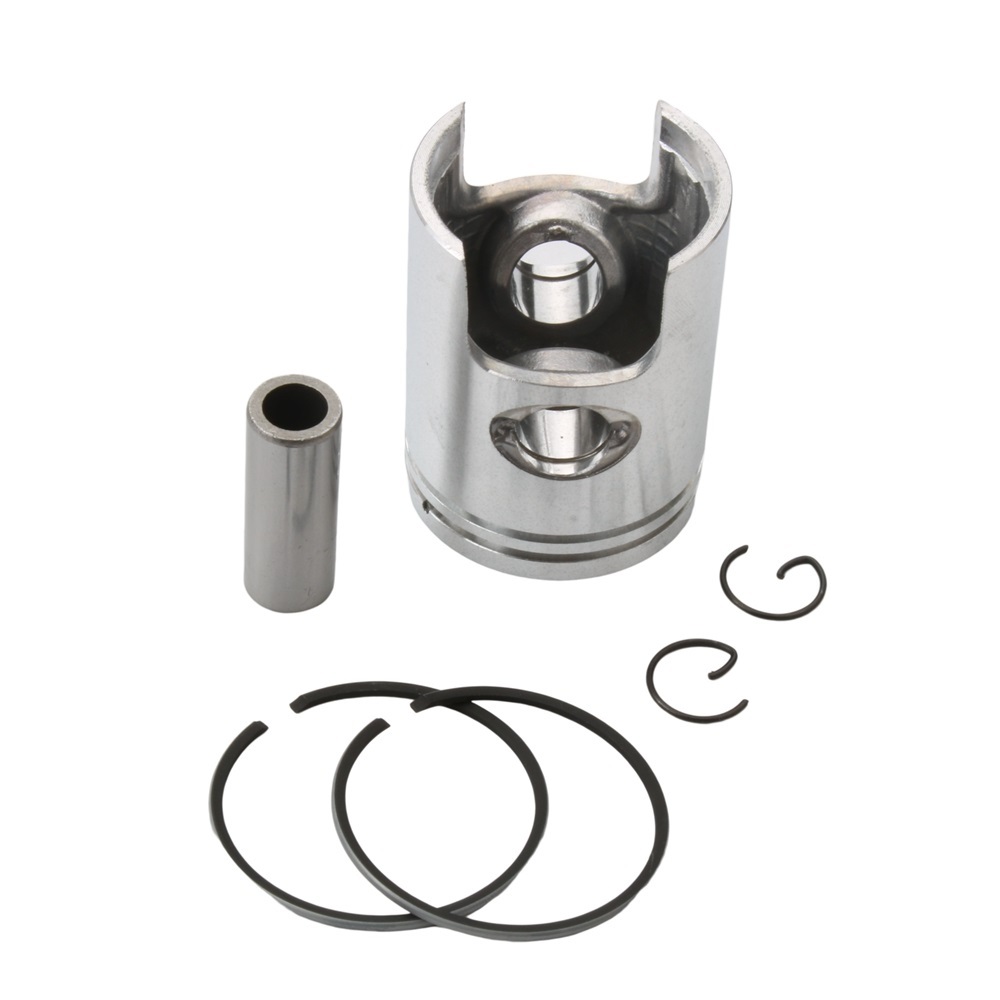

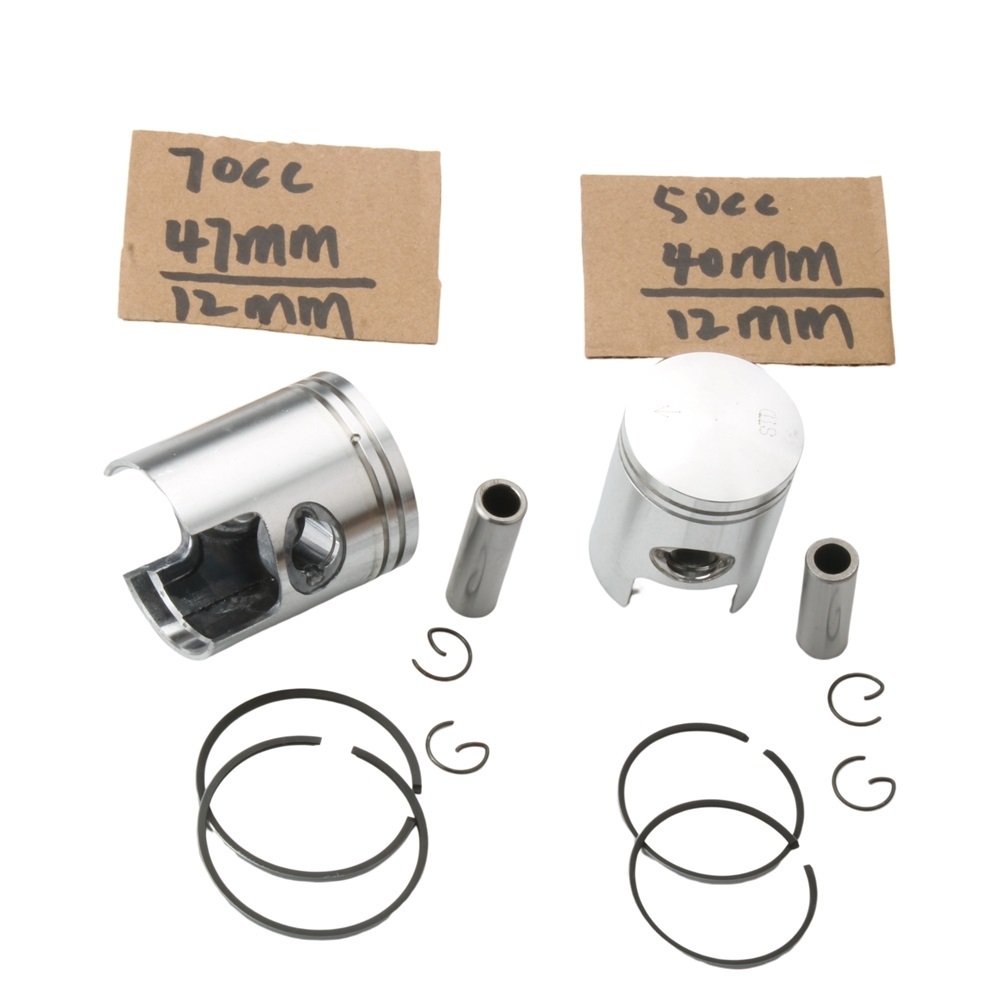

Installation Instructions for 50cc 70cc Compatible Piston Kit

Tools Required:

1. Socket Set (with appropriate sizes for your engine)
2. Torque Wrench
3. Piston Ring Compressor (if applicable)
4. Screwdrivers (flathead and Phillips)
5. Pliers
6. Allen Wrenches
7. Towel or Cloth (for cleanliness)
8. Engine Oil (for lubrication)

Installation Steps:

1. Preparation:

   • Ensure your workspace is clean and organized.
   • Gather all the required tools listed above.

2. Remove the Existing Cylinder:

   • Start by removing any plastic or side panels if necessary.
   • Use the appropriate socket or wrench to detach the cylinder head.
   • Gently lift the cylinder and remove any old gaskets or seals.

3. Remove the Old Piston:

   • Take off the circlips or wrist pin that holds the old piston in place.
   • Carefully slide the old piston out of the connecting rod.

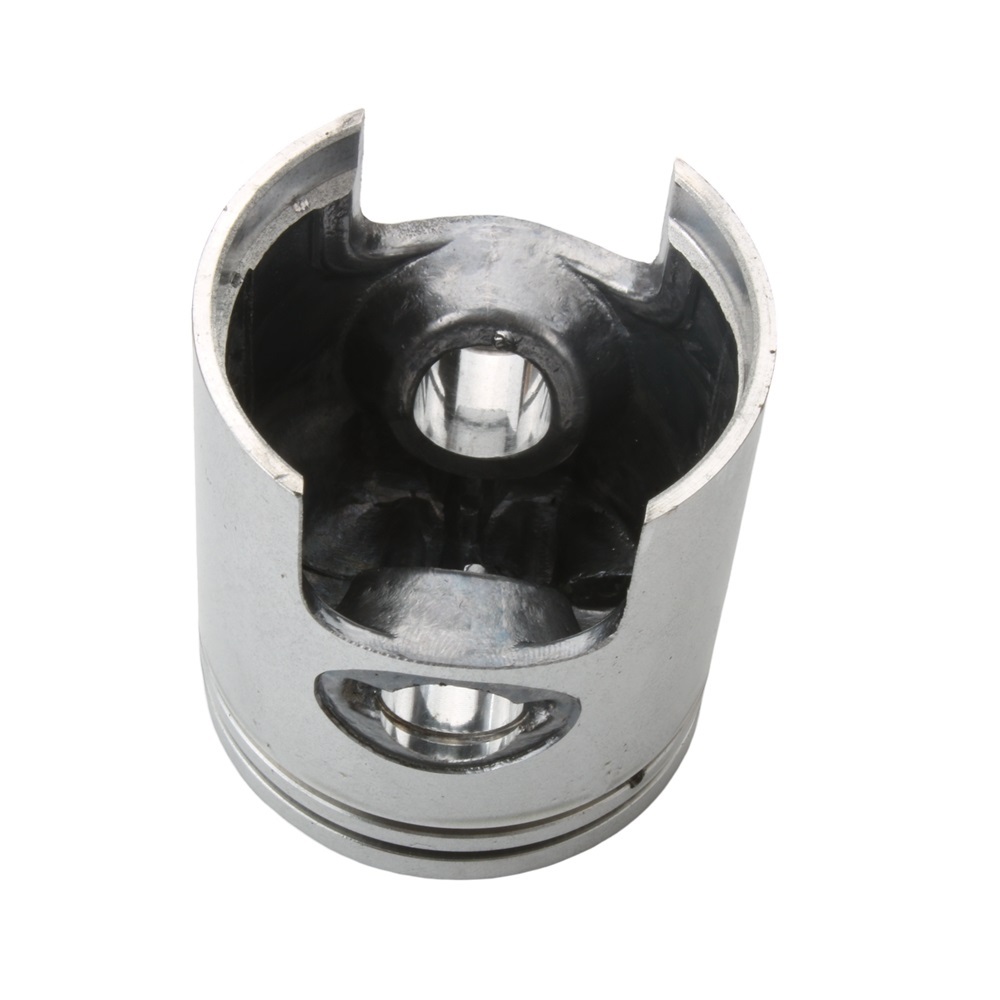

4. Install the New Piston:

   • Apply a light coating of engine oil to the new piston and the piston rings to ensure proper lubrication.
   • If using a piston ring compressor, place the piston rings into the compressor and then insert the piston into the cylinder from the bottom.

5. Reattach the Piston:

   • Slide the wrist pin through the piston and connecting rod.
   • Secure with the circlips, ensuring they are properly seated.

6. Reattach the Cylinder:

   • Place a new gasket (if needed) on the cylinder.
     -Align the cylinder over the piston and ensure it fits correctly.
   • Torque the cylinder head bolts to the manufacturer's specifications.

7. Final Checks:

   • Double-check all bolts and components to ensure they are tight.
   • Replace any covers or panels you previously removed.

8. Test Run:

   • After installation, start the engine and let it run for a few minutes.
   • Monitor for any unusual sounds or leaks.

Conclusion:

With the completion of these steps, your new 50cc 70cc compatible piston kit should be installed and ready for use. Enjoy your enhanced engine performance!
