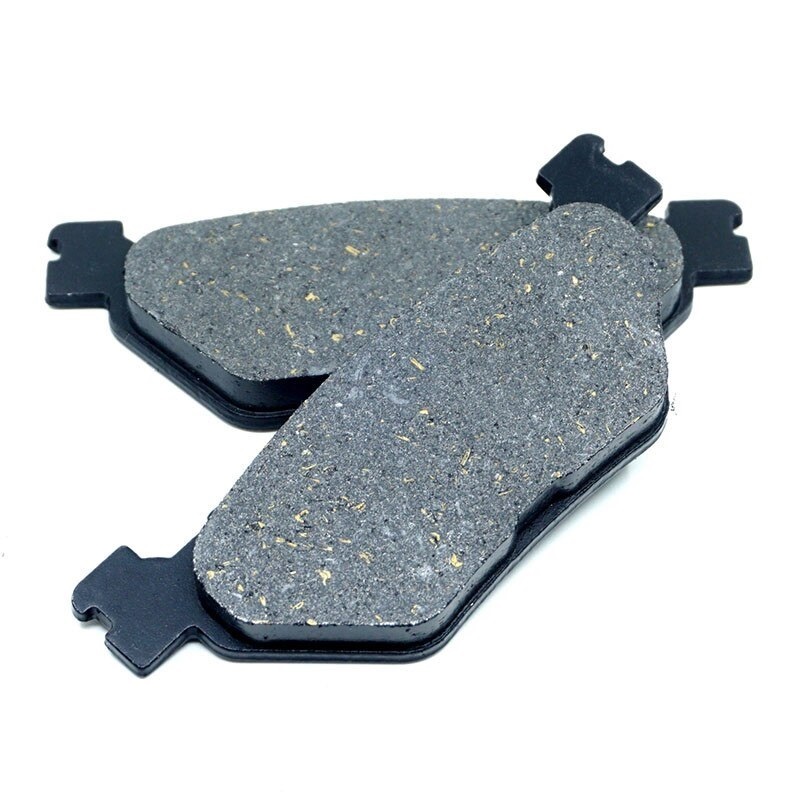

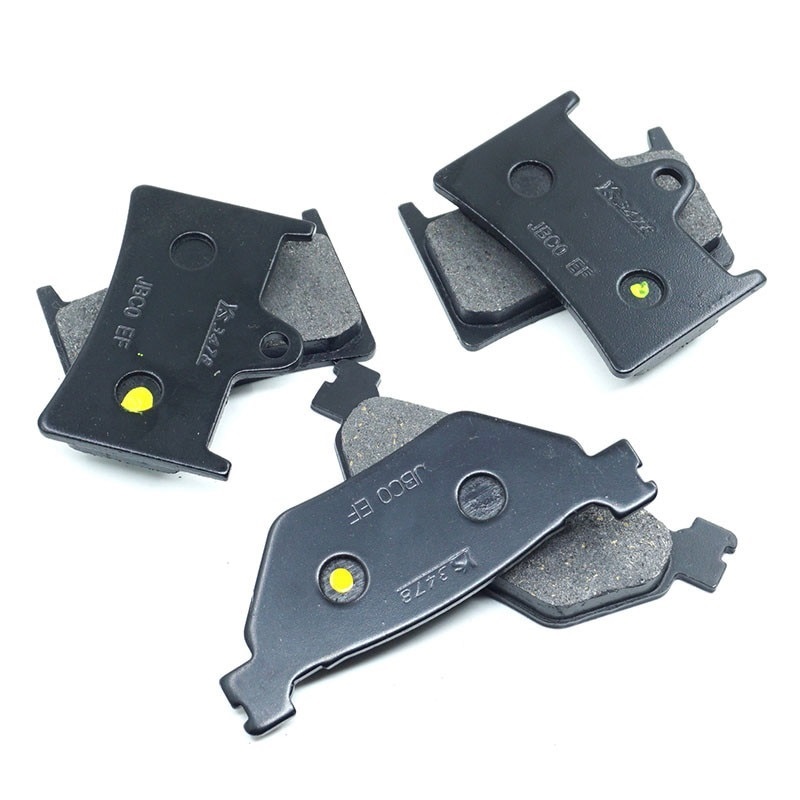

Installation Instructions for Brake Pads Set for T MAX 530 ABS 2013-2016 XP500A XP 500

Tools Required:

1. Socket Set: Including a ratchet and various socket sizes to remove the brake caliper bolts.
2. Torque Wrench: To ensure bolts are tightened to the manufacturer's specifications.
3. Pliers: Useful for removing any retaining pins or clips.
4. Brake Cleaner: To clean the brake components and ensure they are free of debris and grease.
5. C-Clamp or Brake Piston Tool: To compress the brake caliper piston for easy installation of the new brake pads.
6. Flathead Screwdriver: For prying open any retaining clips if necessary.
7. Safety Gloves: To protect your hands during the installation process.
8. Safety Glasses: To protect your eyes from dust and debris.

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is parked on a level surface and turn off the ignition.
   • Allow the brakes to cool down if they have been recently used.

2. Remove the Wheel:

   • Loosen the axle nut with the appropriate socket.
   • Lift the motorcycle using a stand and remove the wheel to access the brake calipers.

3. Remove the Brake Caliper:

   • Use the socket set to remove the bolts holding the brake caliper in place.
   • Carefully slide the caliper off the brake disc.

4. Remove Old Brake Pads:

   • Use pliers to remove any retaining pins or clips securing the old brake pads.
   • Slide out the old brake pads from the caliper bracket.

5. Prepare for New Brake Pads:

   • Clean the caliper and surrounding areas with brake cleaner.
   • Use the C-clamp or brake piston tool to compress the brake caliper piston back into the caliper body.

6. Install New Brake Pads:

   • Insert the new brake pads into the caliper bracket, ensuring they align correctly.
   • Reinsert the retaining pins or clips to secure the new pads.

7. Reattach the Brake Caliper:

   • Position the caliper back onto the brake disc.
   • Tighten the caliper bolts with the socket set to the recommended torque specifications.

8. Reinstall the Wheel:

   • Place the wheel back onto the axle and tighten the axle nut securely.
   • Ensure everything is properly aligned and tightened.

9. Check the Brake System:

   • Pump the brake lever a few times to seat the new brake pads against the disc.
   • Check for any unusual noises or issues before road testing.

10. Test Ride:

• Take a short ride to ensure the brakes function correctly and are performing as expected.

By following these steps and using the required tools, you can successfully install the Brake Pads Set for your T MAX 530 ABS 2013-2016 model. Enjoy enhanced braking performance and a safer riding experience!
