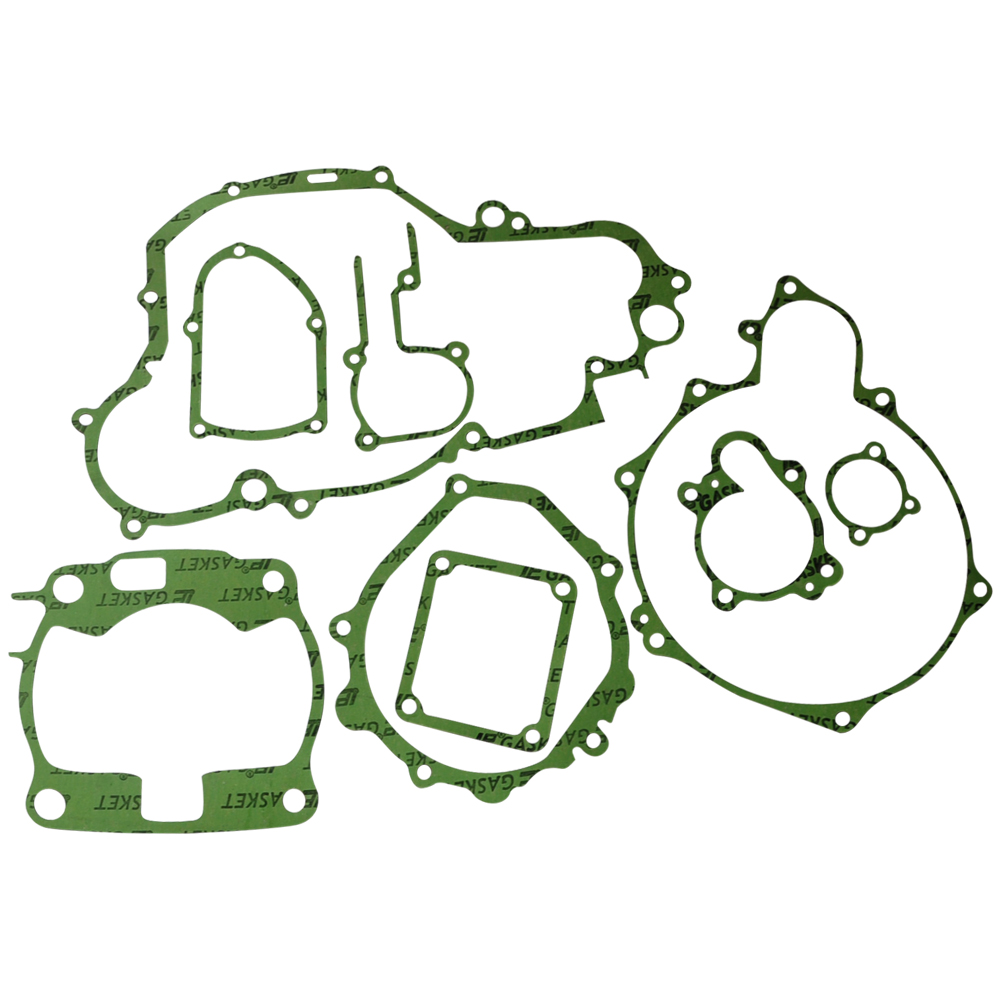

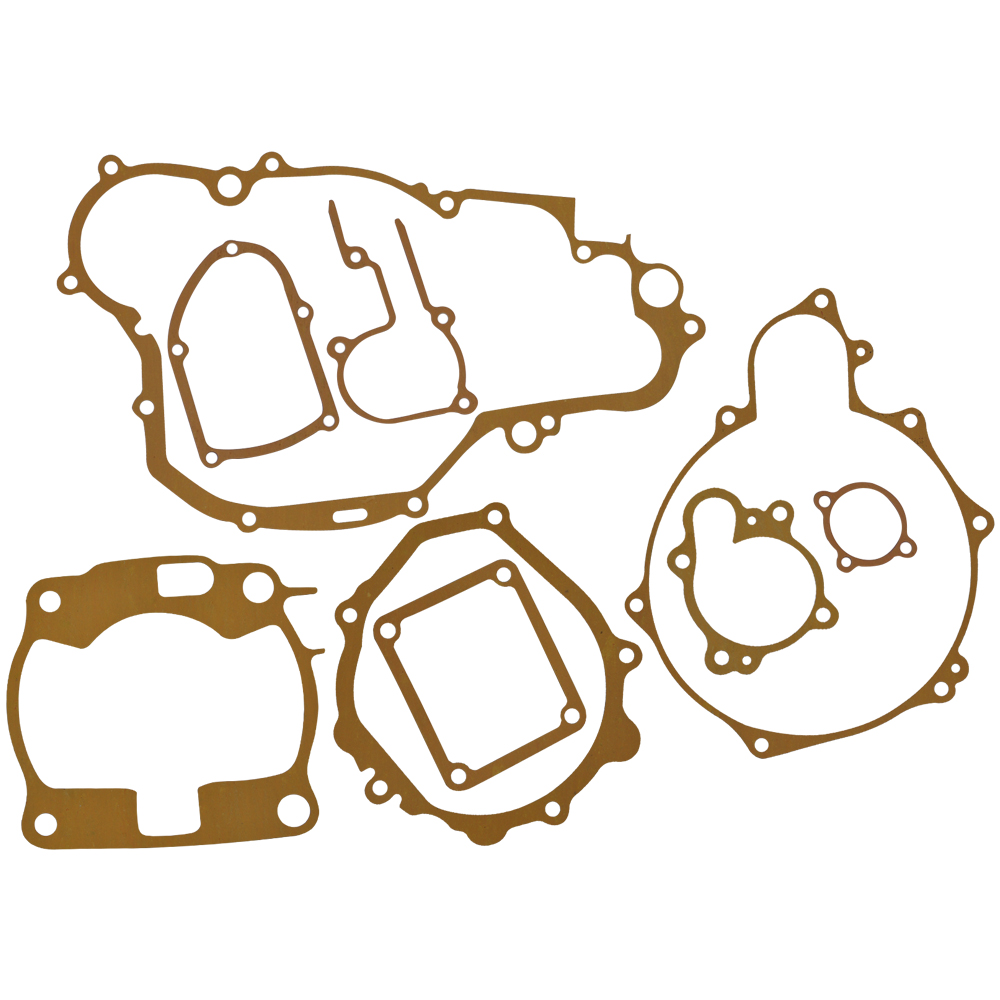

Installation Instructions for Motorcycle Engine Crankcase Clutch Cover Cylinder Gasket Set for 250CC Models (1990-1996)

Tools Required:

1. Socket Set (including metric sizes)
2. Wrench Set (including adjustable wrenches)
3. Screwdriver Set (flathead and Phillips)
4. Torque Wrench
5. Gasket Scraper or Razor Blade (for old gasket removal)
6. Clean Rags or Paper Towels
7. Engine Oil (for lubrication)
8. Sealant (if recommended in instructions)
9. Safety Gloves (to protect your hands)
10. Safety Glasses (to protect your eyes)

Preparation Steps:

1. Safety First: Ensure the motorcycle is turned off and cooled down. Disconnect the battery to prevent any electrical issues.
2. Gather Tools: Collect all tools mentioned above in a clean working area to ensure a smooth installation process.
3. Clean the Area: Use clean rags to wipe down the surfaces where the new gaskets will be installed, ensuring no debris or old gasket material remains.

Installation Steps:

1. Remove Old Components:

   • Use the socket wrench to remove the bolts securing the crankcase, clutch cover, and cylinder.
   • Carefully take off the old parts and remove the old gaskets with a gasket scraper.

2. Inspect Surfaces:

   • Check the mating surfaces of the engine for any damage or wear. Clean them thoroughly.

3. Install New Gaskets:

   • Place the new gaskets in their respective locations. Ensure they are aligned correctly with the bolt holes.

4. Reassemble Components:

   • Reattach the crankcase, clutch cover, and cylinder using the appropriate bolts.
   • Use a torque wrench to ensure all bolts are tightened to the manufacturer’s specifications.

5. Final Checks:

   • Reconnect the battery and check for any loose connections.
   • Start the engine and let it idle, checking for any oil leaks.

Conclusion:

By following these detailed installation instructions, you can effectively upgrade your motorcycle's performance and ensure its smooth operation. Enjoy a comfortable and reliable riding experience!
