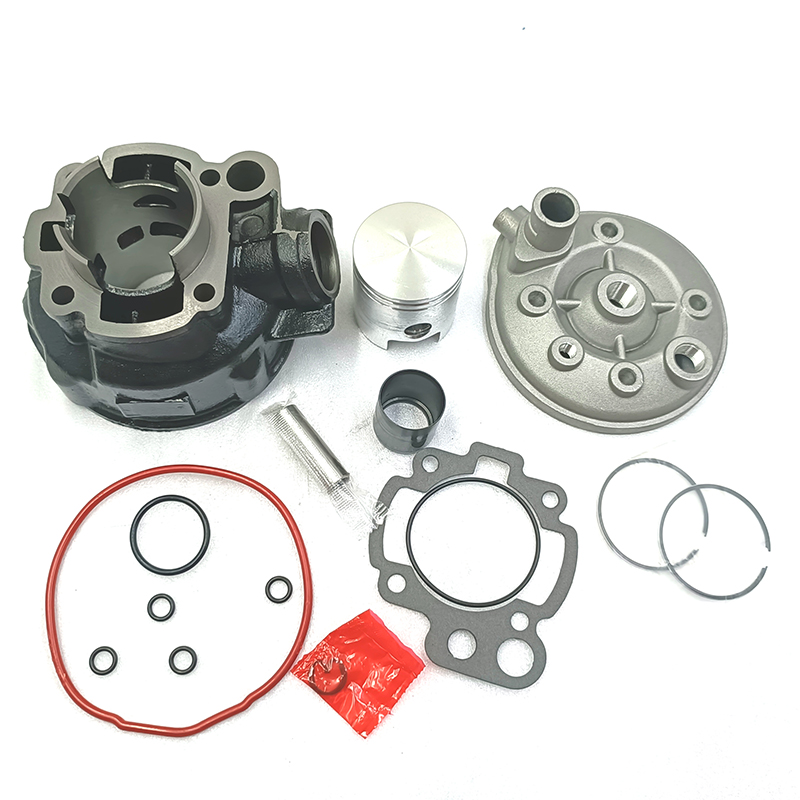

Installation Instructions for the 47mm Motorcycle Cylinder Body Kit with Piston and Head

Tools Required:

1. Socket Wrench Set: To remove and install bolts and nuts.
2. Torque Wrench: To ensure proper torque specifications are met during installation.
3. Screwdriver Set: For removing and securing screws.
4. Pliers: Useful for gripping and maneuvering small components.
5. Gasket Scraper: To remove old gaskets and prepare surfaces for the new parts.
6. Clean Rags: For cleaning surfaces and removing any debris or oil.
7. Engine Oil: To lubricate the piston and other moving parts before installation.
8. Assembly Lubricant: To apply to gaskets and seals for improved fit and performance.
9. Compressed Air: For cleaning components and blowing out dust or debris.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and secured with a stand.
   • Disconnect the battery to avoid any electrical issues during installation.

2. Removal of the Old Cylinder and Components:

   • Remove the seat and/or plastics for better access to the engine.
   • Disconnect any hoses or wiring connected to the existing cylinder.
   • Using the socket wrench, carefully remove the bolts securing the old cylinder, piston, and head.
   • Gently lift off the old components and keep them aside.

3. Cleaning:

   • Use the gasket scraper to remove any old gasket material from the engine block.
   • Clean the surfaces with a rag to ensure proper sealing of the new components.

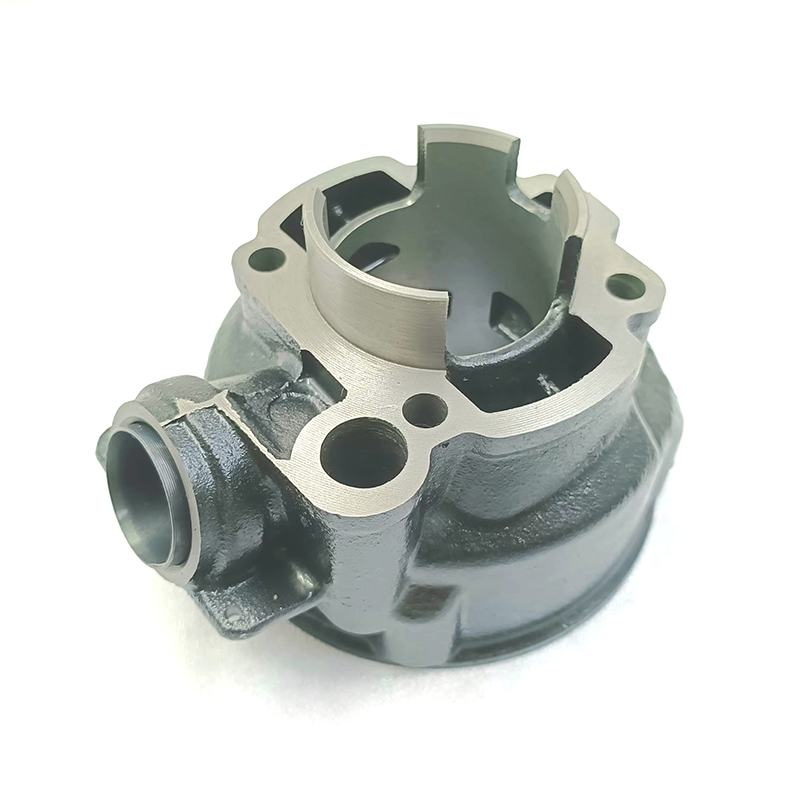

4. Installing the New Cylinder Kit:

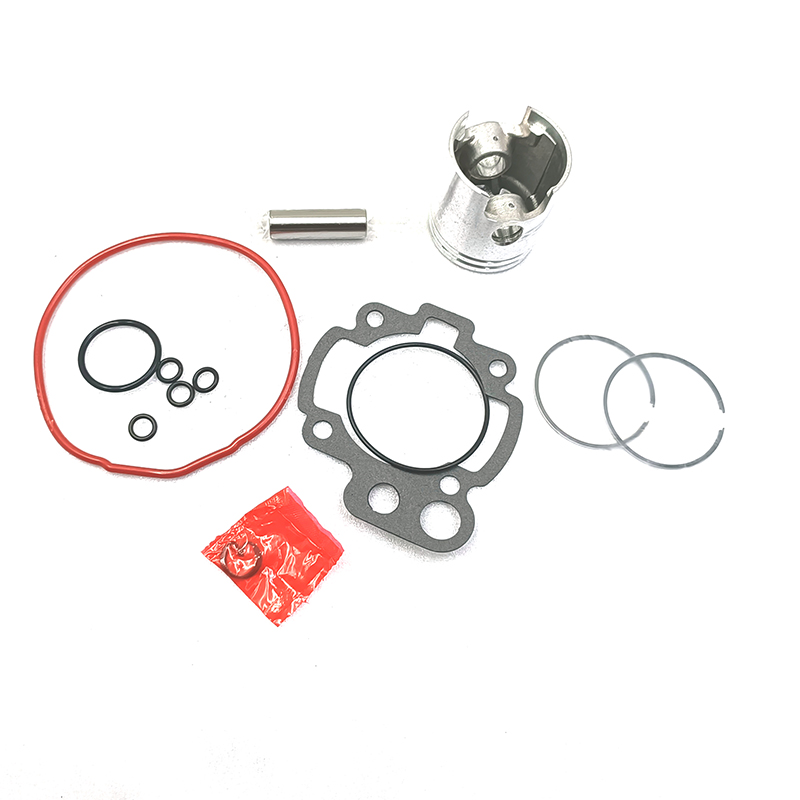

   • Place the new gasket onto the engine block.
   • Apply a light coat of engine oil to the new piston and carefully insert it into the cylinder.
   • Align the cylinder onto the engine block and secure it with bolts.
   • Use the torque wrench to tighten the bolts to the manufacturer's specifications.

5. Final Assembly:

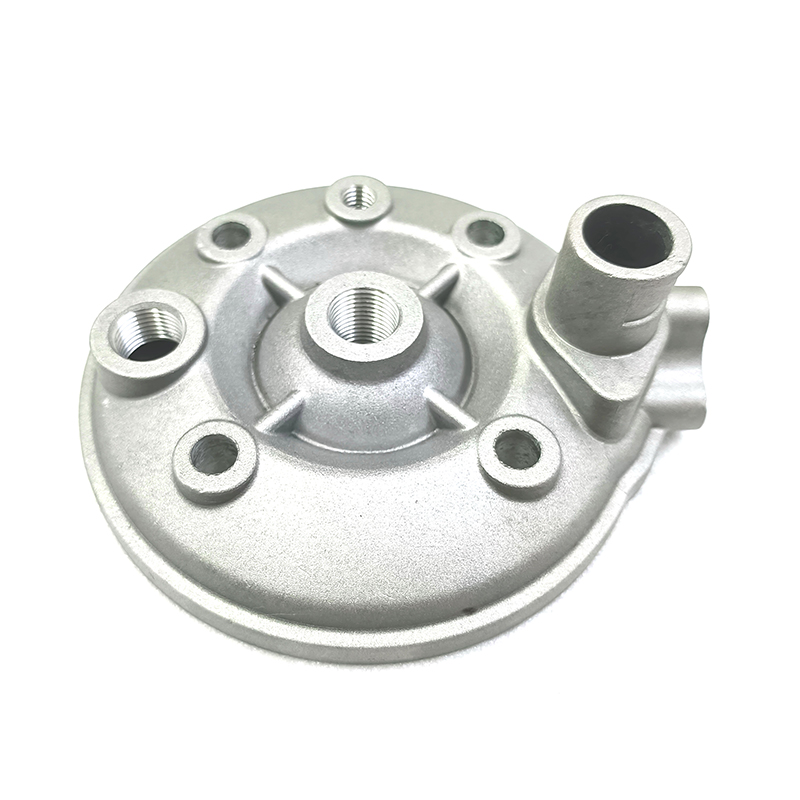

   • Install the new head onto the cylinder and secure it with the appropriate bolts, again using the torque wrench for proper tightening.
   • Reconnect any hoses or wiring that were removed during disassembly.
   • Replace any plastics or seat that were removed initially.

6. Post-Installation Check:

   • Reconnect the motorcycle battery.
   • Double-check all connections and ensure everything is secure.
   • Start the engine and let it idle for a few minutes while checking for leaks or unusual noises.

7. Break-In Period:

   • Follow proper break-in procedures for the new cylinder kit, allowing the engine to reach varying RPMs without excessive load for the first few rides.

By following these instructions and using the necessary tools, you will successfully enhance your motorcycle’s performance with the 47mm Cylinder Body Kit. Enjoy your ride!
