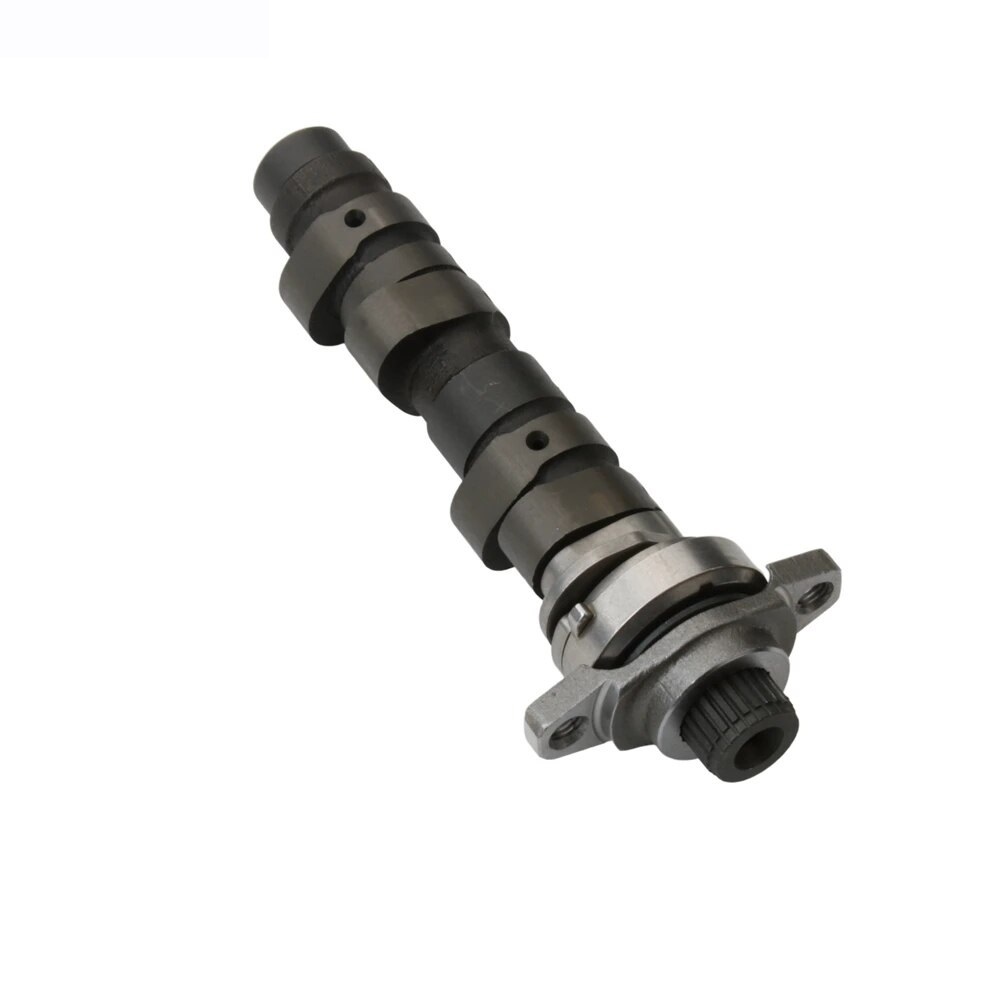

Product Installation Instructions for Camshaft Assembly for 400cc Motorcycle Engines Compatible with XR400 NX400 Engine Parts Replacement 14000-MCG-000

Tools Required:

1. Socket Set (Including metric sizes)
2. Torque Wrench
3. Screwdrivers (Flathead and Phillips)
4. Pliers
5. Allen Wrenches
6. Timing Light (optional, for advanced tuning)
7. Engine Oil (for lubrication)
8. Gasket Scraper (if replacing gaskets)
   9.Clean Rags
9. Safety Goggles
   11.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable stand.
   • Remove the battery terminal to prevent any electrical shorts.

2. Remove the Existing Camshaft Assembly:

   • Unscrew the necessary components around the camshaft, such as the timing cover and camshaft housing.
   • Carefully pull out the old camshaft assembly.

3. Inspect Components:

   • Check for any wear or damage on other engine parts that will be reassembled.

4. Install the New Camshaft Assembly:

   • Carefully place the new camshaft assembly into the designated slot.
   • Ensure it's aligned properly with the timing marks.

5. Reassemble Other Components:

   • Reattach the timing cover and other removed components using the correct torque specs provided in the service manual.
   • Replace any gaskets if necessary.

6. Final Checks:

   • Double-check all connections and ensure nothing is left loose.
   • Reconnect the battery terminal.

7. Testing:

   • Start the engine and listen for any unusual sounds.
   • If equipped, use a timing light to check the timing settings.
   • Allow the engine to reach operating temperature and ensure everything is functioning correctly.

Safety Tips:

• Always wear safety goggles and gloves when working on machinery.
• Ensure the motorcycle is cool to prevent burns during installation.

By following these instructions, you will successfully install the Camshaft Assembly for your 400cc motorcycle engine, ensuring enhanced performance and reliability. Enjoy your ride!
