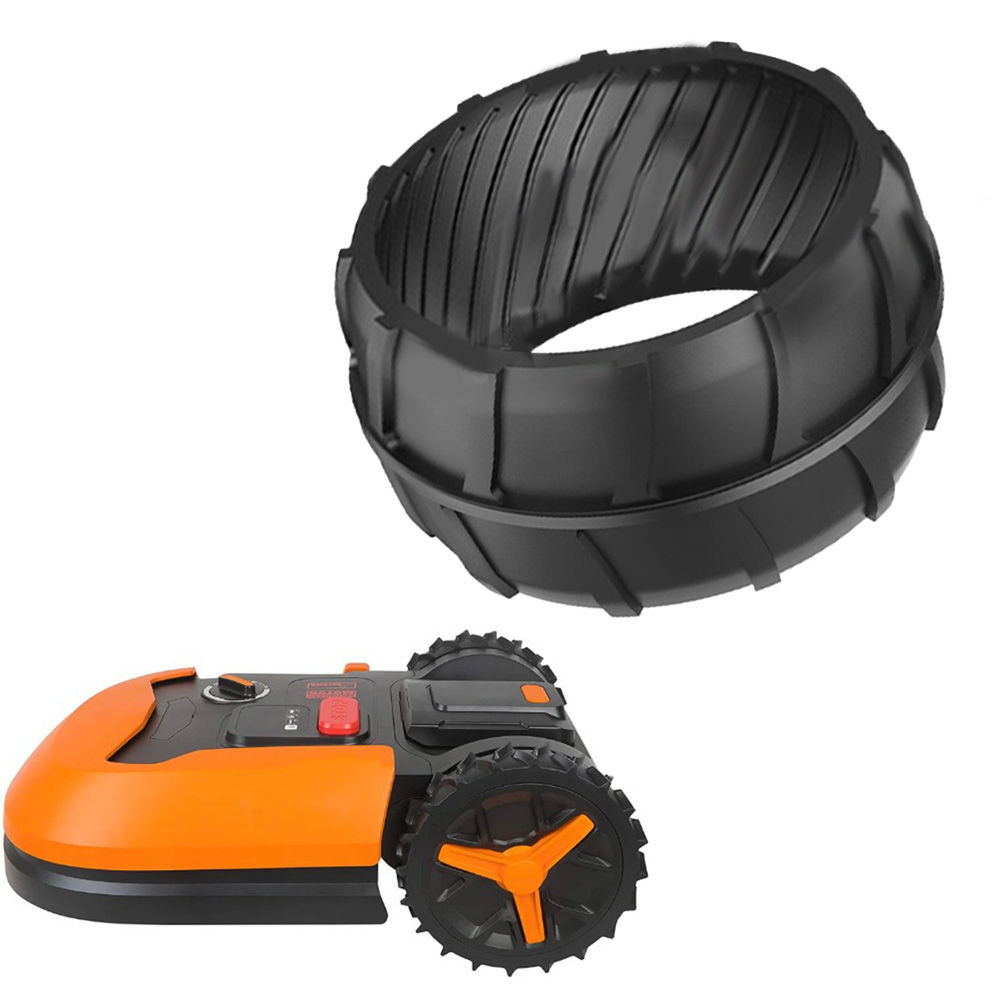

Installation Instructions for Compatible Replacement Front Wheel

Tools Required:

• Flathead screwdriver
• Phillips screwdriver
• Adjustable wrench
  -Clean cloth for maintenance
• Safety gloves (optional)

Installation Steps:

1. Preparation:

   • Ensure the lawn mower robot is turned off and disconnected from the power source.
   • Thoroughly clean the area around the front wheel to remove any debris.

2. Remove the Old Front Wheel:

   • Using the appropriate screwdriver, carefully remove any screws or fasteners that secure the old front wheel to the mower.
   • If there is a retaining clip, use the flathead screwdriver to gently pry it off.
   • Once removed, carefully take off the old front wheel and set it aside.

3. Install the New Front Wheel:
   -Align the new compatible front wheel with the axle of the mower.

   • Ensure that the anti-pulley structure is facing the correct direction for optimal performance.
   • Secure the new wheel in place by attaching the screws or fasteners previously removed.
   • If applicable, reattach the retaining clip to secure the wheel.

4. Check Stability:

   • Gently wiggle the new front wheel to ensure it is securely fastened.
   • If using an adjustable wrench, ensure that any nuts are tightened without overtightening, which may damage the component.

5. Maintenance Check:

   • Wipe down the area around the wheel with a clean cloth.
   • Ensure there are no loose parts around the area that could affect operation.

6. Power On:

   • Reconnect the power source to the lawn mower robot.
   • Turn on the robot to test the new wheel installation.

Safety Precautions:

• Always wear safety gloves when handling tools.
• Make sure the mower is turned off before starting the installation.
• Keep tools and parts out of reach of children.

With these steps, the installation should be quick and straightforward, allowing you to get back to efficient lawn maintenance. Enjoy improved performance with your new front wheel!
