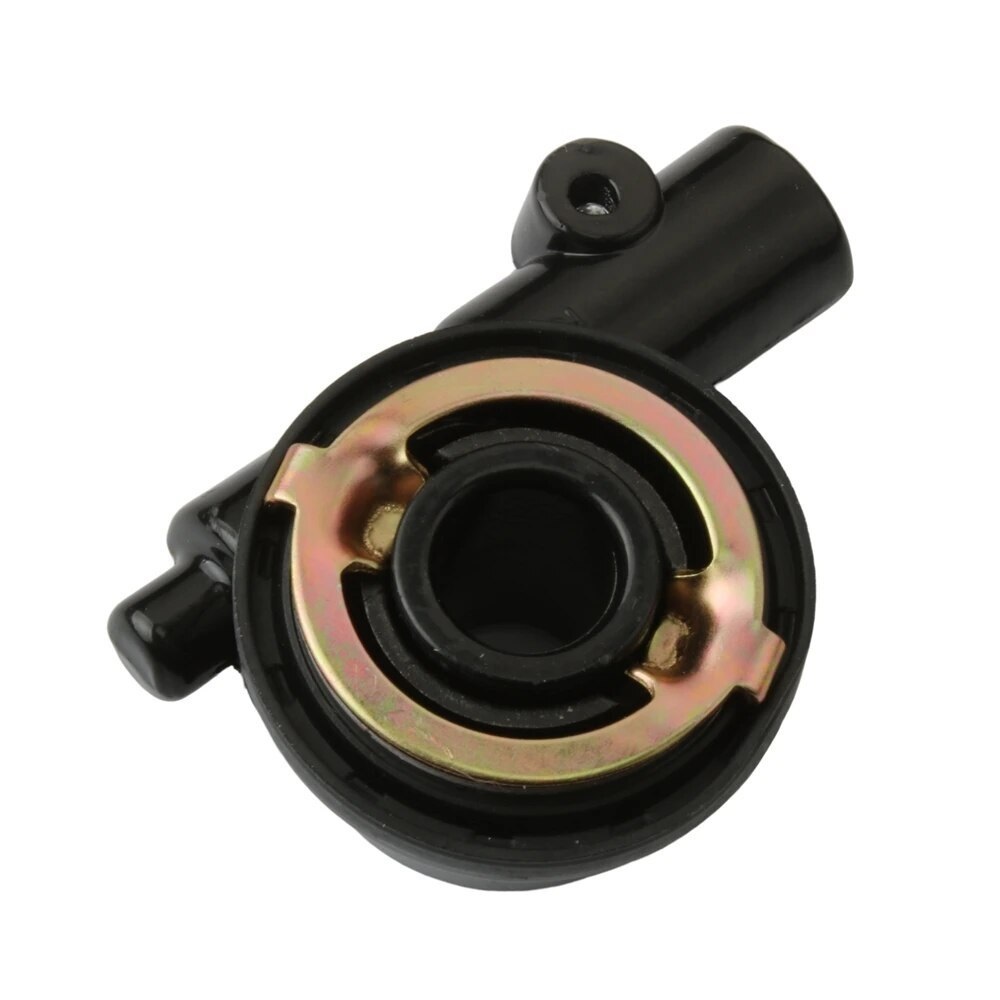

Product Installation Instructions for 15mm Motorcycle Speedometer Drive Gear Box Assembly

Compatibility: This 15mm motorcycle speedometer drive gear box assembly is compatible with various models, including XR250, XR350, XR500, and XR600.

Required Tools:

• Allen wrench (3mm and 5mm)
• Socket wrench or ratchet and socket (10mm and 12mm)
• Torx screwdriver (T20)
• Pliers
• Wire cutters and strippers (if applicable)
• Safety glasses and gloves (recommended)

Installation Steps:

1. Preparation:

• Ensure the motorcycle is in a stable and level position.
• Consult the owner's manual for any specific recommendations or guidelines for installing the speedometer drive gear box assembly.

2. Remove Old Assembly:

• Use a 10mm socket wrench to loosen the bolt holding the old assembly in place.
• Remove the old assembly from the motorcycle.

3. Clean the Area:

• Use a soft brush or cloth to remove any dirt, dust, or debris from the area where the new assembly will be installed.

4. Install New Assembly:

• Place the new speedometer drive gear box assembly onto the motorcycle, ensuring it is properly aligned with the existing mounting holes.
• Use a 12mm socket wrench to secure the new assembly in place with the provided bolt.

5. Connect Cables:

• If applicable, connect the speedometer cable to the new assembly, ensuring it is securely attached with wire ties or clamps.

6. Adjustments:

• Adjust the speedometer drive gear box assembly according to the manufacturer's instructions or recommended settings for optimal performance.

7. Testing:

• Test the speedometer to ensure it is accurately displaying speed readings and functioning properly.

Tips and Precautions:

• Ensure all tools are properly sized and fitted to avoid damaging the motorcycle or components.
• Consult a professional mechanic if you are unsure or uncomfortable with any part of the installation process.
• Always follow proper safety guidelines when working with electrical components and power tools.
