Installation Instructions for Motorcycle Engine Cylinder Piston Kit with Rings Set for 250cc Engines

Tools Needed:

1. Socket Wrench Set - For removing and securing engine components.
2. Torque Wrench - To ensure that bolts are tightened to the manufacturer’s specifications.
3. Piston Ring Compressor Tool - Necessary for installing piston rings onto the piston.
4. Feeler Gauge - To check the clearance between the piston and cylinder walls.
5. Oil Wrench or Basin - To collect oil that might spill during disassembly.
6. Screwdrivers Set - For various screws and fasteners.
7. Piston Tool - For safely compressing the piston if necessary.
8. Rags or Shop Towels - To wipe down surfaces and clean up any spills.
9. Gloves - To protect your hands during installation.
10. Safety Glasses - To protect your eyes while working.

Installation Steps:

1. Preparation:

   • Gather all tools mentioned above and work in a clean, well-lit space.
   • Ensure the engine is completely cool before starting.

2. Remove the Old Cylinder and Piston:

   • Drain any remaining oil from the engine.
   • Use the socket wrench to remove the cylinder head and any attached components.
   • Carefully extract the old piston and cylinder from the engine block.

3. Inspect and Prepare the New Components:

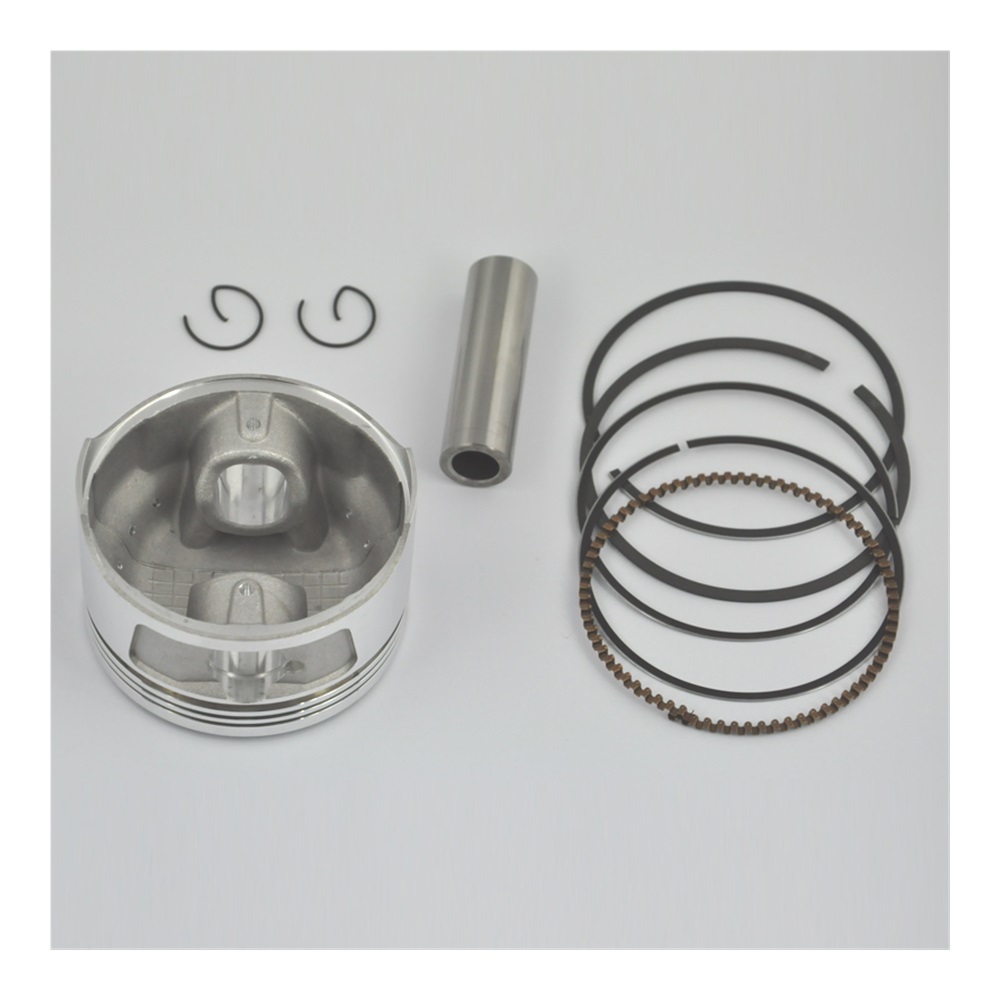

   • Unbox your new Cylinder Piston Kit.
   • Inspect the kit for any damages or missing parts.
   • Clean the cylinder walls and ensure they are free from debris or old gasket material.

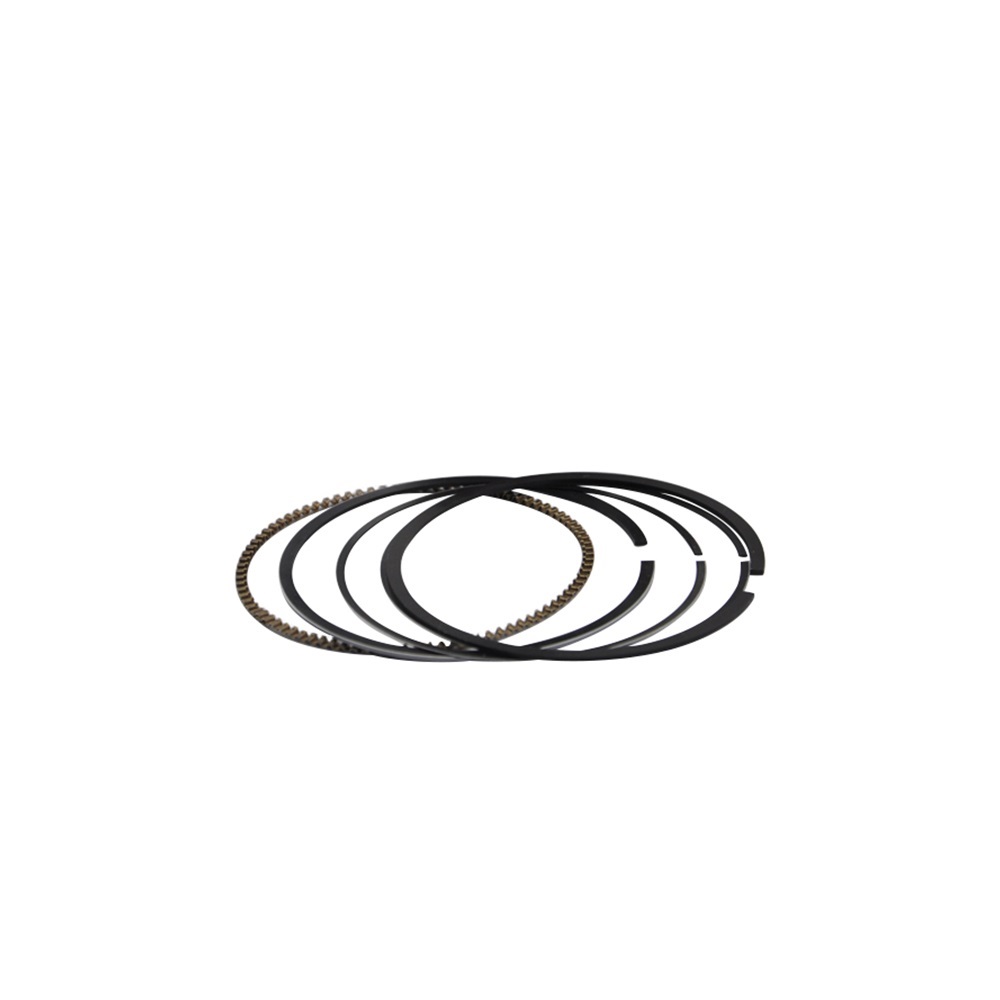

4. Install the New Piston Rings:

   • Carefully expand the new piston rings using the piston ring compressor tool.
   • Make sure to align the rings according to the manufacturer’s specifications (usually, there are markings on the ring).

5. Install the Piston:

   • Apply a thin layer of engine oil on the piston and rings.
   • Insert the piston into the cylinder, ensuring that it is oriented correctly.
   • Use the piston tool to compress the piston if necessary while sliding the cylinder over it.

6. Secure the Cylinder:

   • Replace the cylinder and align it with the mounting points.
   • Use the torque wrench to tighten the bolts to the specified torque rating.

7. Reassemble Other Components:

   • Reattach the cylinder head and any other components you removed, ensuring that all connections are secure.

8. Final Checks:

   • Double-check all bolts and connections.
   • Ensure proper clearance and alignment.

9. Add Oil:

   • Fill the engine with fresh oil according to the manufacturer's specifications.

10. Test Run:

    • Start the engine and allow it to run for a few minutes while monitoring for any leaks or unusual sounds.

Important Note:

Always consult your motorcycle's service manual for specific instructions and torque specifications related to your motorcycle model.

With this installation guide, you should be well-equipped to install your new Motorcycle Engine Cylinder Piston Kit successfully! Happy riding!
