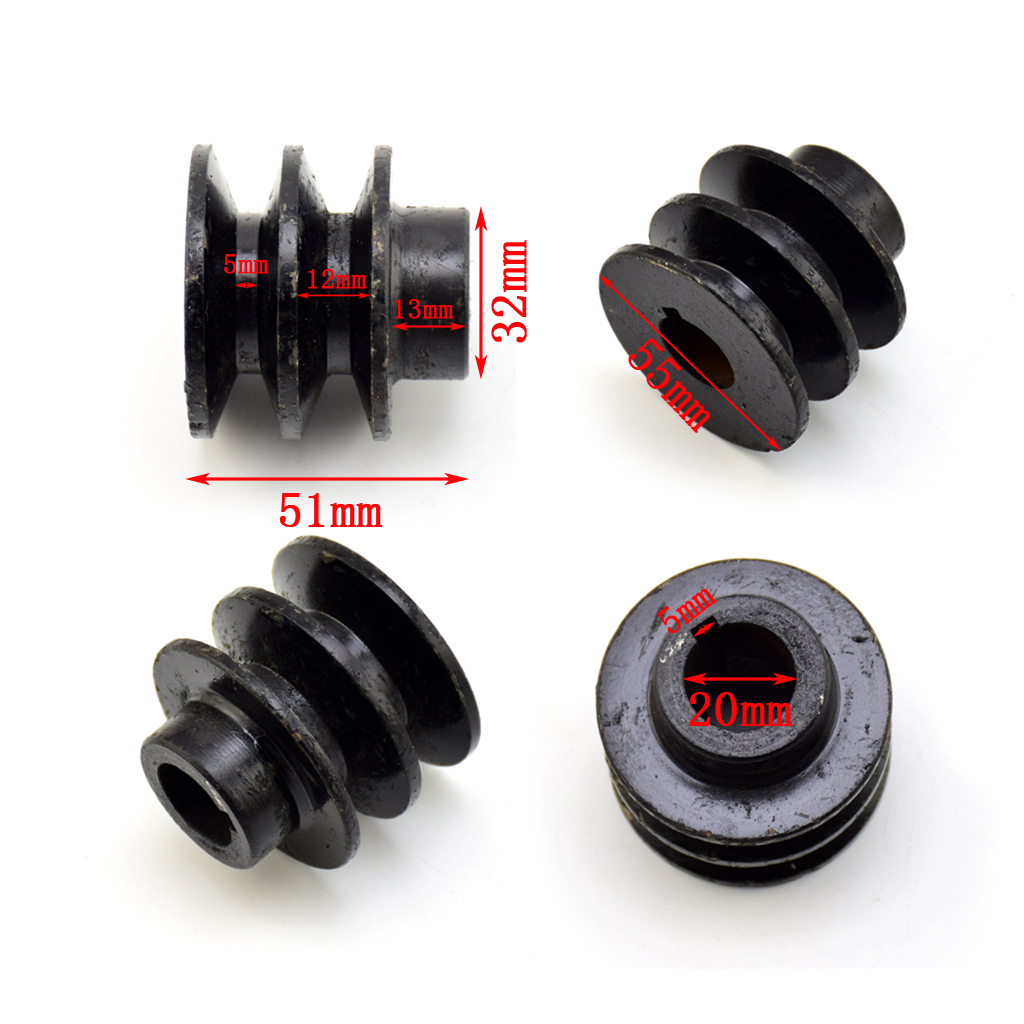

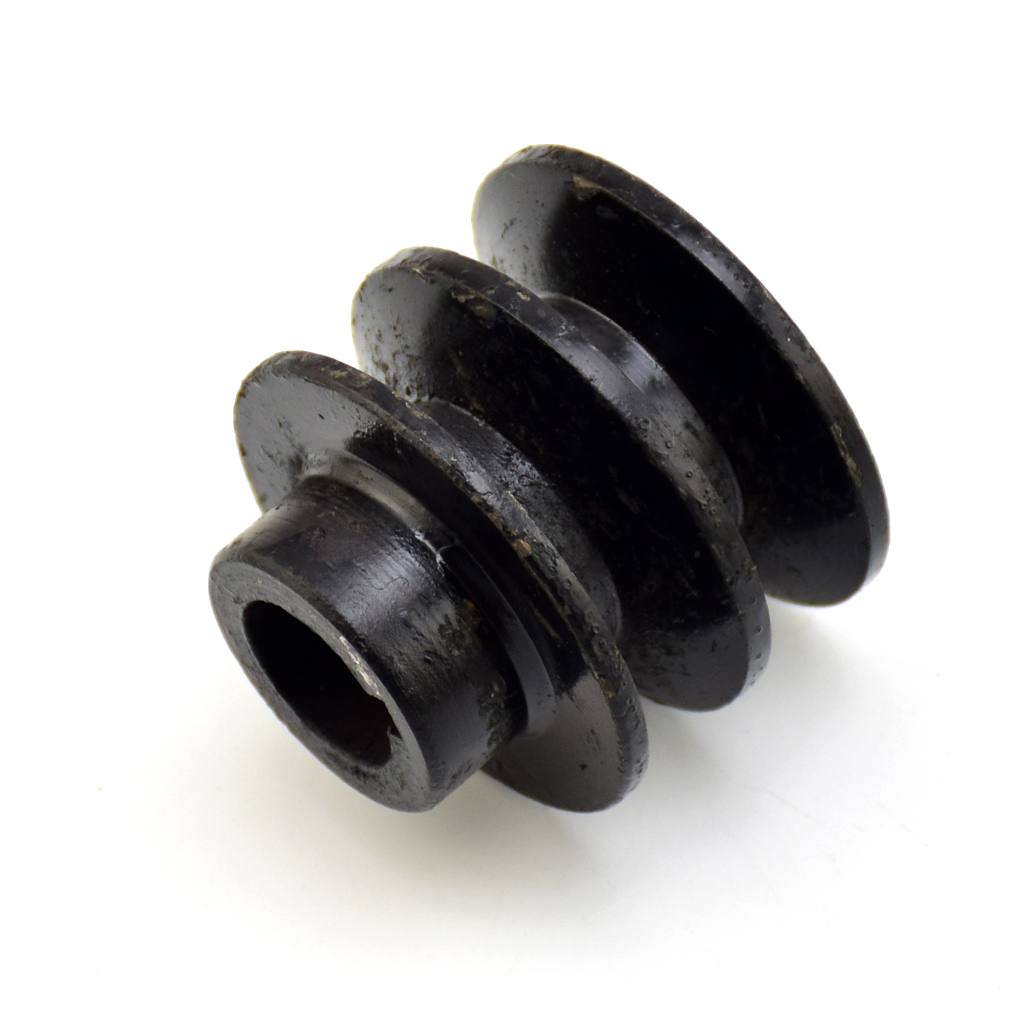

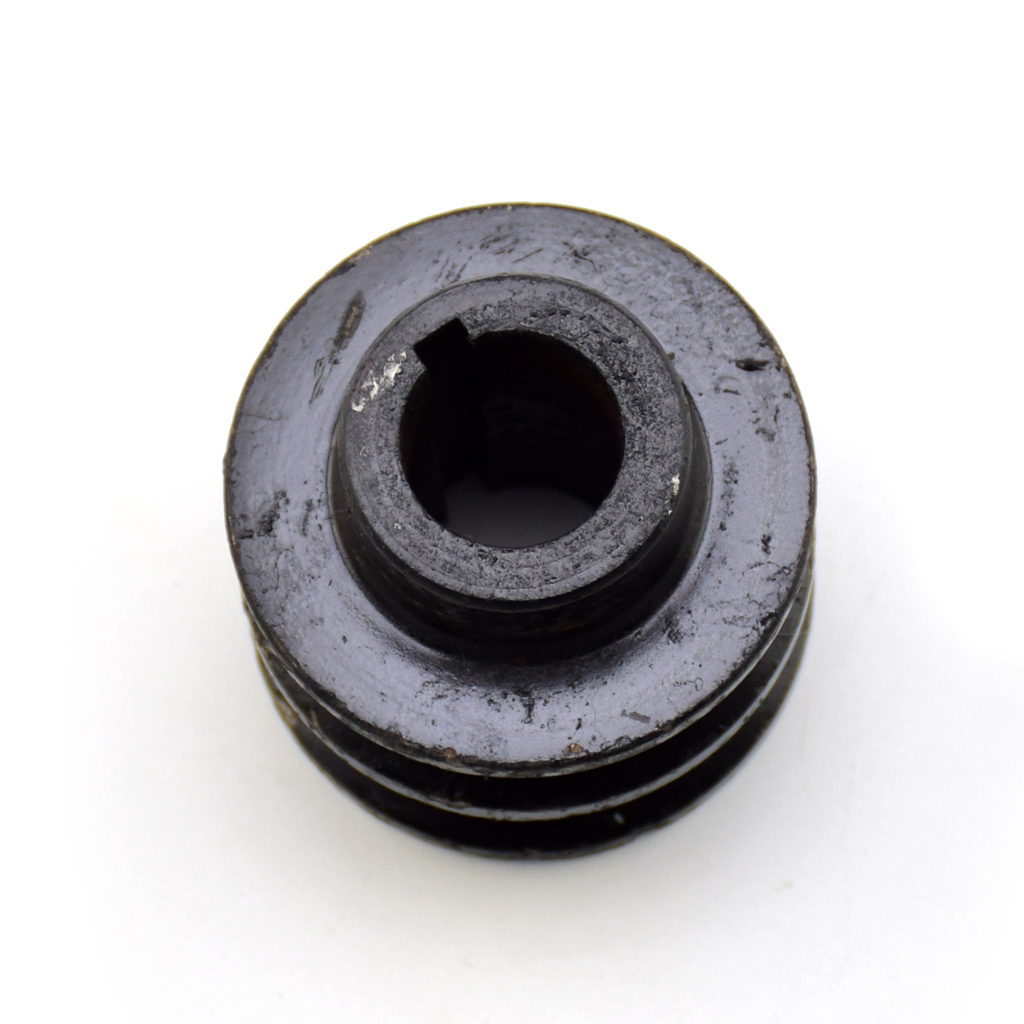

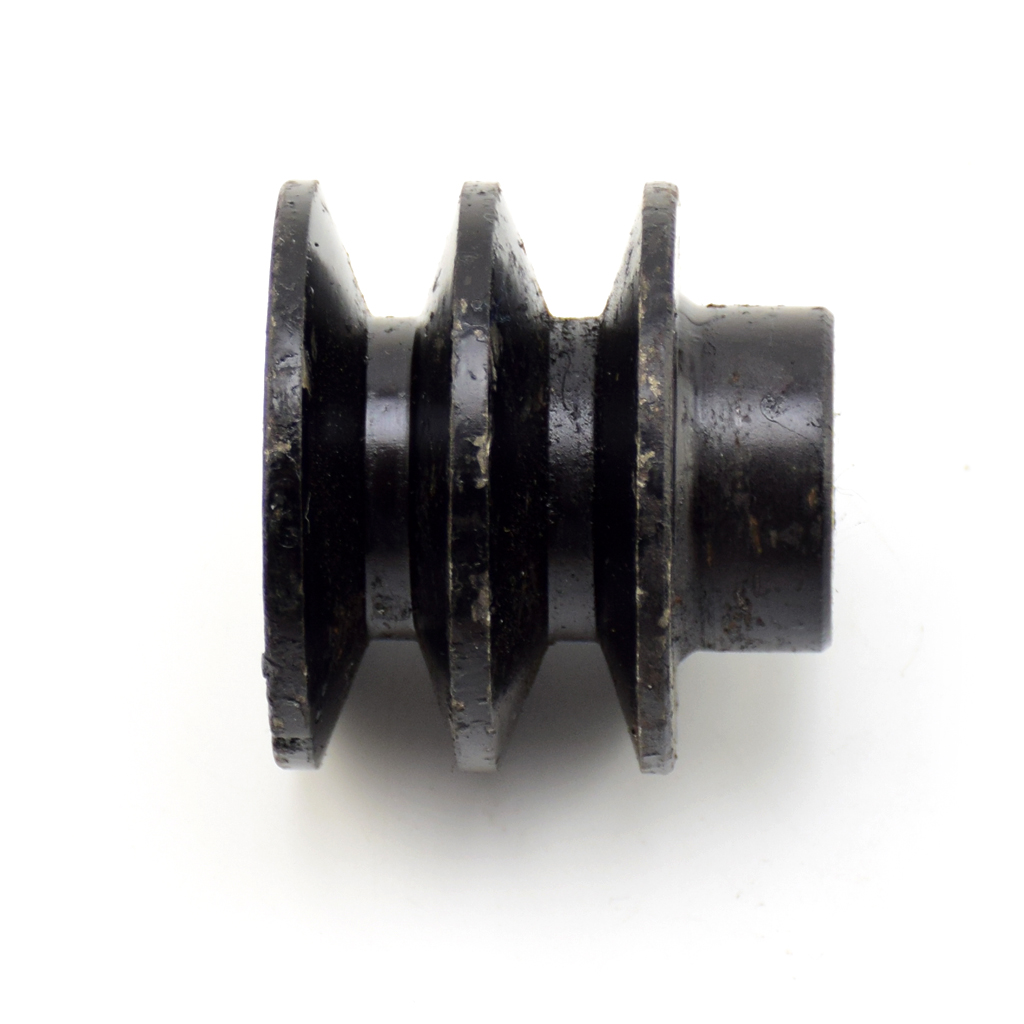

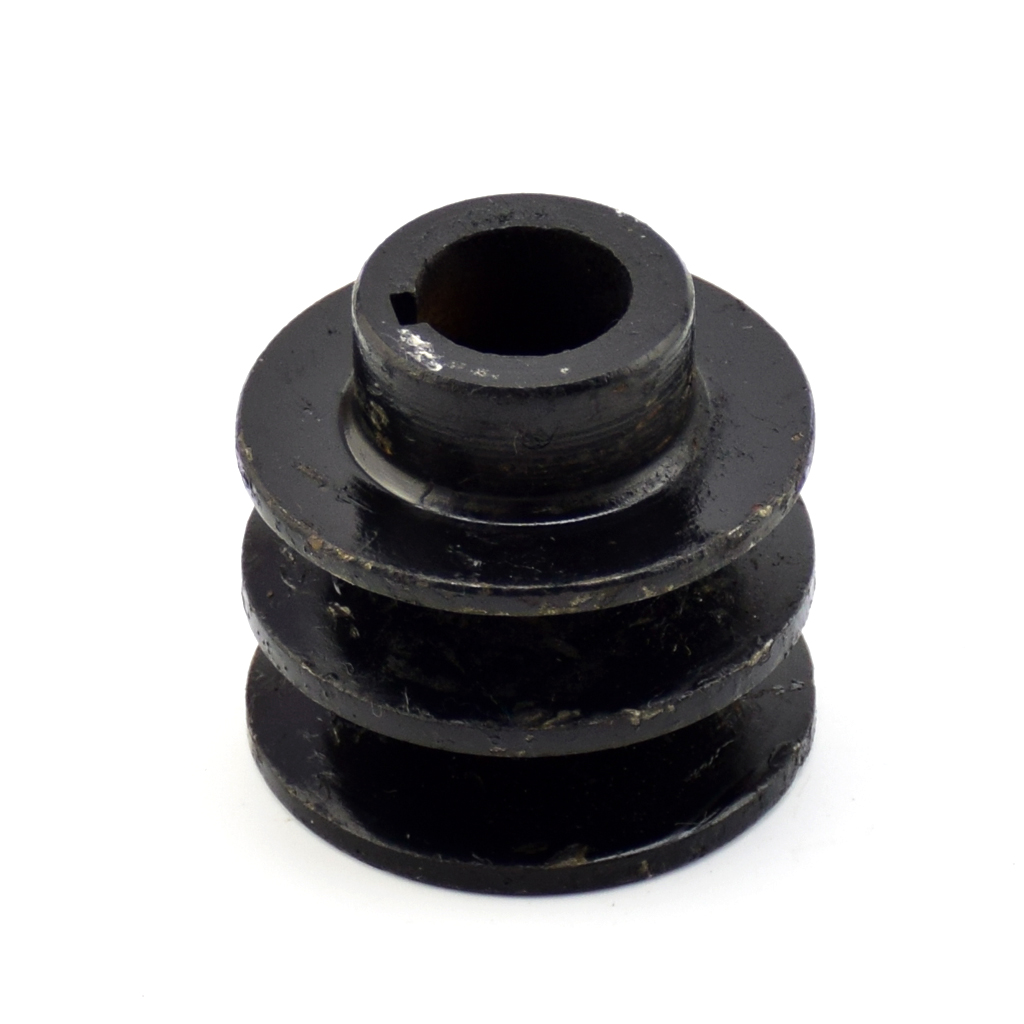

Installation Instructions for Double Groove V Belt Pulley (Bore 35mm, OD 20mm, ID Suitable for 168F 170F 7HP ATV Go Kart Engines)

Tools Required:

1. Wrench Set - For loosening and tightening bolts and nuts.
2. Socket Set - To reach various fasteners with ease.
3. Screwdriver Set - For any additional screws that may be present.
4. Pliers - To assist in gripping or bending components if necessary.
5. Torque Wrench - To ensure proper tightening of bolts to manufacturer specifications.
6. V-Belt - To pair with the pulley, ensure the correct size for optimal performance.
7. Measuring Tape - To double-check dimensions when installing.
8. Lubricant - To apply on the pulley shaft for smooth operation.

Installation Steps:

1. Preparation:

   • Ensure the engine is turned off and cool before starting the installation.
   • Gather all the necessary tools and components for the installation process.

2. Remove the Existing Pulley:

   • Use the appropriate sized wrench or socket to remove the bolts securing the old pulley to the engine.
   • Carefully detach the old pulley and set it aside.

3. Clean the Shaft:

   • Before installing the new pulley, clean the engine shaft to remove any debris or corrosion that may hinder performance.

4. Install the New Double Groove V Belt Pulley:

   • Align the new Double Groove V Belt Pulley with the engine shaft, ensuring that the bore fits snugly.
   • Slide the pulley onto the shaft, and ensure it is seated properly against the engine.

5. Secure the Pulley:

   • Reattach and tighten the bolts that secure the pulley to the engine using the wrench or socket set.
   • Make sure to use a torque wrench to tighten the bolts to the specifications provided by the manufacturer.

6. Install the V-Belt:

   • Place the V-belt into the grooves of the pulley, ensuring it is aligned correctly.
   • Ensure that the belt is taut but not overly tight.

7. Final Checks:

   • Double-check all connections and make sure everything is secured properly.
   • Rotate the pulley by hand to ensure smooth operation without any obstruction.

8. Test Run:

   • Start the engine and observe the pulley and belt during operation.
   • Listen for any unusual noises and ensure the setup is functioning as intended.

Conclusion:

Your new Double Groove V Belt Pulley is now installed and ready for use. Enjoy the enhanced power transmission and performance of your ATV or Go Kart! Make sure to perform regular maintenance checks to ensure longevity and optimal operation.
