Product Installation Instructions for Motorcycle Piston and Ring Kit for KDX200

Introduction:

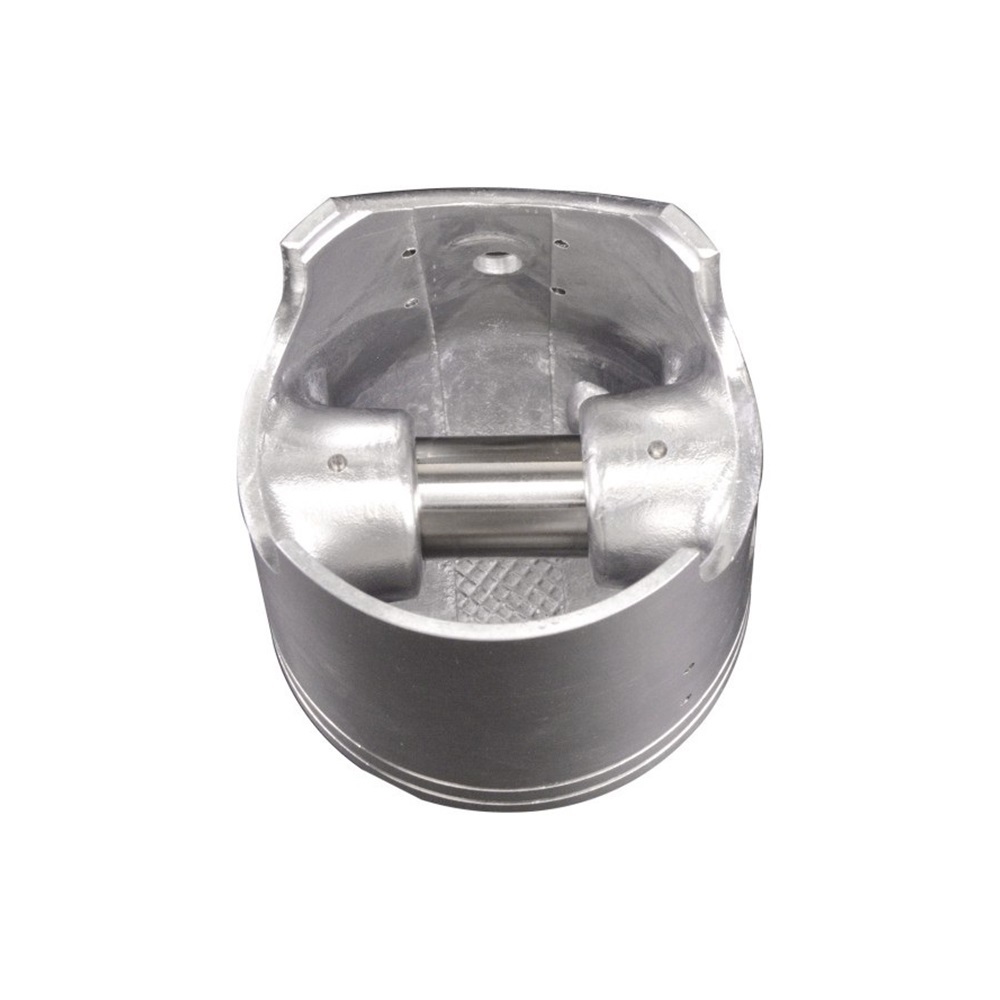

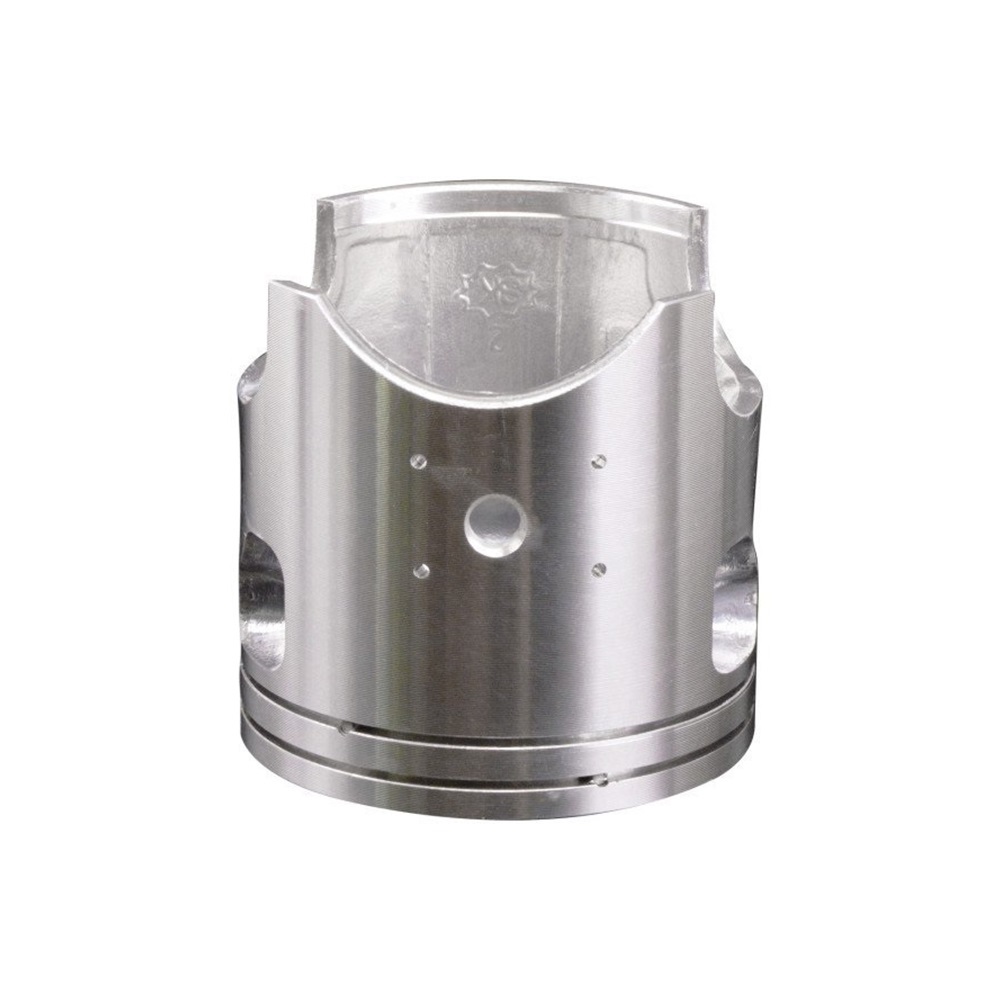

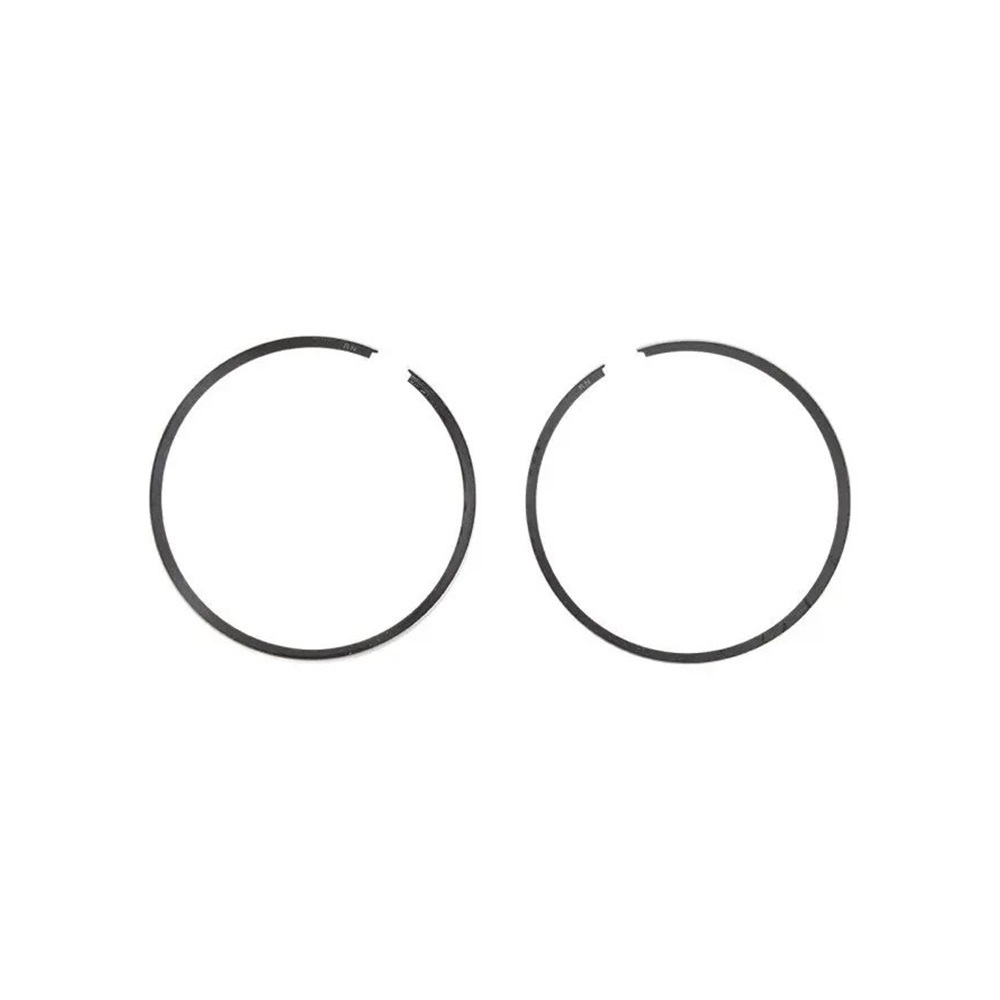

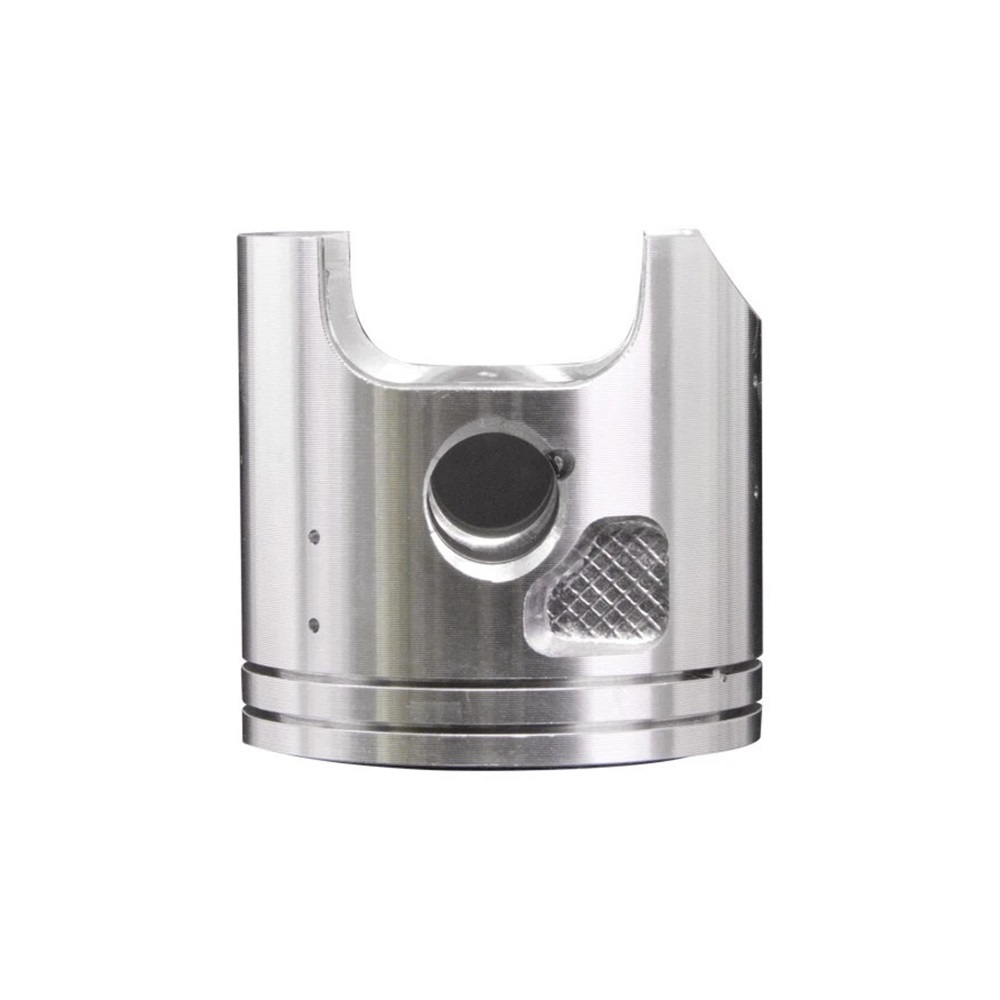

This Motorcycle Piston and Ring Kit is designed specifically for the KDX200 and is available in standard and oversized sizes (+25, +50, +75, +100). This installation guide will help you install the kit effectively for optimal performance enhancement.

Tools Required:

1. Socket Set: Various sizes for removing and tightening engine components.
2. Torque Wrench: To ensure proper torque specifications are met.
3. Piston Ring Compressor: Essential for installing the piston rings onto the piston.
4. Piston Pin Puller: If applicable, to remove and install the piston pin.
5. Feeler Gauge: To check piston clearance and ring gap.
6. Wrench Set: For securing various bolts and nuts.
7. Screwdriver Set: For removing and securing screws on the engine cover.
8. Gasket Scraper: For cleaning the cylinder surface before installation.
9. Engine Oil: For lubricating the piston and rings before installation.
10. Safety Gear: Gloves and goggles for personal protection during installation.

Installation Steps:

1. Preparation:

   • Ensure you are working in a well-ventilated area.
   • Gather all required tools and supplies.
   • Remove the motorcycle seat and side panels to access the engine.

2. Remove the Cylinder Head:

   • Use your socket set to remove the bolts securing the cylinder head.
   • Carefully lift off the cylinder head and set it aside.

3. Remove the Old Piston and Rings:

   • Remove the cylinder to access the piston.
   • Use the piston pin puller to carefully detach the old piston from the connecting rod.
   • Remove the old piston rings.

4. Install New Piston Rings:

   • Apply a light coat of engine oil to the new piston rings.
   • Use the piston ring compressor to fit the rings onto the piston.

5. Install the New Piston:

   • Align the piston correctly with the connecting rod and insert it into the cylinder.
   • Use the piston pin to secure it in place.

6. Reattach the Cylinder:

   • Ensure all surfaces are clean and apply a new gasket if necessary.
   • Carefully slide the cylinder back onto the new piston and secure it with bolts using a torque wrench.

7. Reattach the Cylinder Head:

   • Place the cylinder head back and tighten the bolts to the manufacturer’s specifications.

8. Final Checks:

   • Double-check all connections and ensure everything is securely fastened.
   • Fill the engine with oil if necessary.

9. Test Ride:

   • Start the motorcycle and allow it to idle for a few minutes.
   • Check for any leaks or unusual noises before heading out for a test ride.

Conclusion:
Following these instructions will ensure a successful installation of the Motorcycle Piston and Ring Kit for your KDX200. Enjoy improved performance, enhanced acceleration, and a smoother riding experience! Always refer to your motorcycle's service manual for specific torque specifications and maintenance tips.
