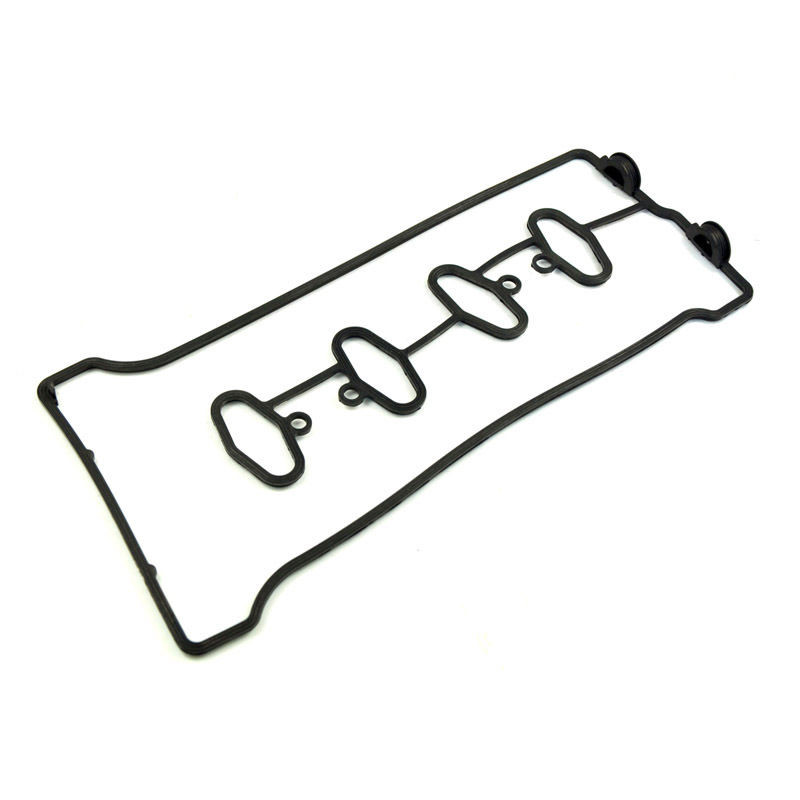

Motorcycle Cylinder Cover Gasket Installation Instructions

Compatibility:
This gasket is specifically designed for the CBR600 F, CBR600F, F4, and F4i models from 2001 to 2006.

Tools Required:
Before you begin the installation, gather the following tools:

1. Socket set (including metric sizes)
2. Torque wrench
3. Screwdriver set (both Phillips and flat-head)
   4.Clean cloth or rag
4. Cleaning solution (such as degreaser or isopropyl alcohol)
5. Gasket scraper (if needed)
6. Safety glasses
7. Gloves (optional for hand protection)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and turned off.
   • If necessary, allow the engine to cool to a safe temperature.

2. Remove the Existing Cylinder Cover:

   • Using the appropriate socket, carefully remove the bolts securing the cylinder cover.
   • Gently lift the cover off, taking care not to damage any surrounding components.

3. Clean the Surfaces:

   • Use a cleaning solution and a clean cloth to wipe down the cylinder head and the surface of the cover.
   • Ensure all remnants of the old gasket are completely removed; a gasket scraper may be needed.

4. Install the New Gasket:

   • Position the new cylinder cover gasket onto the cleaned cylinder head. Make sure it aligns properly with all bolt holes and does not overlap any openings.

5. Reattach the Cylinder Cover:

   • Carefully place the cylinder cover back on top of the new gasket.
   • Hand-tighten the bolts to hold the cover in place.

6. Torque the Bolts:

   • Following the manufacturer's specifications, use a torque wrench to tighten the bolts in an even pattern.
   • This ensures a proper seal and prevents leaks.

7. Final Checks:

   • Inspect the area around the gasket to ensure everything is properly seated.
   • Replace any other components removed during the process.

8. Test the Installation:

   • Start the motorcycle and let it run for a few minutes.
   • Inspect for any signs of oil leaks around the gasket area.

Conclusion:
Congratulations! You have successfully installed the Motorcycle Cylinder Cover Gasket. This will enhance the performance of your motorcycle while providing a reliable seal to prevent oil leaks. Enjoy your ride!
