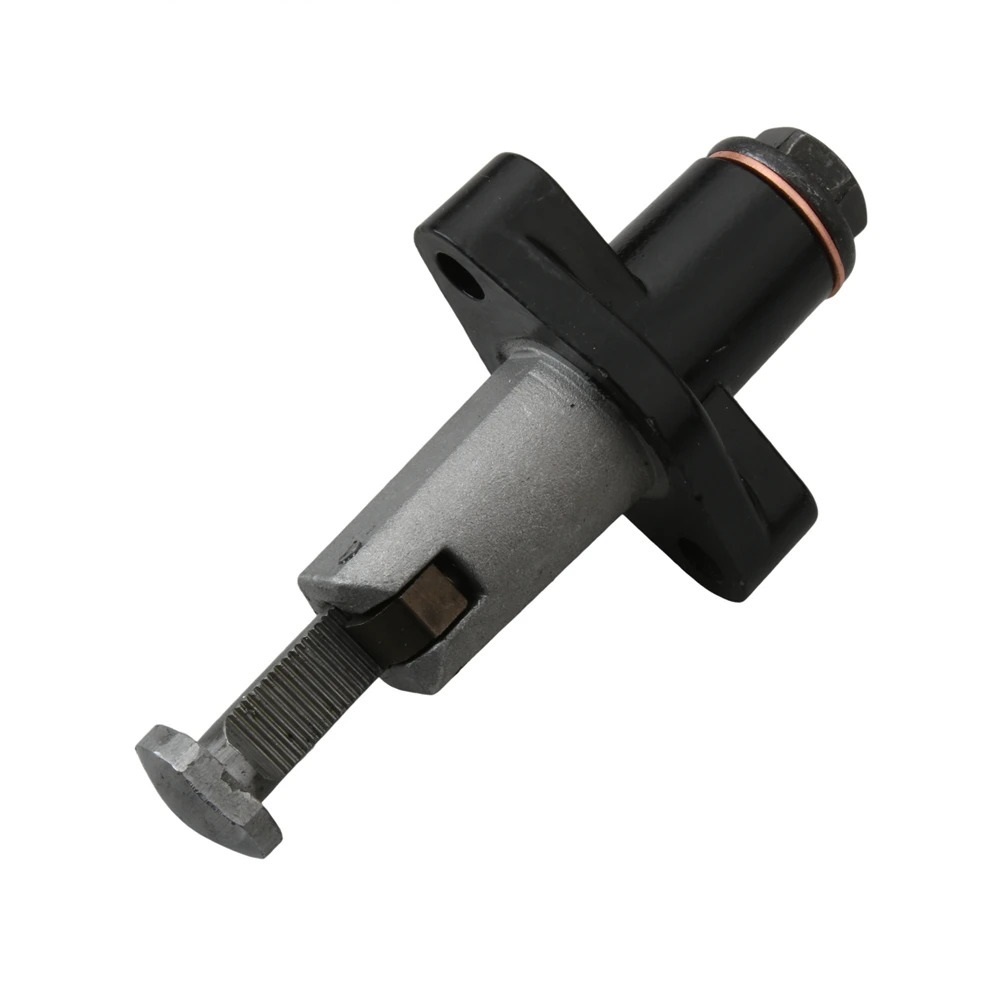

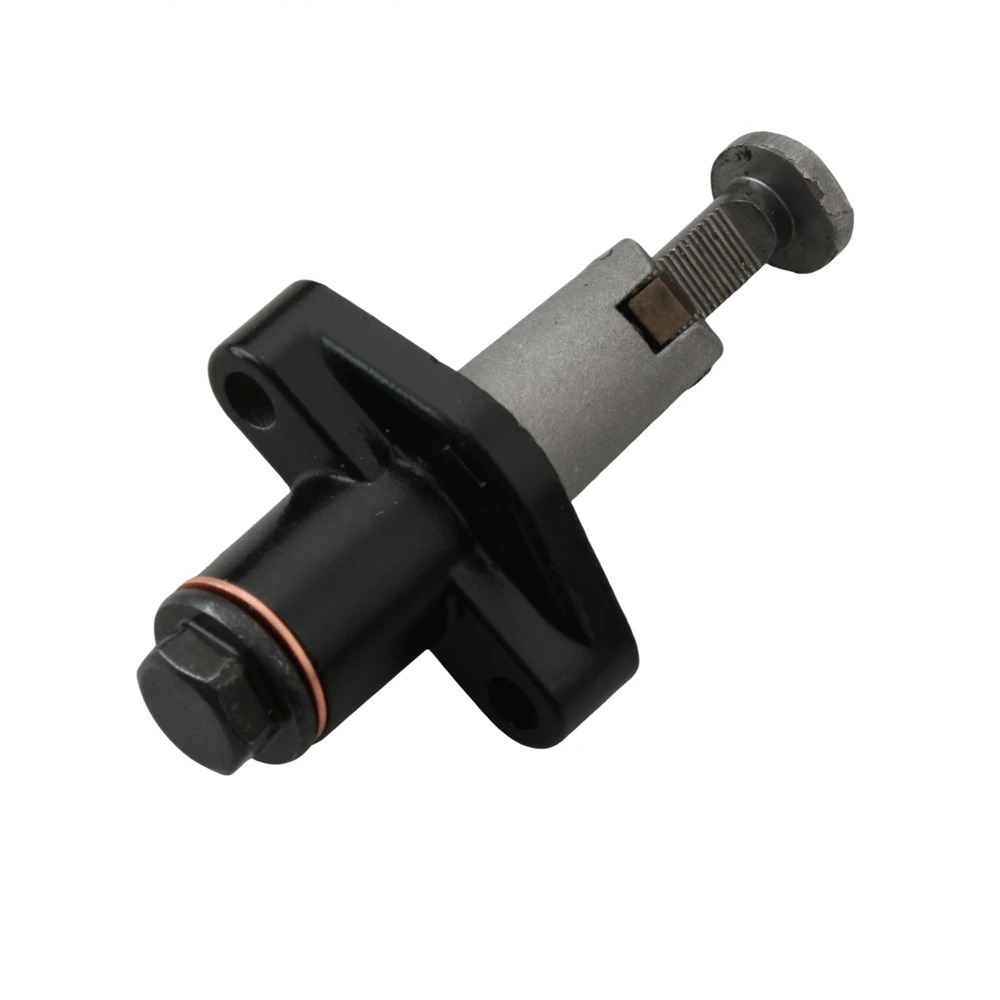

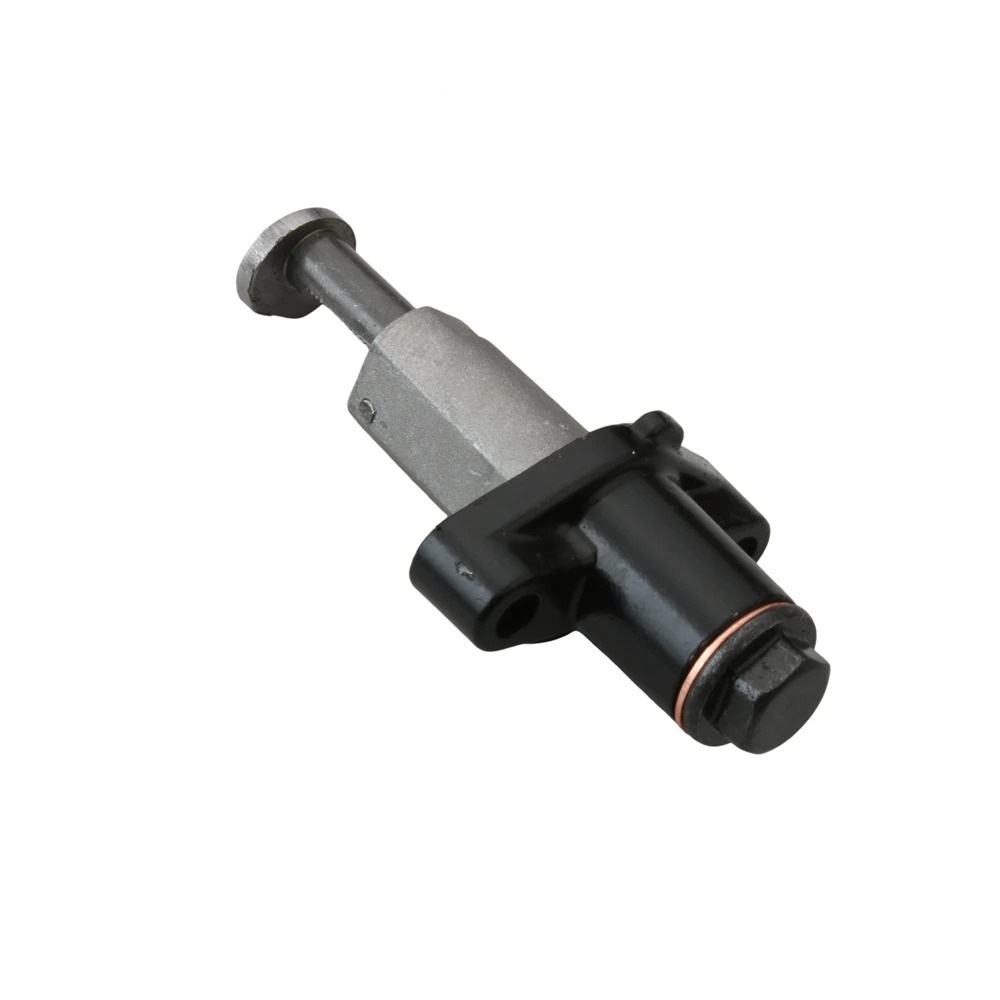

Chain Tensioner Assembly Installation Instructions for 4x4 Motorcycles Compatible with KLR 650 Models

Tools Required:

• Socket wrench set (8mm, 10mm, and 12mm sockets)
  -Torque wrench
• Adjustable wrenches
• Screwdriver set (flathead and Phillips)
  -Pliers
• Motorcycle lift or stand (optional, for ease of access)
  -Clean cloth or rag
• Loctite or thread-locking compound (recommended)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a level surface.
   • Use a motorcycle lift or stand for better access, if available.
   • Gather all necessary tools and components for easy access during installation.

2. Remove the Existing Chain Tensioner:

   • Use the socket wrench to remove the bolts holding the existing chain tensioner in place.
   • Carefully detach the old tensioner while keeping an eye on any washers or spacers that may be present.

3. Inspect the Area:

   • Clean the area where the chain tensioner connects to the motorcycle frame using a clean cloth.
   • Check for any wear or damage on the chain and sprocket.

4. Install the New Chain Tensioner:

   • Position the new chain tensioner assembly in place, aligning it with the mounting holes.
   • Insert the bolts and hand-tighten them to secure the tensioner.

5. Torque the Bolts:

   • Use the torque wrench to tighten the bolts to the manufacturer's specified torque settings (refer to your motorcycle's service manual).
   • Apply Loctite or thread-locking compound on the threads for added security.

6. Adjust the Chain Tension:

   • With the chain tensioner installed, adjust the chain tension according to the specifications for your KLR 650 model.
   • Check the tension by pressing the chain midway between the sprockets; it should have slight give but not be too loose.

7. Final Inspection:

   • Ensure everything is properly secured and aligned.
   • Rotate the rear wheel to check the smooth operation of the chain and tensioner.
   • Make any necessary adjustments to the chain tension if needed.

8. Test Ride:

   • Once installed, take the motorcycle for a short test ride to ensure that the chain tensioner is functioning correctly and the plan is working as expected.

Safety Tips:

• Always wear protective gear, including gloves and goggles while working.
• Consult your motorcycle's service manual for specific torque settings and maintenance guidelines.
• If you are unsure about the installation, consider seeking help from a professional mechanic.

By following these instructions, you'll be able to easily install the Chain Tensioner Assembly and enhance your riding experience with improved performance and reduced maintenance costs.
