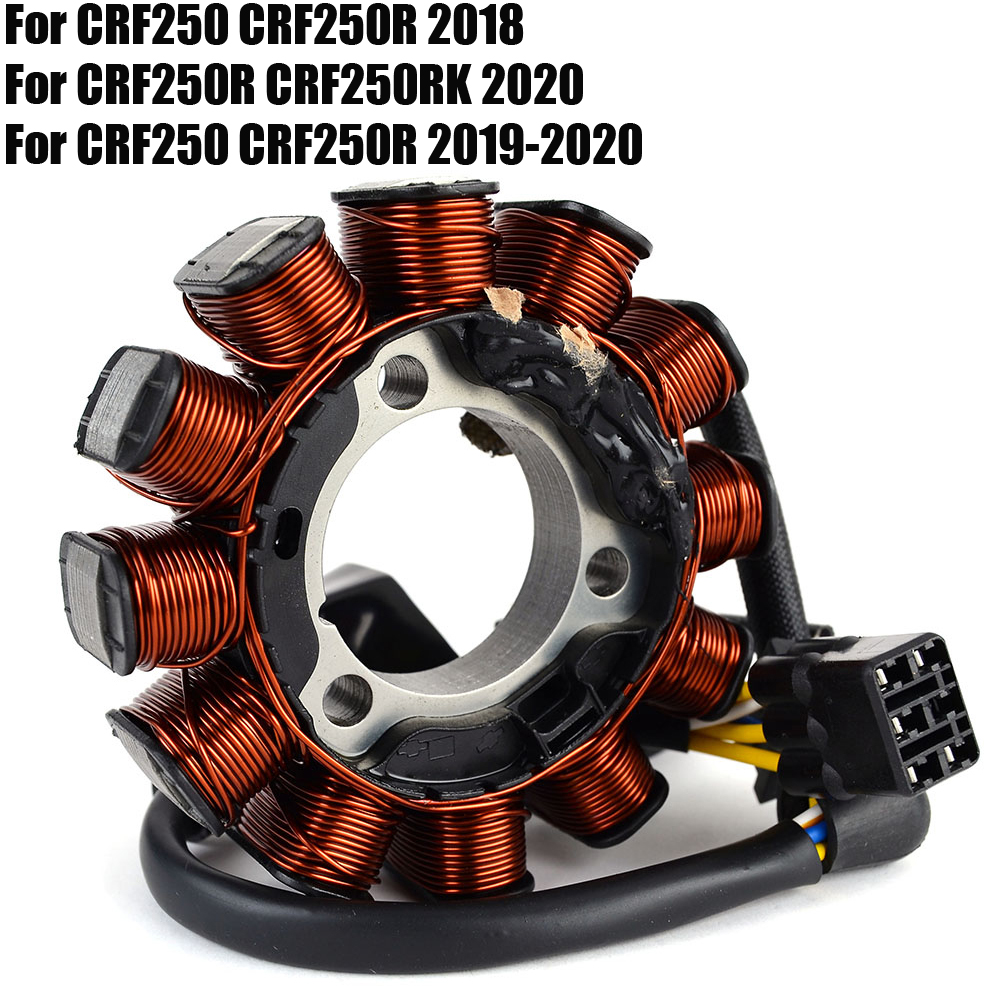

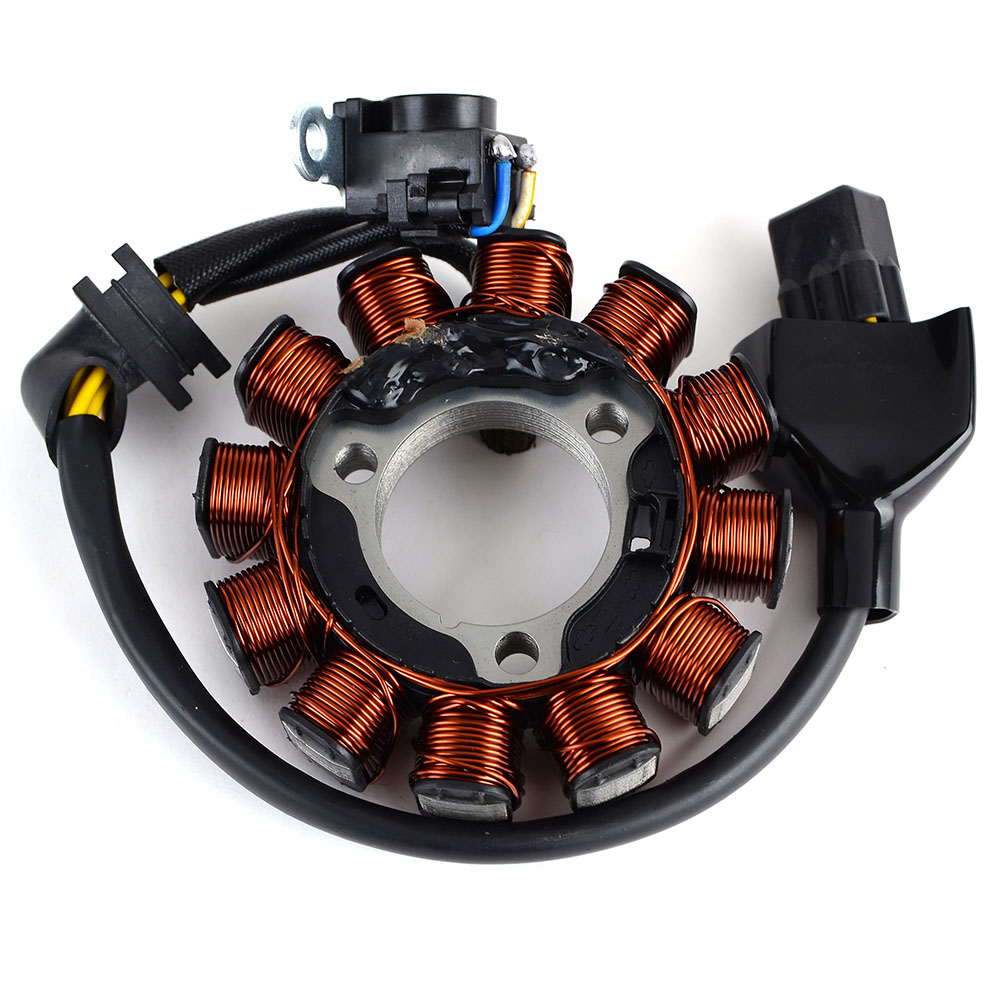

Installation Instructions for Stator Coil Compatible with 2018-2020 CRF250, CRF250R, and CRF250RK Models

Required Tools:

1. Socket set (including 8mm, 10mm, and 12mm sockets)
2. Torque wrench
3. Screwdriver set (Phillips and flathead)
4. Pliers
5. Wire cutters/strippers
6. Electrical tape
   7.Clean cloth or rags
7. Safety gloves and goggles

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is parked on a stable surface and the engine is cool.
   • Disconnect the negative terminal of the battery to prevent any electrical short during installation.

2. Remove the Side Cover:

   • Use the appropriate socket to remove the bolts securing the side cover of the engine.
   • Carefully pry off the side cover using a flathead screwdriver if necessary.

3. Access the Stator:

   • Once the side cover is removed, locate the existing stator coil.
   • Use the socket set to remove the bolts securing the stator in place.

4. Disconnect Wiring:

   • Carefully disconnect the wiring harness connected to the old stator.
   • Use wire cutters/strippers if necessary to expose more wire for easier disconnection.

5. Install the New Stator Coil:

   • Position the new stator coil in place, aligning it with the mounting holes.
   • Securely fasten it using the original bolts, ensuring proper torque settings as per motorcycle your's specifications.

6. Reconnect Wiring:

   • Connect the wiring harness to the new stator coil, ensuring all connections are secure and insulated with electrical tape as needed.

7. Reattach the Side Cover:

   • Replace the side cover and secure it with the bolts you previously removed.
   • Ensure that it is tightly fitted to prevent any leaks.

8. Reconnect the Battery:

   • Reconnect the negative terminal of the battery and ensure it is tight.

9. Final Check:

   • Inspect all connections and ensure that everything is in place.
   • Start the motorcycle and check for proper operation.

10. Clean Up:

    • Clean any spills and tidy the workspace, ensuring tools are put away.

Safety Note:
Always work in a safe environment and consider wearing gloves and goggles during the installation process to protect yourself from any potential hazards.

With proper installation, your new stator coil will enhance the performance of your motorcycle, providing stable power output. Enjoy your ride!
