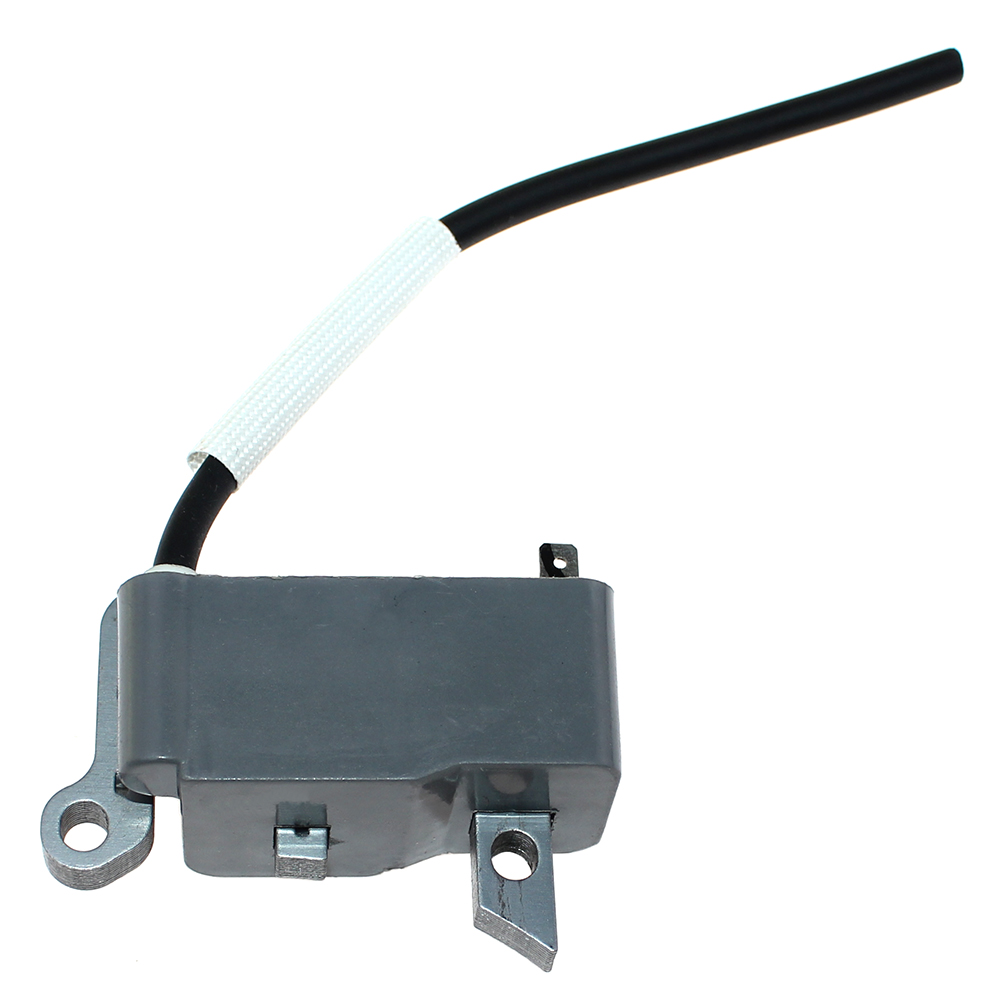

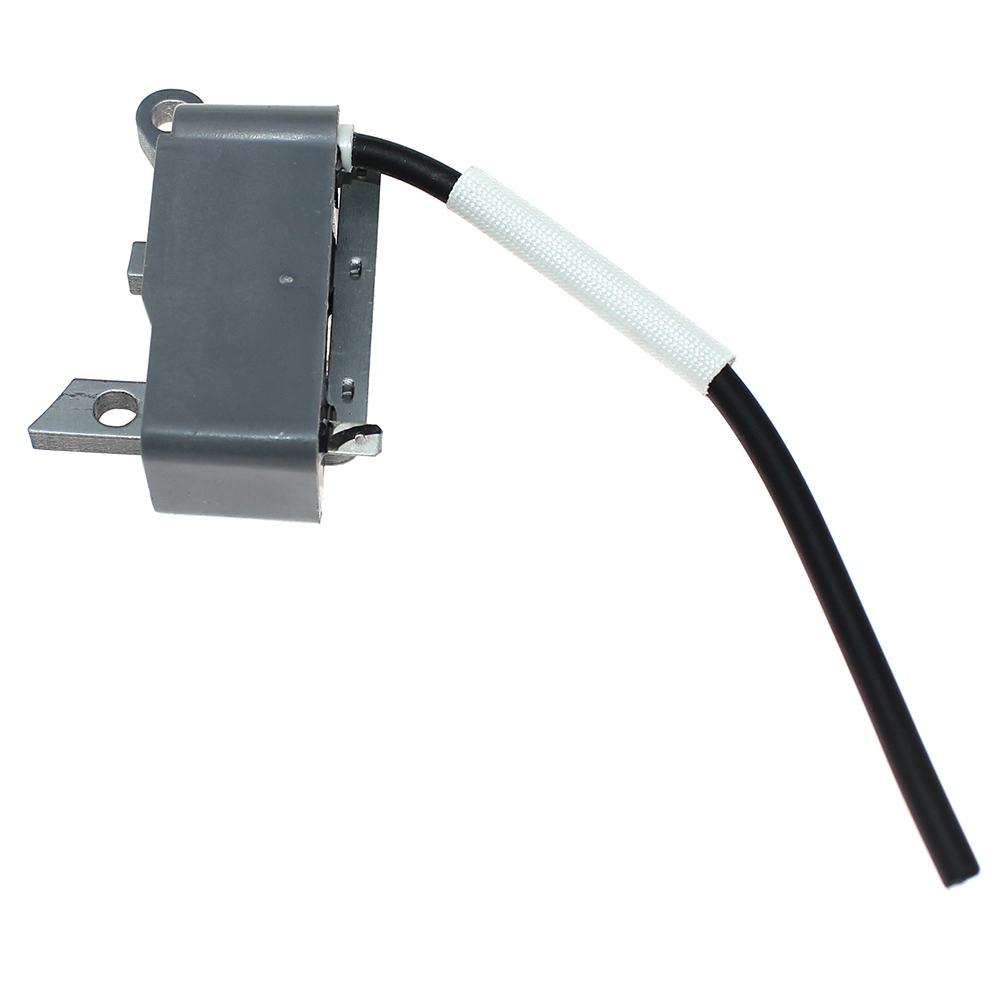

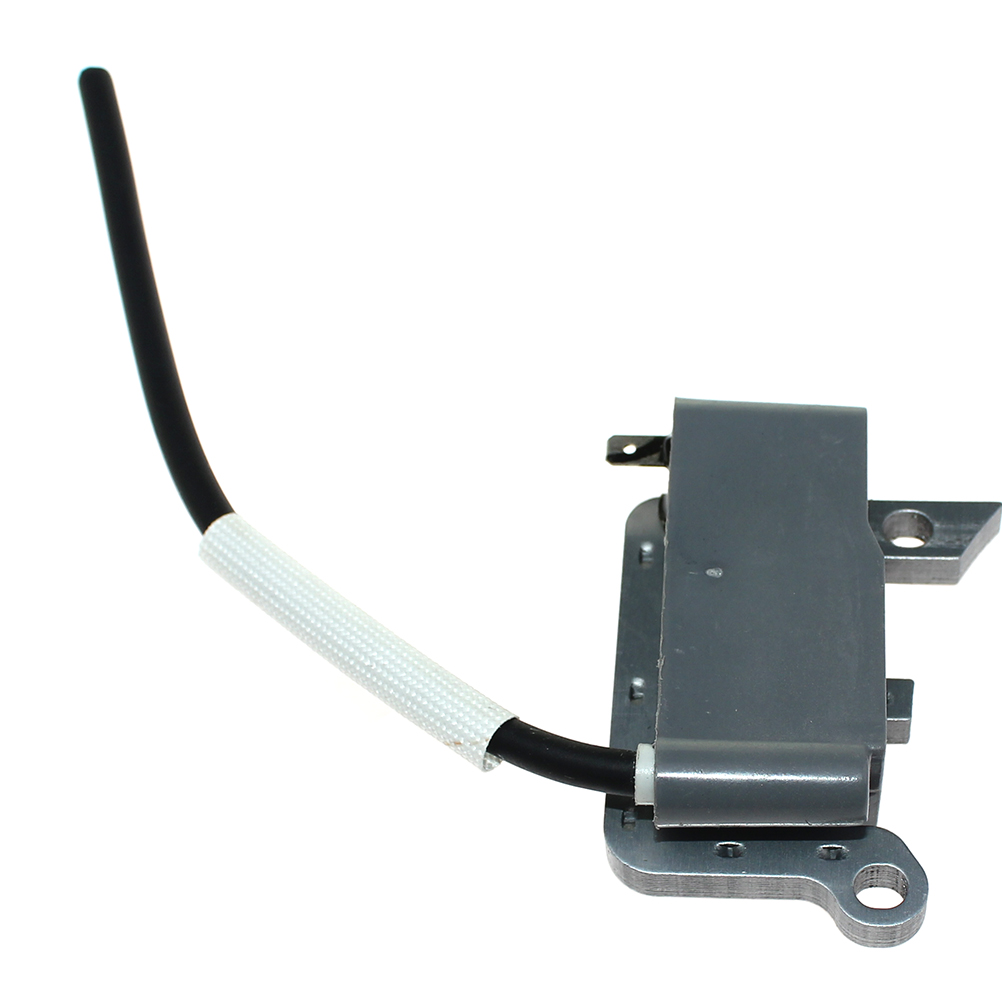

Product Installation Instructions for Ignition Coil Compatible with EO PB760LNH, PB760LNT, PB770H, PB770T, EB770, EB770RT

Tools Required:

1. Socket Wrench Set
2. Screwdriver Set (Flahead and Phillips)
3. Pliers
4. Torque Wrench
5. Engine Oil (for lubrication of bolt threads, if needed)
6. Clean Cloth or Rag
7. Safety Goggles
8. Gloves

Installation Steps:

1. Preparation:

   • Ensure the engine is cool before starting the installation.
   • Disconnect the spark plug wires to avoid any electrical hazard.
   • Remove any obstructing components to allow easy access to the ignition coil.

2. Remove the Old Ignition Coil:

   • Use the appropriate socket wrench to remove the bolts securing the old ignition coil.
   • Carefully detach the old ignition coil from the engine.
   • Clean the mounting area using a clean clothes to remove any debris.

3. Install the New Ignition Coil:

   • Position the new ignition coil over the mounting area.
   • Align it with the existing bolt holes to ensure a precise fit.
   • Insert the bolts and hand-tighten them to secure the coil.

4. Tightening:

   • Use the torque wrong to tighten the bolts to the manufacturer's specified torque ratings. Ensure that the coil is securely fastened but avoid over-tightening.

5. Reconnect Components:

   • Reattach any components that were removed for access.
   • Connect the spark plug wires back to their respective locations.

6. Final Check:

   • Double-check all connections to ensure everything is secure and properly installed.
   • Dispose of the old ignition coil responsible.

7. Start the Engine:

   • Turn on the engine to test the installation.
   • Observe for any irregular behavior and ensure smooth operation.

Safety Precautions:

• Always wear safety goggles and gloves while working on the engine to protect yourself from debris and electrical hazards.
• Make sure the engine is turned off and cool before starting any work.

By following these instructions and using the necessary tools, you can efficiently install the Ignition Coil and enhance your engine's performance. Thank yo u for choosing this compatible ignition coil for your engine models!
