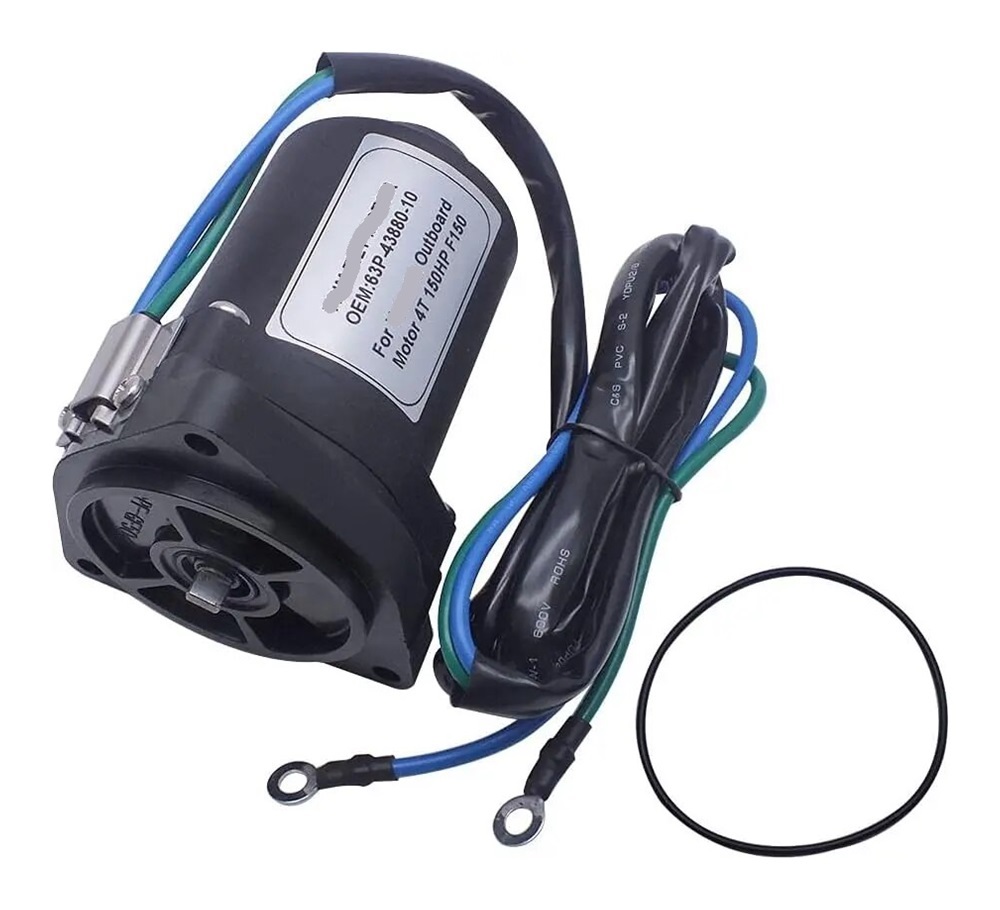

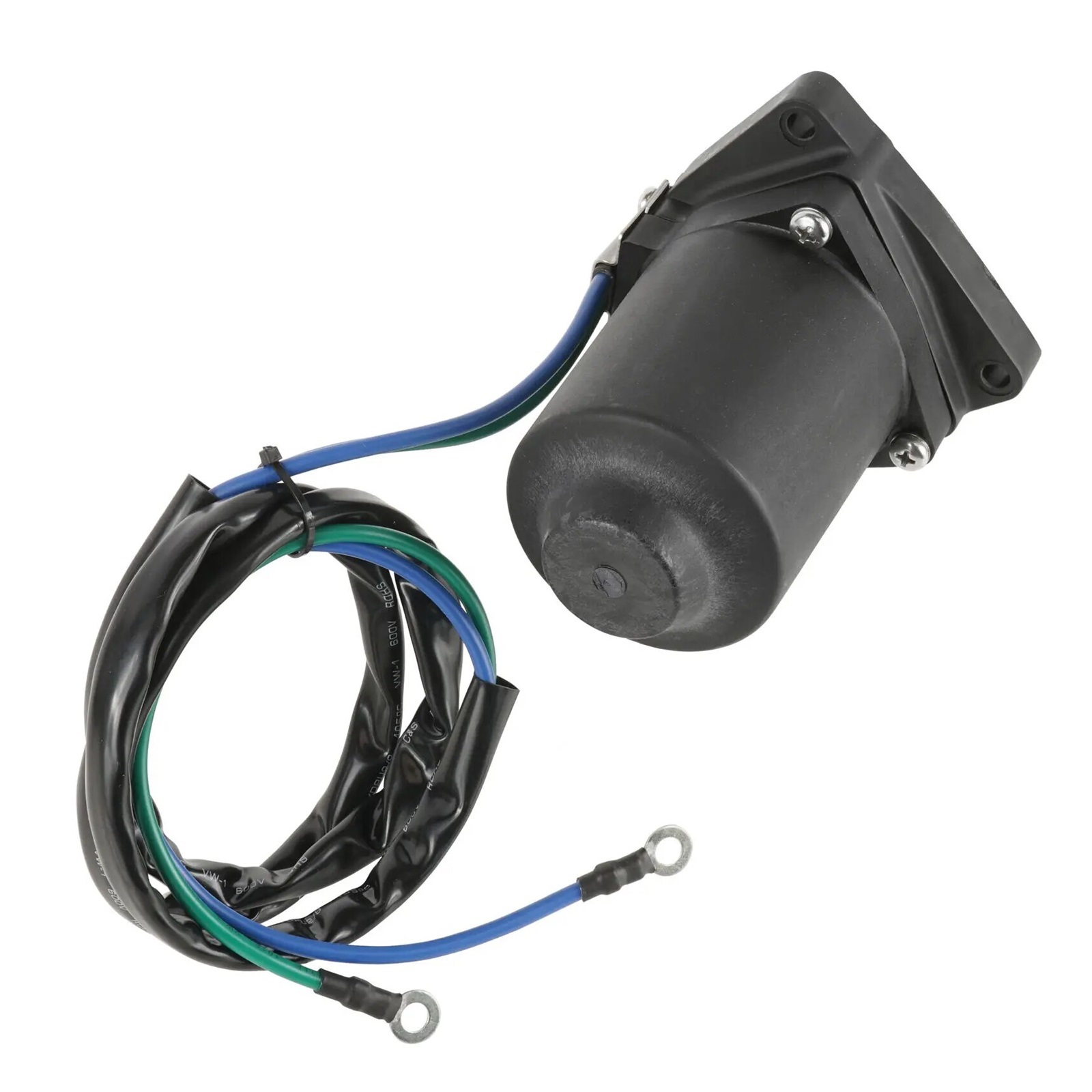

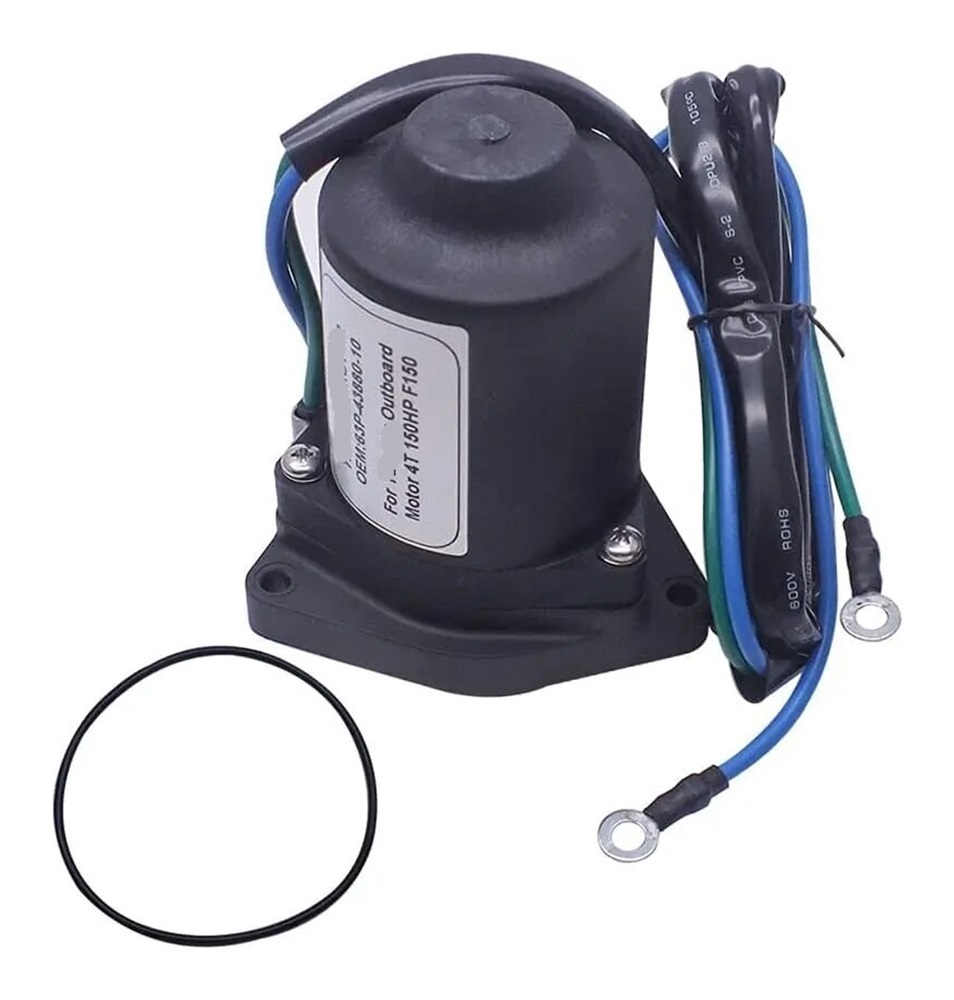

Installation Instructions for Tilt Trim Motor

Compatible Models:

• Suitable for 150HP, 175HP, 200HP, and 250HP outboards including models F150TLR, F150TXR, LF150TXR 12, and F150TJR 11.

Tools Required:

1. Socket Wrench Set - To remove and tighten mounting bolts.
2. Screwdriver Set - For any screws that require removal.
3. Pliers - To help with gripping and twisting.
4. Torque Wrench - To ensure bolts are properly tightened to manufacturer specifications.
5. Sealant - If necessary, to prevent water ingress.
6. Clean Cloth - For cleaning surfaces before installation.
7. Safety Gear - Such as gloves and safety glasses.

Installation Steps:

1. Preparation:

   • Ensure the boat is moored securely.
   • Disconnect the battery to prevent any electrical issues during the installation.

2. Remove the Old Tilt Trim Motor:

   • Use the socket wrench to remove the bolts securing the old motor.
   • Carefully disconnect electrical wires and take note of their arrangement for reinstallation.

3. Clean the Area:

   • Wipe the mounting surface with a clean cloth to remove dirt and debris.

4. Install the New Tilt Trim Motor:

   • Connect the electrical wires to the new motor, following the notes from the previous step.
   • Align the motor and secure it using the bolts, tightening them with the socket wrench.
   • Use a torque wrench to ensure proper tightening.

5. Test the Installation:

   • Reconnect the battery and test the motor's functionality by operating the tilt and trim functions.
   • Check for any leaks or unusual sounds.

6. Final Touches:

   • If necessary, apply sealant around the mounting area to ensure water resistance.
   • Clean the area one last time.

Note: Always refer to the manufacturer's specific instructions and diagrams where available. If you are unsure or uncomfortable with the installation process, it is recommended to consult a professional.
