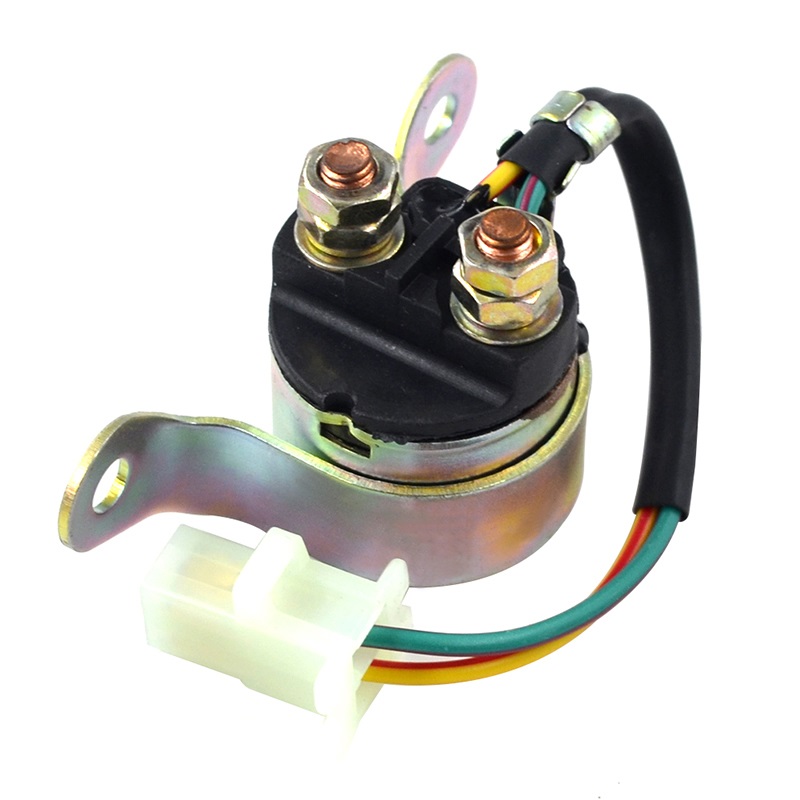

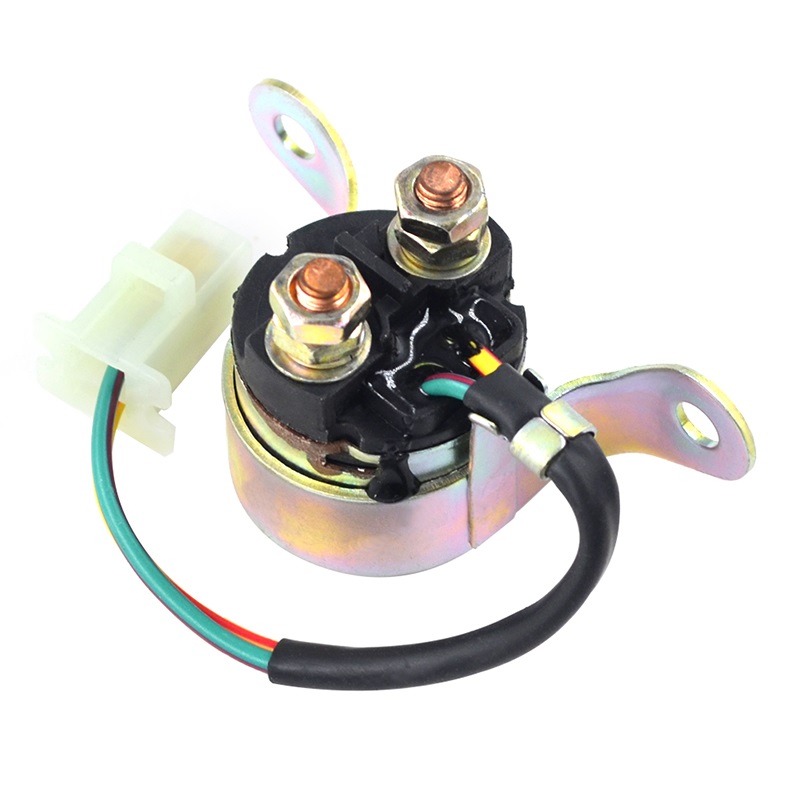

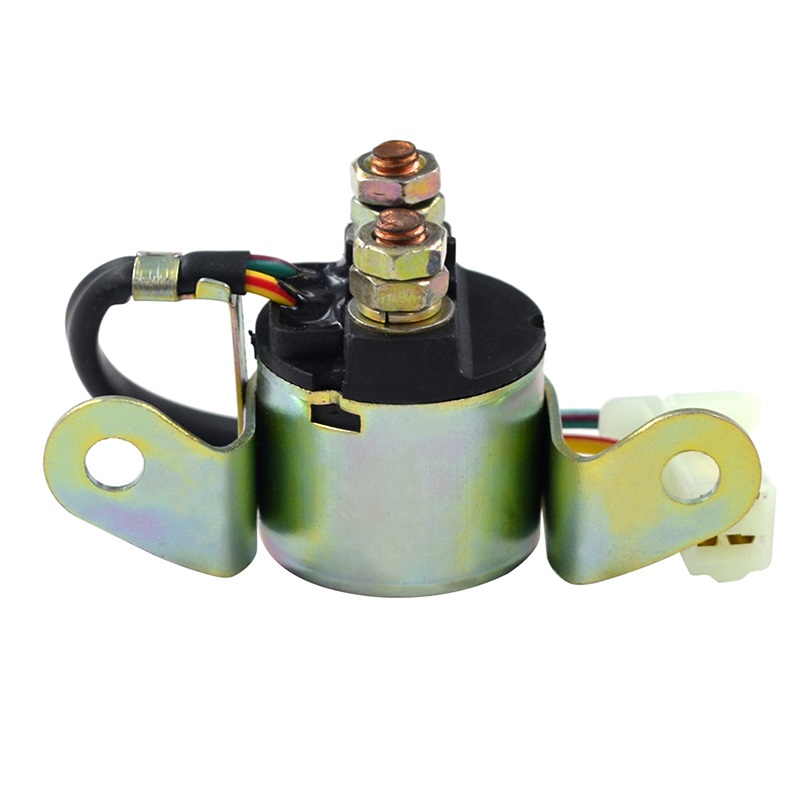

Product Installation Instructions for Motorcycle Starter Relay

Compatibility:
This starter relay is compatible with various motorcycle models, including VS800GLV Intruder, DR125, and more, ensuring broad adaptability and convenient installation.

Installation Overview:
Installing the starter relay is designed to be user-friendly, allowing you to complete the process without the need for professional tools. Follow the instructions below to ensure a smooth installation.

What You'll Need:
Before starting the installation, make sure you have the following tools and materials ready:

1. Socket Wrench Set - For removing and securing the relay.
2. Phillips and Flathead Screwdrivers - For managing any screws or fasteners.
3. Wire Cutters - If you need to trim or modify any existing wiring.
4. Electrical Tape - To secure and insulate any exposed wires.
5. Safety Goggles - To protect your eyes during the installation process.
6. Gloves - To keep your hands clean and safe while handling electrical components.

Installation Steps:

1. Safety First: Make sure your motorcycle is turned off and the key is removed from the ignition.

2. Locate the Old Relay: Identify the location of the existing starter relay on your motorcycle. This is typically found near the battery or in the electrical compartment.

3. Remove the Old Relay:

   • Use the socket wrench to unscrew the old relay.
   • Gently disconnect the wiring harness attached to the old relay.

4. Install the New Relay:

   • Connect the wiring harness to the new starter relay, ensuring a secure and snug fit.
   • Place the new relay in the same position as the old one.
   • Secure it with the screws you removed earlier, using your socket wrench.

5. Check Connections: Double-check all connections to ensure they are tight and secure. Use electrical tape if necessary to cover any exposed wires.

6. Test the Installation: Reinsert the key into the ignition and attempt to start your motorcycle. If the starter functions smoothly, the installation was successful.

Conclusion:
With durable materials and reliable performance, this starter relay ensures stable starting functionality for your motorcycle, enhancing your overall riding experience. Enjoy your ride with confidence, knowing you've successfully installed your new component!
