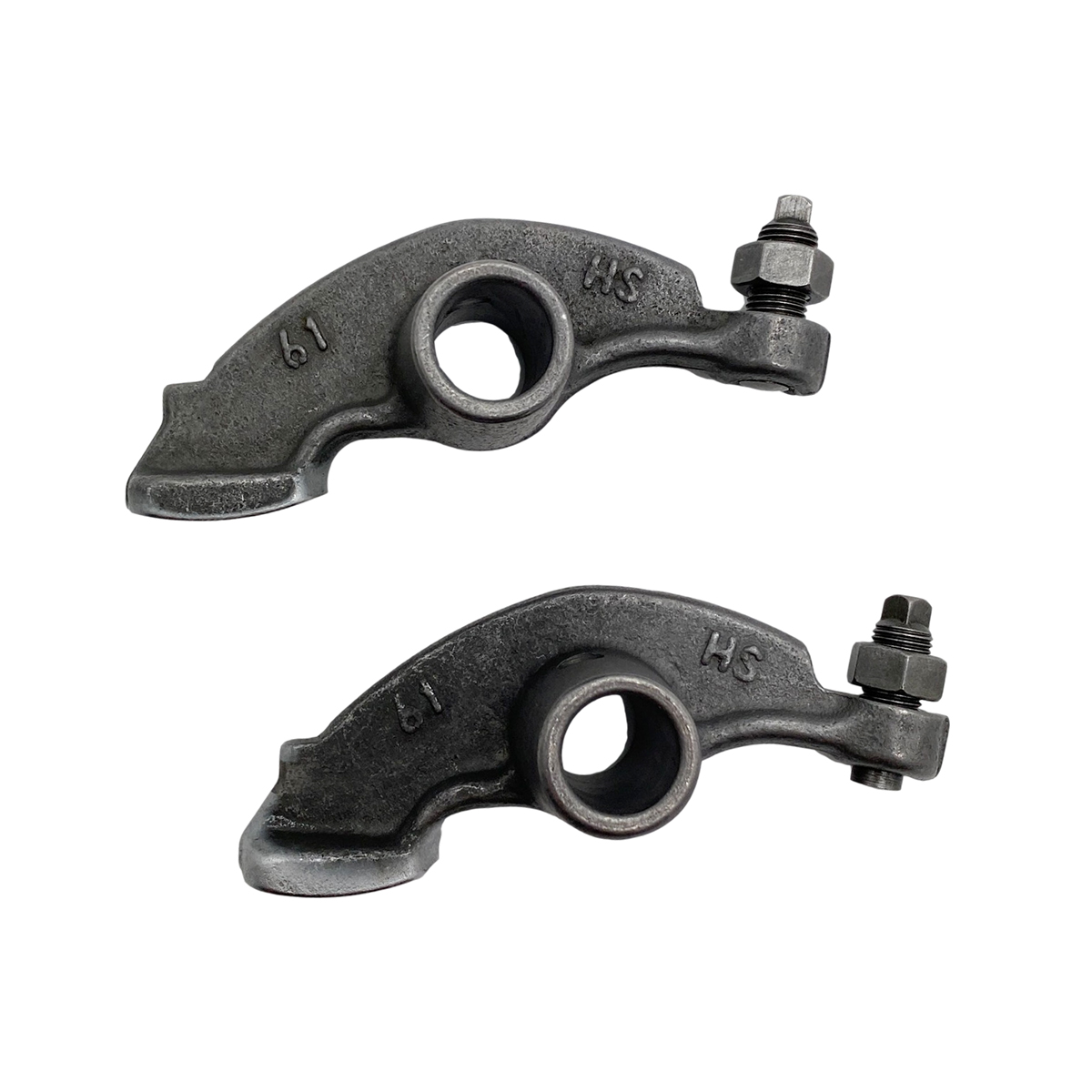

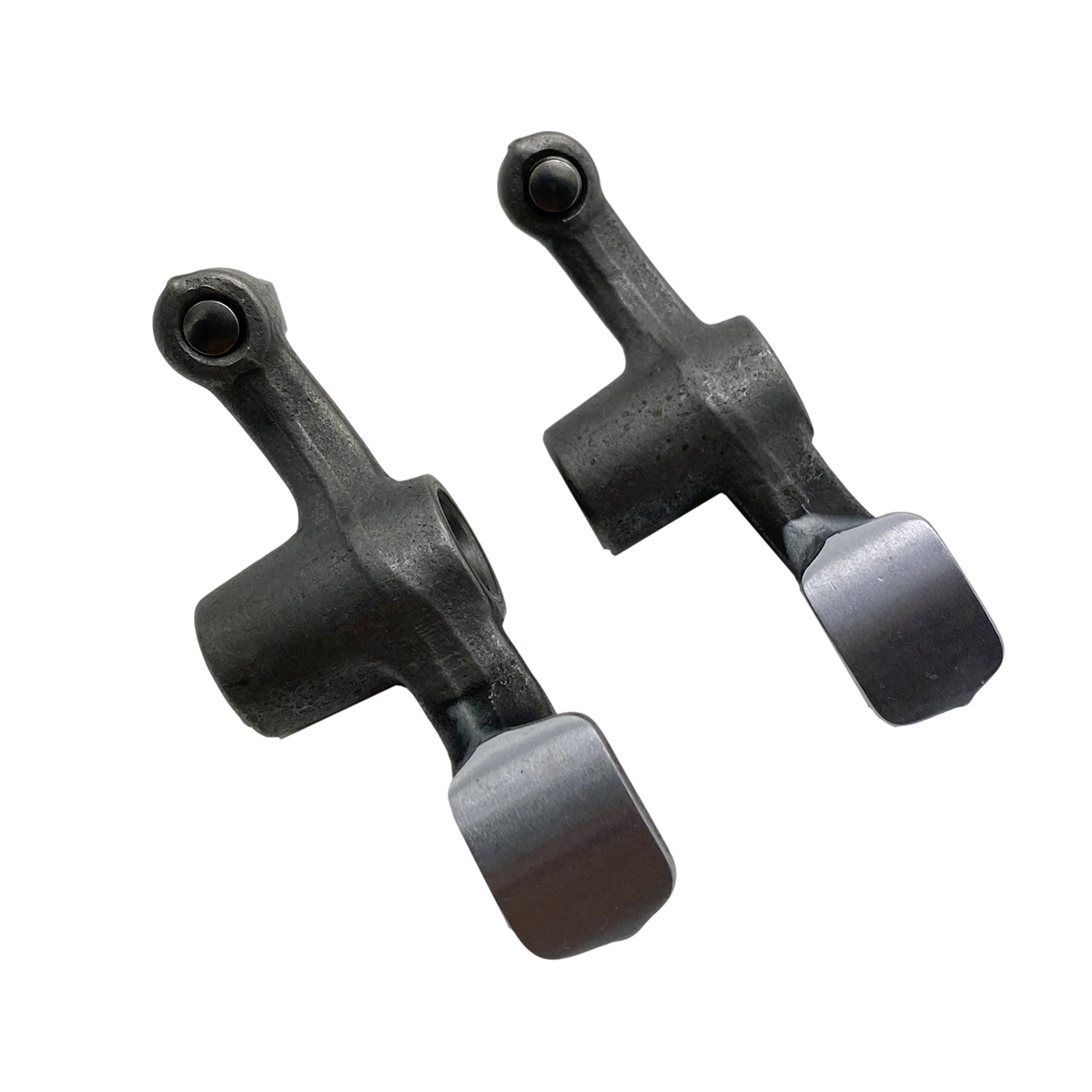

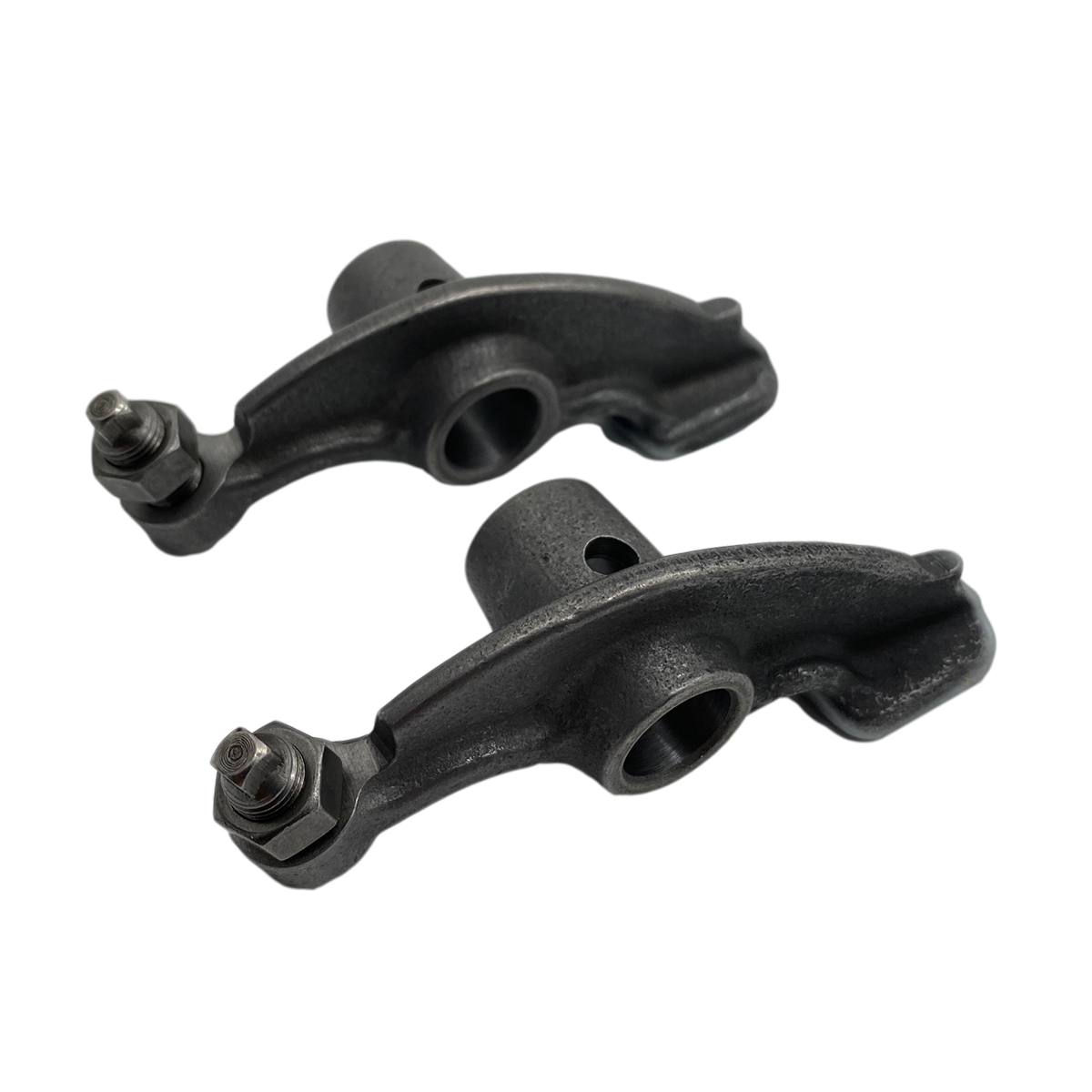

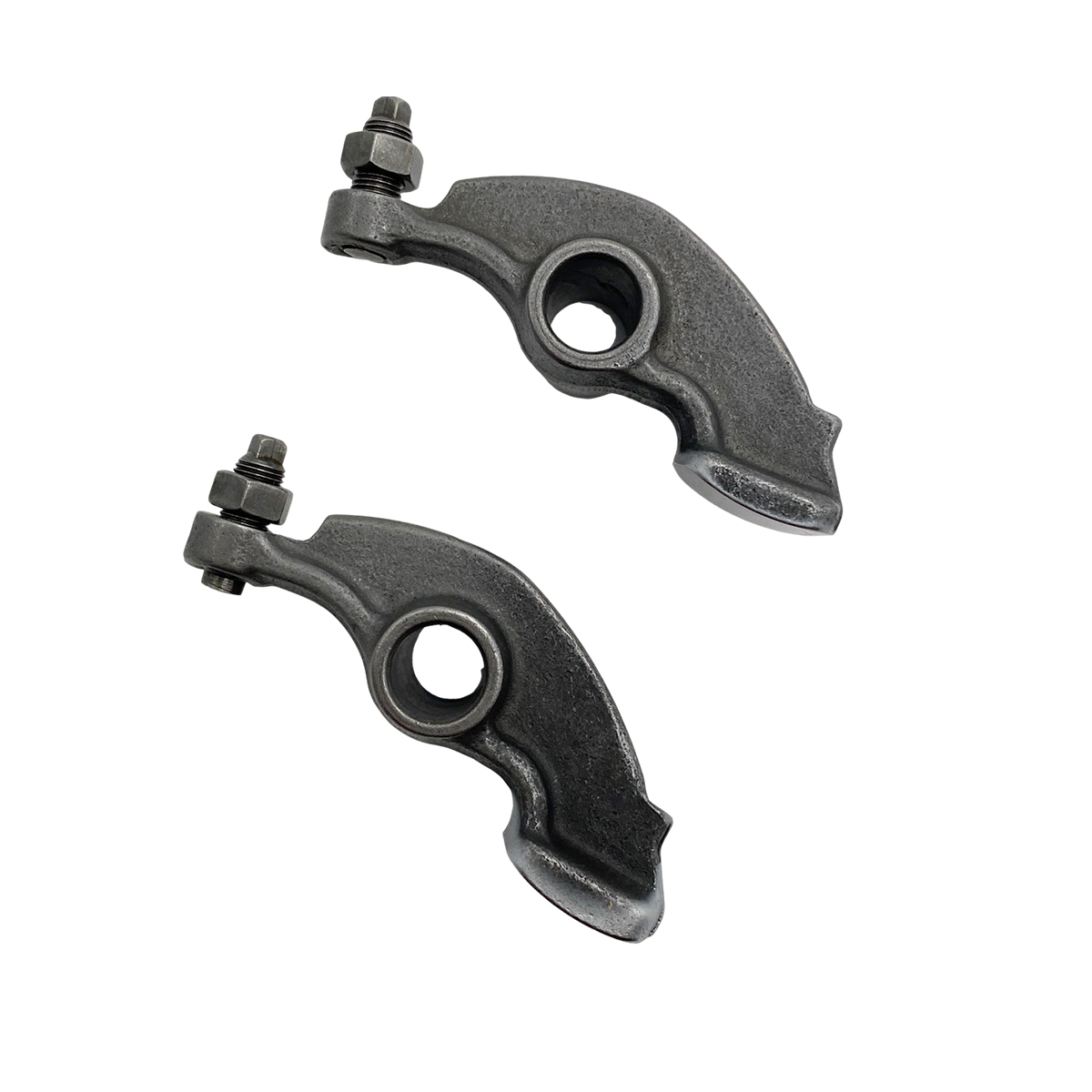

Adjustable Swing Arm Valve Installation Instructions for 500cc ATV and UTV Models

Compatibility:

This adjustable swing arm valve is compatible with various 500cc ATV and UTV models, ensuring a perfect fit for seamless replacement.

Features:

• Enhanced Reliability: The improved design optimizes engine performance and enhances overall vehicle functionality.
• Simple Installation: Detailed installation instructions included for quick replacement without the need for professional tools.
• Durable Materials: Made from high-quality materials to increase durability and corrosion resistance, extending the product's lifespan.
• Versatile Functionality: Can be used for replacement or modification, enhancing vehicle adaptability and driving experience.

Tools Required:

Before you begin the installation process, make sure you have the following tools on hand:

1. Socket Wrench Set: To remove and secure bolts and nuts.
2. Screwdrivers (Flat and Phillips): For various screw types in the assembly.
3. Pliers: For gripping and twisting components as needed.
4. Torque Wrench: To ensure bolts are tightened to manufacturer specifications.
5. Clean Cloth: To wipe any oil or grease off components during installation.
6. Safety Goggles and Gloves: To protect yourself while working on the vehicle.
7. Jack and Jack Stands: To safely elevate the ATV or UTV if needed for access.

Installation Steps:

1. Preparation: Ensure the vehicle is on a flat surface, engage the parking brake, and disconnect the battery to prevent any electrical issues.
2. Remove the Old Valve: Use the socket wrench to remove any bolts securing the old swing arm valve. Carefully take it out.
3. Install the New Valve: Position the new adjustable swing arm valve in place, aligning it with the mounting points.
4. Secure the Valve: Tighten the bolts using the socket wrench. Be sure to use a torque wrench to achieve the correct tightness.
5. Reconnect Any Disconnects: If there were any connections that were disconnected, ensure they are reconnected properly.
6. Check for Leaks: After installation, visually inspect the valve for any signs of leaks or misalignment.
7. Reconnect the Battery: Once installed, reconnect the battery and make sure everything is functioning properly.
8. Test Drive: Take the vehicle for a short test drive to ensure that the new valve is functioning as expected.

Conclusion:

Follow these instructions carefully for a successful installation of your new adjustable swing arm valve. With the right tools and attention to detail, you can enhance your vehicle's performance and extend its lifespan. Enjoy your improved driving experience!
