Installation Instructions for Crankcase Clutch Primary Cover Gasket Kit for Iron Sportster 883 1200 XL883 XL1200 Models (2004-2020)

Tools and Materials Needed:

1. Tools:
   -Torque wrench

   • Socket set (including a 3/8” drive and the appropriate size sockets)
   • Screwdriver set (flathead and Phillips)
   • Allen wrench set
     -Pliers
   • Oil catch pan
     -Clean cloths or rags
   • Gasket scraper or razor blade (optional)
   • Vise grips (optional)

2. Materials:

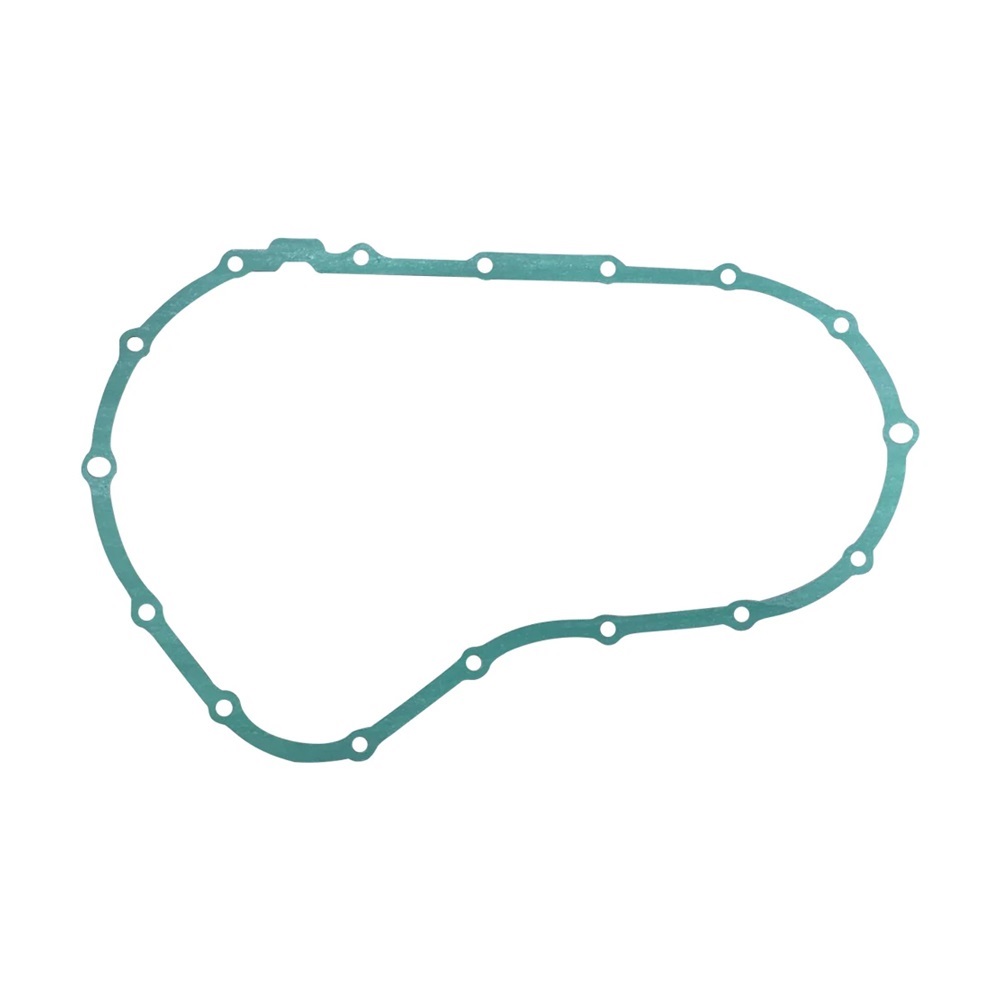

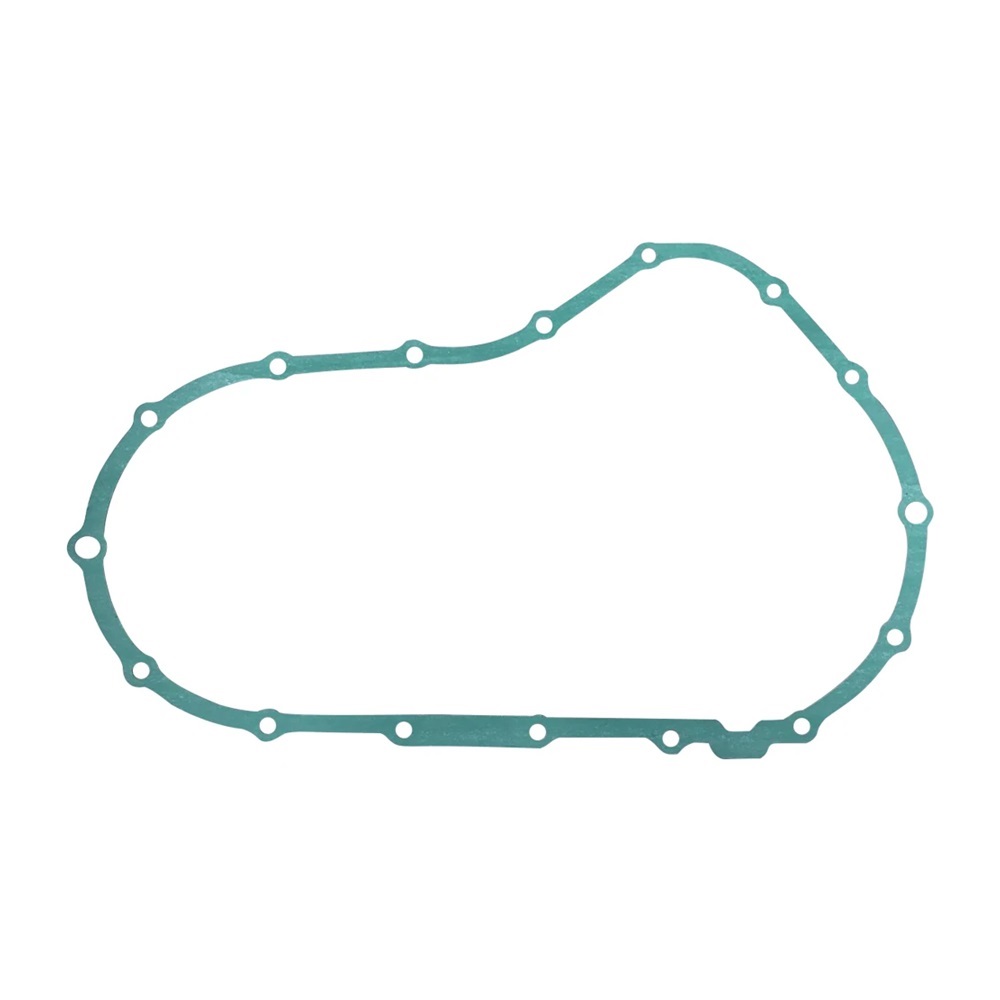

   • New Crankcase Clutch Primary Cover Gasket
   • Engine oil (for refilling)
   • Cleaners (engine degreaser or cleaner parts)

Installation Steps:

1. Prepare the Work Area:

   • Ensure your work area is clean and well-lit.
   • Gather all tools and materials listed above.

2. Drain Engine Oil:

   • Place the oil catch pan under the motorcycle.
   • Remove the oil drain plug and let the engine oil drain completely.

3. Remove the Primary Cover:

   • Use the appropriate screwdriver/allen wrench to remove the bolts securing the primary cover.
   • Carefully lift the primary cover off and set it aside.

4. Remove the Old Gasket:

   • Inspect the old gasket and remove it completely from both the primary cover and the engine case.
   • Use the gasket scraper or a razor blade if necessary, ensuring you do not scratch any surfaces.

5. Clean the Surfaces:

   • Clean the sealing surfaces on both the primary cover and the engine case with a lint-free cloth or rag.
   • Ensure there are no debris or residual material left.

6. Install the New Gasket:

   • Place the new Crankcase Clutch Primary Cover Gasket onto the primary cover or the engine case, making sure it aligns correctly.

7. Reattach the Primary Cover:

   • Carefully position the primary cover back onto the engine case.
   • Hand-tighten the bolts initially, being careful not to overtighten.

8. Torque the Bolts:

   • Using a torque wrench, tighten the bolts to the manufacturer’s recommended specifications, ensuring a proper seal.

9. Refill Engine Oil:

   • Replace the oil drain plug and refill the engine with the recommended type and amount of engine oil.

10. Check for Leaks:

    • Start the motorcycle and let it idle for a few minutes.
    • Inspect the primary cover area for any signs of oil leakage.

Important Tips:

• Always follow the manufacturer's specifications for torque settings.
• If you have any doubts about the installation process, consult a professional mechanic for assistance.

Conclusion:

With the right tools and following these instructions, you should be able to successfully replace your Crankcase Clutch Primary Cover Gasket, improving your motorcycle’s performance and preventing oil leaks. Enjoy your ride!
