Installation Instructions for Air Intake Cleaner for DR650, DR650S, and DR650SE (1996-2020)

Tools Required:

1. Screwdriver set (Flathead and Phillips)
   2.Wrench set
2. Pliers
   4.Clean cloth or rag
3. Vacuum cleaner (optional for cleaning)
4. Safety goggles
   7.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a flat, stable surface.
   • Turn off the ignition and remove the key.
   • Wear safety goggles and gloves to protect yourself.

2. Access the Air Filter:

   • Locate the air filter housing on your DR650 model.
   • Use the appropriate screwdriver or wrench to remove the screws or bolts securing the air filter cover.

3. Remove the Old Air Filter:

   • Carefully take out the old air filter from the housing.
   • If necessary, use a vacuum cleaner or a clean cloth to remove any dust or debris from the air filter compartment.

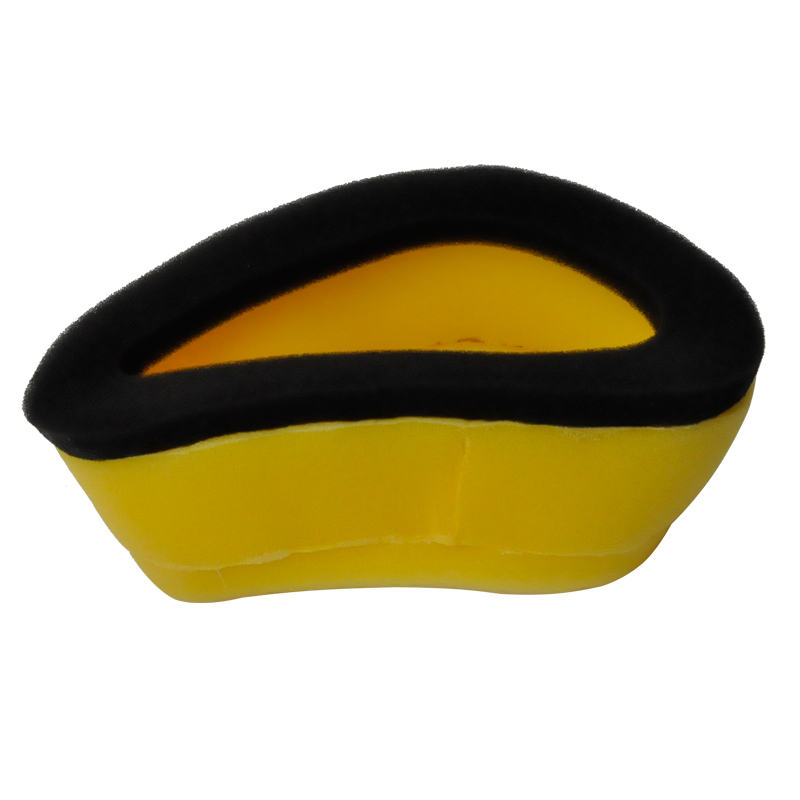

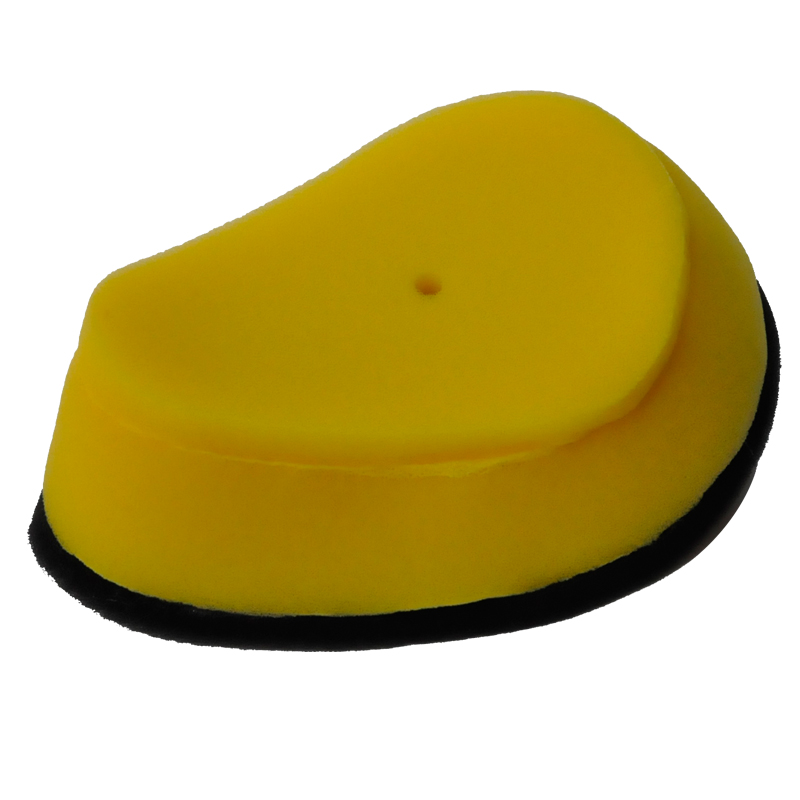

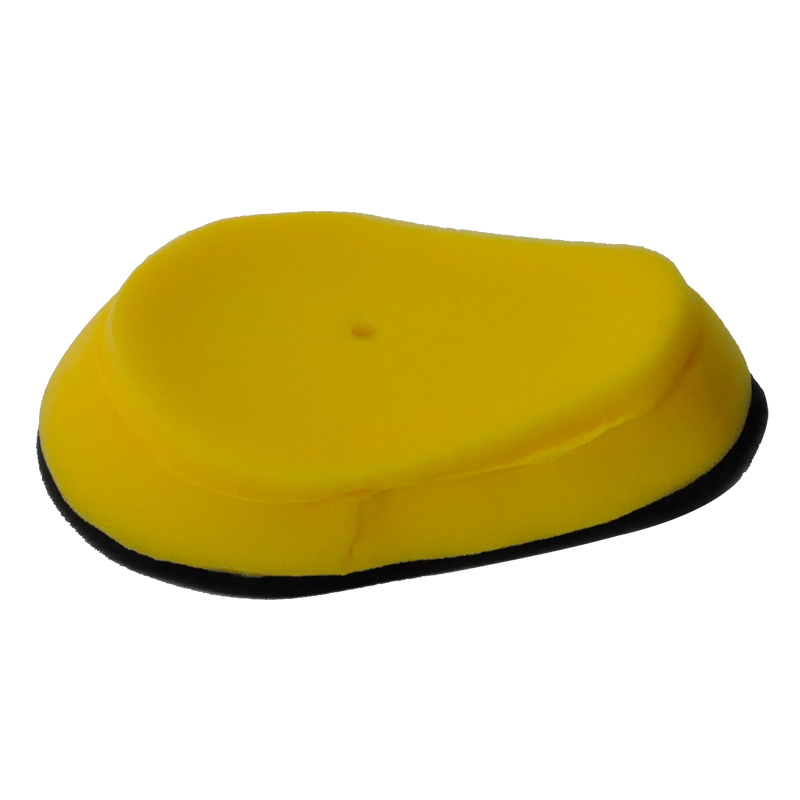

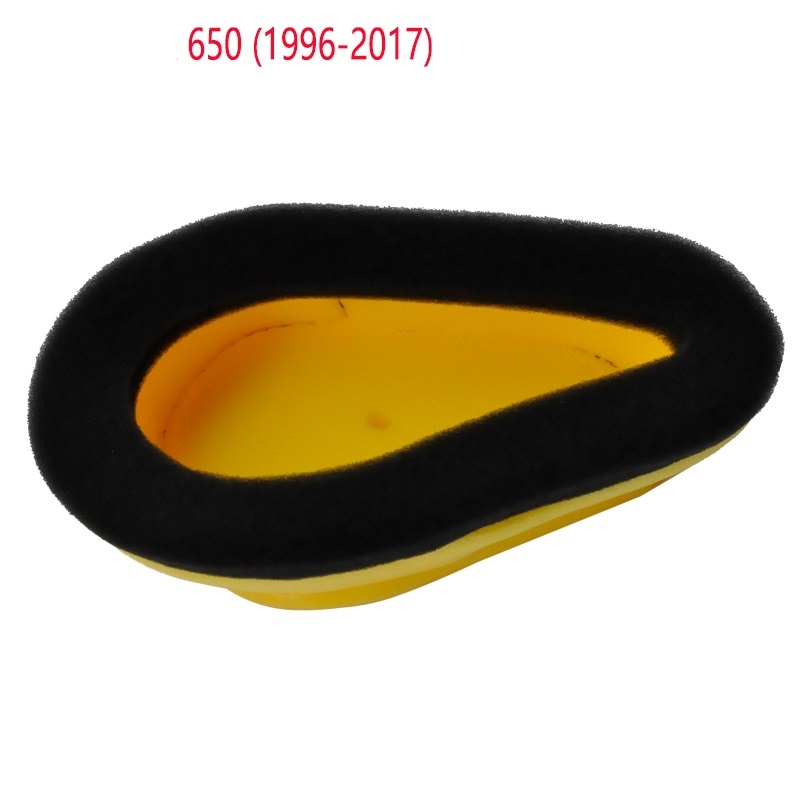

4. Install the Air Intake Cleaner:

   • Place the new air intake cleaner into the housing, ensuring it fits securely and aligns correctly.
   • Make sure there are no gaps around the edges to ensure optimal performance.

5. Reattach the Air Filter Cover:

   • Secure the air filter cover back in place using the screws or bolts you removed earlier.
   • Tighten firmly but do not overtighten, as this could damage the housing or the new air intake cleaner.

6. Final Checks:

   • Inspect the installation to ensure everything is in place.
   • Check for any loose screws or components.
   • Reconnect any components that may have been disconnected during installation.

7. Test Ride:

   • Start the motorcycle and let it idle for a few moments.
   • Take a short test ride to ensure that the motorcycle is running smoothly and that you notice improved performance.

By following these steps, you can successfully install the Air Intake Cleaner for your DR650, DR650S, or DR650SE motorcycle, ensuring enhanced performance and efficiency. Enjoy your ride!
