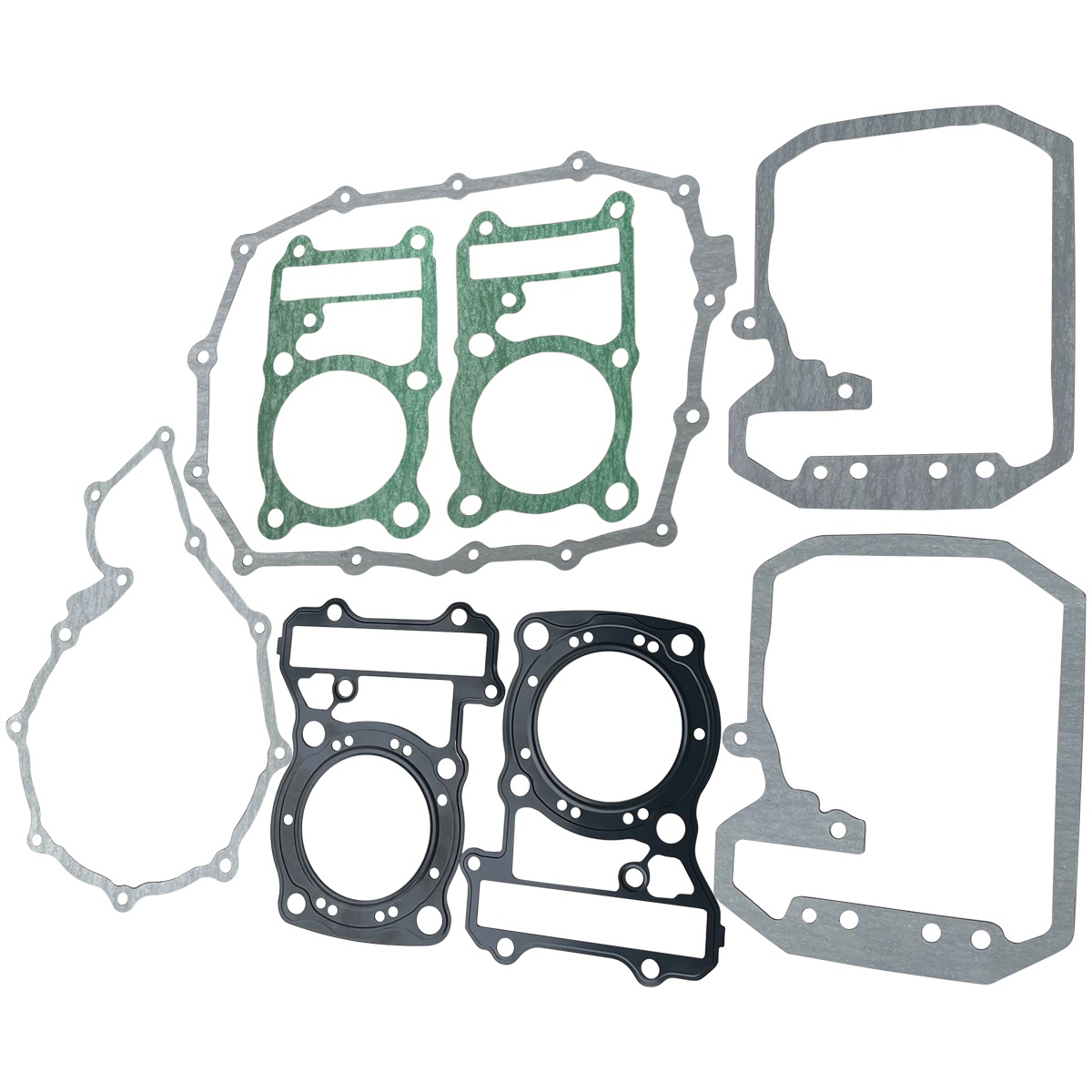

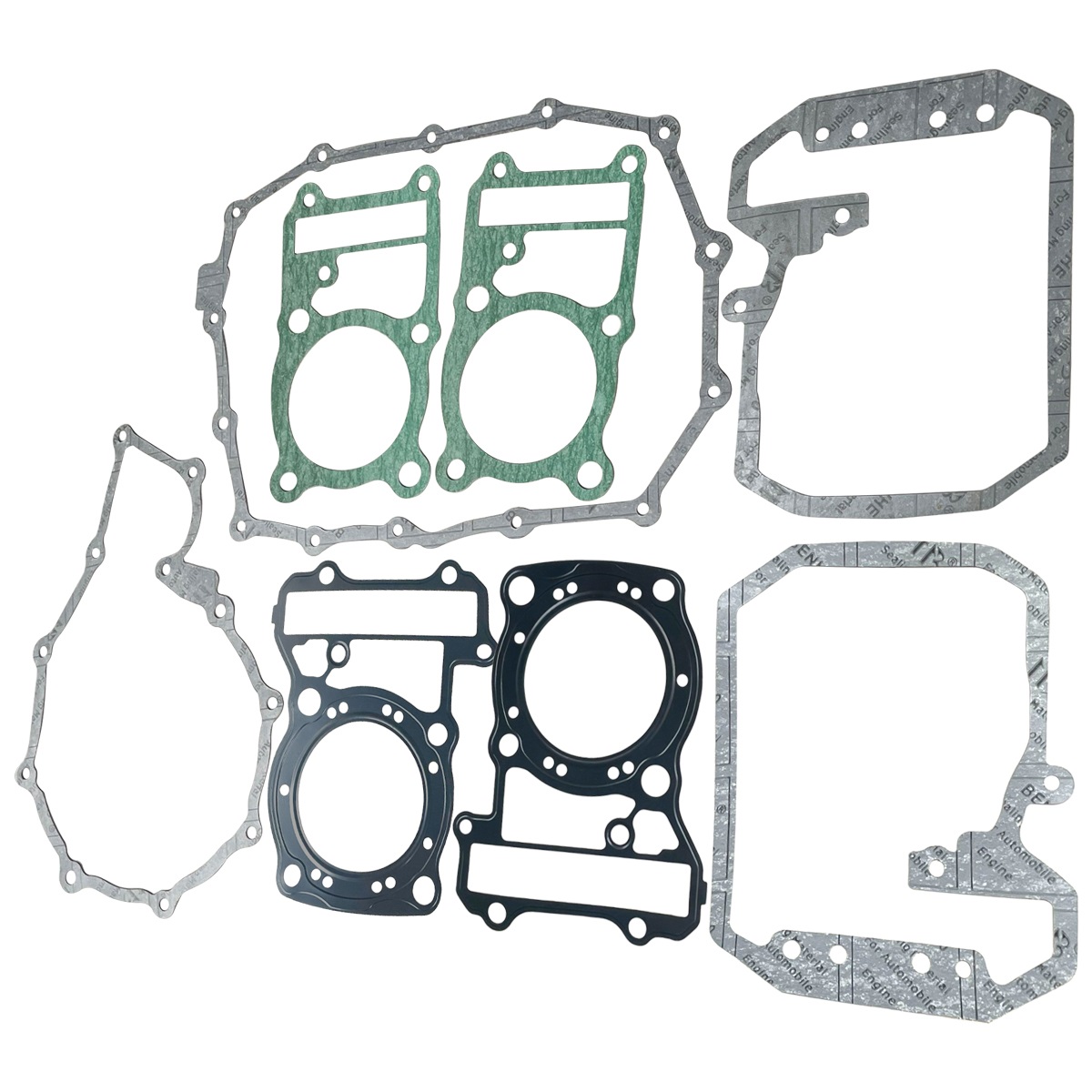

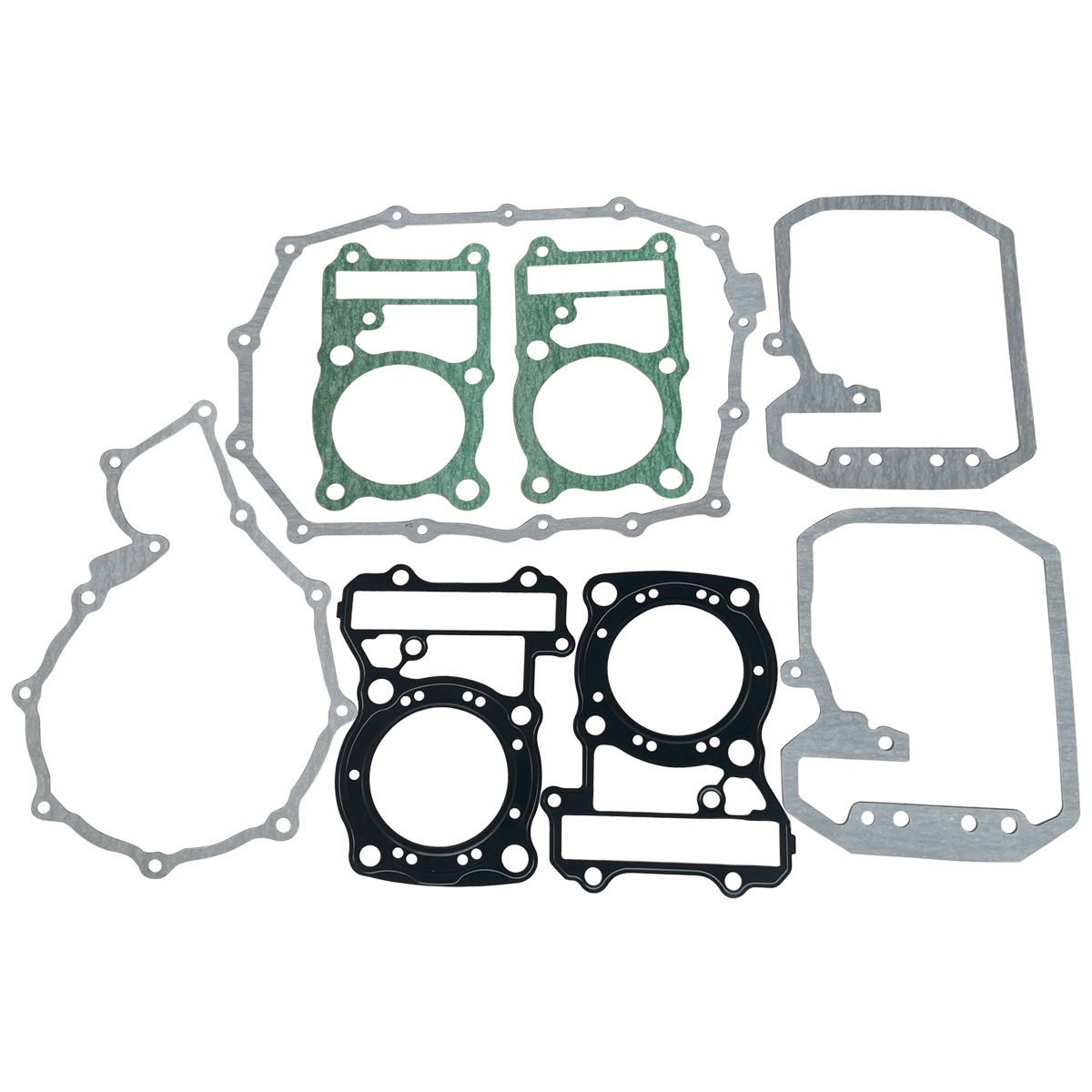

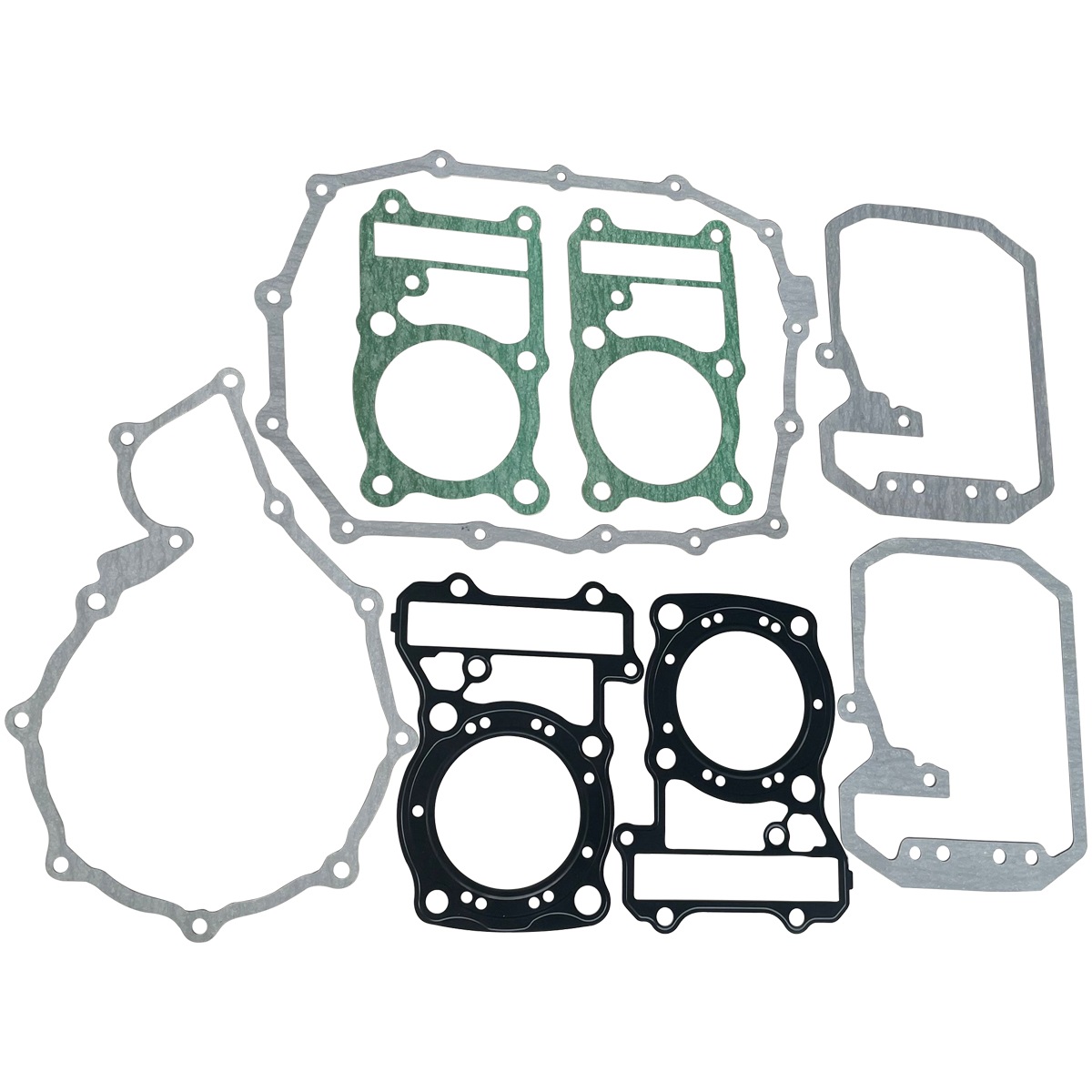

Installation Instructions for Engine Crankcase Clutch Covers Cylinder Gasket Set for XL600V Transalp 600 (1987-1988)

Tools Required:

1. Socket Set: A complete socket set including various sizes to accommodate different fasteners.
2. Torque Wrench: To ensure that all bolts are tightened to the manufacturer’s specifications.
3. Screwdriver Set: Both flathead and Phillips screwdrivers for various screws on the cover.
4. Pliers: For gripping and manipulating any components that may be difficult to handle by hand.
5. Gasket Scraper: To remove old gasket material and ensure a clean surface for the new gasket.
6. Cleaning Cloths: For cleaning surfaces and removing any debris or oil.
7. Sealant (if necessary): Depending on the manufacturer's recommendations, a high-quality sealant may be required for added protection.
8. Safety Goggles: To protect your eyes while working with tools and materials.
9. Gloves: To keep your hands clean and protect them from sharp edges.

Installation Steps:

1. Preparation:

   • Make sure the motorcycle is on a stable surface and the ignition is turned off.
   • Disconnect the battery to ensure safety during the installation process.

2. Remove the Old Components:

   • Use the socket set and screwdrivers to remove the existing clutch cover and old gasket.
   • Carefully scrape away any remnants of the old gasket material on both the engine and the cover.

3. Clean the Surfaces:

   • Clean the mating surfaces on the engine and the cover thoroughly with a cleaning cloth to ensure a proper seal.

4. Installation of New Gasket:

   • Lay the new cylinder gasket in place, aligning it with the holes and grooves in the crankcase.

5. Attach the New Clutch Cover:

   • Position the new crankcase clutch cover over the gasket and align it with the screw holes.
   • Start inserting the screws by hand to avoid cross-threading and then tighten them sequentially using the socket set.

6. Torque Specifications:

   • Use the torque wrench to tighten all bolts to the specified torque settings provided in the motorcycle's service manual.

7. Final Checks:

   • Once all components are installed and torqued to specifications, reconnect the battery.
   • Start the engine and check for any leaks around the installed components.

8. Safety Check:

   • Ensure everything is securely fastened and that you have cleaned up any tools or debris from the installation area.

Congratulations on successfully installing your new Engine Crankcase Clutch Covers Cylinder Gasket Set! Enjoy the enhanced performance and protection for your XL600V Transalp 600.
