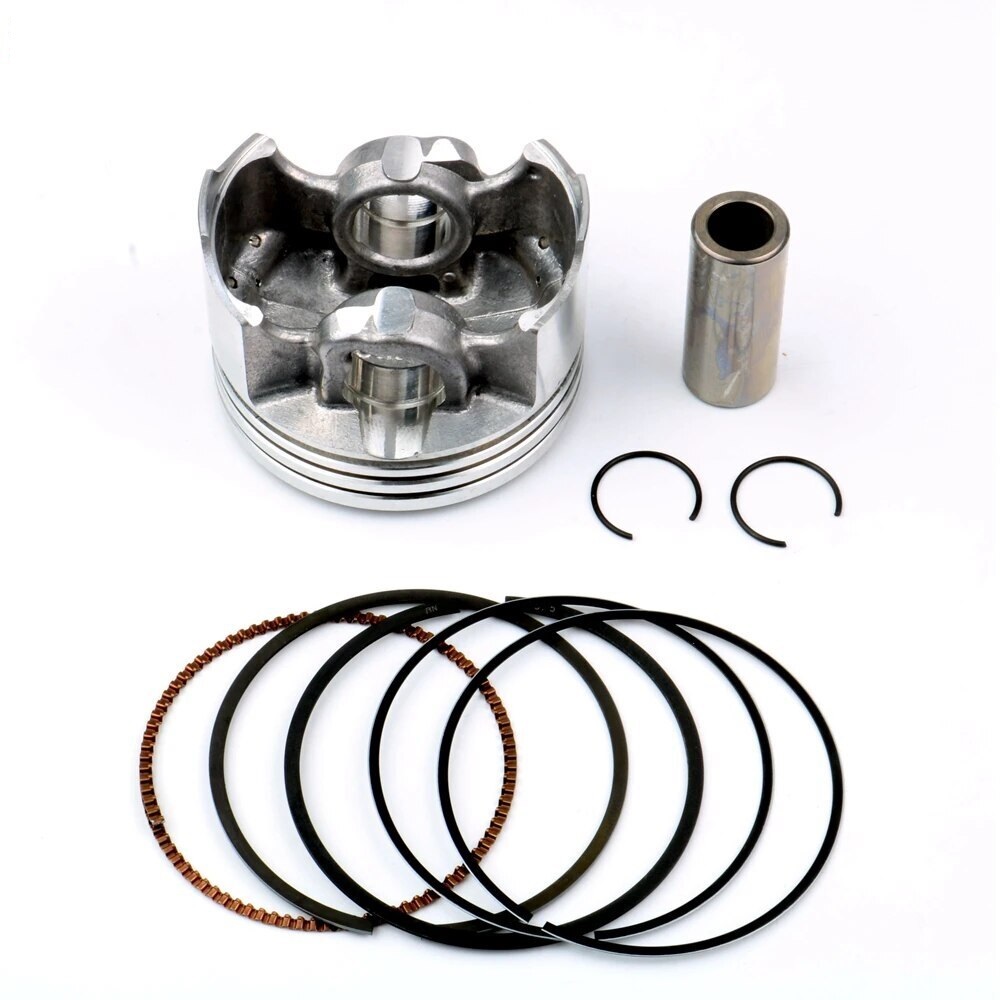

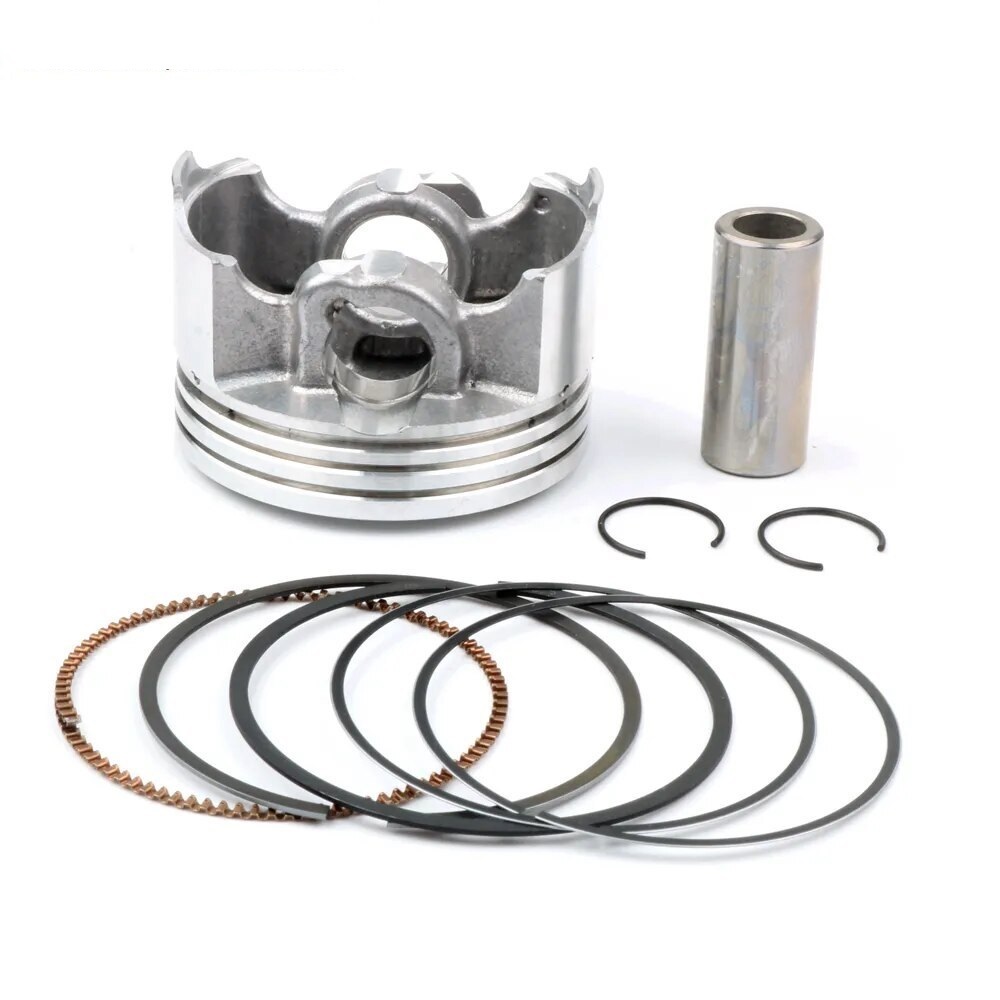

Performance Piston Kit Installation Instructions

Tools Required:

1. Socket Set (including metric sockets)
2. Torque Wrench
3. Piston Ring Compressor
4. Wrench Set
5. Screwdrivers (flathead and Phillips)
6. Pliers
7. Bike Stand or Lift (for better access)
8. Oil Pan (to catch any engine oil)
9. Clean Rags or Paper Towels (for cleaning)
10. Engine Assembly Lubricant
11. Gasket Scraper (if needed)
12. Safety Goggles and Gloves (for personal protection)

Installation Steps:

1. Preparation:

   • Ensure you have all the necessary tools and parts ready before starting.
   • Work in a clean, dry area to avoid dirt contamination.

2. Disassemble Engine:

   • Remove the bike's seat and any body panels necessary to access the engine.
   • Drain the engine oil using an oil pan and remove any external components that may obstruct access to the head.

3. Remove Cylinder Head:

   • Use the socket set to remove the cylinder head bolts.
   • Carefully lift the cylinder head off the engine.

4. Remove Old Piston:

   • If applicable, take off the cylinder and disconnect the piston from the connecting rod by removing the wrist pin.
   • Remove the old piston rings and take note of the arrangement.

5. Install New Piston:

   • Apply a light coat of engine assembly lubricant on the new piston and rings.
   • Install the piston rings onto the new piston, ensuring they are properly seated.
   • Use the piston ring compressor to carefully install the new piston into the cylinder.

6. Reassemble Engine:

   • Place the cylinder back over the new piston and secure it with bolts, tightening to the manufacturer's specifications using a torque wrench.
   • Reinstall the cylinder head, ensuring the gasket is in place and torque the bolts to specification.

7. Final Assembly:

   • Reattach any external components you removed, including wiring harnesses and intake/exhaust connections.
   • Fill the engine with new oil, making sure to check levels.

8. Testing:

   • Start the engine and allow it to warm up. Monitor for any unusual noises or leaks.
   • Take the vehicle for a short test ride to ensure everything is functioning properly.

Safety Precautions:

• Always wear safety goggles and gloves when working on the engine.
• Make sure the engine is off and cool before beginning any disassembly.

By following these steps carefully and using the right tools, you can successfully install the Performance Piston Kit, enhancing your engine's performance for a better riding experience.
