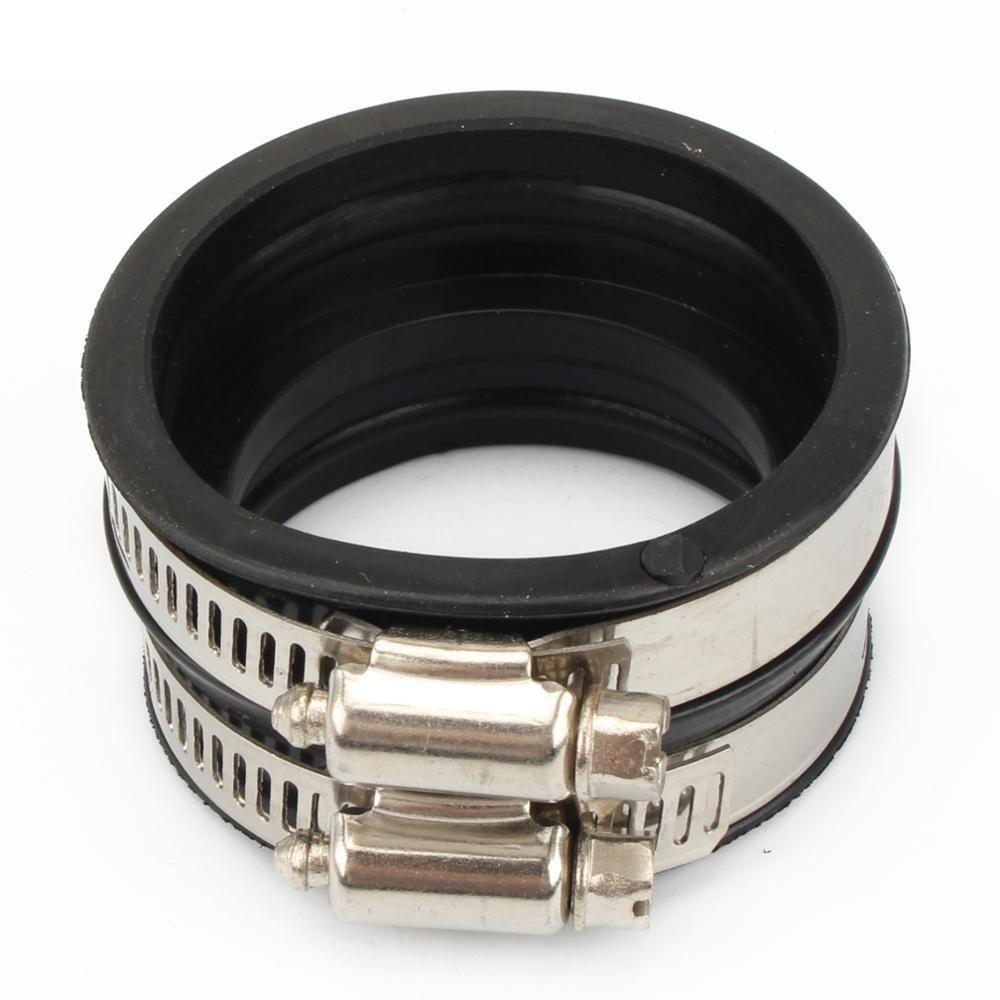

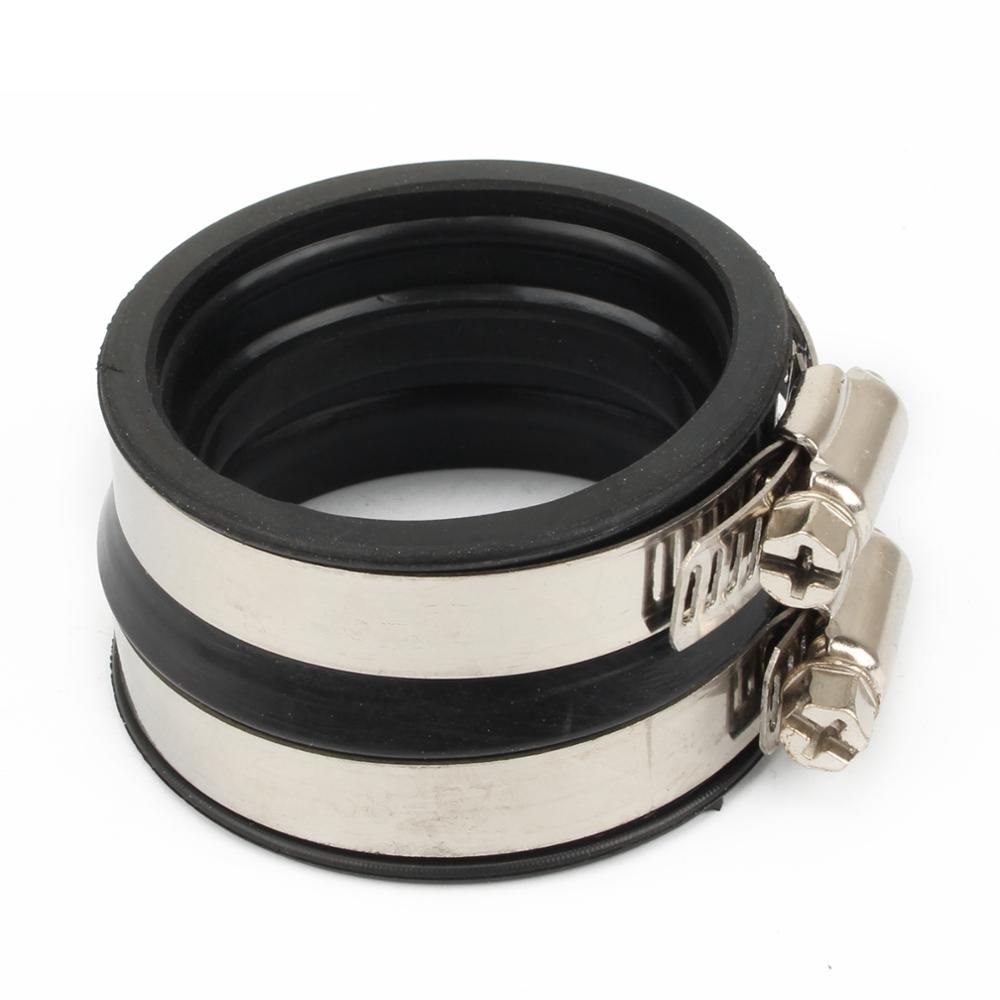

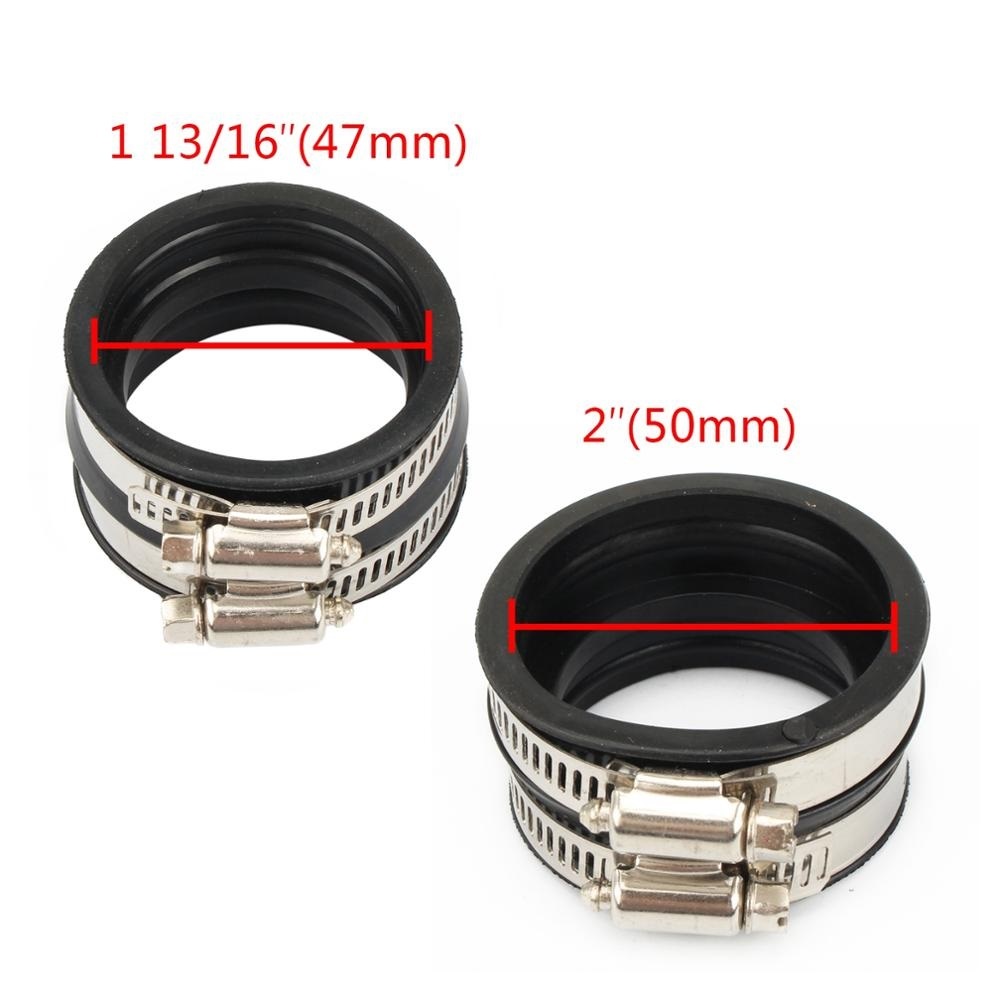

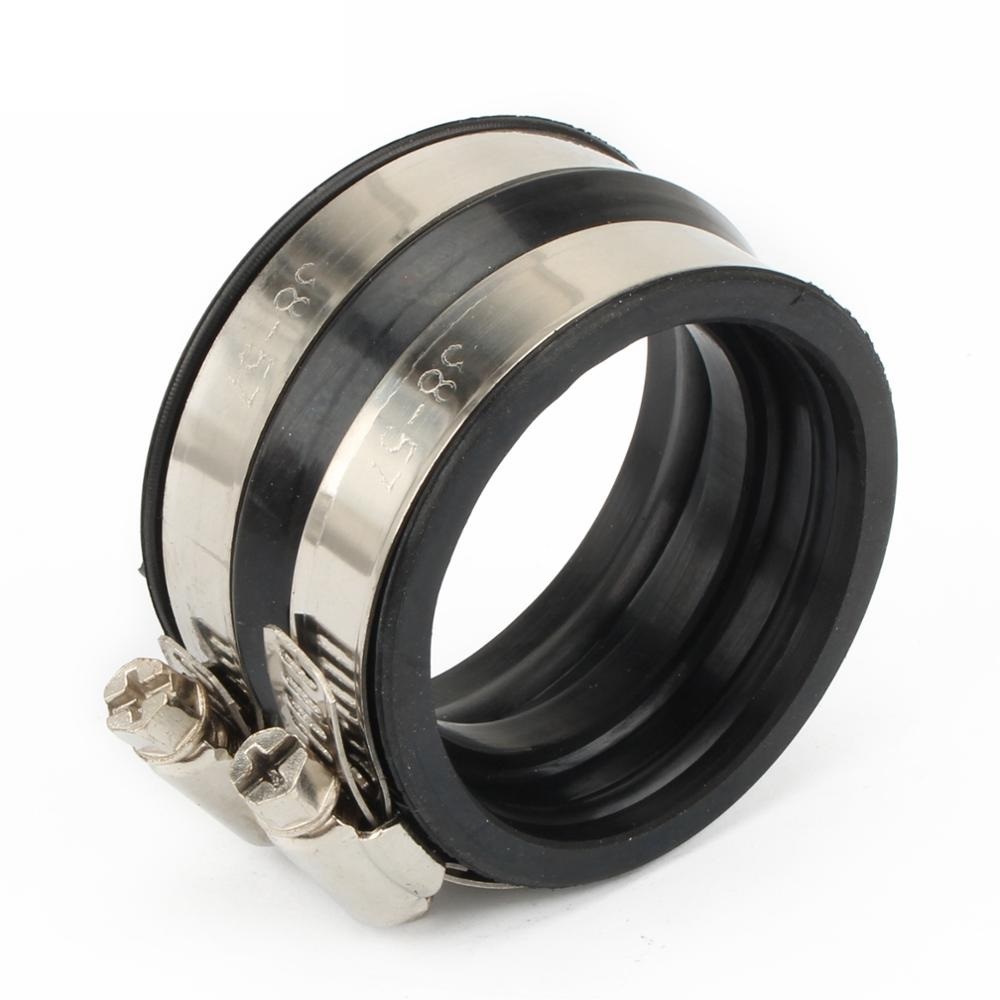

Installation Instructions for Motorcycle Carburetor Intake Manifold

Compatibility:

Designed specifically for the DS 650 models from 2000 to 2007 and BA JA models from 2002 to 2004 to ensure a perfect fit.

Performance Enhancement:

This intake manifold improves airflow and boosts engine performance, providing a smoother riding experience.

Durability and Reliability:

Manufactured from high-quality materials, offering excellent corrosion and wear resistance to prolong its lifespan.

Easy Installation:

All necessary components are included, along with installation instructions, allowing users to complete the process easily without the need for professional tools.

Maintenance Made Simple:

Designed for easy cleaning and maintenance to help maintain optimal operating conditions and extend the overall life of the system.

Tools Required for Installation:

1. Socket Set - for removing and tightening bolts and nuts.
2. Wrenches - to assist with fastening any tight spaces.
3. Screwdrivers - flat and Phillips head for adjusting clamps and fittings.
4. Pliers - for handling any small parts or hose clamps.
5. Torque Wrench - to ensure bolts are tightened to the manufacturer’s specifications.
6. Rags - for cleaning surfaces during installation.
7. Safety Goggles - to protect your eyes from debris during installation.
8. Gloves - to keep your hands clean and protect against sharp edges.
9. Cleaning Solution - for cleaning the surfaces of the carburetor and intake manifold.

Installation Steps:

1. Prepare the Motorcycle: Ensure the bike is on a stable surface and the engine is cool. Disconnect the battery.
2. Remove the Old Intake Manifold:
   • Use the socket set and wrenches to loosen and remove any bolts or screws securing the existing manifold.
   • Carefully detach the old manifold and clean the attachment surfaces.
3. Install the New Intake Manifold:
   • Position the new manifold in place and secure it with the provided bolts, referring to the torque specifications in the manual.
4. Reconnect Other Components:
   • Reattach any hoses or cables that were disconnected during the removal process.
5. Final Checks:
   • Ensure all connections are tight and there are no loose parts.
6. Reconnect the Battery:
   • After everything is securely in place, reconnect the motorcycle battery.
7. Test Ride:
   • Start the engine and take the motorcycle for a short test ride to ensure everything is functioning properly.

By following these instructions and utilizing the required tools, you can successfully install the Motorcycle Carburetor Intake Manifold and enjoy enhanced performance from your vehicle.
