Throttle Choke Cable Installation Instructions

Product Overview:

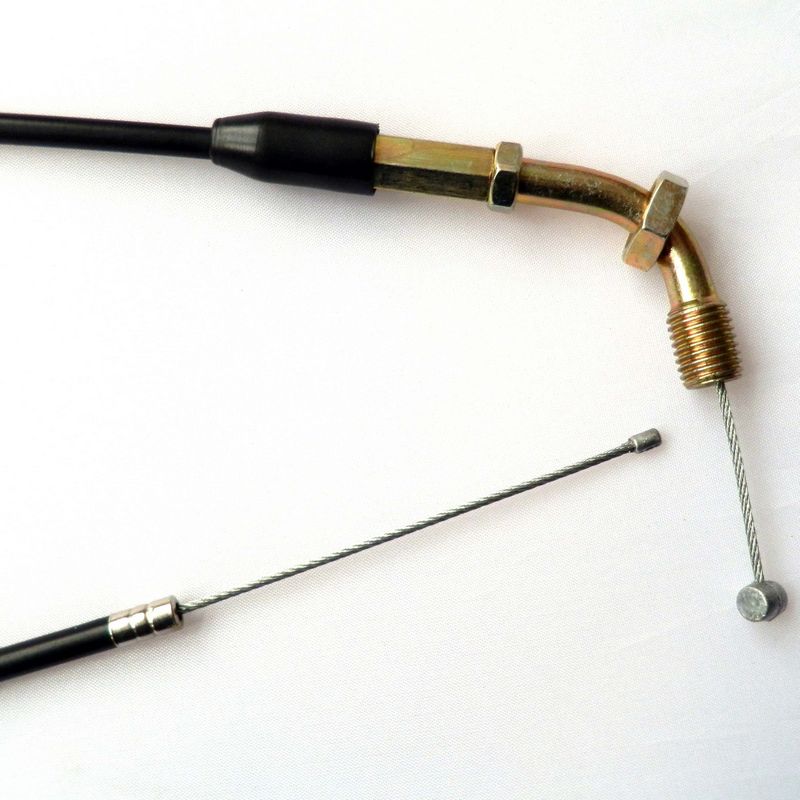

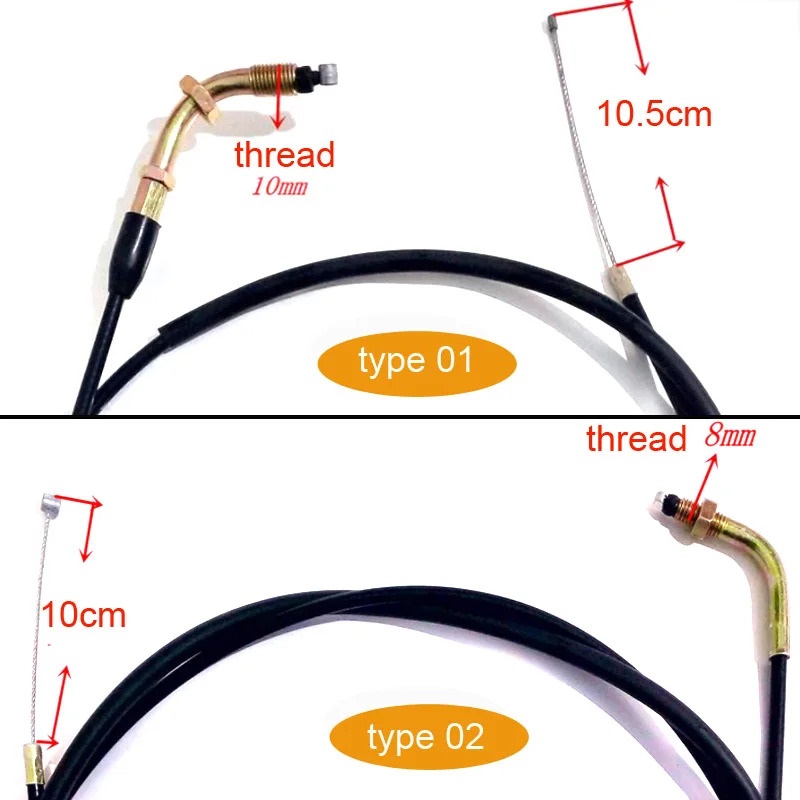

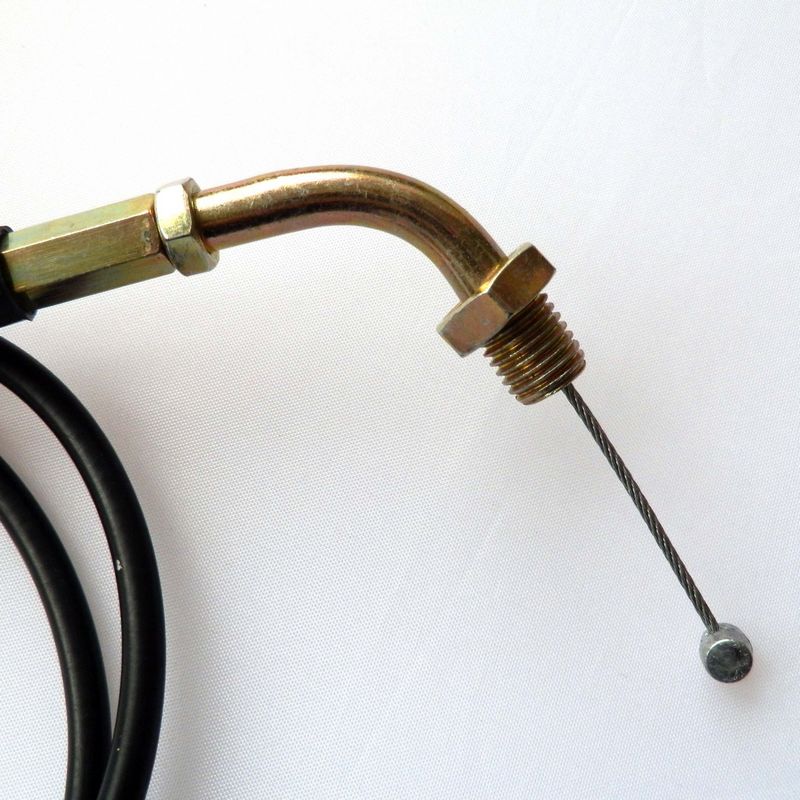

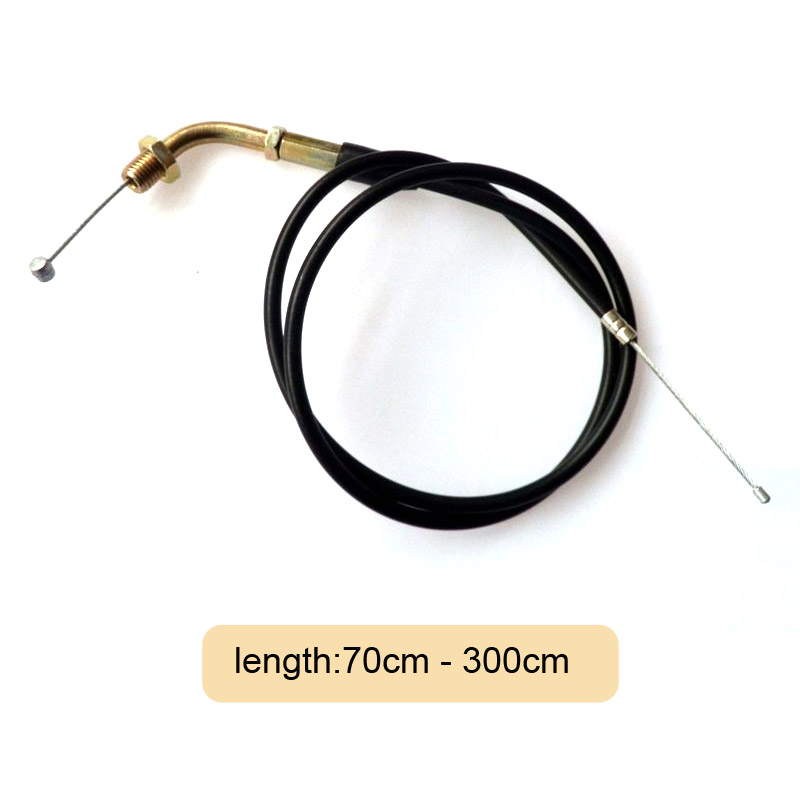

This universal throttle and choke cable is designed for 50cc to 125cc dirt bikes and ATVs. With an adjustable length ranging from 70cm to 300cm, it is compatible with a variety of models and brands, ensuring a perfect fit.

Tools Required:

1. Screwdriver Set: Flathead and Phillips screwdrivers for removing and securing screws.
2. Wrench Set: To adjust any bolts or nuts during installation.
3. Wire Cutters: For trimming the cable to the desired length if necessary.
4. Measuring Tape: To measure the required length before cutting.
5. Pliers: Useful for gripping and securing connections.
6. Cable Ties: To organize and secure the cable as needed during installation.

Installation Steps:

1. Preparation:

   • Gather all the necessary tools listed above.
   • Ensure the motorcycle or ATV is parked on a flat surface and turned off.

2. Remove Existing Cable:

   • Using the screwdriver, remove any screws or fasteners securing the old throttle or choke cable.
   • Carefully disconnect the cable from the throttle assembly and the carburetor.

3. Measure and Cut:

   • Measure the length needed for your specific installation using the measuring tape.
   • If your installation requires a length between 70cm and 300cm, use the wire cutters to trim the cable accordingly.

4. Attach the New Cable:

   • Feed the new throttle choke cable through the designated housing or bracket.
   • Connect one end of the cable to the throttle assembly and the other end to the carburetor.
   • Ensure both ends are securely attached.

5. Adjust Length and Tension:

   • Make any necessary adjustments to the cable length and tension to ensure proper functionality.
   • Use the wrench to tighten any bolts or nuts as needed.

6. Test Functionality:

   • Before finalizing the installation, test the throttle and choke functions to ensure they operate smoothly.
   • Make additional adjustments if necessary.

7. Secure the Cable:

   • Use the cable ties to organize and secure the cable in place, preventing any movement that could cause damage.

8. Final Check:

   • Perform a final inspection to make sure all connections are secure and the cable is properly installed.

Conclusion:
Following these steps will help ensure a successful installation of your new throttle choke cable. If at any point you feel uncertain about the installation process, seek assistance from a professional mechanic. Enjoy your ride!
