Installation Instructions for 102mm ATV Piston Kit for 660cc Motors

Introduction

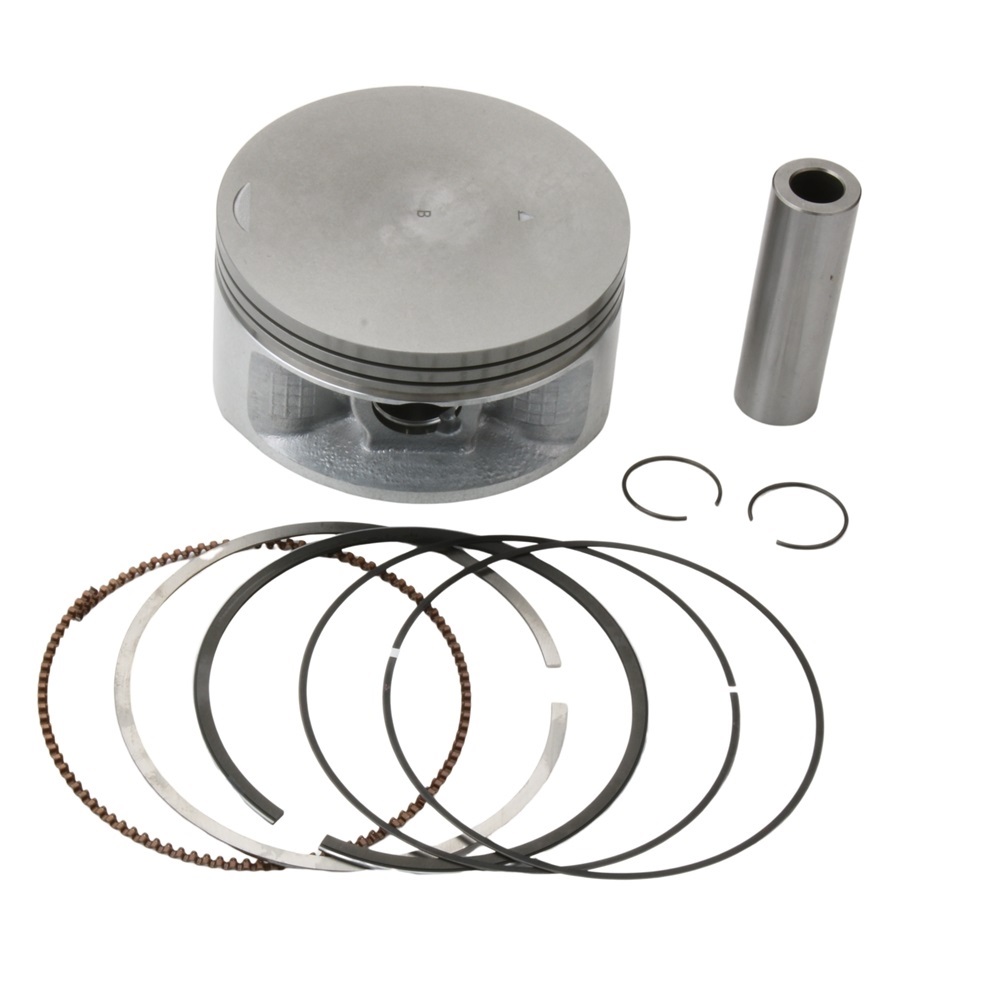

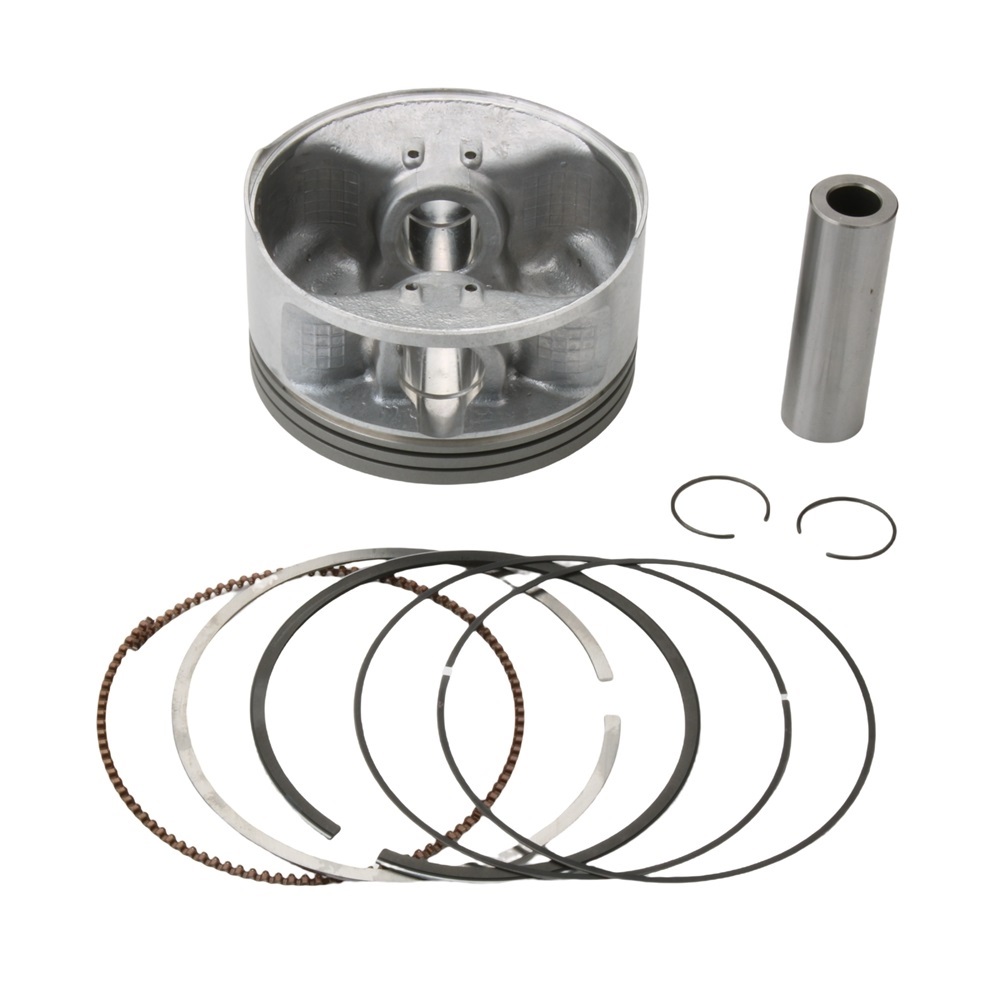

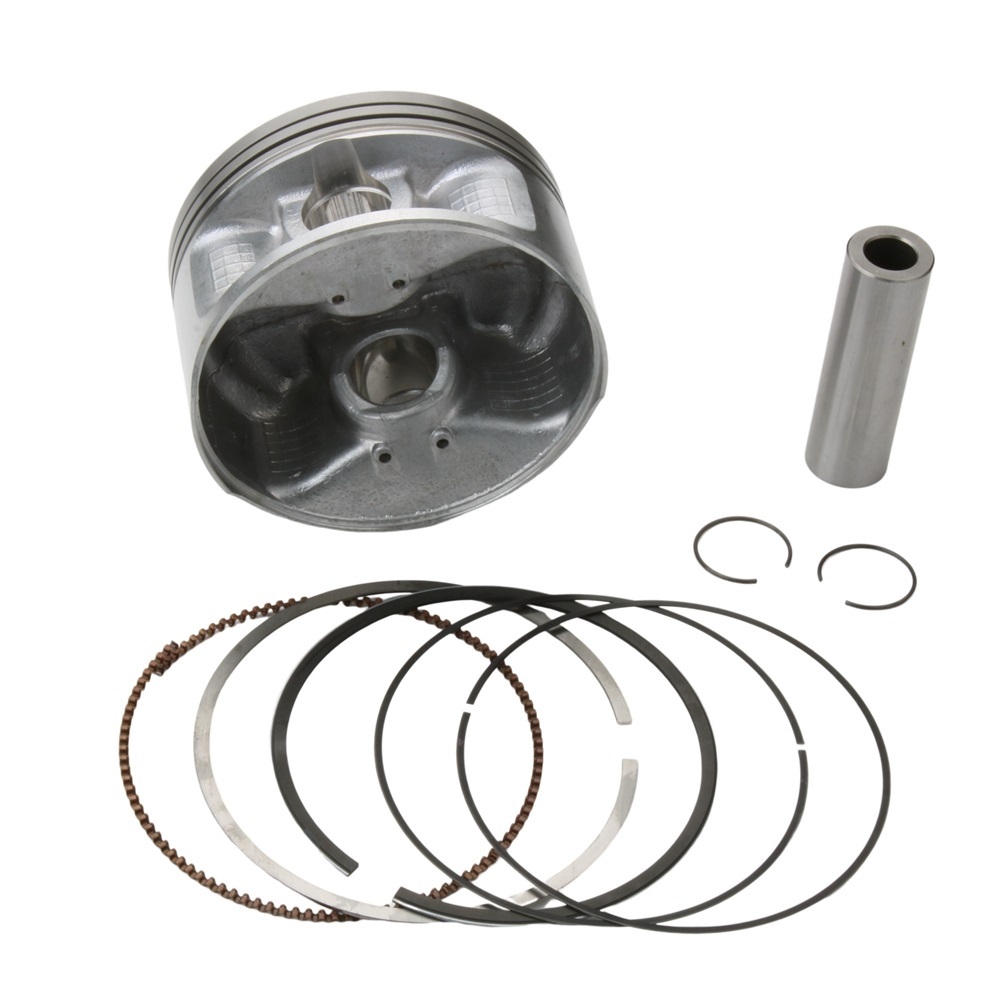

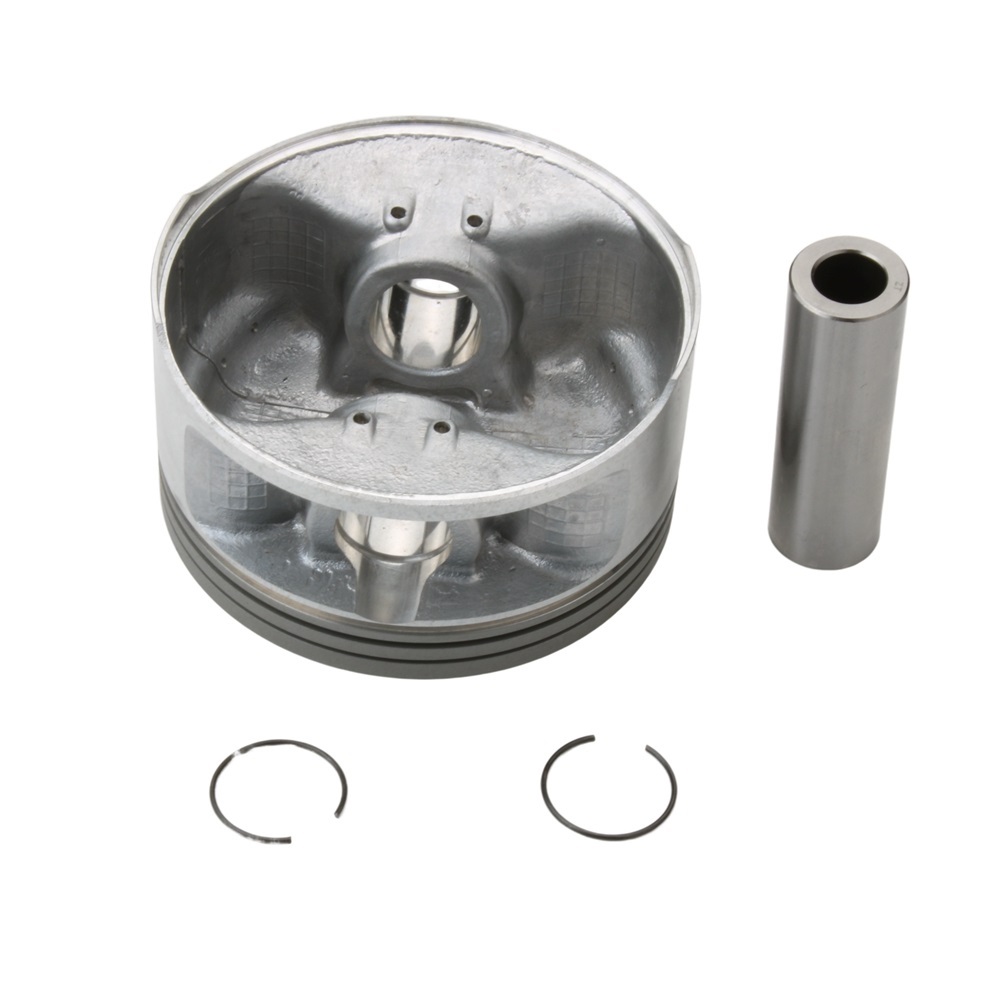

The 102mm ATV Piston Kit is designed specifically for 660cc motors such as YFM660, YXR660F Rhino, and YFM660R. This kit ensures a perfect match with part numbers 2C61163100X0 and 2C61160310, providing superior power output and performance enhancement while optimizing engine efficiency.

Tools and Materials Required

To successfully install the piston kit, please prepare the following tools and materials:

1. Tools:
   -Socket Set
   -Torque Wrench

   • Piston Ring Compressor
   • Screwdrivers (Flathead and Phillips)
     -Pliers
   • Adjustable Wrench
   • Engine Oil
     -Clean Rags
   • Piston Pin Installer Tool (optional)

2. Materials:

   • 102mm ATV Piston Kit for 660cc Motors
   • Gasket Set (if needed)
   • Engine Assembly Lubricant
   • Anti-Seize Compound (optional)

Installation Steps

1. Preparation:

   • Make sure your ATV is on a stable surface and the engine is cool.
   • Disconnect the battery to avoid any electrical issues.
   • Remove any body panels or parts obstructing access to the engine.

2. Disassembly:

   • Drain the engine oil from the crankcase.
   • Remove the cylinder head bolts and carefully lift the cylinder head off.
   • Remove the old piston by detaching the connecting rod. Use the piston ring compressor to help remove the piston rings.

3. Inspection:

   • Clean the cylinder walls and inspect for any damage or wear.
   • Check the connecting rod and crankshaft for any signs of wear or damage.

4. Installation of New Piston:

   • Apply engine oil to the new piston and piston rings for lubrication.

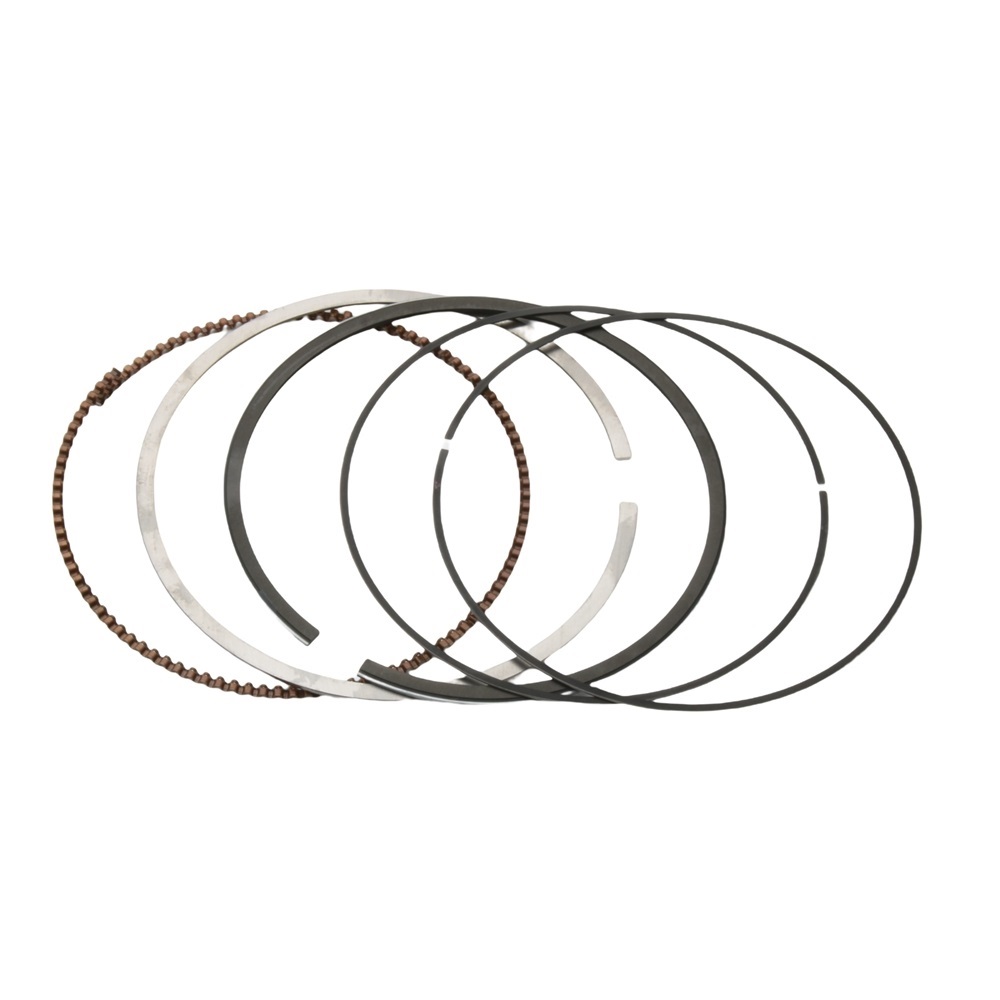

   • Carefully install the piston rings into the new piston, ensuring they are seated properly.
   • Use the piston ring compressor to help install the new piston into the cylinder.

5. Reassembly:

   • Reattach the connecting rod to the new piston.
   • Place the cylinder head back and secure it by tightening the bolts to the manufacturer’s specified torque settings.
   • Reinstall any body panels or components that were removed.

6. Final Steps:

   • Refill the engine with the appropriate engine oil.
   • Reconnect the battery.
   • Start the engine and check for any leaks or unusual noises.

Conclusion

The installation of the 102mm ATV Piston Kit for 660cc motors is straightforward with the right tools and patience. Always make sure to follow the manufacturer’s specifications for torque settings and assembly procedures to ensure reliable and optimal performance. Enjoy your enhanced riding experience!
